Week 7-12-Creation of 1D Connectors Challenge

Aim
1.To Mesh the Given component
2.Create connectors

Procedure:
Step 1

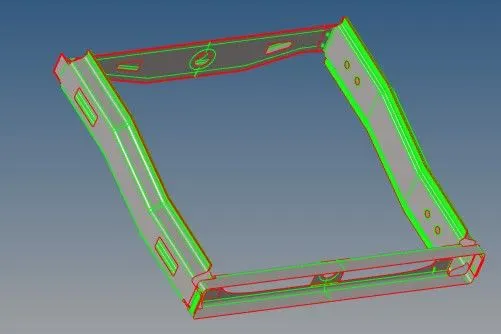

Import geomentry

Meshing
step 1

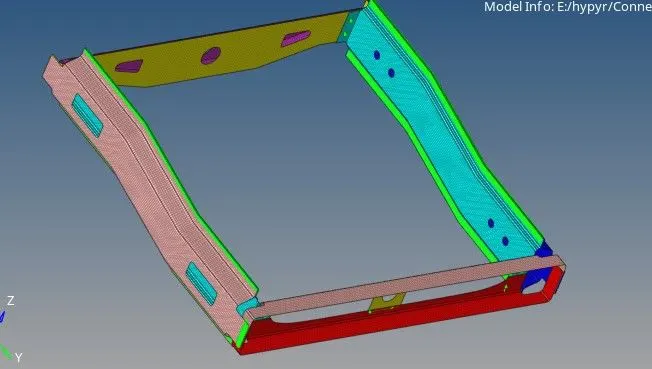

Automesh the given componet with given quality criteria

Connectors
step 1

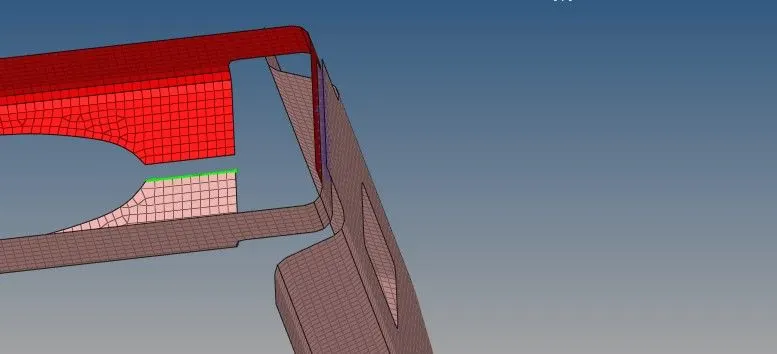

Different connectors are used to connect the element as shown below

seam, weld,hexa adhesive ,spot weld ,bolt,rgid,spring

step 2

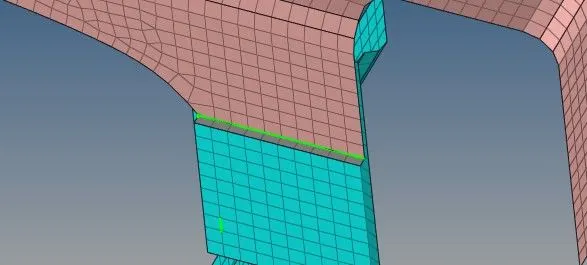

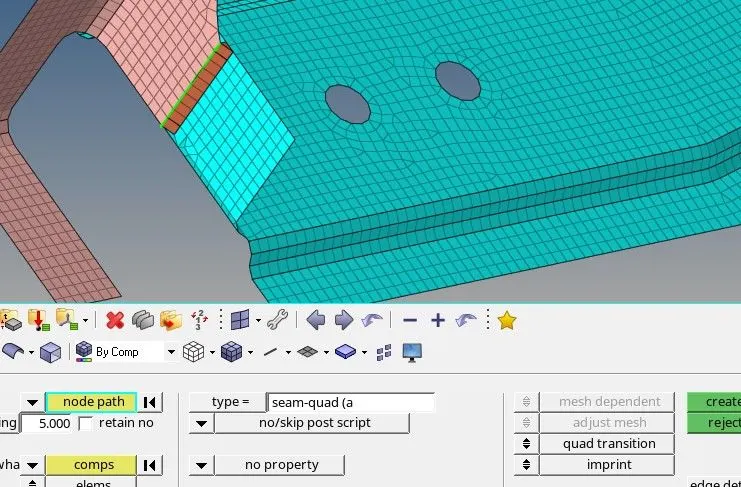

Seam with quad connectores

step 3

spot connectores

Similarly all other connectores also used to connect element

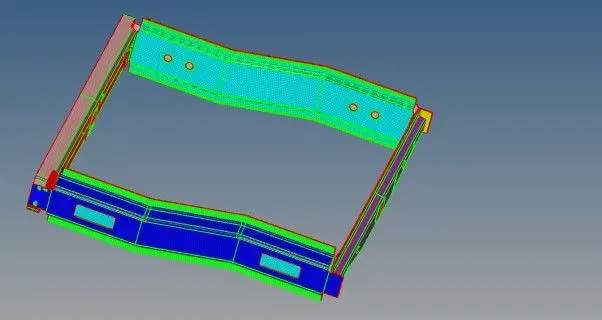

Final Result With all connectores as shown below
