Week 6-Meshing of Hood Challenge

Answer:-

Procedure:

1.Import the model.

2. Set or Change from auto to By Topo mode.

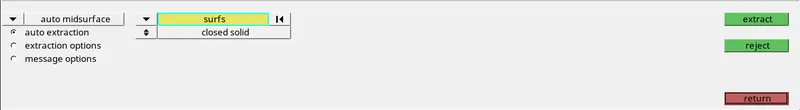

3. Now Extract the midsurface by selecting midsurface from geometry.

4. Then select extraction points and select Skin offset and select displayed surfaces and extract miodsurface.

5. Now Divide the geometry symetrically into 2 halves.

6.Later delete the half part of geometry.

7.Now work on geometry cleanup.

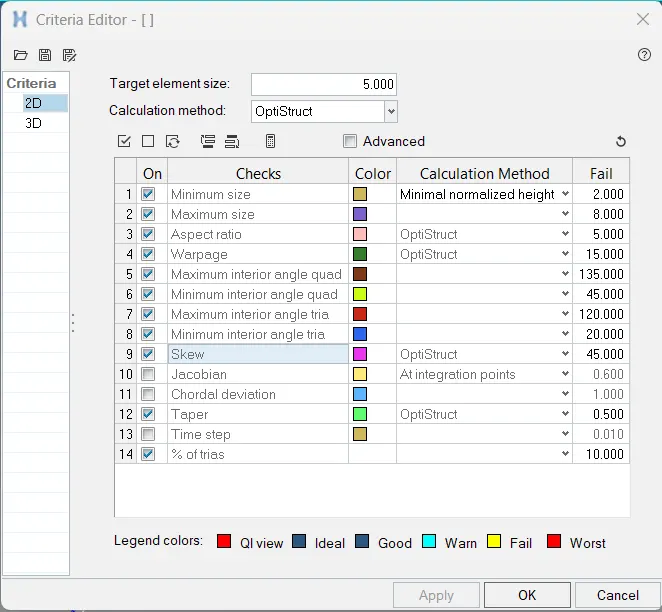

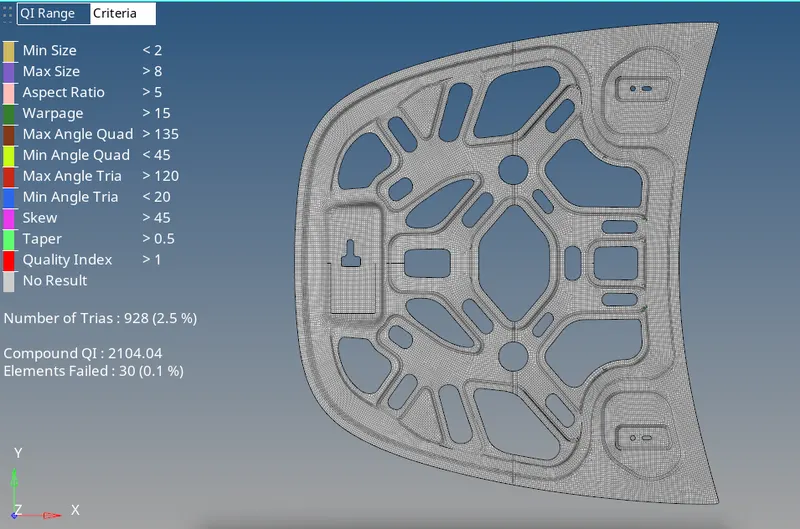

8.From preferneces select criteria file settings and give the values as per given question(Check the box and asign values.

9. Then toggle some edges and do necessary geometry cleanup.

10.Commands used in geomtry cleanup:

i.toggle edge.

ii. Split node surf.

iii.
