Week 6-Meshing of Hood Challenge

Objective:

To mesh the given hood model with satifying the given quality criteria.

Procedure:

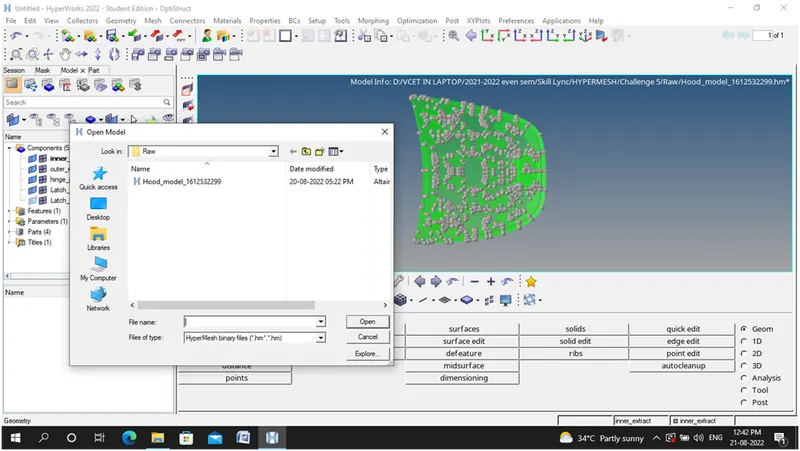

Step 1: File-Open Model

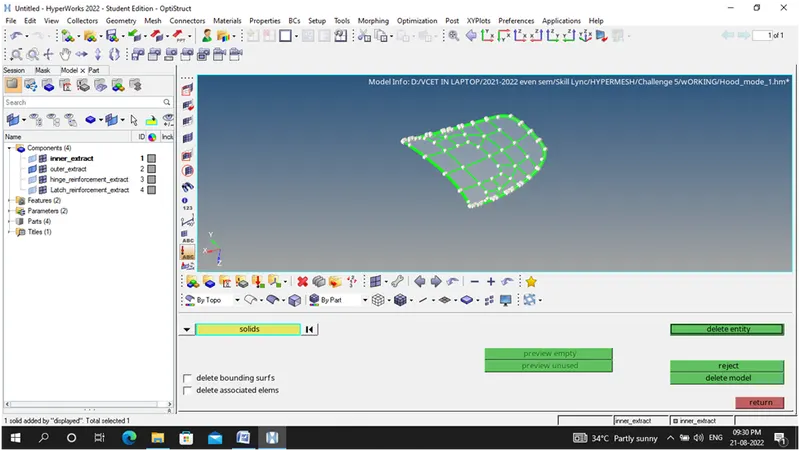

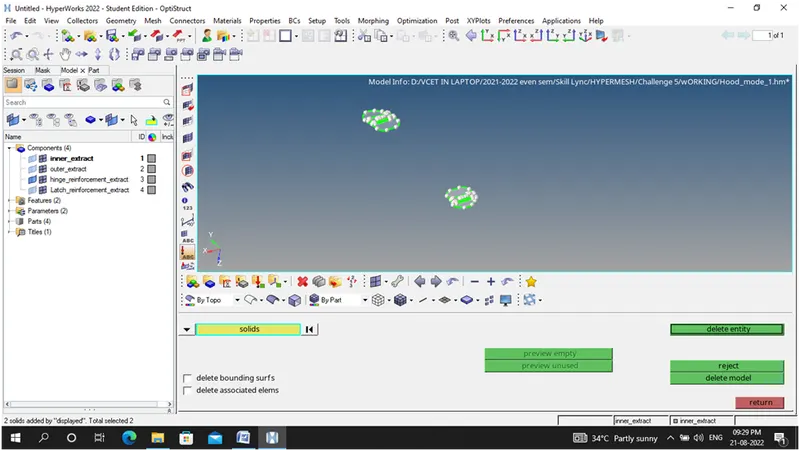

Step 2: Deleting solids for the component

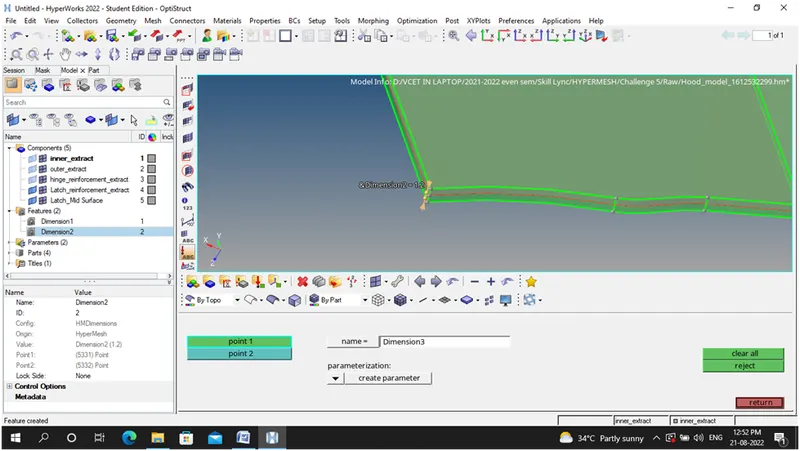

Step 3: Geometry-Dimensioning -1.2mm (Below 6mm uniform thickness-Automid preferred)

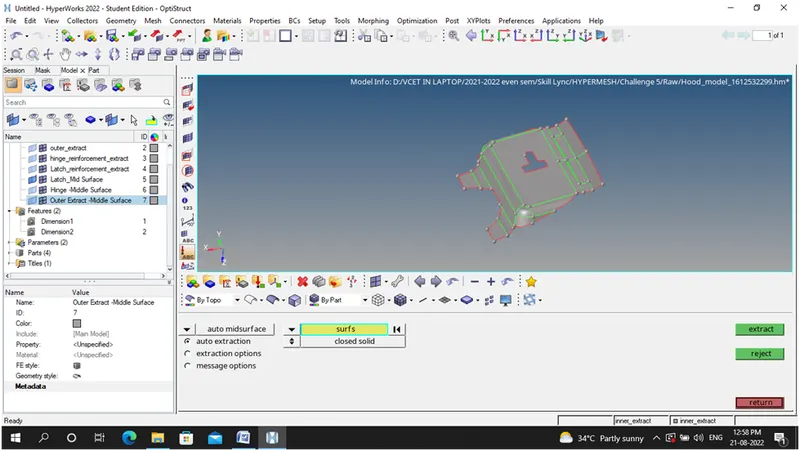

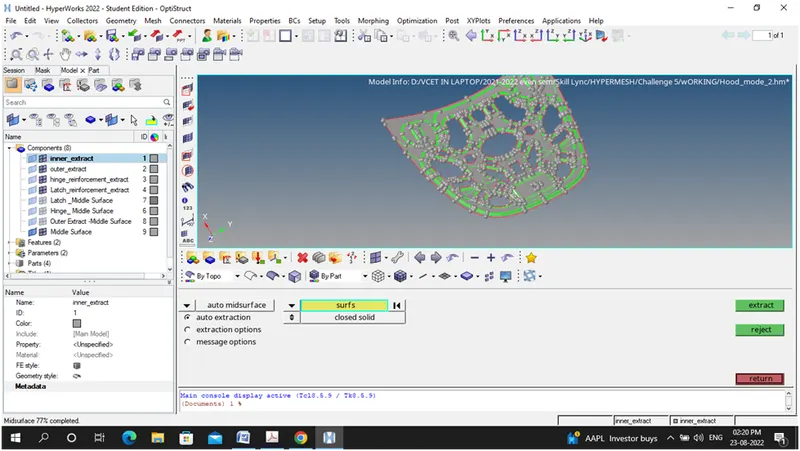

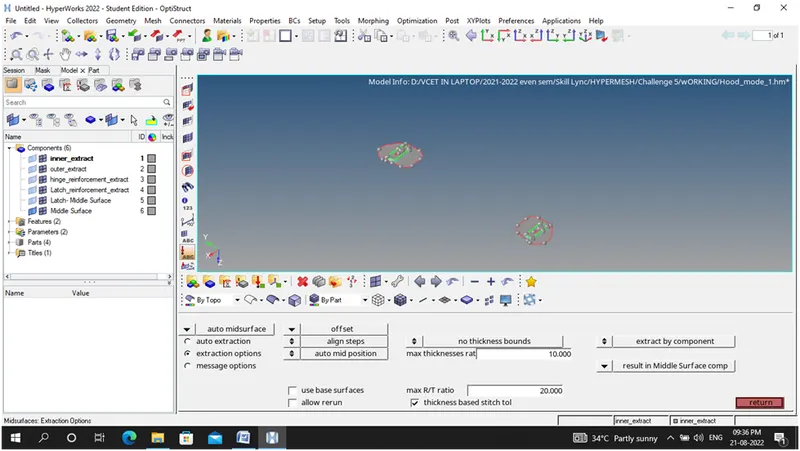

Step 4: Mid Surface- Latch-offset method

Mid Surface- Hinge –offset method

Mid Surface-Inner Extract

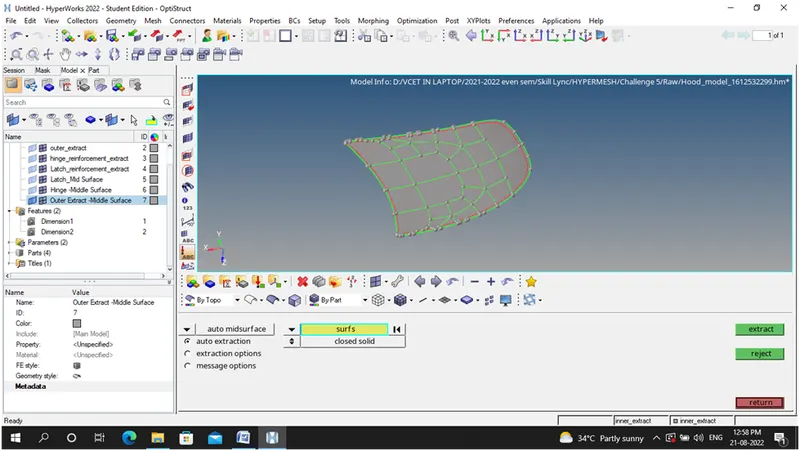

Mid surface-Outer Extract

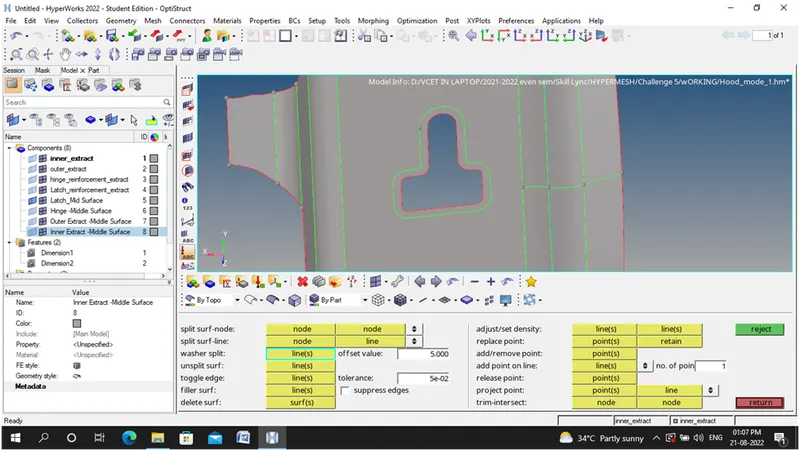

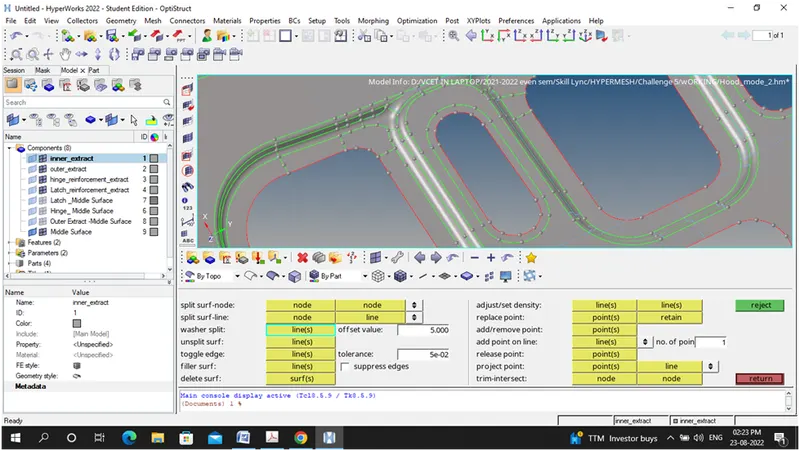

Step 5: Creating washer split for latch

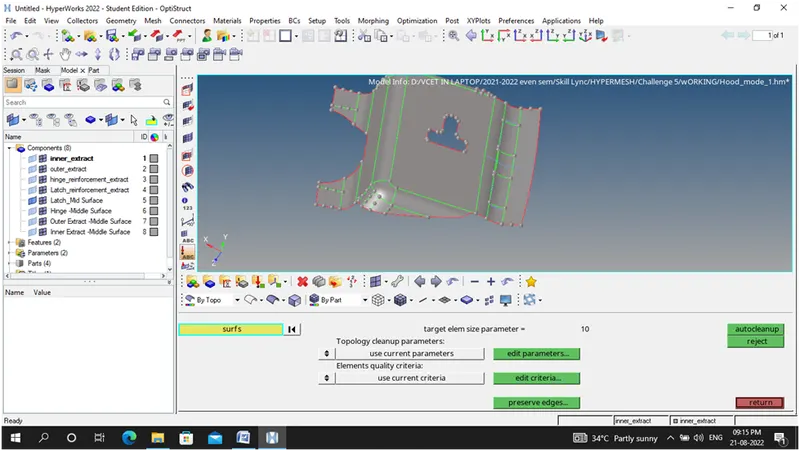

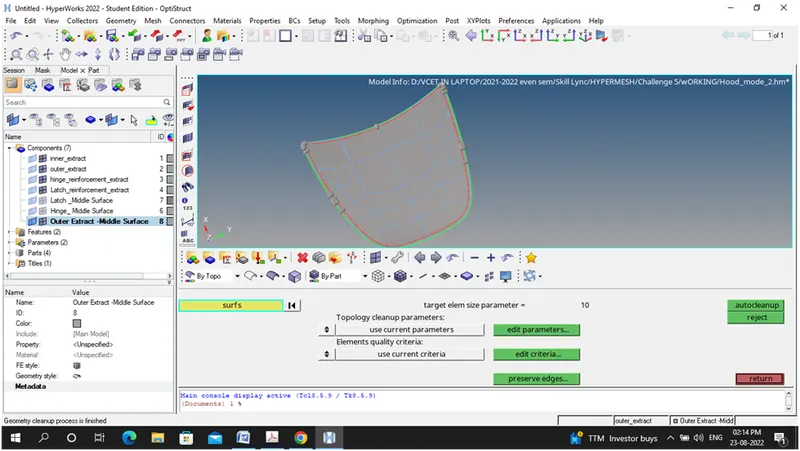

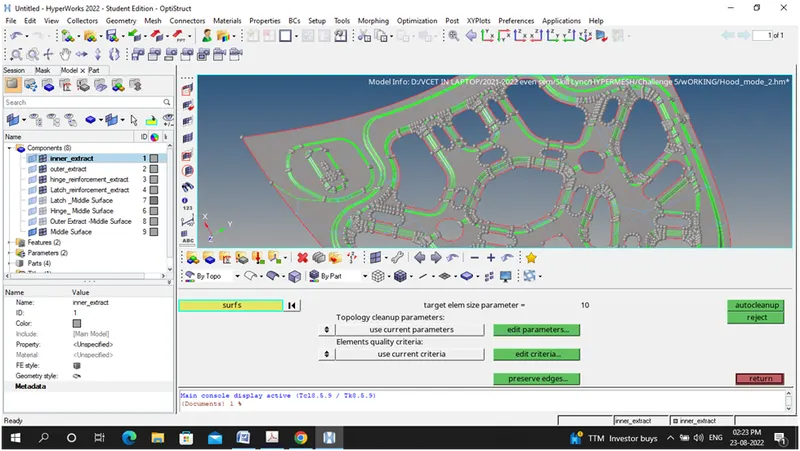

Step 6:Autocleanup the mid surface generated

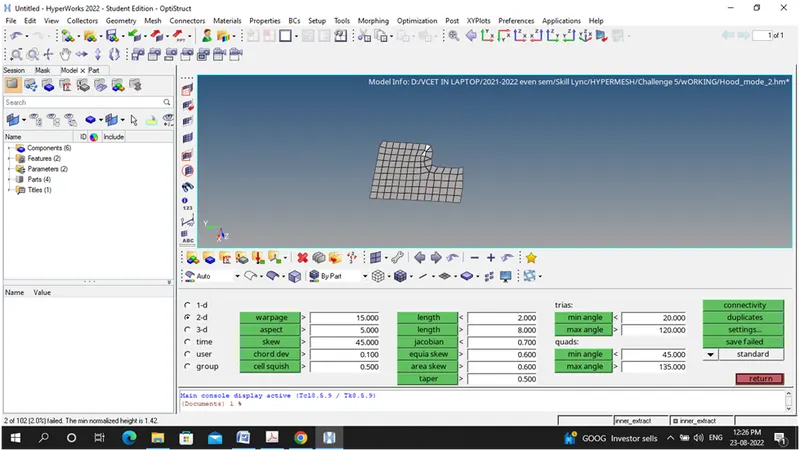

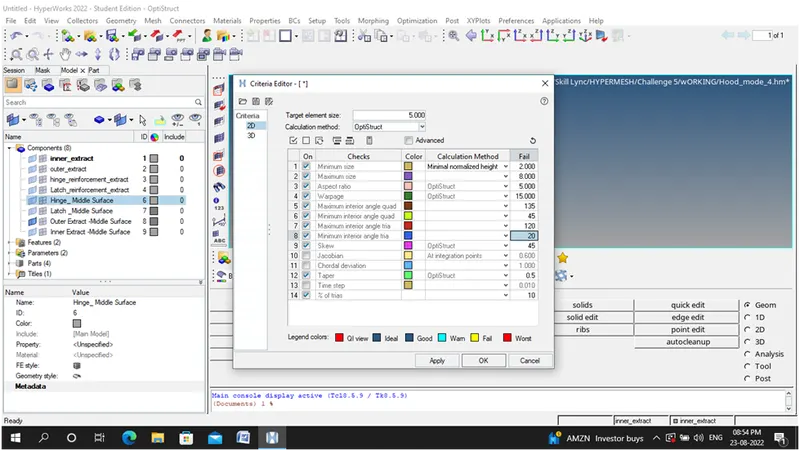

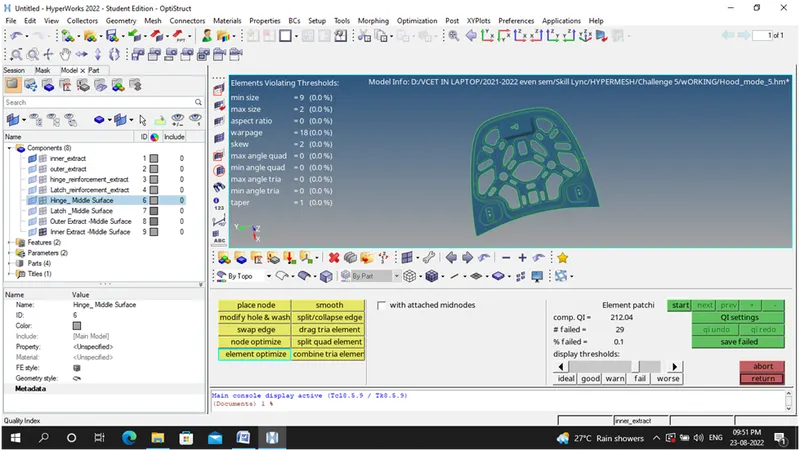

Step 7:Setting the Quality Criteria

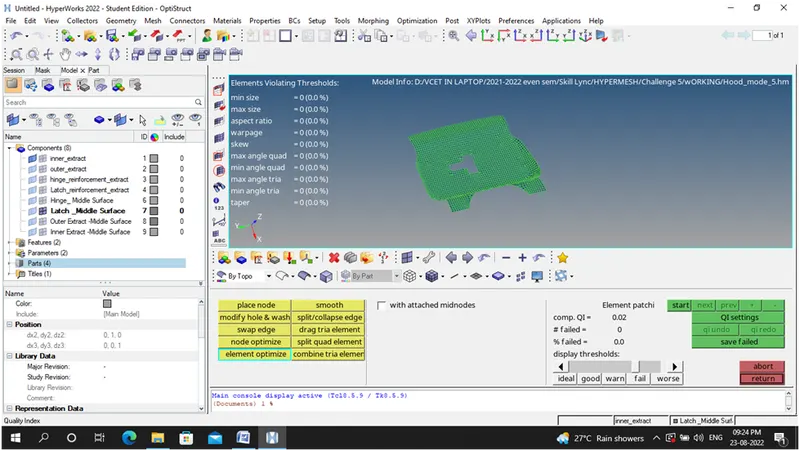

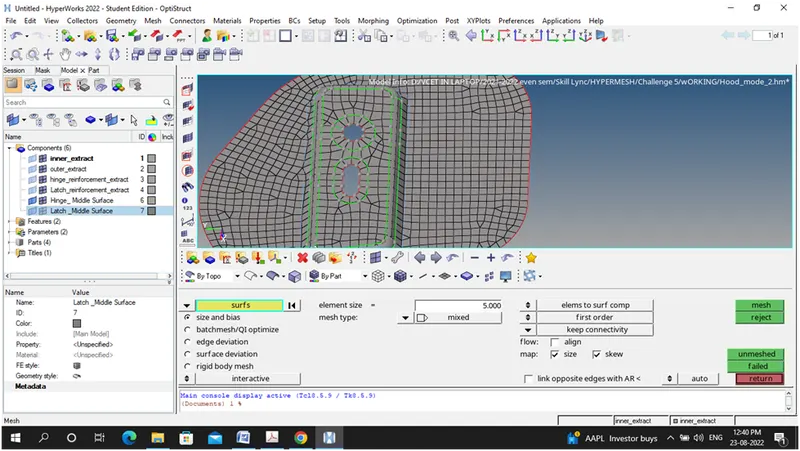

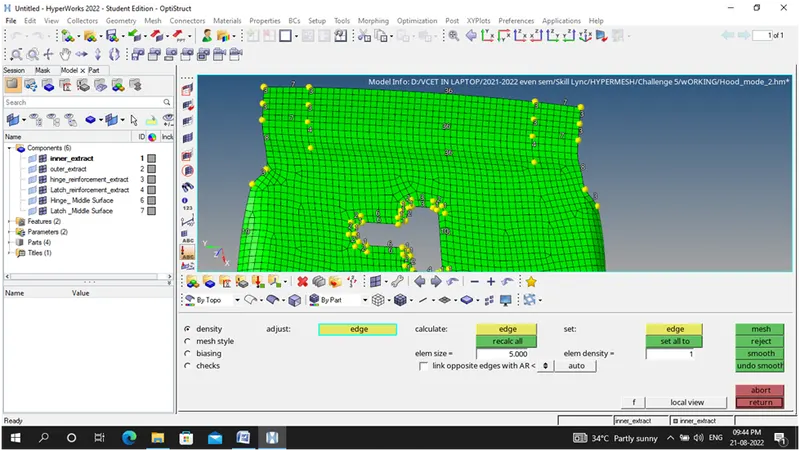

Step 8: Meshing the latch and there by increasing or decreasing the numbers we may avoid the trias

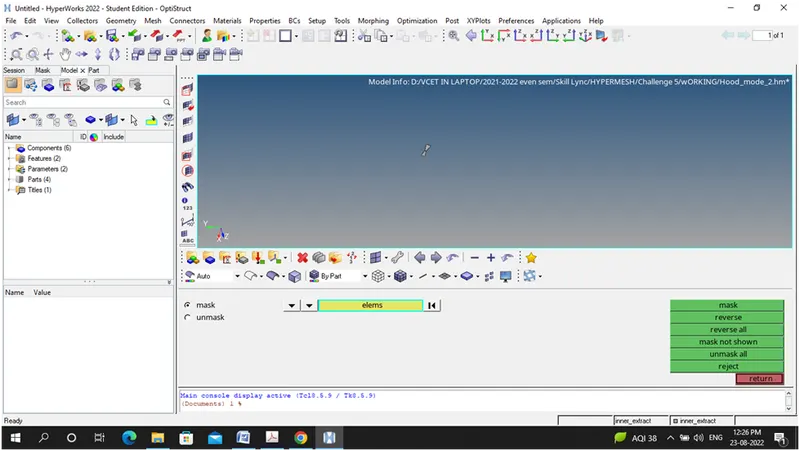

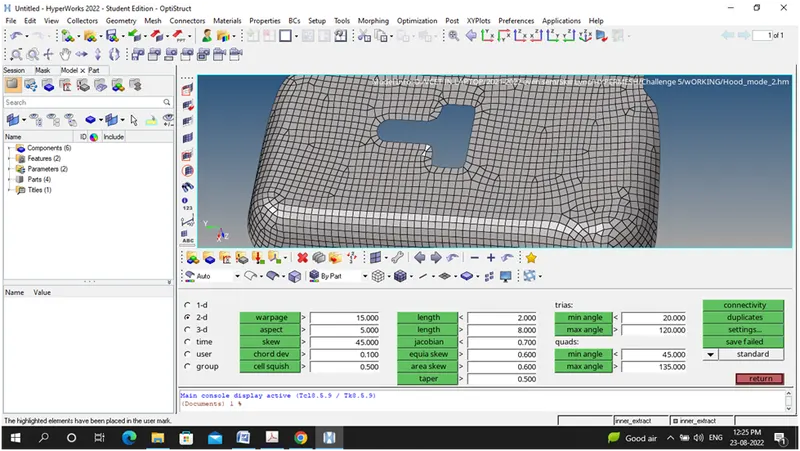

Step 9: How to use mask command

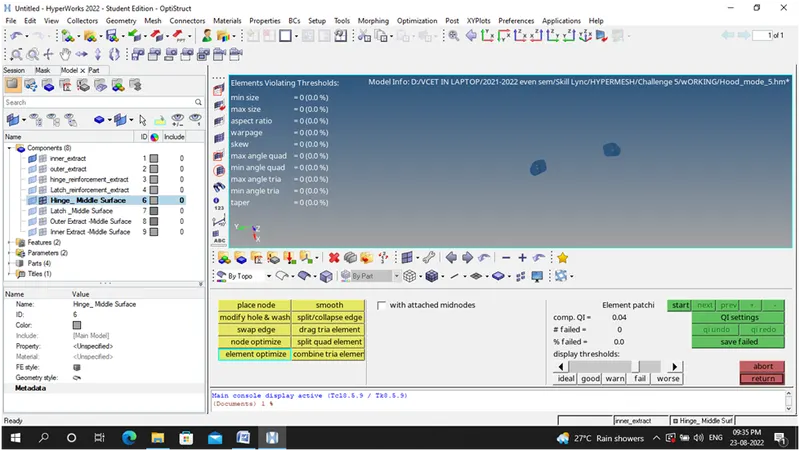

Step 10:Mesh the Hinge component

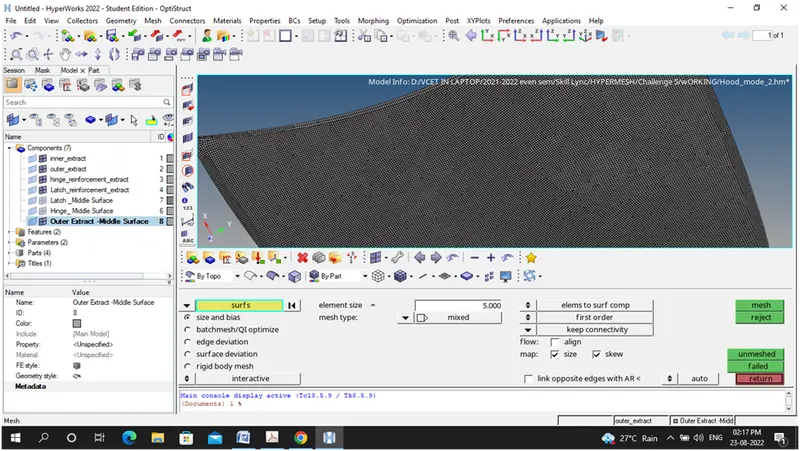

Step 11: Mesh the outer Extract

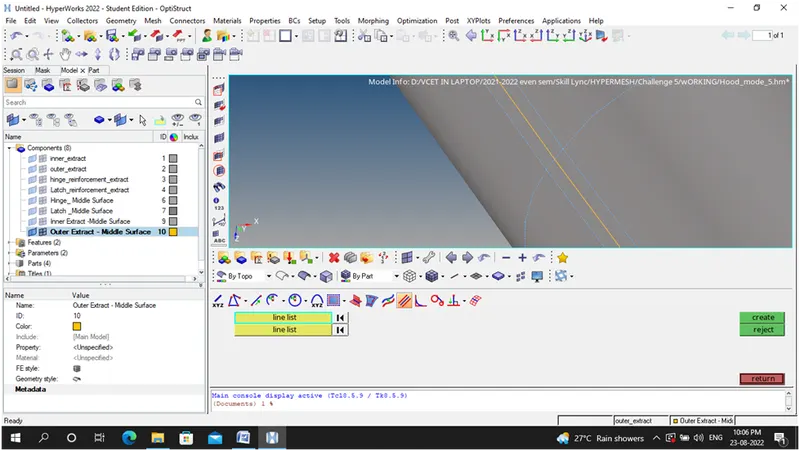

Step 12: Generating Mid line for the offset

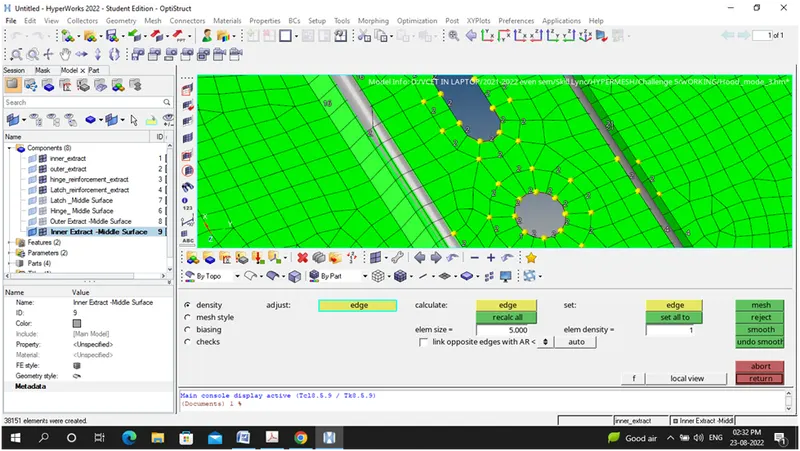

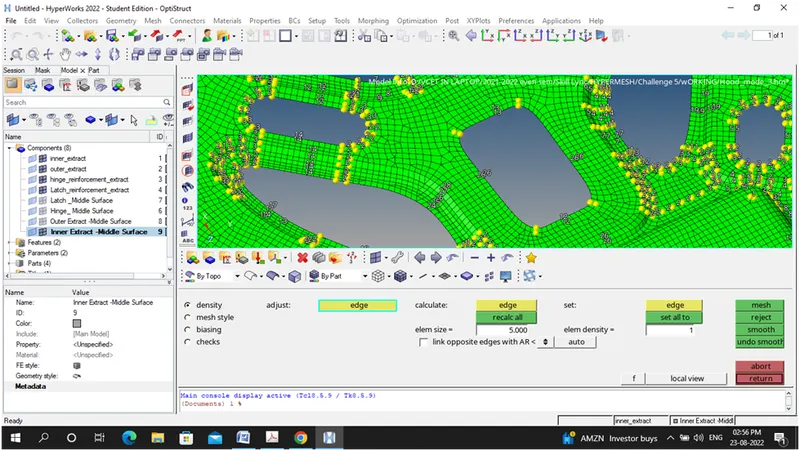

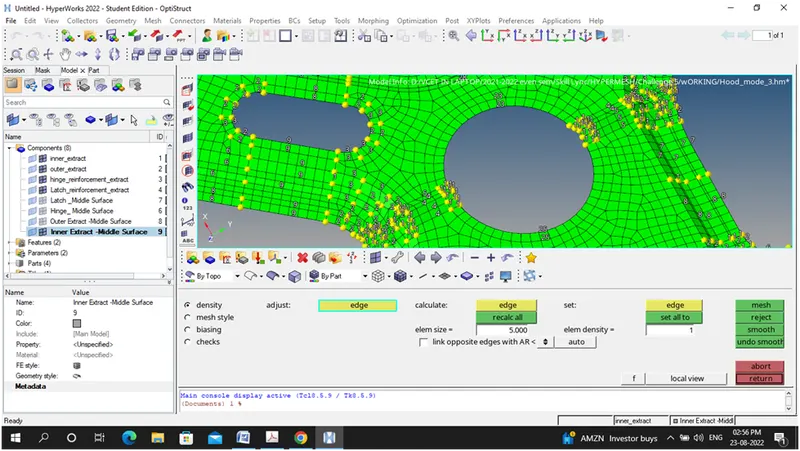

Step 13: Mesh the inner extract component

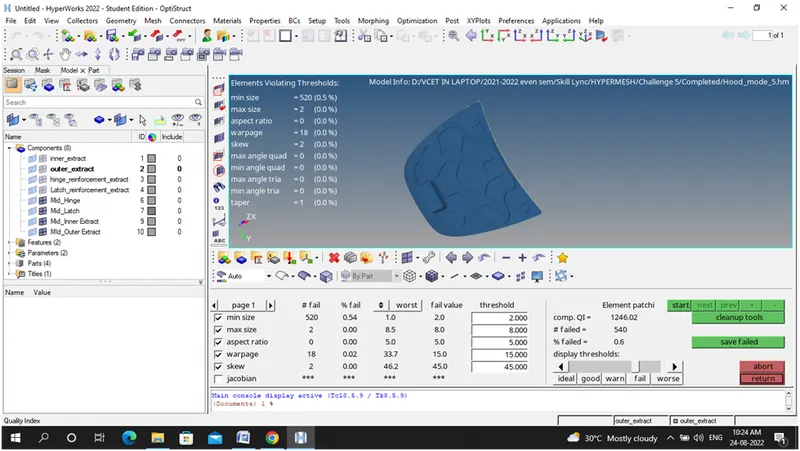

Final Completed Model

Conclusion:

For the given hood model mid surface taken individually for latch, hinge , inner and outer extract model and meshing done with satisfying the given quality criteria.
