Week 6-Meshing of Hood Challenge

Aim:

To extract the mid surface for the hood model and mesh the componenet.

.N	Quality Criteria	Value
1	Aspect Ratio	5
2	Skewness	45
3	Warping	15
4	Taper	0.5
5	Min. Length	2 Units
6	Max. Length	8 Units
7	Min angle Quad	45
8	Max angle Quad	135
9	Min angle Tria	20
10	Max angle Tria	120
10	Tria %	10

Procedure:

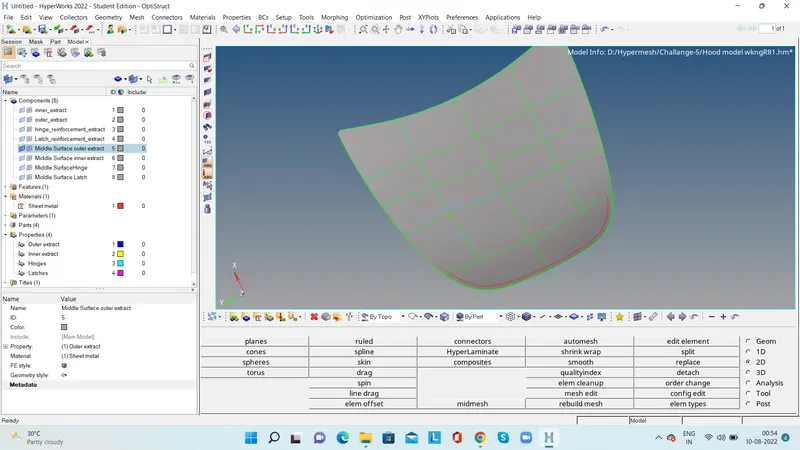

Extract the mid surface for each componenet separaetly and create the property and material code for the given compeonent.Toggle the unwanted lines and create proper cross lines for the surface.

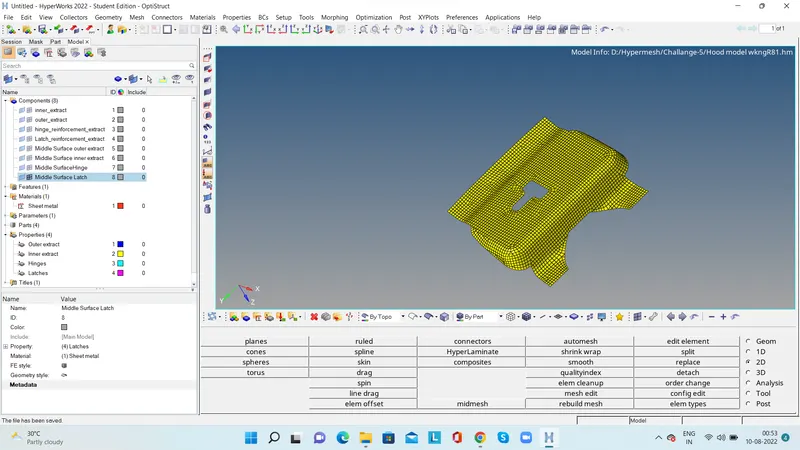

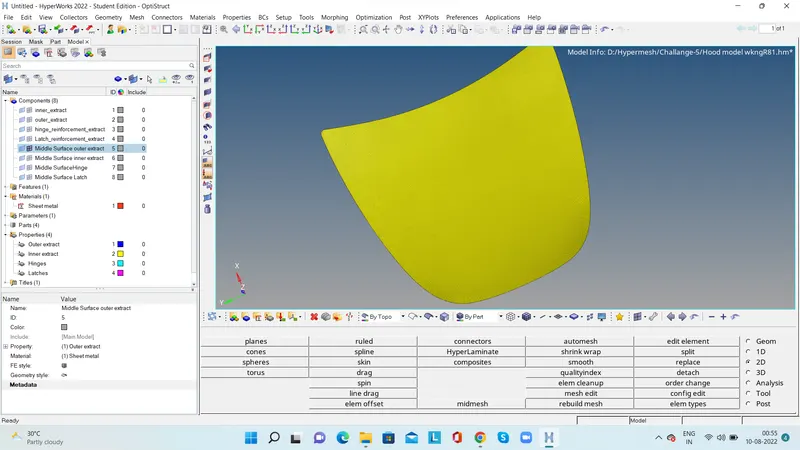

After extracting the mid surface mesh the given component with an element of size 5 mm and use the mesh rebuilding option to rearrange the mesh flow.

Feed the quality points in the preference tab and use quality tools for reducing the off elements.

Conclusion:

Completed extraction of mid surface and meshing for the given component

Outcome:Learned the meshing tools and remsh building.
