Week- 5 - Solid meshing

Aim:

For the given Rear view mirror component, check for the geometrical errors and mesh the Surfaces with the given 2D element Quality criterias

Procedure

For to complete the solid meshing for the given element. It is mandatory to follow the procedure in step by step

Step 1: Check and ensure that the given drawing doesn't have any damages.

Step 2: Do topo for the model and check that all the cons are bonded and tied with other cons perfectly

Step 3: Check the gemetrical errors as follows

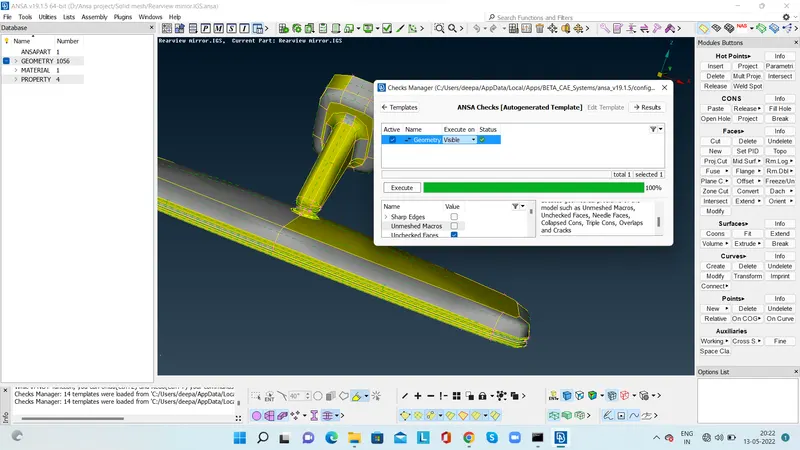

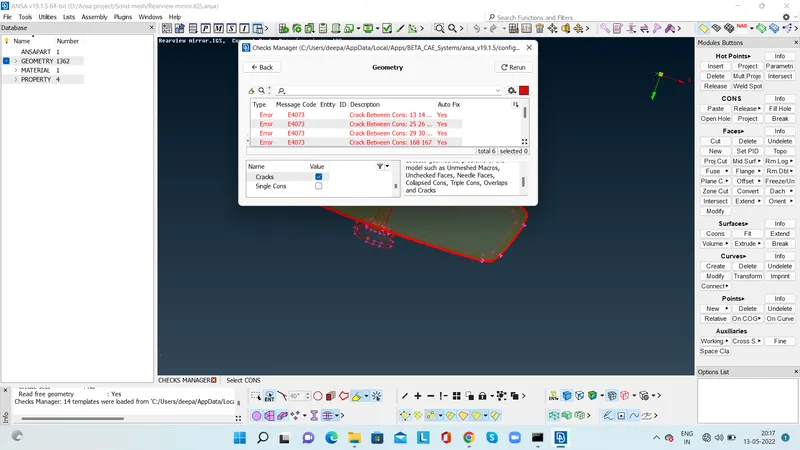

Go to CHECK tab and select gemetry and execute the program, the below errors will be avilable for the model and need rectify it.

Resolve the gemetry errors and make the model 100% cleaned geometry.

Before gemetry clean up After geometry clean up

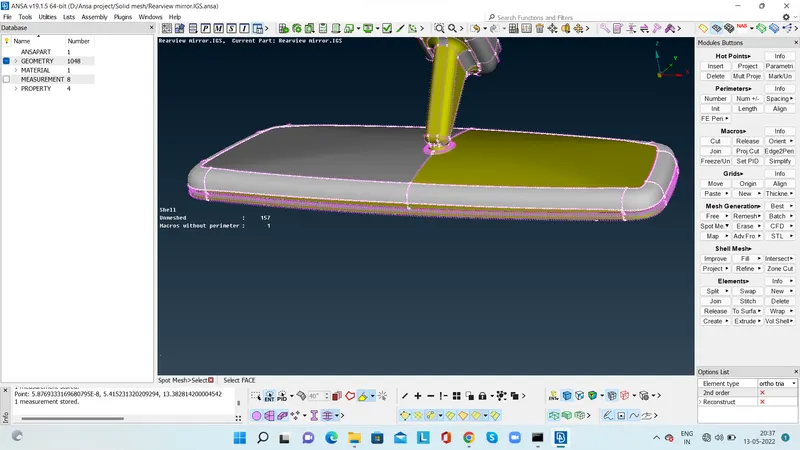

Step 4:Now the model is cleaned up and ready for meshing

Enable the mesh parametrs such as minimumlength is 0.5,maximum length 2 and target length 1. And also select the element type as ortho tria.

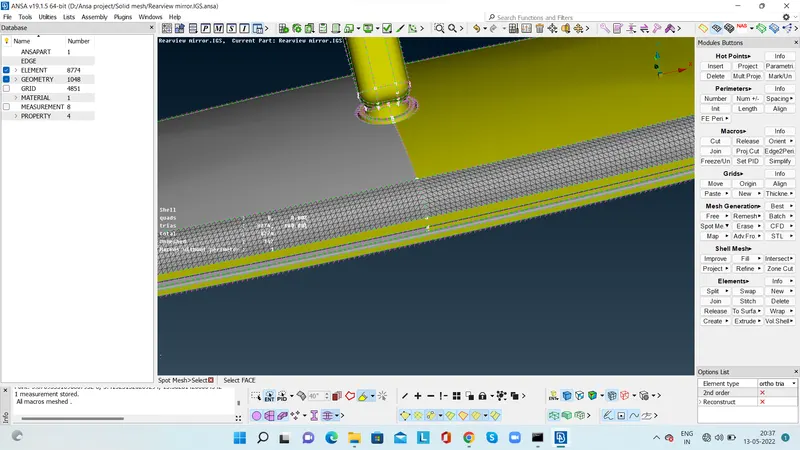

By Using spot mesh do the meshing for the given element.And also please select the element type based on the features as given below.

And complete the meshing with appropriate element type based on the element features.

Step 5:

Also check the king pins and raised edges over the meshed surface. Rectify the king pins and raised pins by reconstructing the mesh.

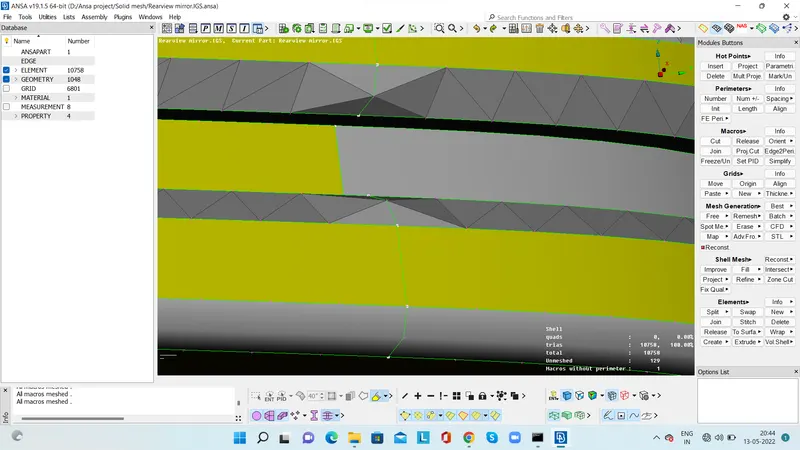

Raised edges, king pin Rectified king pin,raised edges

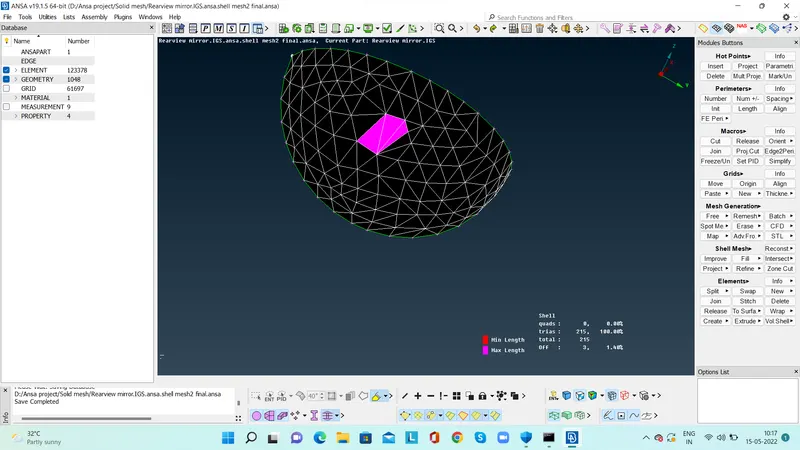

Check the all the areas of the model for defects in the meshed model and then go to the quality criteria such as

Clear and rectify all the areas where the quality parametrs doesn't meet the required values.

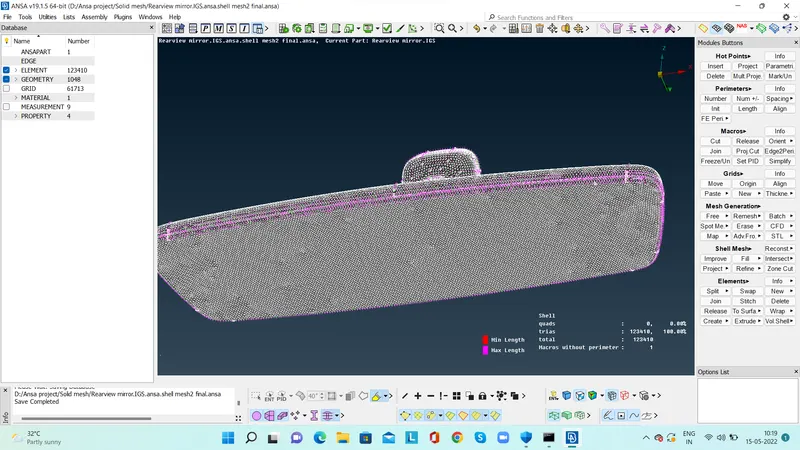

Quality parametrs failure All the quality parametrs achived

Learning out come:

Learned how to do solid meshing for the structured component

Conclusion:

Complted the creation of solid meshing for the given element.
