Week 6-Meshing of Hood Challenge

Objective : To create and Mesh the mid surface of the Hood assembly

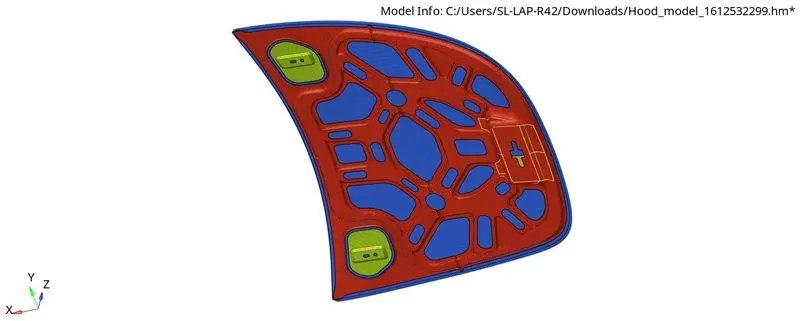

CAD:

Procedure : 1) Extract Midsurface using Auto mid options as below.

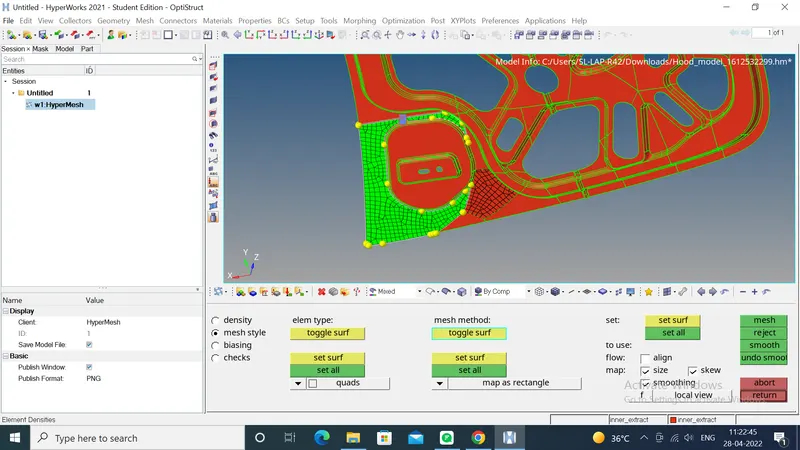

2) Create the mesh using automesh on Half model.

3) Make sure to smooth and shape it as a rectangle.

4) Remesh manually wherever possible to reduce trias.

Result : Mesh has been created
