Week 6 Fuel cell powered vehicle model

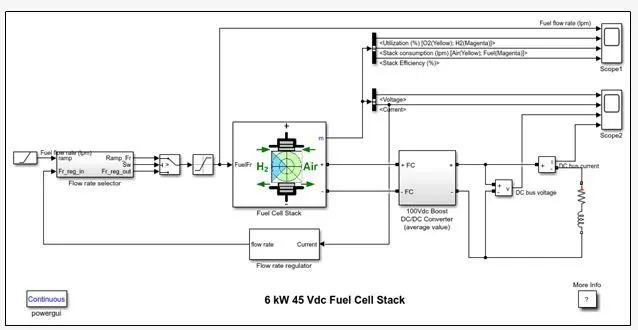

The fuel cell is an electrochemical cell that converts the chemical energy to electrical energy. THe preloaded fuel cell is model is simulated in this exersize and results are plotted. The blocks used in the model of fuel cell are as shown in figure

Ramp generates the specified signal. it generatis the signal at specified time and value and then changes with specific rate.

The flow rate regulator it takes the output from current and feed as a input.

Flow rate selector it selects the required flow rate and supply it.

Switch combines multiple signals in to single signal.

Saturation block limit the input signal to upper and lower value.

Buck convertor boost the voltage as per the requirement.

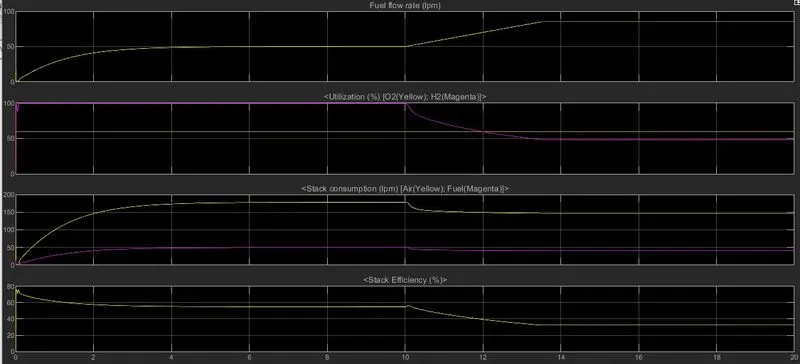

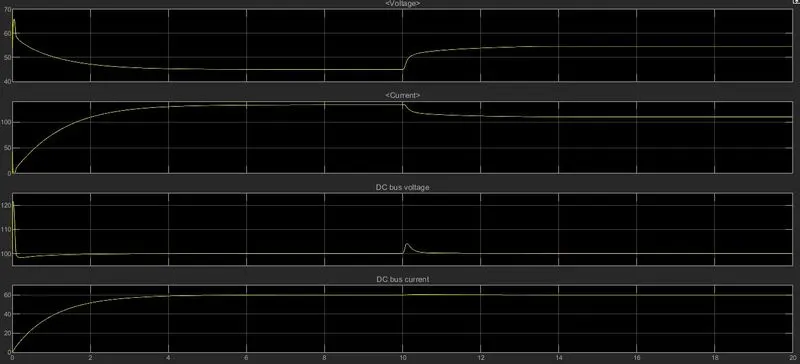

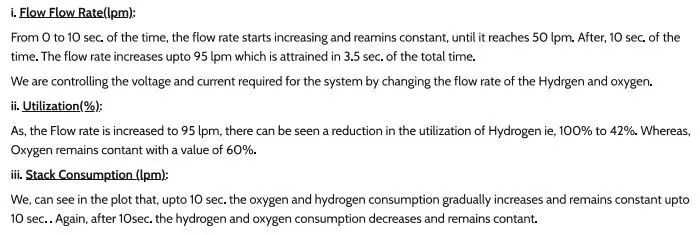

Taking simulation time 20 sec model is simulated and results are plotted.
