Week 6 - Creating connection for Rear door

AIM

FOR THE GIVEN MODELCREATE DIFFERENT PID FOR DIFFERENT COMPONENTS AND PROVIDE SUITABLE CONNECTIONS.

PROCEDURE

1. OPEN THE MODEL IN ANSA.

2. CREATE PID FOR EACH PART USING SET PID OPTION.

3.GO TO NAS DECK, AND GO TO ELMENTS-->RBE2-->MANY NODES. CLICK THE NODES PRESENT IN THE EDGES. AND DO MIDDLE CLICK FOR CONFIRMATION.

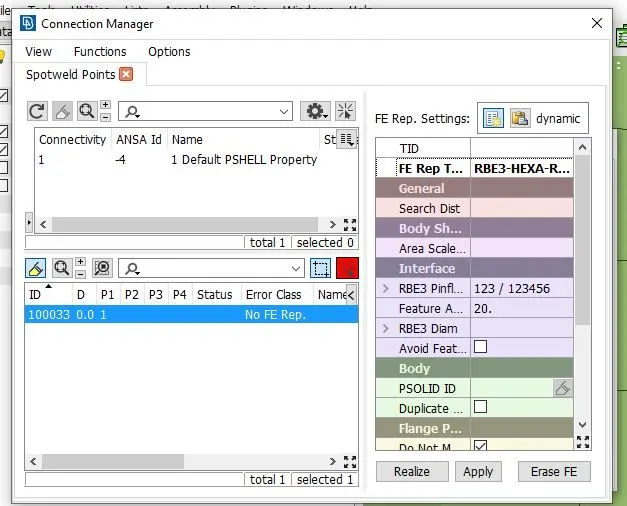

4. FOR BOULT CREATE A COG ELEMENT, CONVERT INTO BOLT ELEMENT AND GO TO THE CONNECTION MANAGER TO CREATE THE BOLT CONNECTION.

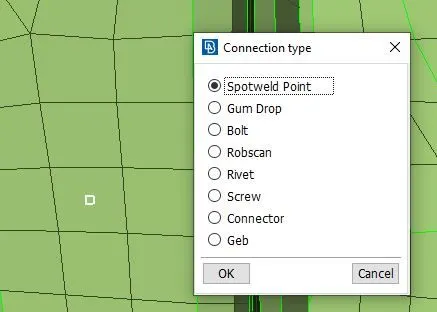

5. SIMILARLY FOR SPOT WELD CREATE COG ELEMENT CONVERT IT INTO SPOT WELD POINT AND GO TO CONNECTION MANAGER TO CREATE THE SPOT WELD.

6. FOR PBUSH ELEMENT CONVERT THE GLASS PERIMETER INTO A CURVE AND CONVERT THE CURVE TO SPOT WELD LINE AND GO TO THE CONNECTION MANAGER CHOOSE RBE3-CBUSH-RBE3 AND ASSIGN THE PART ID AND CREATE THE PBUSH.

LEARNING OUTCOMES

IN THIS CHALLENGE WE LEARNT HOW TO PROVIDE CONNECTIONS LIKE BOLT, SPOT WELD AND PBUSH FOR THE COMPONENTS.

CONCLUSION

FOR THE MODEL SEPERATE PID WERE CREATED AND THE SUITABLE CONNECTIONS WERE ASSIGNED.
