Week 6 - Creating connection for Rear door

OBJECTIVE

To generate the connections for the Rear Door

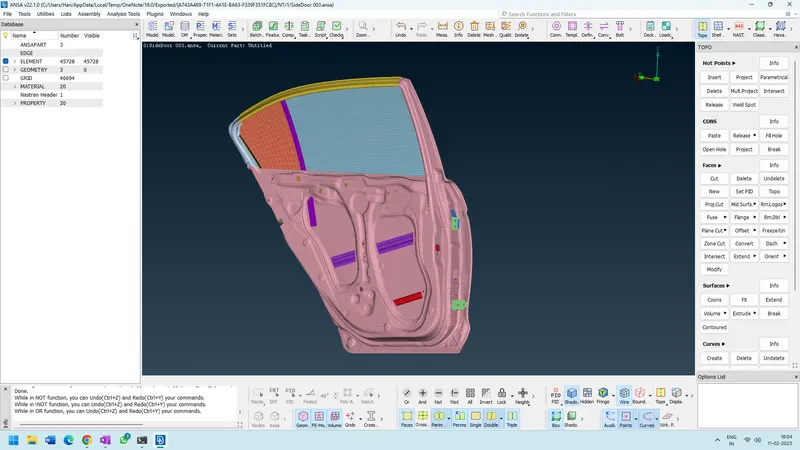

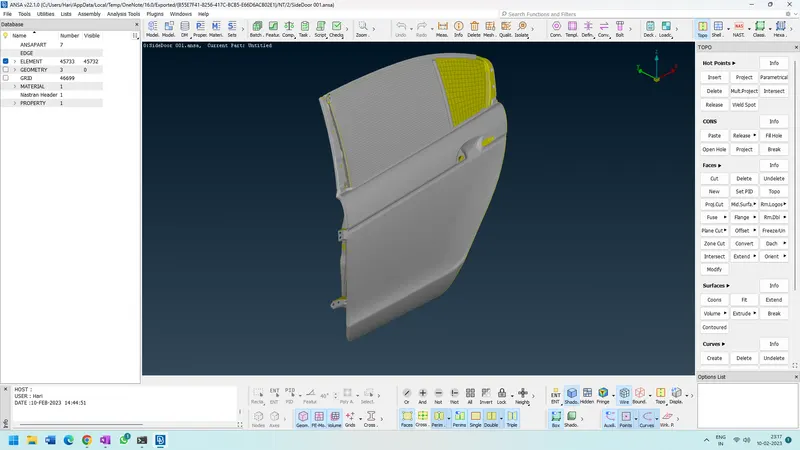

CAD MODEL IMAGE

PROPERTY ASSIGNMENT FOR THE VARIOUS COMPONENTS

1) PLEASE ASSIGN THE PROPERTY ID FOR INDIVIDUAL COMPONENTS IN THE COMPLETE ASSEMBLY USING THE (PID ) OPTION ,THIS IS TO IDENTIFY THE COMPONENTS IN THE ASSEMBLY TO CREATE THE CONNECTIONS EASILY

AFTER THE PROPERTY IS ASSIGNED ,WE NEED TO GENERATE THE CONNECTION JOINTS WHICH IS MENTIONED BELOW.

CONNECTIONS TO BE GENERATED IN THE GIVEN SAMPLE

1)SPOTWELD

2) BOLTED CONNECTION

3) BUSH CONNECTION

4) RBE 2 CONNECTION ACTIVITY

1) BOLTED CONNECTION :

IN ORDER TO GENERATE THE BOLTED CONNECTION WE NEED TO GENERATE THE COG POINTS IN THE TOPO SET UP.

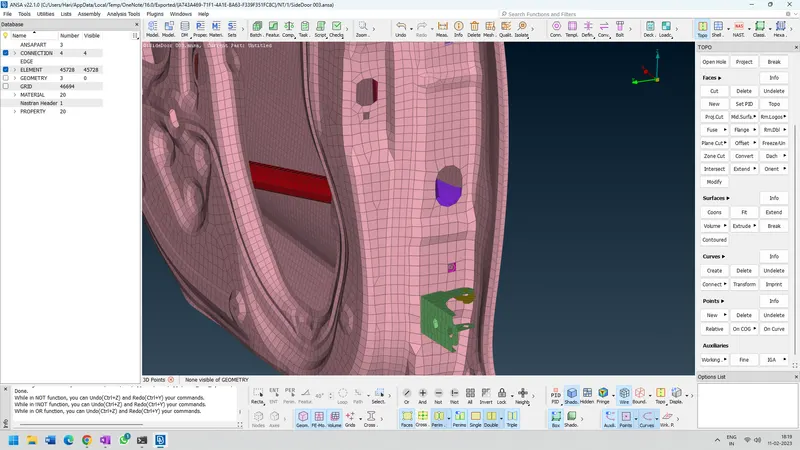

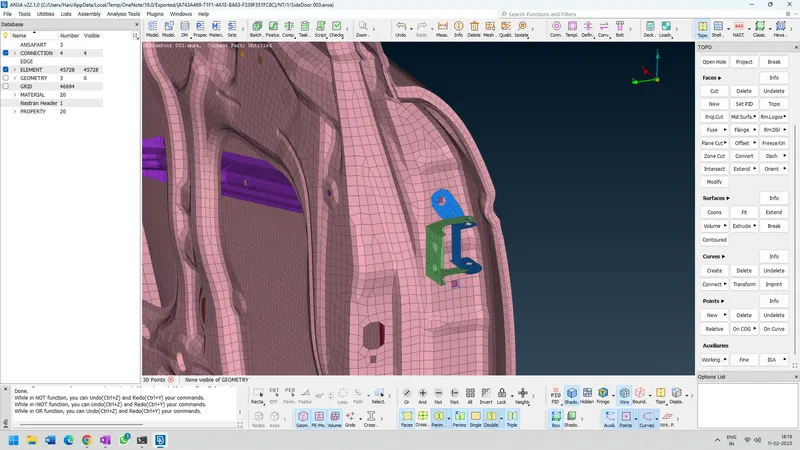

FURTHER PLEASE GO FOR CONVERT OPTION AND SELECT THE 3D POINT AND PLEASE GENERATE THE 3D POINT AS BOLT AND FURHTER FEED THE INPUTS FOR THE BOLTED CONNECTION ,BELOW ARE FEW SNAPS ATTACHED TO IT.

1) SPOT AND BUSH CONNECTION :

FOR THE MENTIONED CONNECTION REQUEST YOU TO PLEASE GO THROUGH THE PROCEDURE SAID IN THE VIDEO AND PERFORM THOSE ACTIVITIES

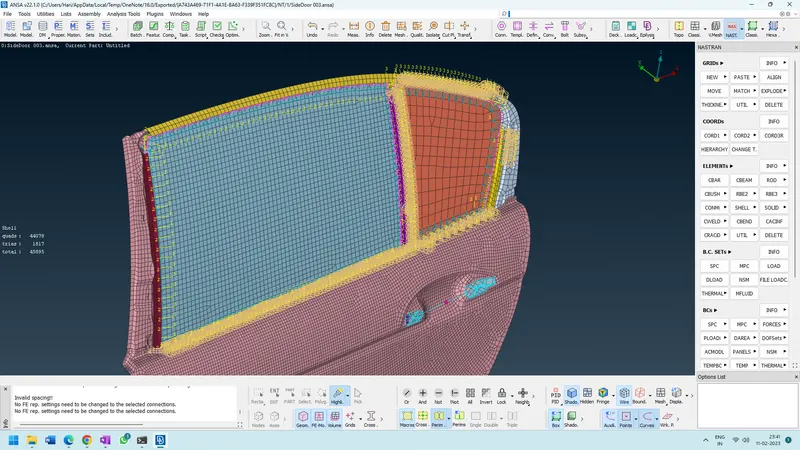

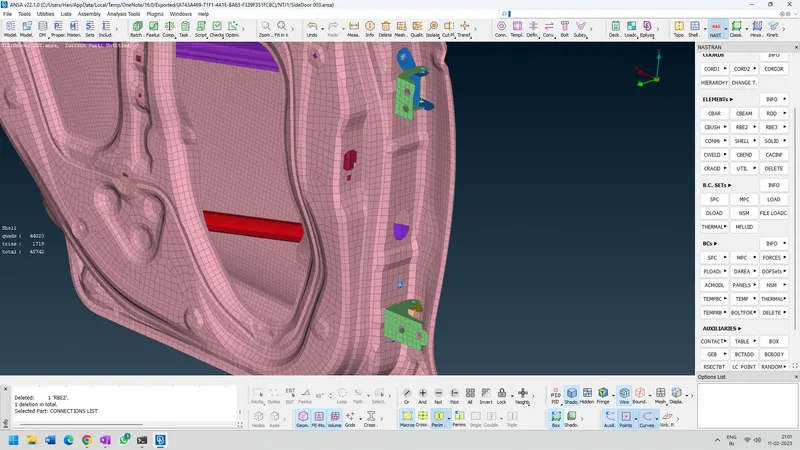

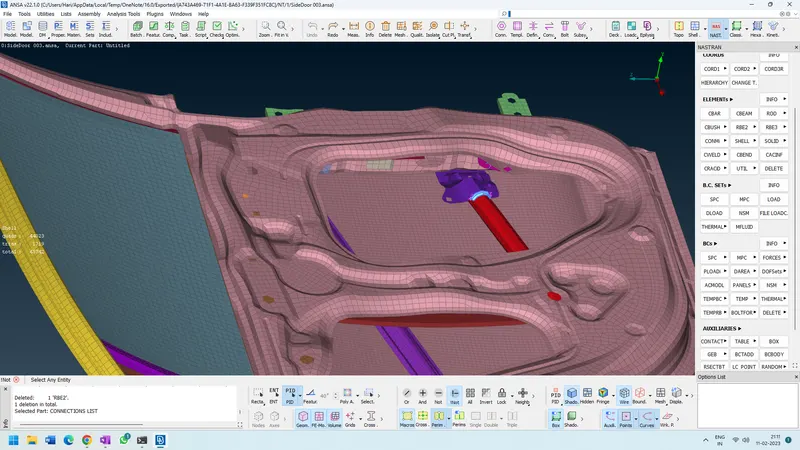

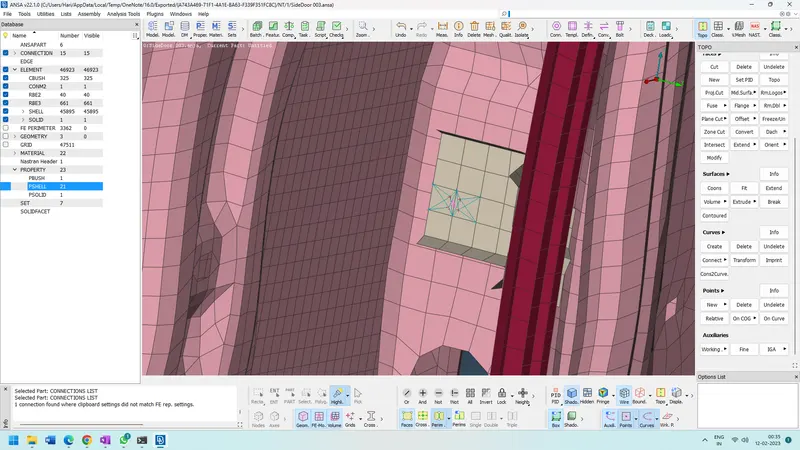

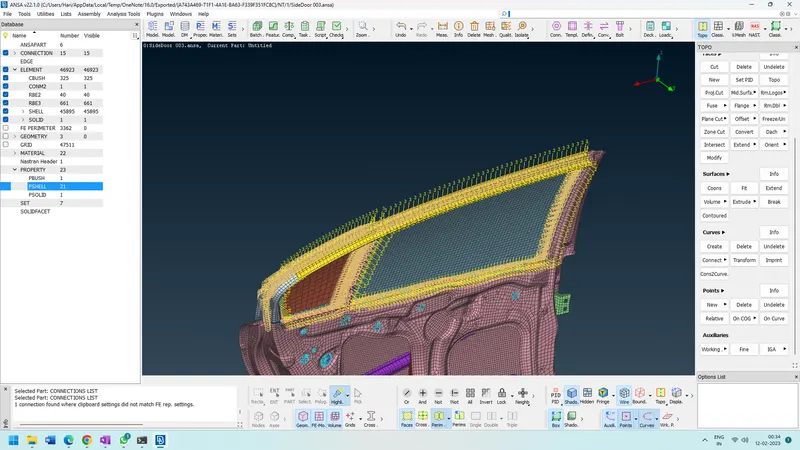

BELOW ARE THE RESULT FOR THOSE ACTIVITIES WHICH IS PERFORMED.
