Week 6 - Creating connection for Rear door

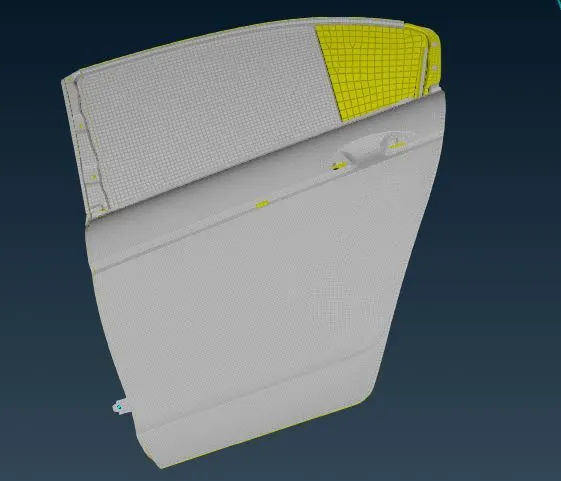

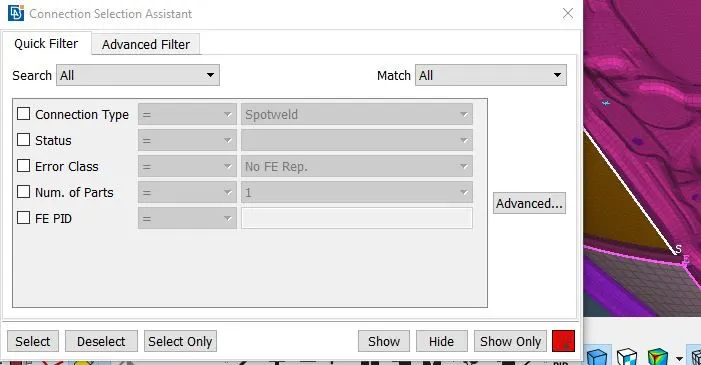

Aim: To create the PID for all the components and perform the connection operation with RBE2 and CBUSH operation.

Working process:

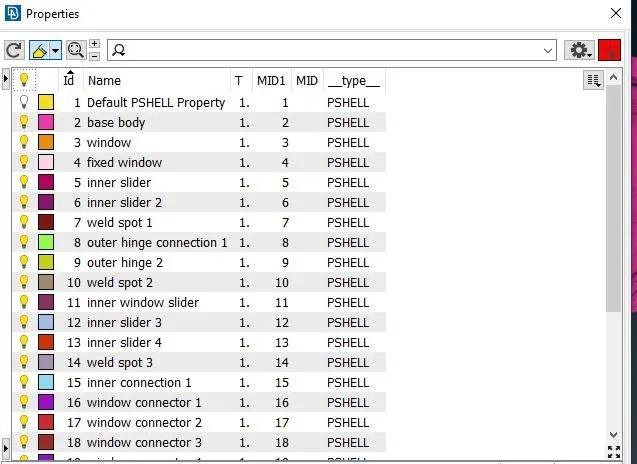

Step 1: To create the PID for all the components.

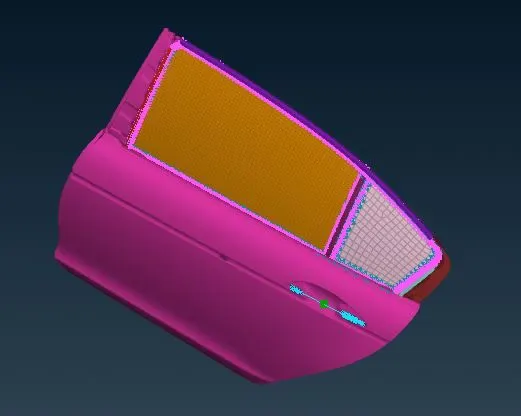

Step 2: Give the connection where it required.

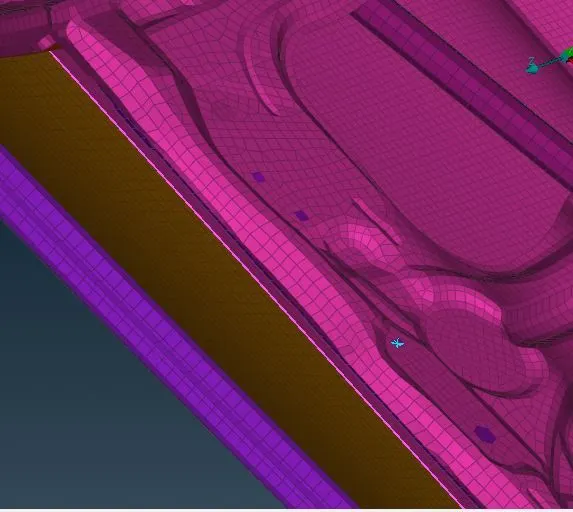

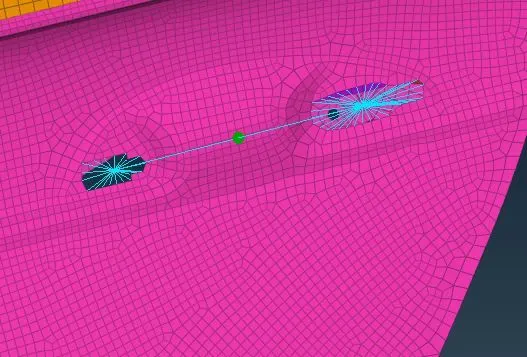

STEP 3: Give the conmasshandle bar.

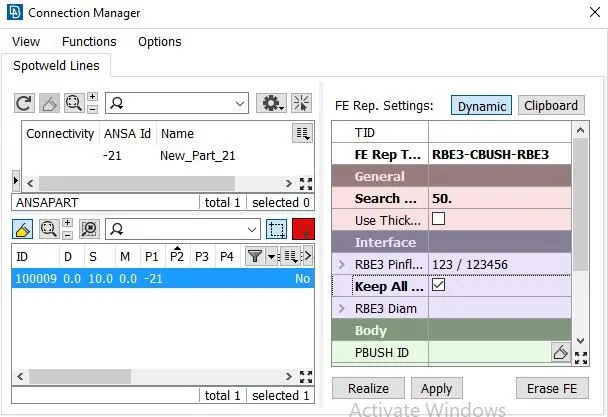

Step 4: Give the connection for window. Here create a Feat2curve and convert in to Spot line.

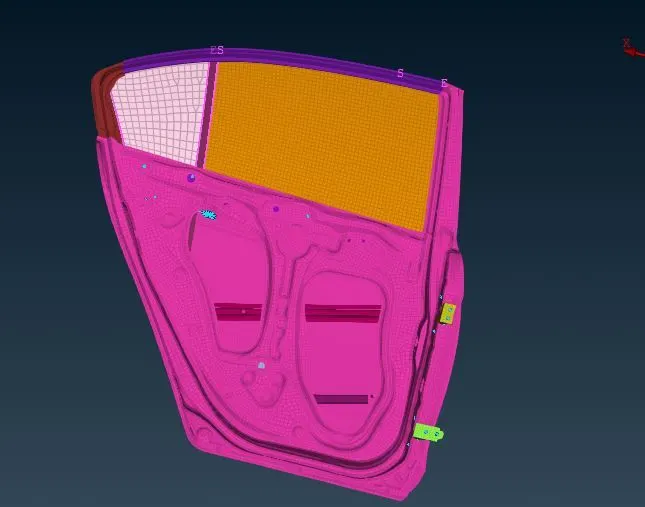

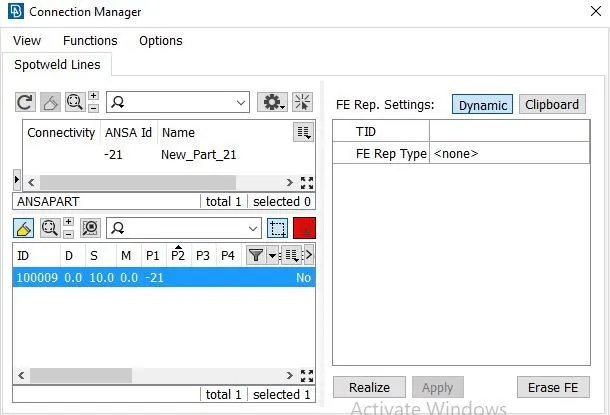

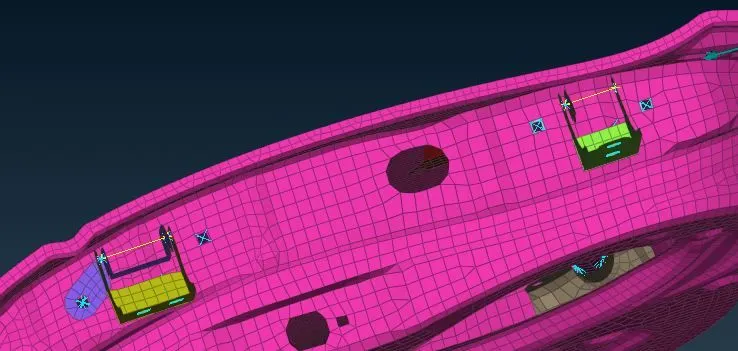

Step 5: Give the CBUSH connection.

Learning outcomes: In this assignment new concept learn, like how to give the connection for bolts and welds and also window connection meanwhile new commands also learn.

Conclusion: By this concept learning we can easily give the connections in a less time.
