Week- 5 - Solid meshing

Aim: For the given Rear view mirror component, check for the geometrical errors and volume mesh the Surfaces with  the given 2D element Quality criterias given below.

S.No	Quality Criteria	Value
1	Target/Average length	1
2	Minimum Length	0.5
3	Maximum Length	2

Use tetra elements to mesh the Volumes defined in the model and check for the below quality after Volume meshing.

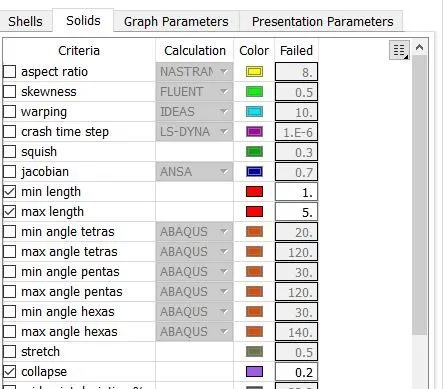

S.No	Quality Criteria	Value
1	Tet collapse	0.2

Working Procedure:

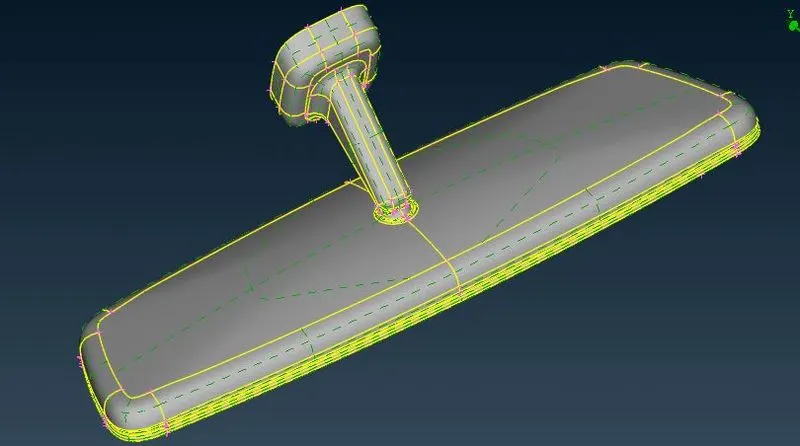

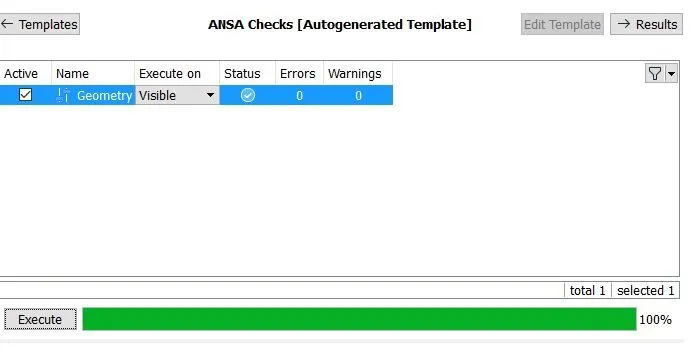

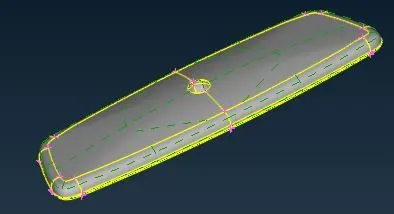

Step 1: Import the model and check the geometrical errors.

Step 2: Check quality criteria and give the minimum length and maximum length.

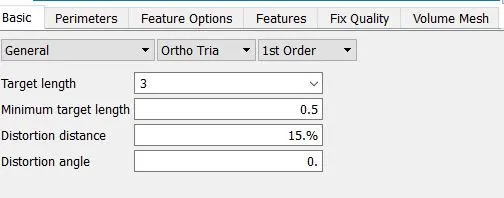

Step 3: Check the mesh parameters.

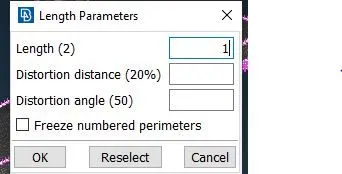

Step 4: Check the length parameters.

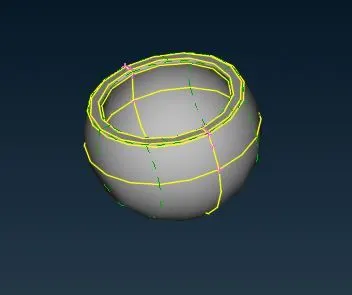

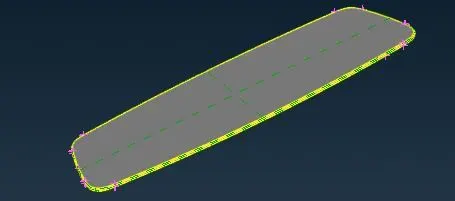

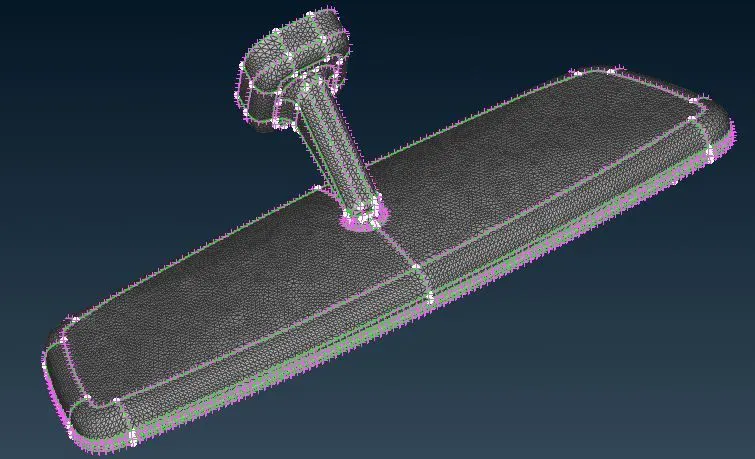

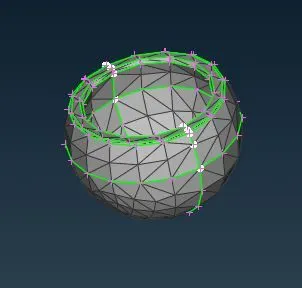

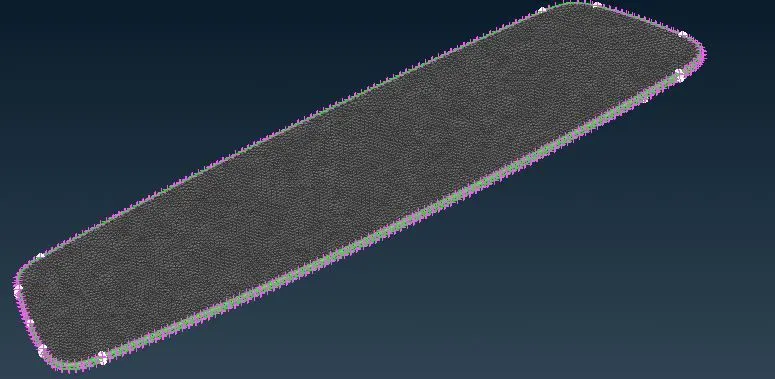

Step 5: Meshing the components one after another. Here i have choose the Spot mesh and generate the mesh, and check the element fails.

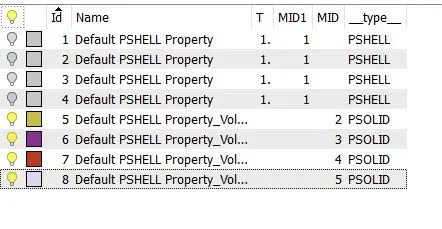

Step 6: Do the volume mesh, here firstly define the component in to Psolid.

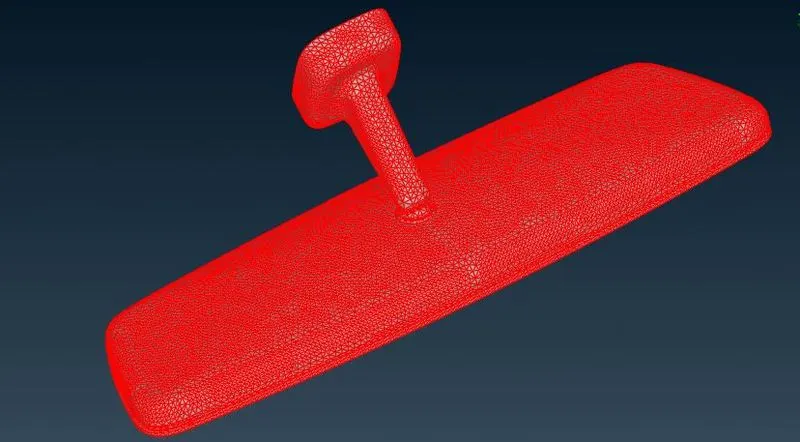

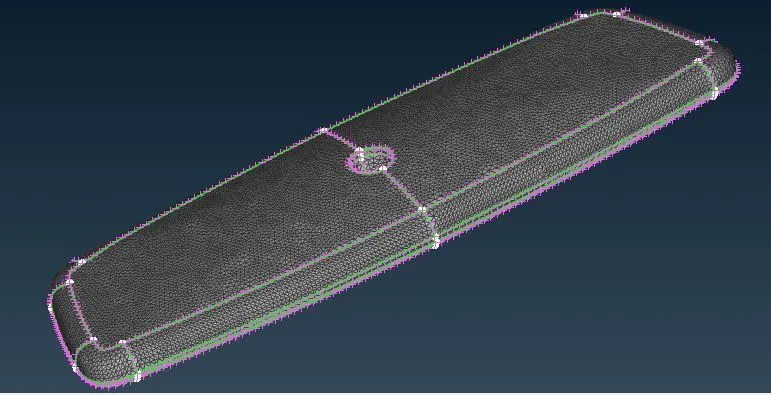

Step 7: Apply the Tetra FEM mesh.

Step 8: Finally check the Tetra collapse.

 Learning outcomes: In this Solid meshing process i have learn the new things like, Volume mesh process and new commands (spot mesh, map, tetra fem, tetra rapid).

Conclusion: Solid meshing process is a quick process, it requires less time to define and mesh the component. As compare to other process, it gives the good mesh and element failure is less.
