Week 6 - Creating connection for Rear door

AIM

------------------------------------------------------------------------------------------------------------------------------------------

For the FE model the different PIDs has been generated and suitable connections is performed.

OBJECTIVE

------------------------------------------------------------------------------------------------------------------------------------------

• Set PIDs for different components.
• Performed suitable connections.

PIDs

--------------------------------------------------------------------------------------------------------------------------------

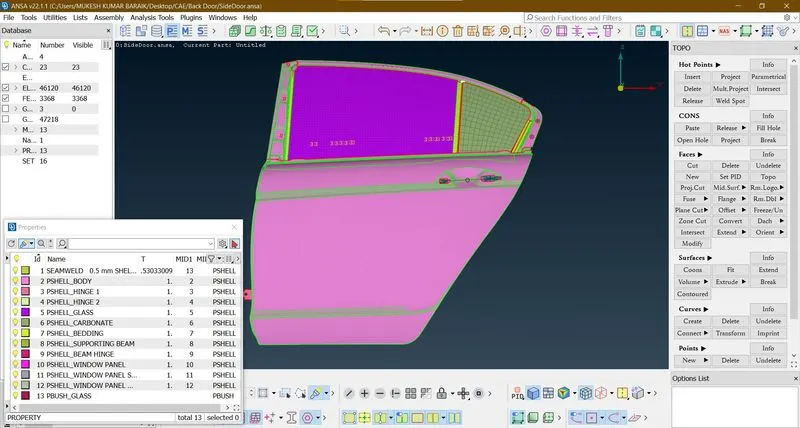

Different PIDs is created.

CONNECTIONS

-----------------------------------------------------------------------------------------------------------------------------------

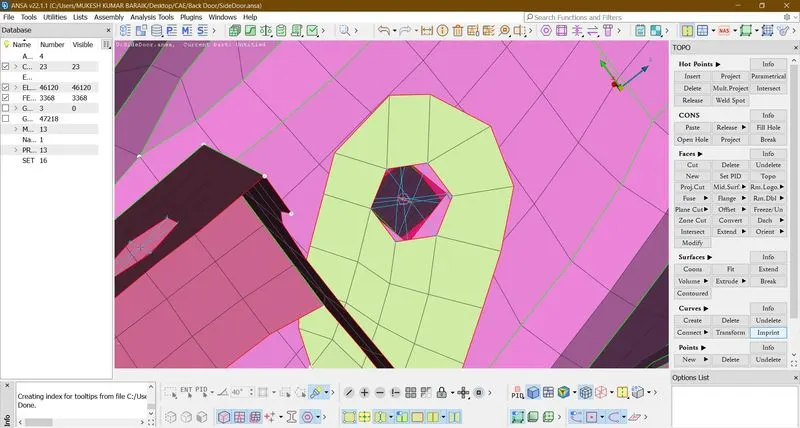

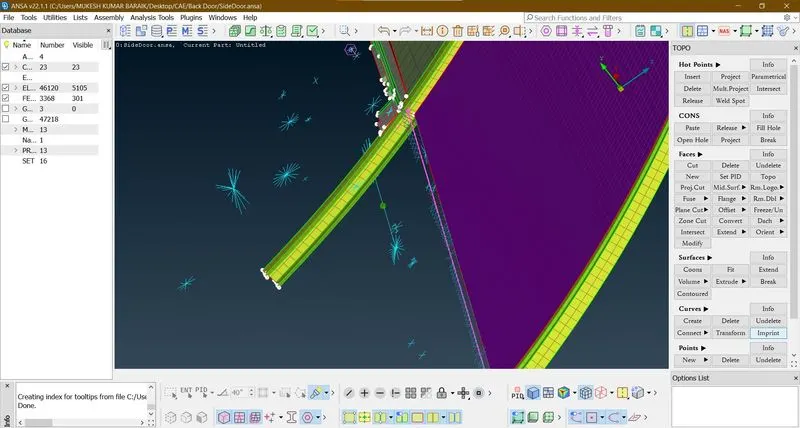

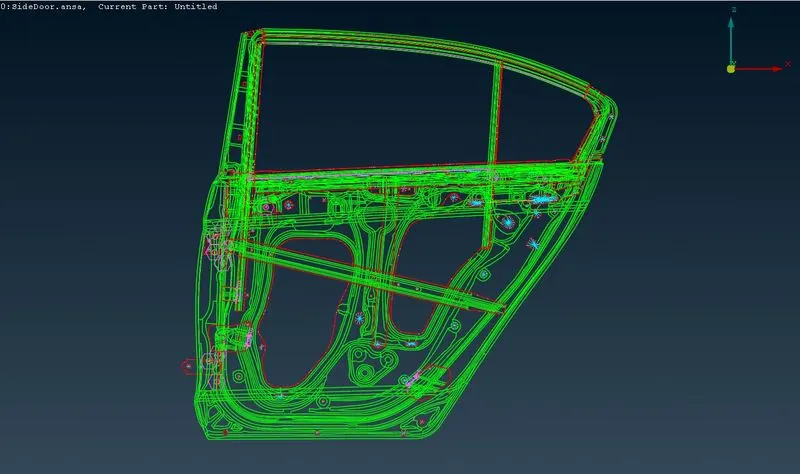

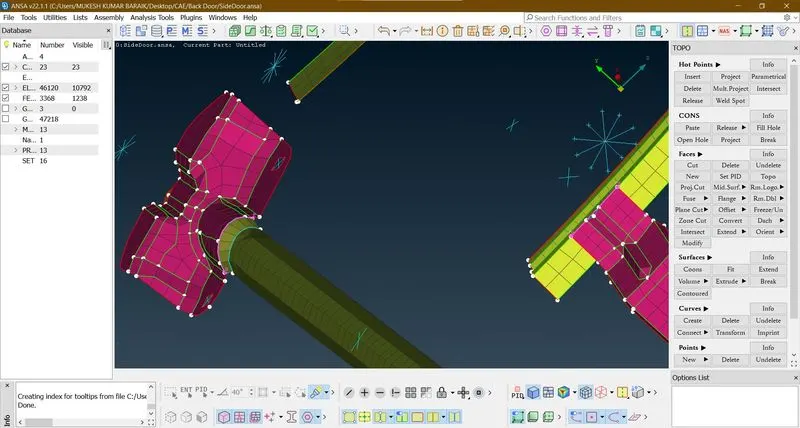

Suitable connections is formed i.e cluster REB3, seam welds, Spot welds etc.

CONCLUSION

------------------------------------------------------------------------------------------------------------------------------------------

Hence the suitable connection is done.
