Week- 5 - Solid meshing
AIM
------------------------------------------------------------------------------------------------------------------------------------------
Rear View Mirror model should be geometry cleaned and meshed 2D surface according to the quality criteria, and again volume meshed with respective quality criteria.
OBJECTIVE
------------------------------------------------------------------------------------------------------------------------------------------
- Check for geometrical errors

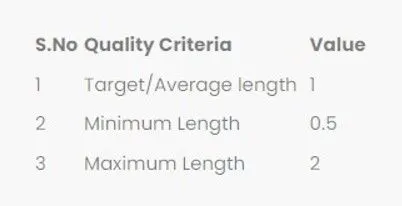

- Mesh the 2D & 3D surface according to quality criterias
GEOMETRY CLEANUP
--------------------------------------------------------------------------------------------------------------------------------

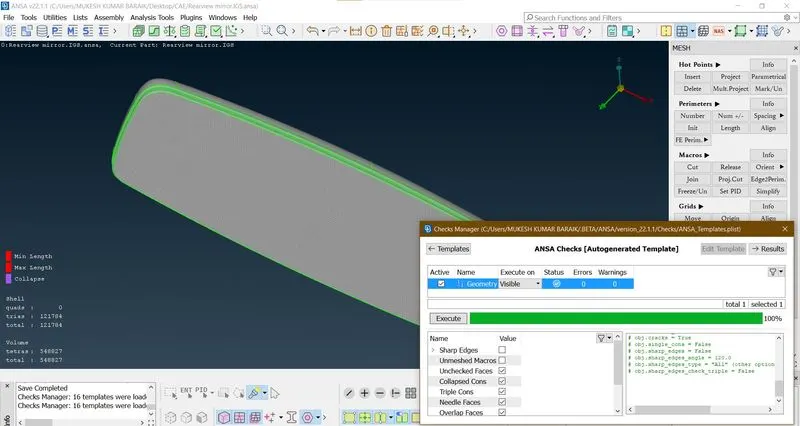

Geometry errors has been cleaned.
2D MESH FLOW
--------------------------------------------------------------------------------------------------------------------------------

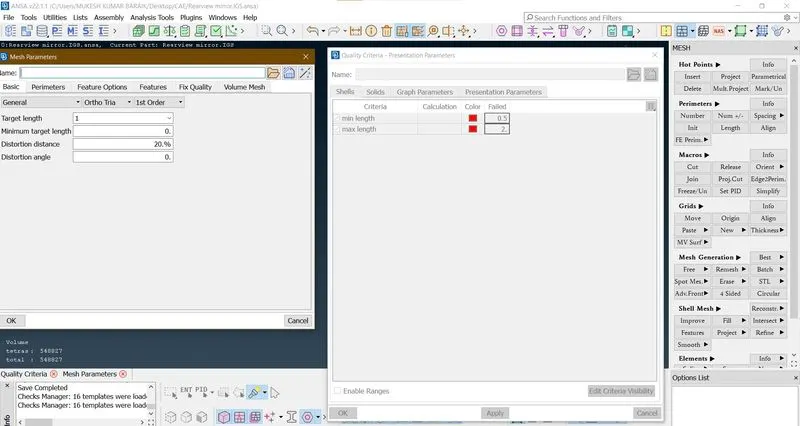

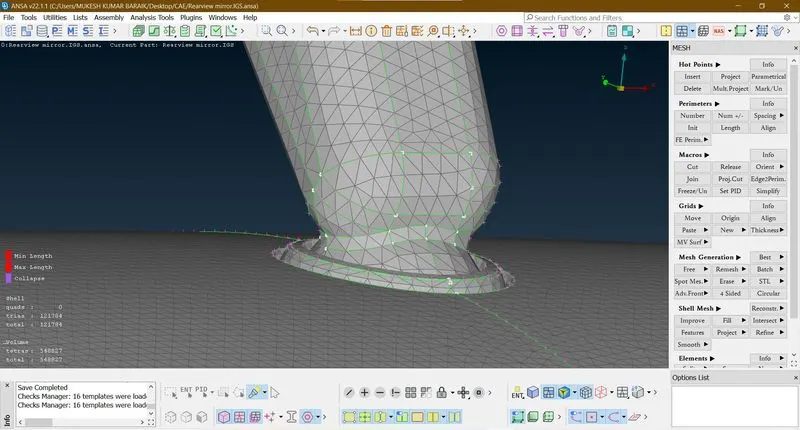

Here the curved surface is being meshed by ORTHO TRIA elements and flat surface is being meshed by TRIA elements.
ASSIGNING PID MID AND THICKNESS
--------------------------------------------------------------------------------------------------------------------------------
Property ID and MID is being defined.
2D MESH CHECK
------------------------------------------------------------------------------------------------------------------------------------------

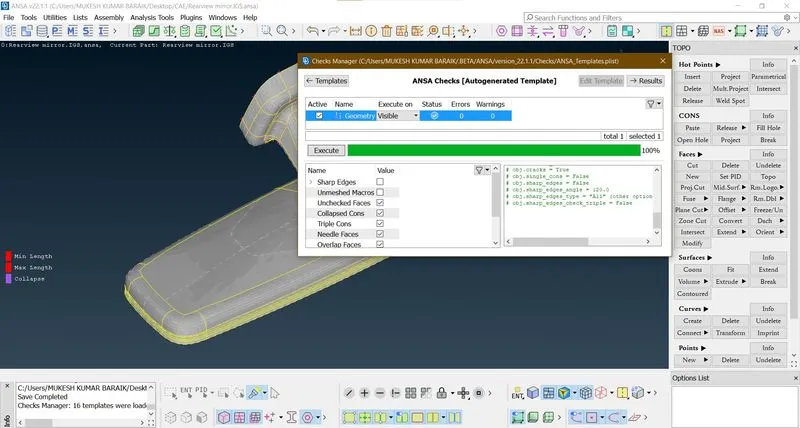

Before volume mesh it is being ensured that the 2D mesh has no geometrical errors.
VOLUME MESH GENERATION
------------------------------------------------------------------------------------------------------------------------------------------

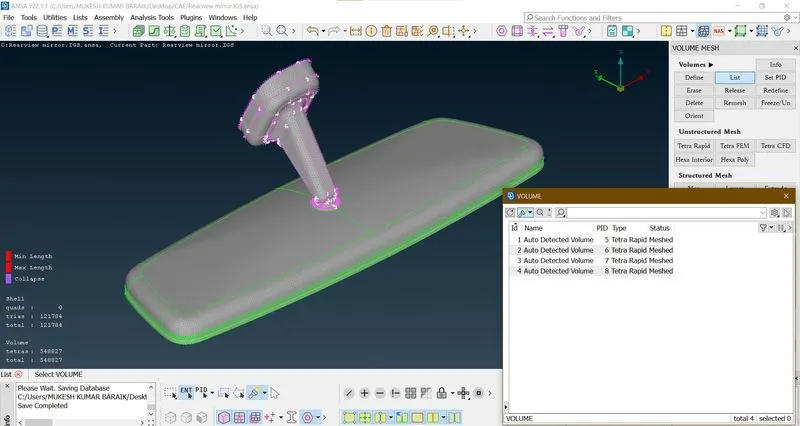

Before volume mesh solid part is created by the VOLUMES DEFINE METHOD and then TETRA RAPID mesh is generated.
CONCLUSION
------------------------------------------------------------------------------------------------------------------------------------------

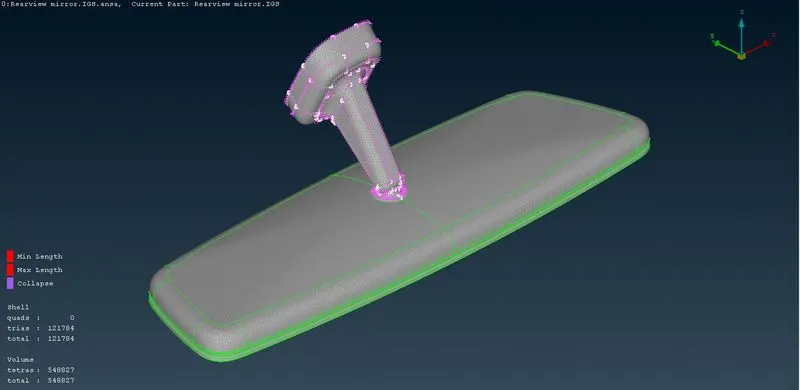

Hence the proper mesh flow is done.
