Week 6 - Creating connection for Rear door

AIM

Applying different types of 1D connections using the NASTRAN profile on the rear door FE model.

OBJECTIVE

The rear door model is givenfor the connections using different types of 1D connections which ever sutiable and makes proper connections and attaches the FE model for the simulation process.

PROCEDURE

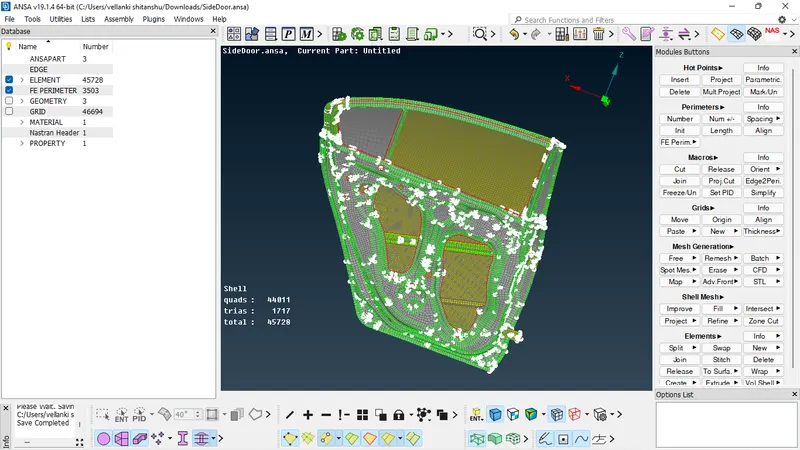

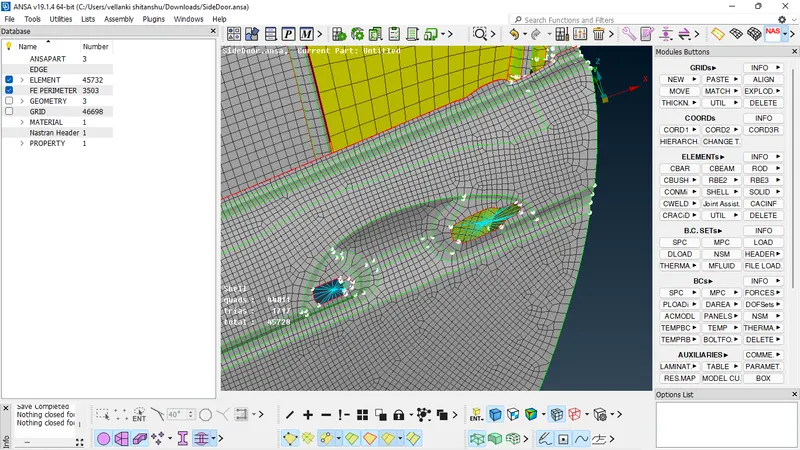

The rear door model is inputted by the NASTRAN profile, the FE model with no geometry has the same PID fo the whole realize all connections every different part the model has generated with different PID's.

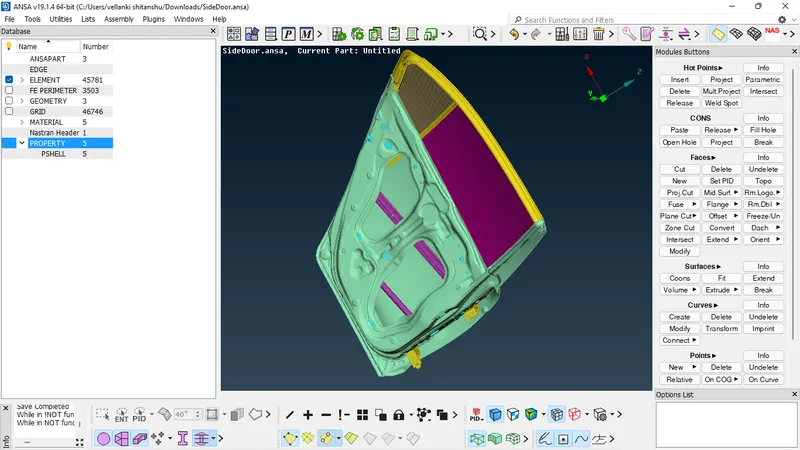

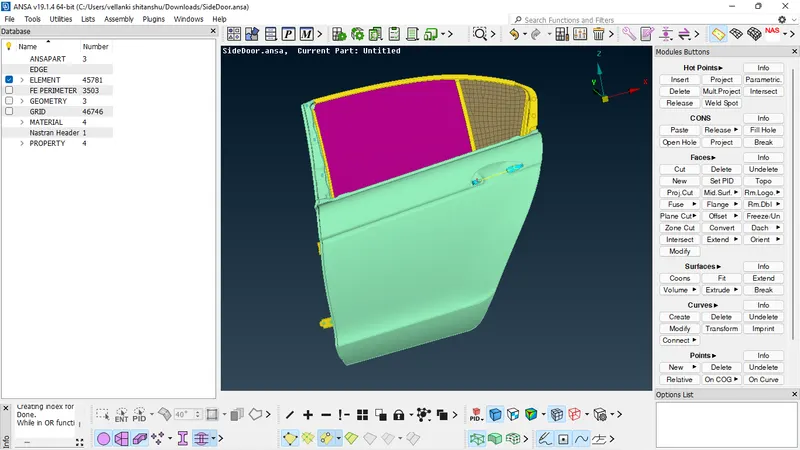

All the components seen below has been assigned into different PID's, for the concern operations to be carry forward.

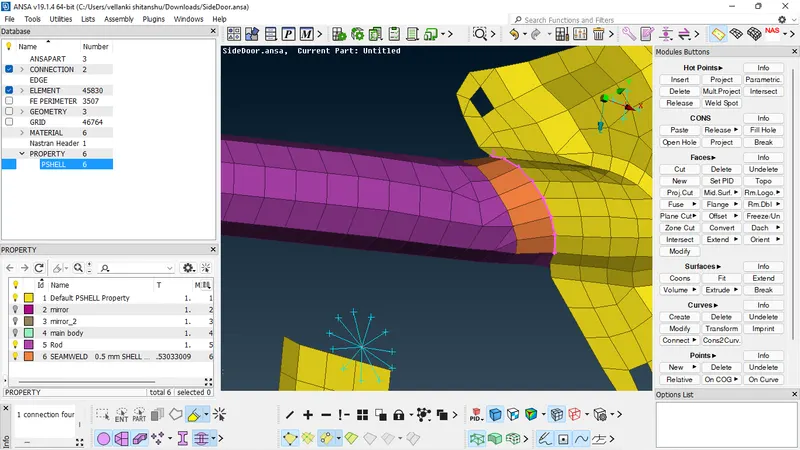

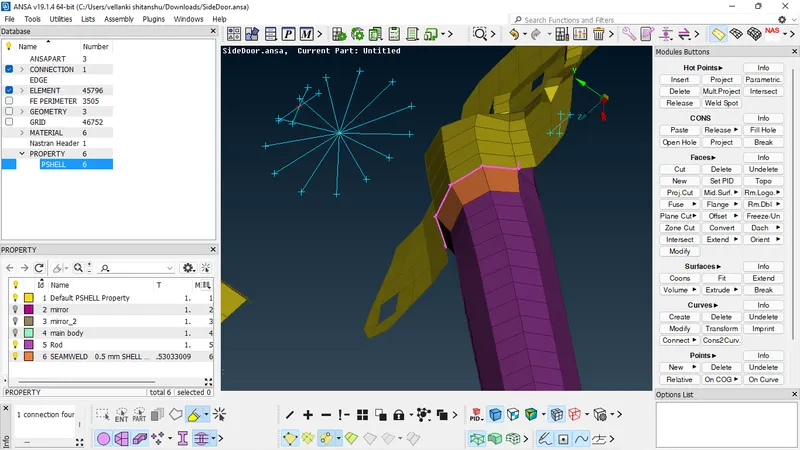

Seam weld has by generated for the welding portions.

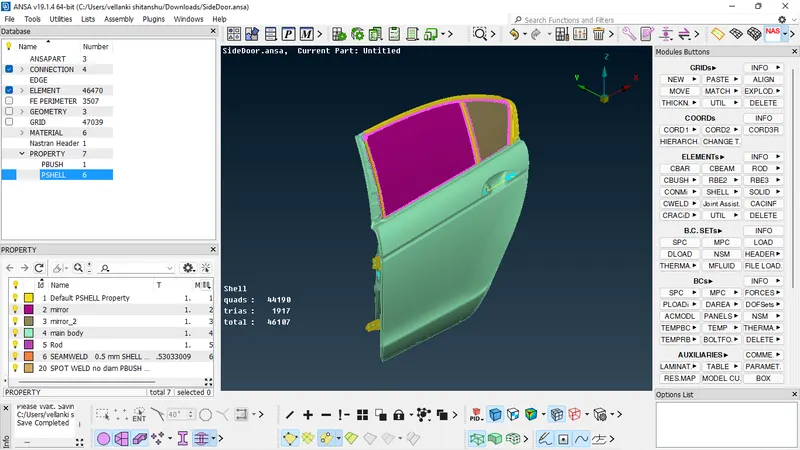

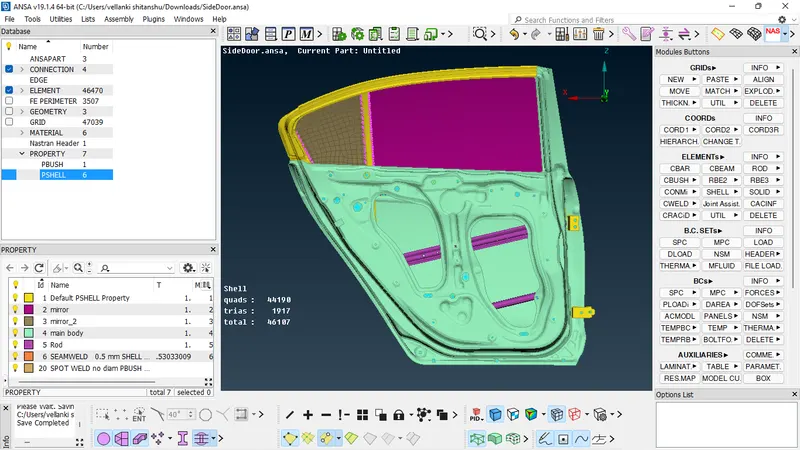

All the required operations have been performed successfully.

RESULTS AND CONCLUSION

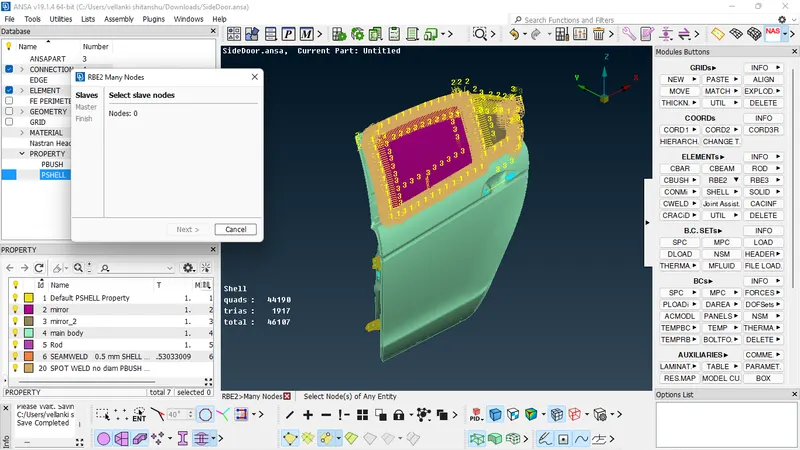

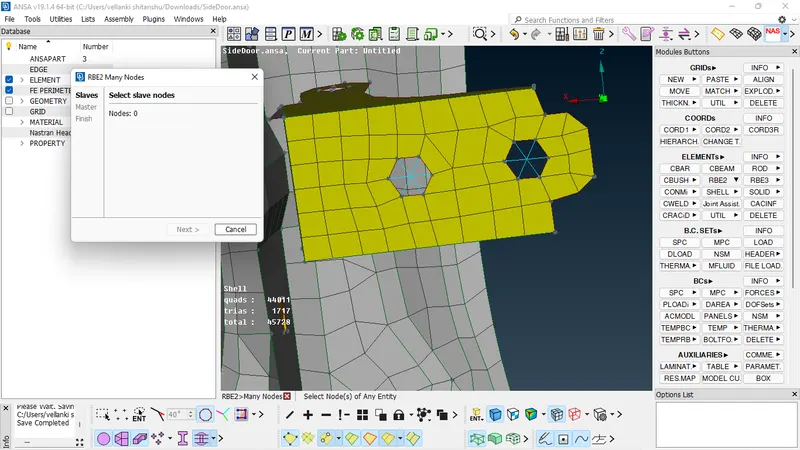

The rear door has an important aspect of connections in the vehicle body they are connected with several rigid elements, spot weld, and bush elements.To deploy the proper connections they are input with exact values and the group of REB2 elements set is created to determine them easily and this challenge is also overcome with other elemnts such as spot welds, handles CONMi mass, bolt, and REB3 Hexa(PBUSH).
