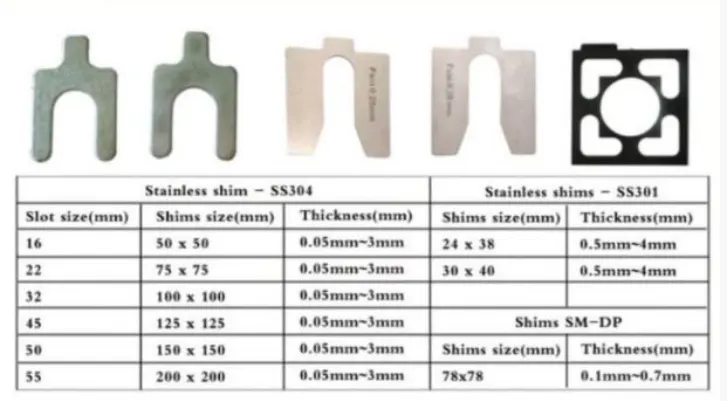

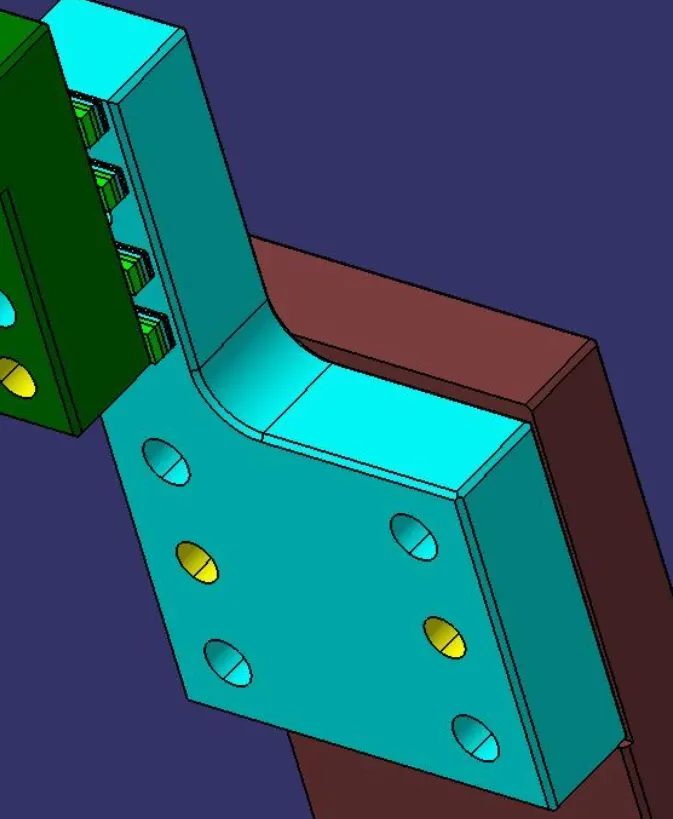

Week 6:- Clamp Unit & Pin-Clamp Unit Design Challenge

awes

asdfghjkl

fsafasfs

DRAWING TEMPLATES: Drawing templets are the files of frames and title block which convey the design information that are used to generate 2D drawing from 3D part. Neat and detailed drawing templets convey more information from designer to manufactuar.So we can avoid misunderstanding and make a very effictive parts, which…

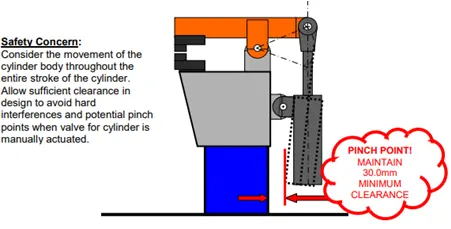

AIM:-        Perform 3D finish for all units of Assembly design.        Create Rough locators for Assembly. 3D FINISH:-  The 3D finish is the process where design is completely finishing & to be ready for final simulation & 2D detailingIn 3D finishing we perform and…

Question 1. What do you understand by the 3D finish process? ANSWER: 3D finish is the process where design is being completely finish & to be ready for final simulation & 2D detailing . While finishing the design the nominality of holes is checked which ensures the easy assembly of all the units. The hole concentricity…

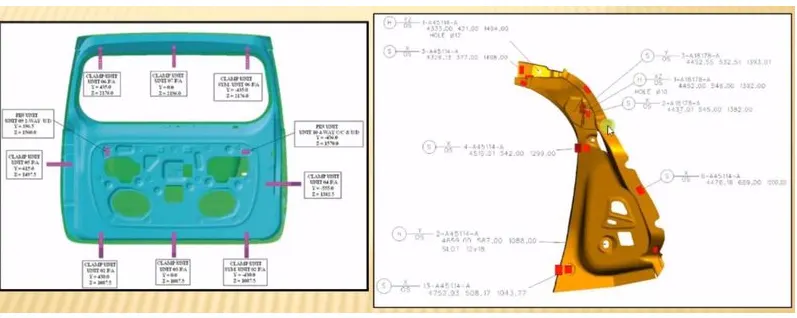

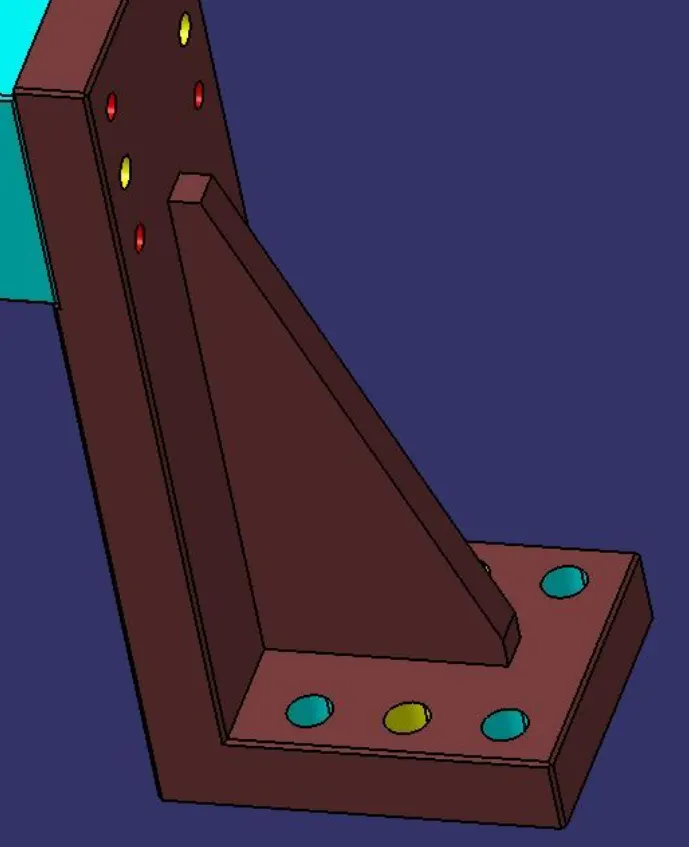

AIM:- To design the base unit for the pin unit and clamp unit with swivel clamp unit all weldments for the given car panel. SOFTWARE:- CATIA V5 BASE UNIT:- A base unit is designed to mount all other units(Clamp unit, pin unit, rest unit, etc) of the tool, also other parts necessary for a tool like Pheumatic valve box,…

1.What is the base unit & what are the typical parts of the base unit? ANSWER A base unit is designed to mount all other units(Clamp unit, pin unit, rest unit, etc) of the tool, also other parts necessary for a tool like Pheumatic valve box, trunking cable path will also be mounted onto a base unit. And below are some…

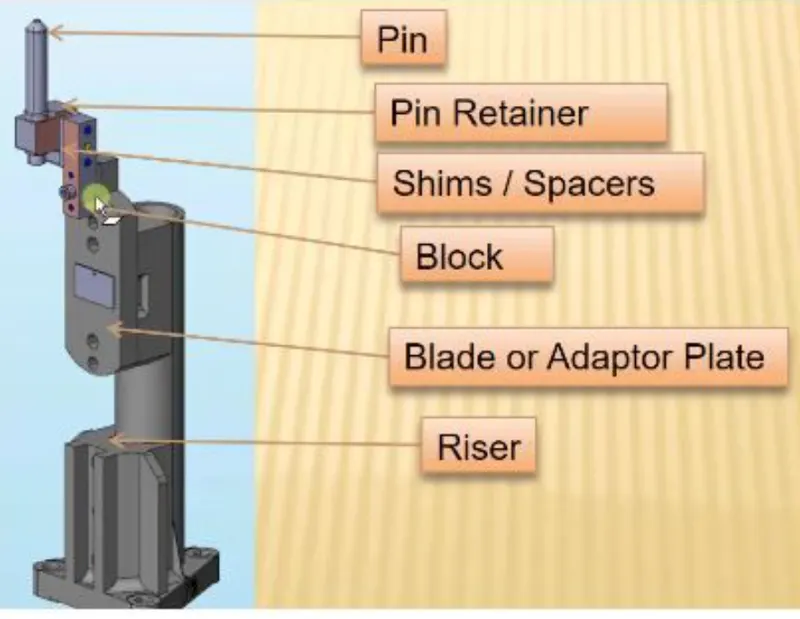

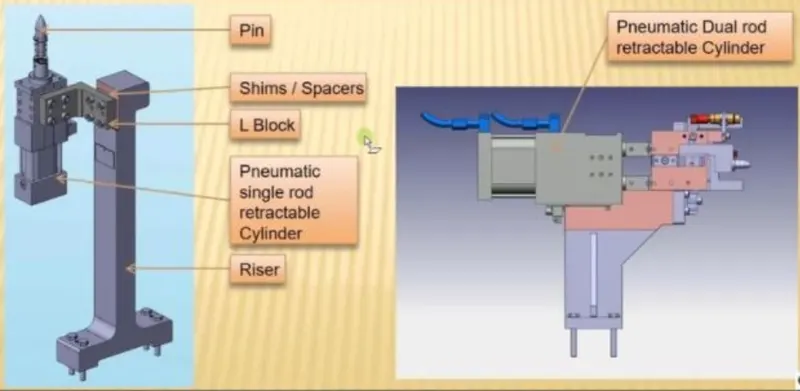

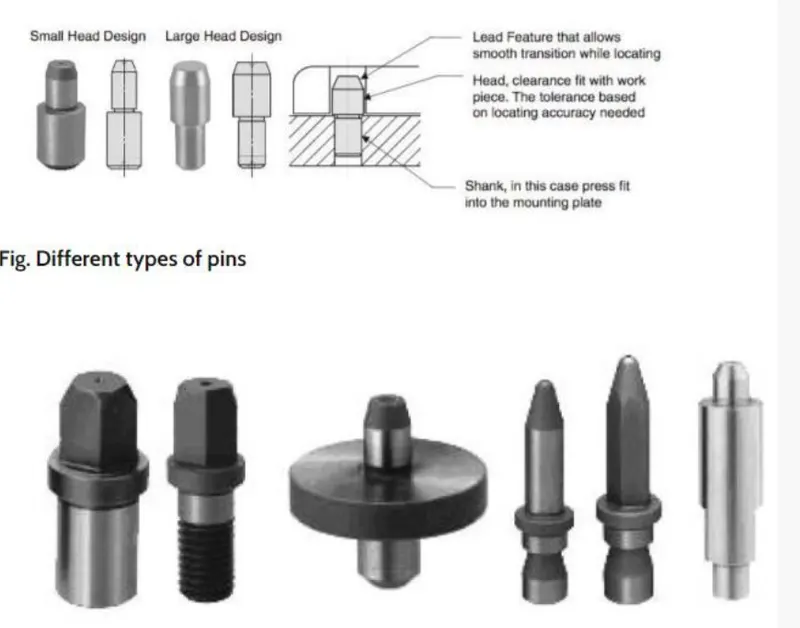

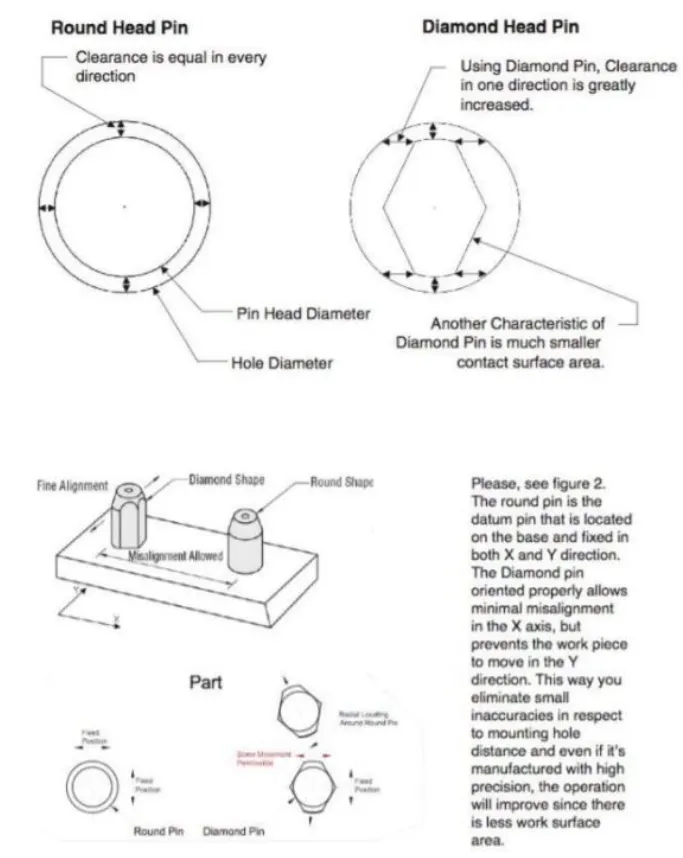

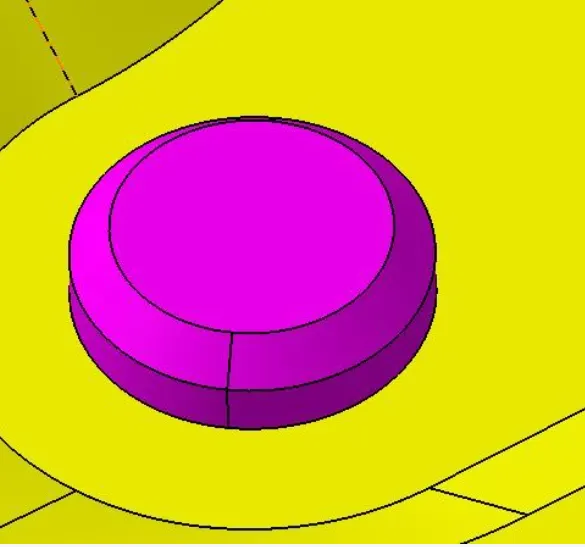

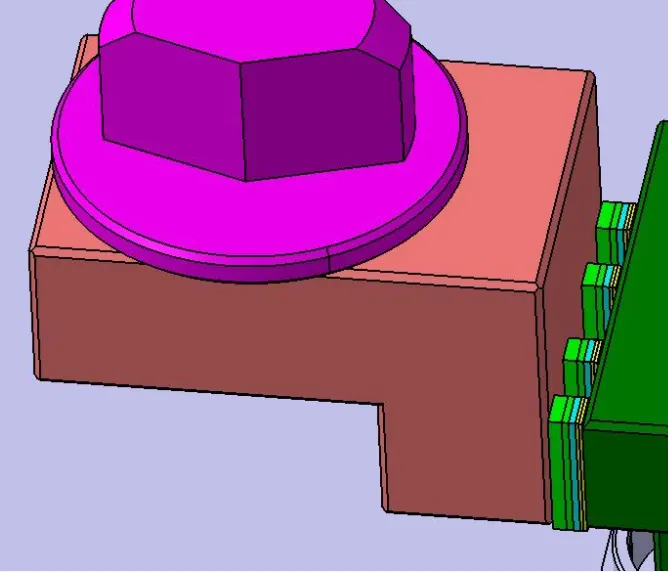

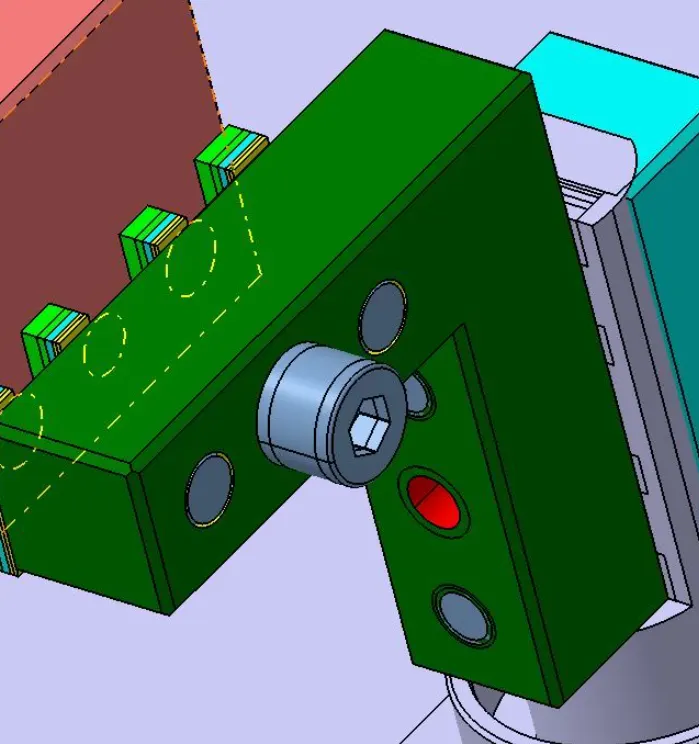

PIN UNIT DESIGN OBJECTIVE: To design 2 different types of fixed pin unit and retractable pin unit each with different pins, risers, blade and block. ABSTRACT: In industry while assembling a car several processes has to be performed on it at part level so that it is fit for the roads. The process that is performed at the…

  PIN UNIT DESIGN OBJECTIVE: To design 2 different types of fixed pin unit and retractable pin unit each with different pins, risers, blade and block. ABSTRACT: In industry while assembling a car several processes has to be performed on it at part level so that it is fit for the roads. The process that is performed…

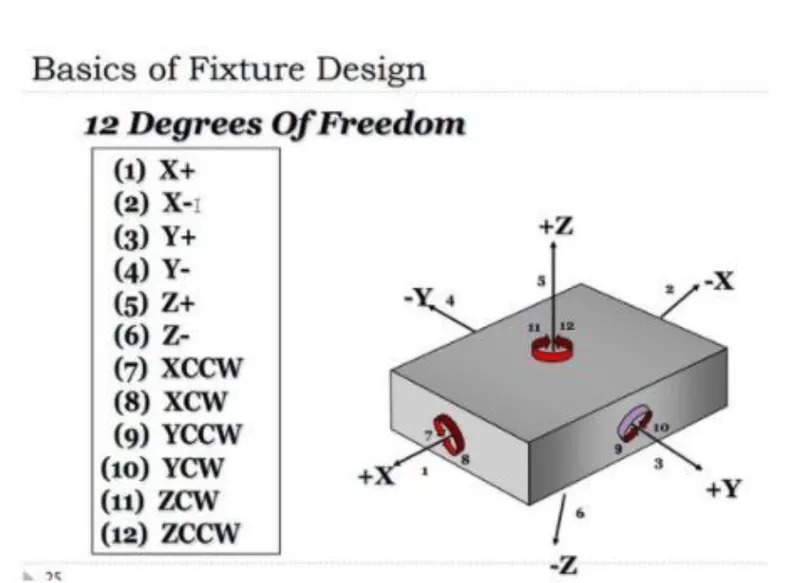

1.DESIGN METHODOLOGY:- Design methodology is nothing but step followed by during a concept of designing staged of biw fixture design. see the follwing chart of design methodology, 2.INPUTS FROM CUSTOMER:- Inputs of custmer for design is  Functional requirement Preferred standard components Car product Layput Ergo…

The project excution activity process chart show in below according to that step by step process going, RFQ:-A request for quote (RFQ), also known as an invitation for bid (IFB), is a process in which a company solicits select suppliers and contractors to submit price quotes and bids for the chance to fulfill…

Body in white (BIW) refers to the stage in the automobile manufacturing in which a car body's components have been joined together, using one or a combination of different techniques: welding (spot, MIG/MAG), riveting, clinching, bonding. laser brazing etc. BW is termed before painting and before the motor, chassis sub…

The process of project excuation activity chart given below 1.RFQ RECEIVED:-  A request for quote (RFQ) is a solicitation sent to a number of suppliers seeking bids for a contract to supply specific products or services. The request must specify the quality and quantity needed, and the timing desired by the company…

BIW DEFINATION:-                     BIW FIXTURE(BODY IN WHITE) IS STRUCTURE OF SHEETMETAL CAR WELEDED TOGETHER LIKE BODY UNDER &BODY INNER,                          FENDER,CLOSERUE.      …
