Week 6 Challenge

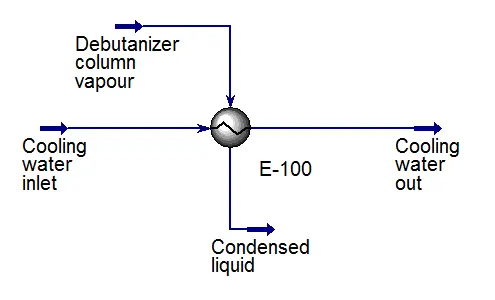

The heat exchanger flow diagram as follows.

The TEMA sheet for the heat exchager with 18% over design is attached below along with the complete process simulation.

It is proved that achieveing 0% over design also possible by making required changes to the tube length to 2.5 m and number of baffels to 3.
