Week 6 Challenge

SOLUTION 3

C= COMPRESSION

T= TENSION

ALL SUPPORT ARE PINNED

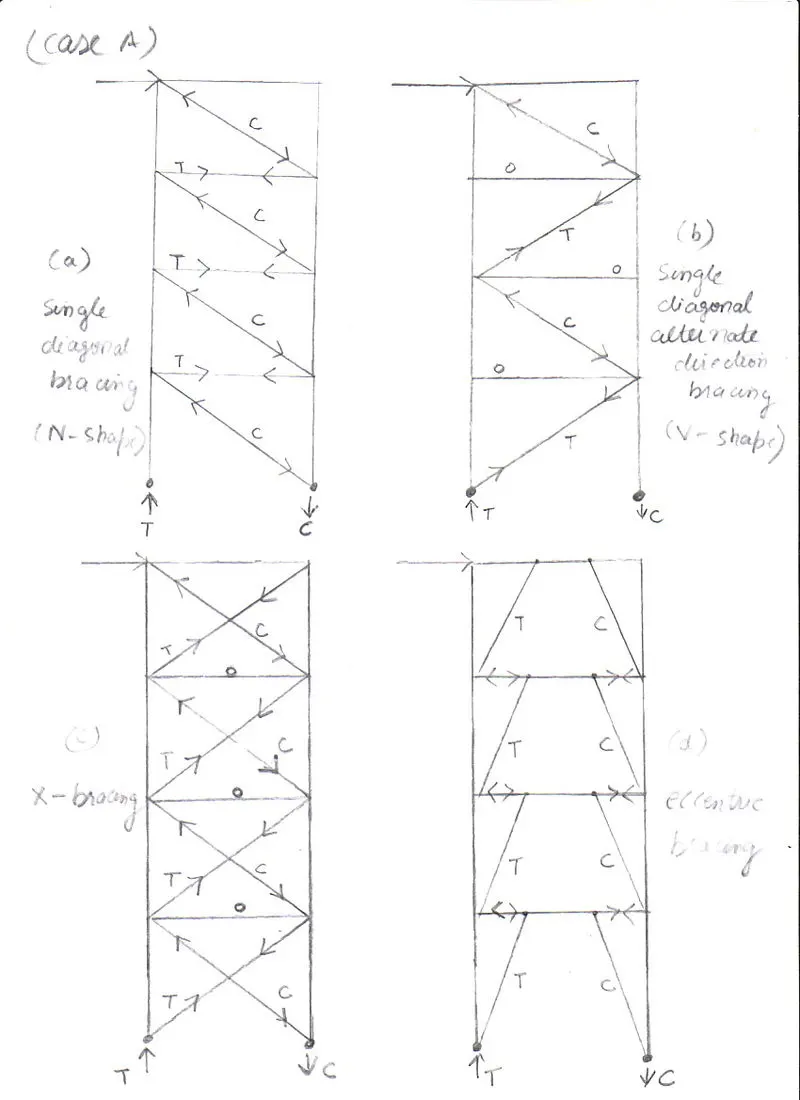

CASE A

1. SINGLE DIAGONAL BRACING (N SHAPE) WITH LATERAL LOAD

2. SINGLE DIAGONAL BRACING N SHAPE WITH ALTERNATE DIRECTION (V SHAPE) WITH LATERAL LOAD

3. X BRACING WITH LATERAL LOAD

4. ECCENTRIC BRACING WITH LATERAL LOAD

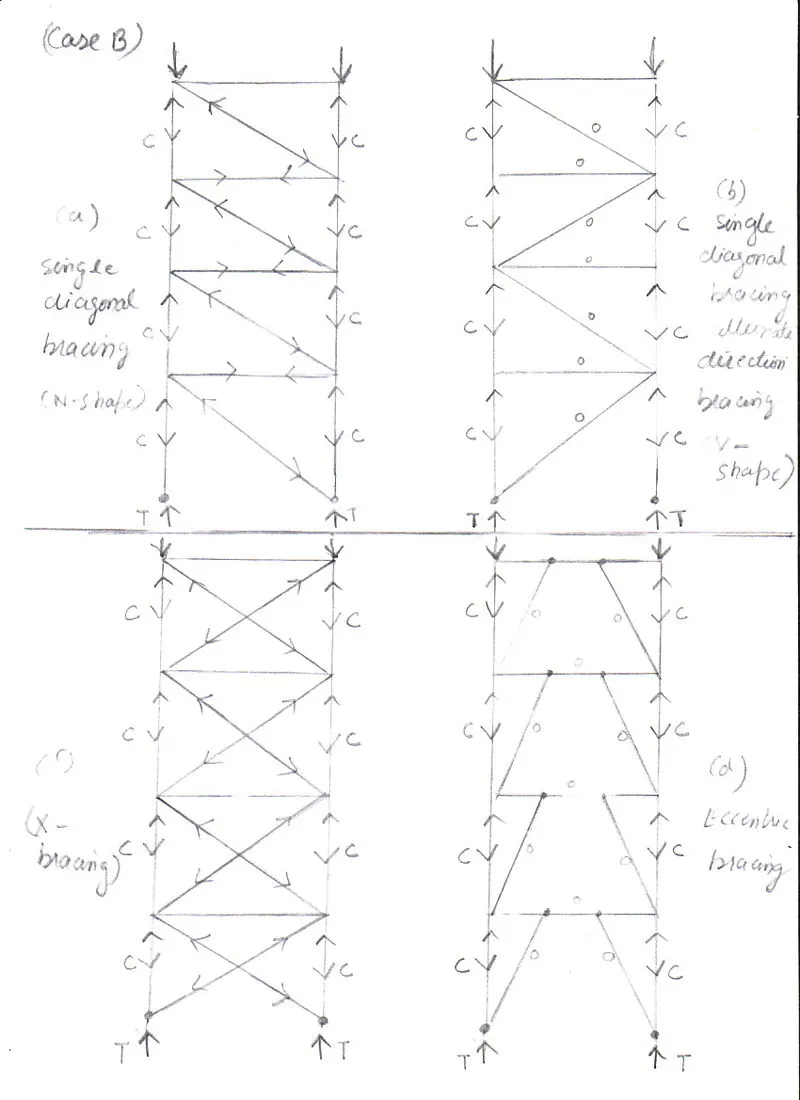

CASE B.

1. SINGLE DIAGONAL BRACING (N SHAPE) WITH GRAVITY LOAD

2. SINGLE DIAGONAL BRACING N SHAPE WITH ALTERNATE DIRECTION (V SHAPE) WITH GRAVITY LOAD

3. X BRACING WITH GRAVITY LOAD

4. ECCENTRIC BRACING WITH GRAVITY LOAD
