Week 6 Challenge

Q. 1. Summarize your study for the bending moment, shear force and deflection diagrams for the raft foundation in stadd and compare them with manual calculation for different set of loads. Fill of 1 m on top slab.

1) earth pressure 2) self-weight 3) Surcharge 4) 70R load

Ans

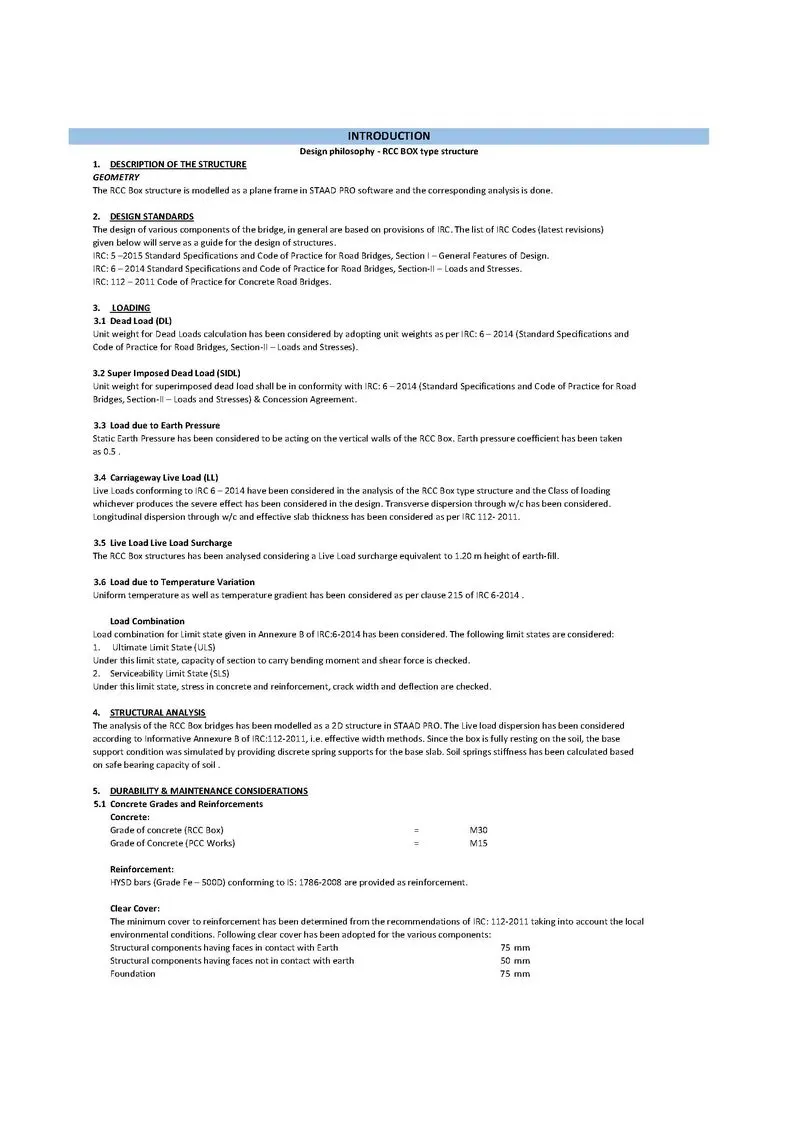

Aim of the challenge -

• To Analyze and design the raft foundation by applying earth pressure, self-weight, surcharge loading and 70R vehicle loading and calculating bending moment, shear force & deflection through staad. pro as well as by manual calculation also.
• So first of all the Vehicular underpass is modelled as portal frame structure in Staad.pro and analyzed for a unit length.
• Various load as described applied to the structure and being analyzed.
• Spring foundation assigned to the structue as per the calculated value for diffrent springs as per the length of the nodes considered for the spring foundation.

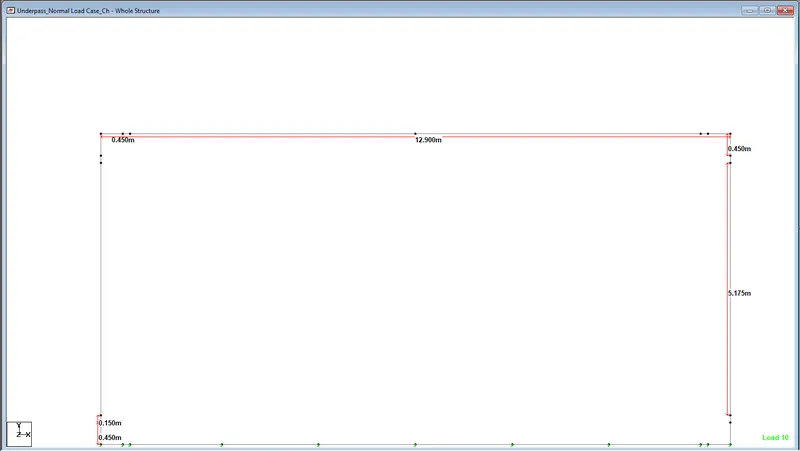

The Staad model has been created according to the sizes given .

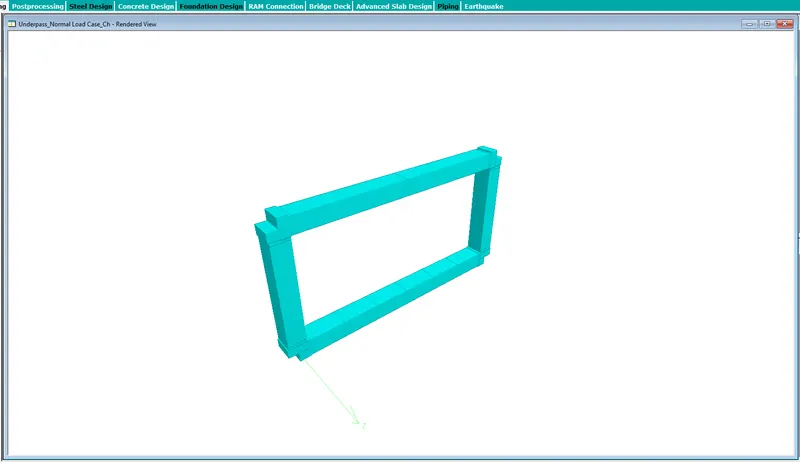

• The 3D render view of the model.

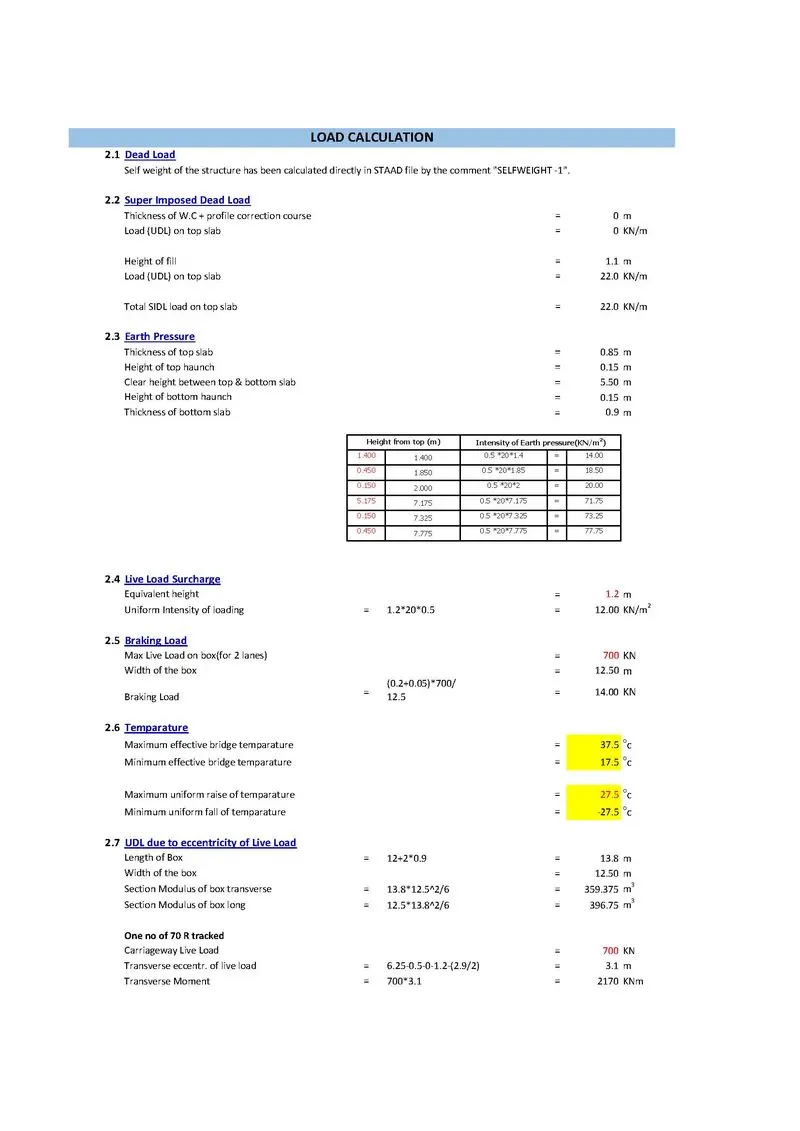

Manual Calculation

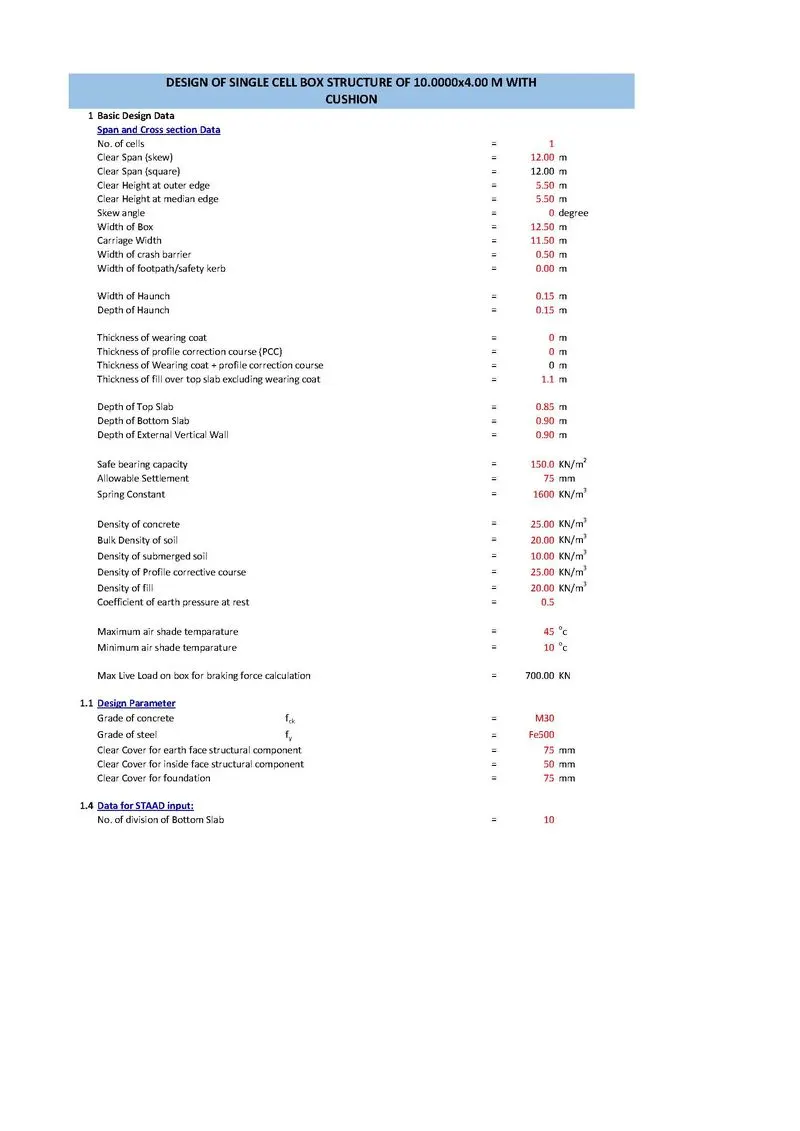

1. Self Weight of the bottom Slab

The thickness of the bottom slab = 0.9m

Width of the Underpass = 12.0m

Thickness of wall = 0.9m

Volume of slab = (12+2 x 0.9) x 0.9 x 1 = 12.42 m3

Slf wt of slab = 12.42 x 2.5 = 31.05 t

2. Earth Pressure Calculation

phi = 30 degree

earth pressure co-efficient = 0.5

Density of soil = 20 Kn/m3

Height from top (m)		Intensity of Earth pressure(KN/m2)
1.400	1.400	0.5 *20*1.4	=	14.00
0.450	1.850	0.5 *20*1.85	=	18.50
0.150	2.000	0.5 *20*2	=	20.00
5.175	7.175	0.5 *20*7.175	=	71.75
0.150	7.325	0.5 *20*7.325	=	73.25
0.450	7.775	0.5 *20*7.775	=	77.75

3. Live load surcharge

Equivalent height				=	1.2	m
Uniform Intensity of loading	=	1.2*20*0.5		=	12.00	KN/m2

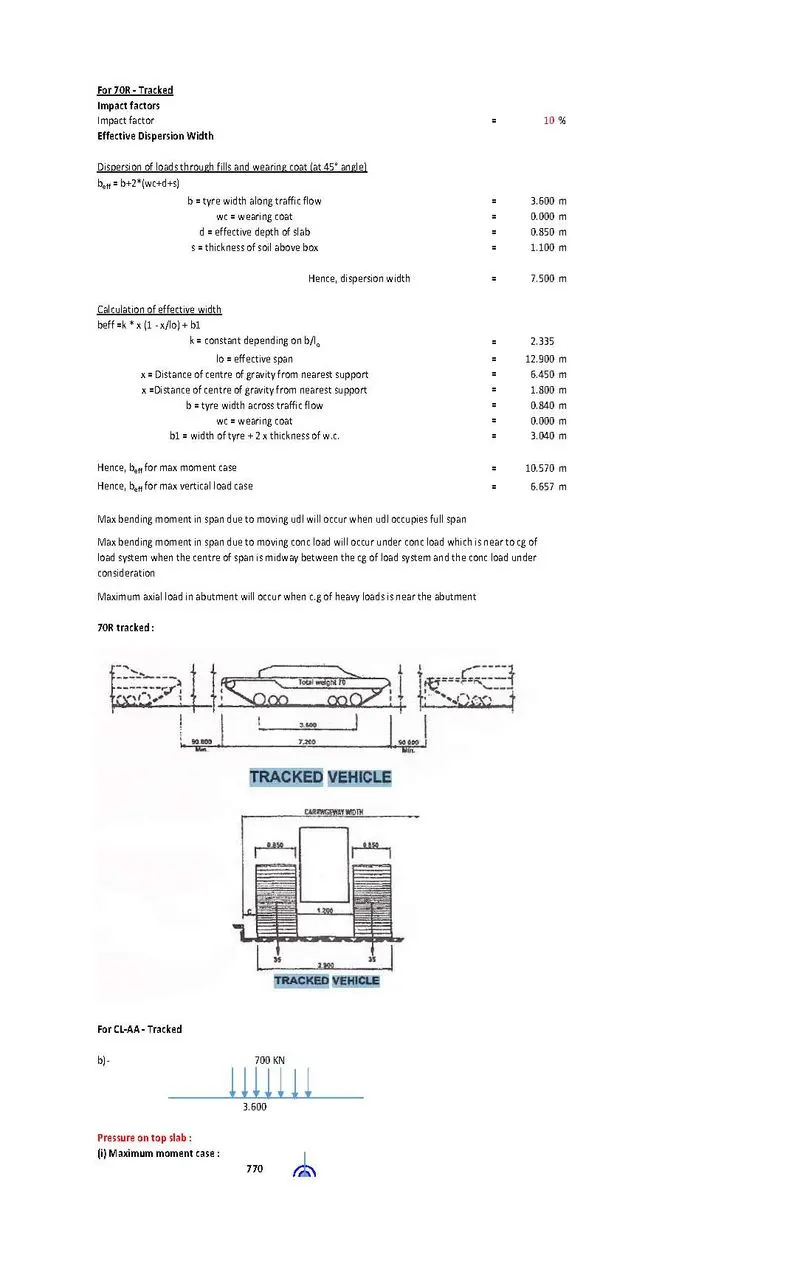

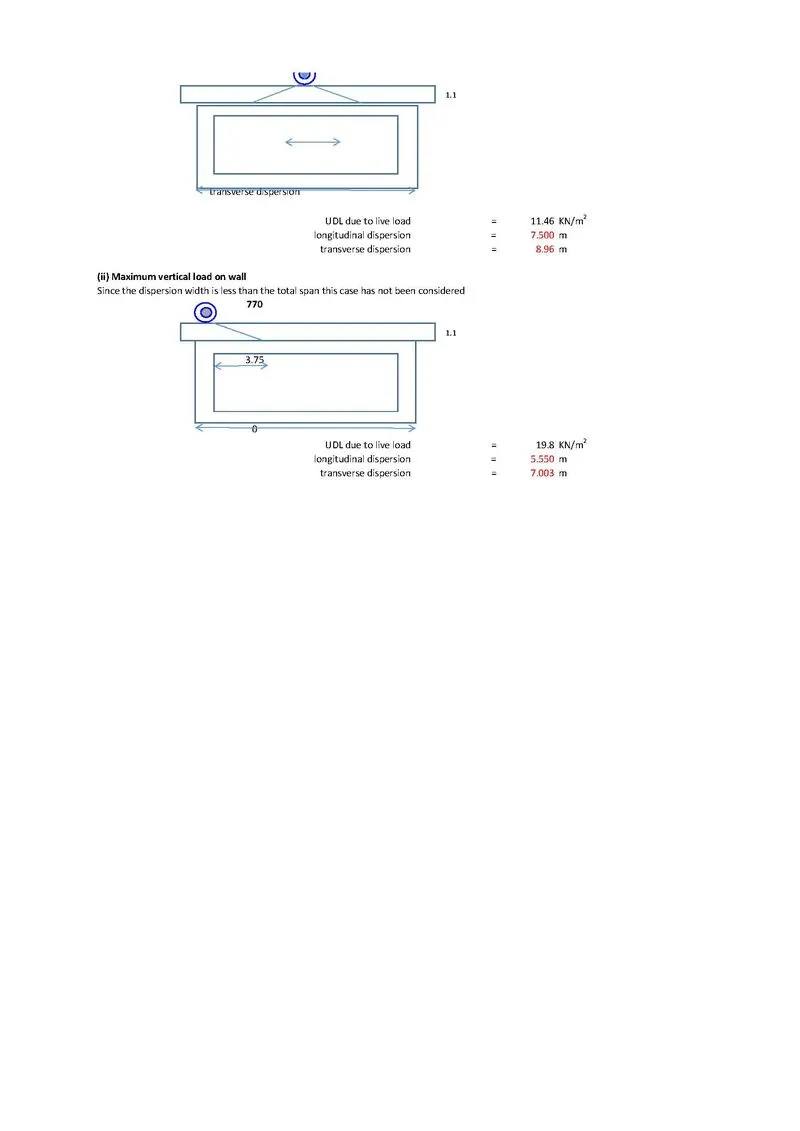

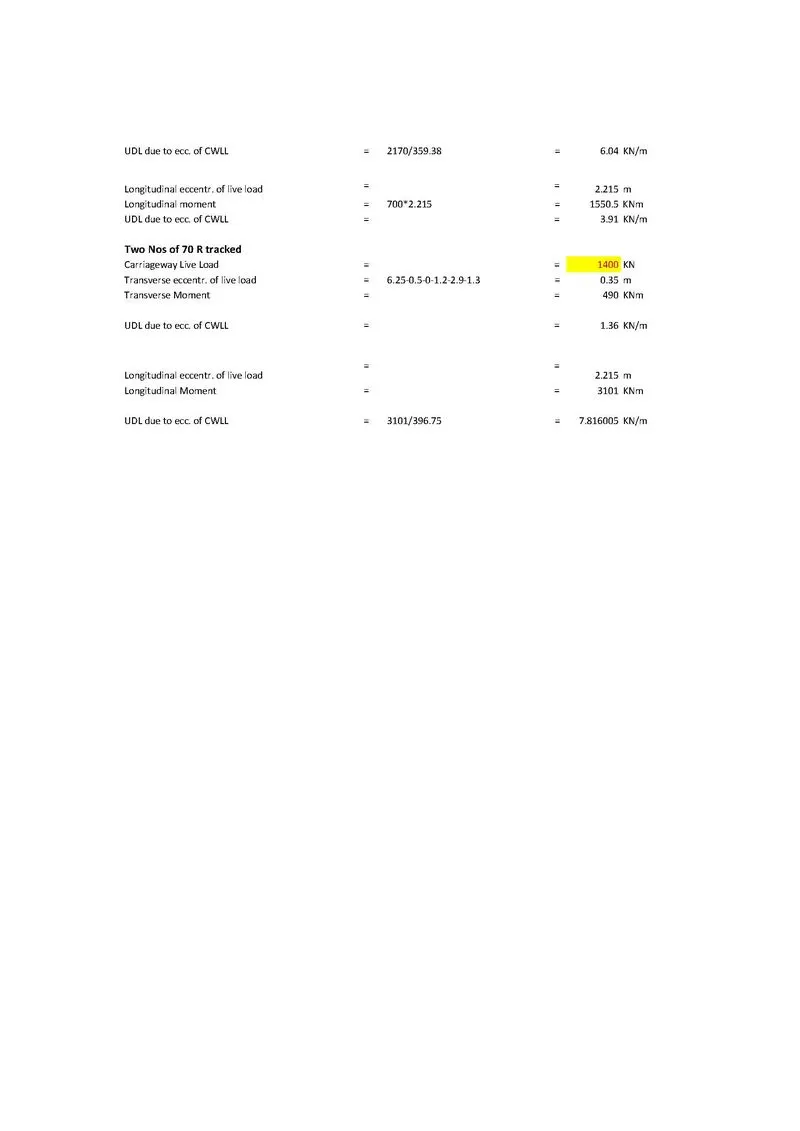

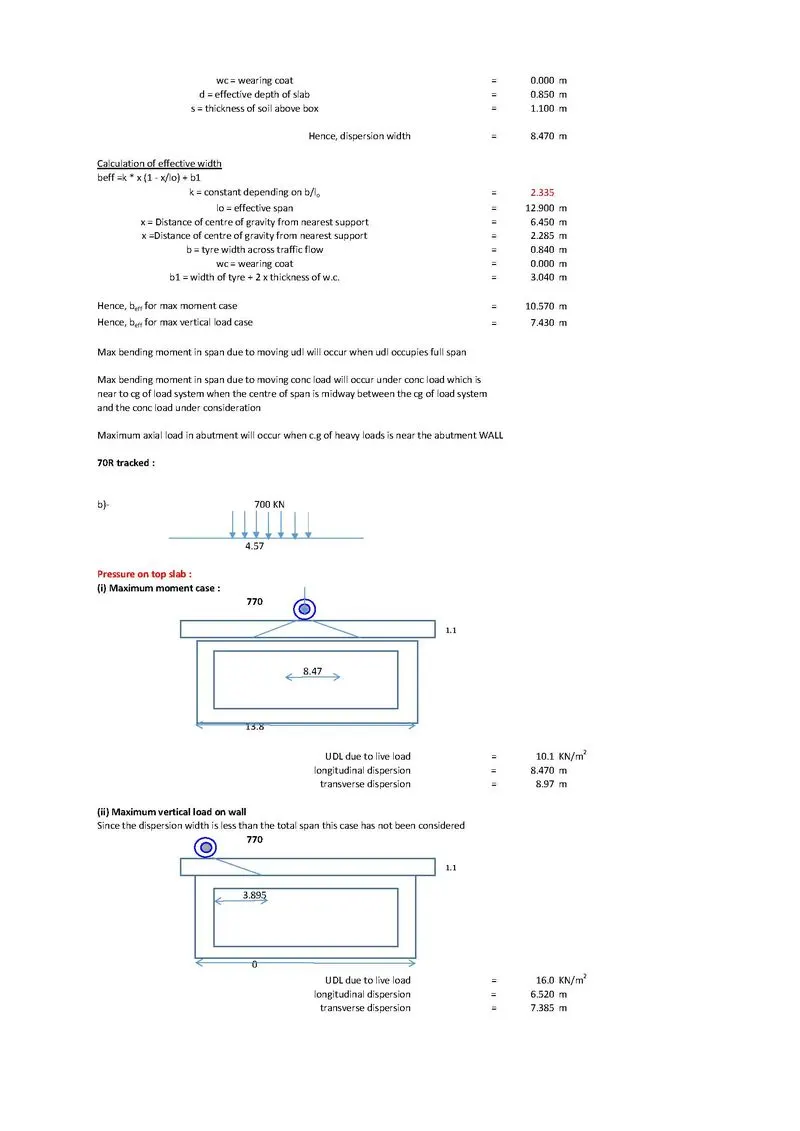

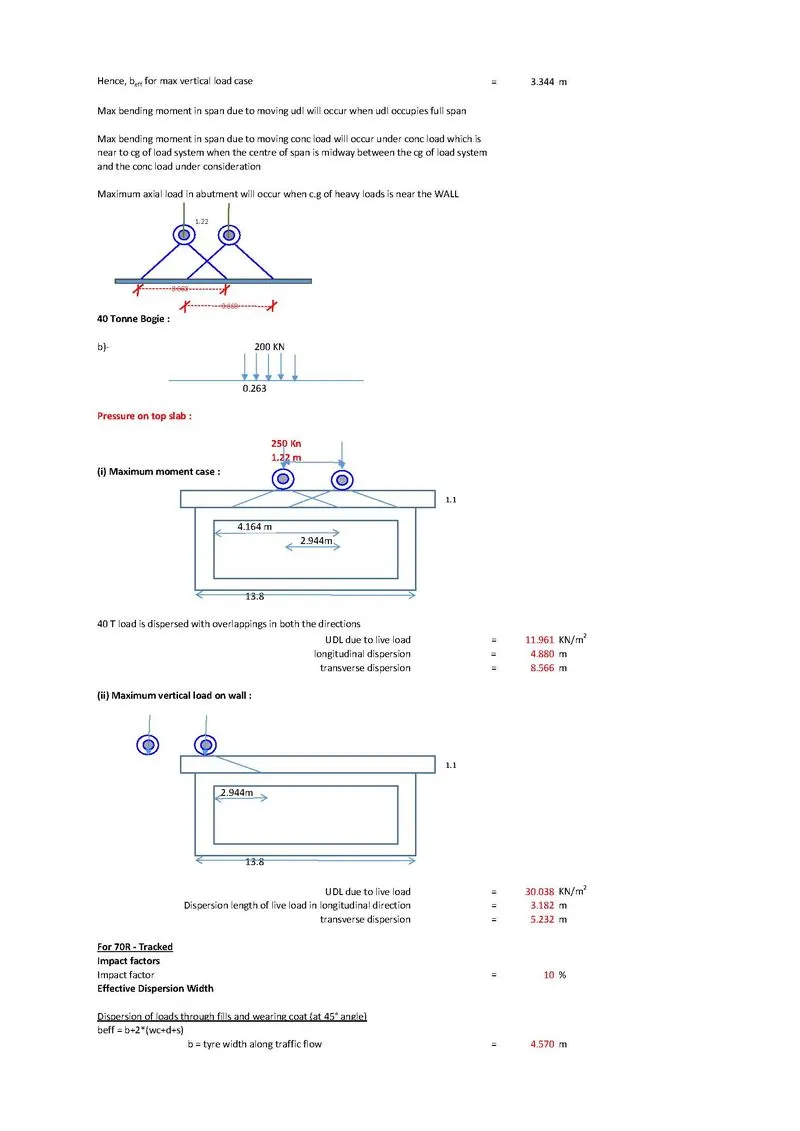

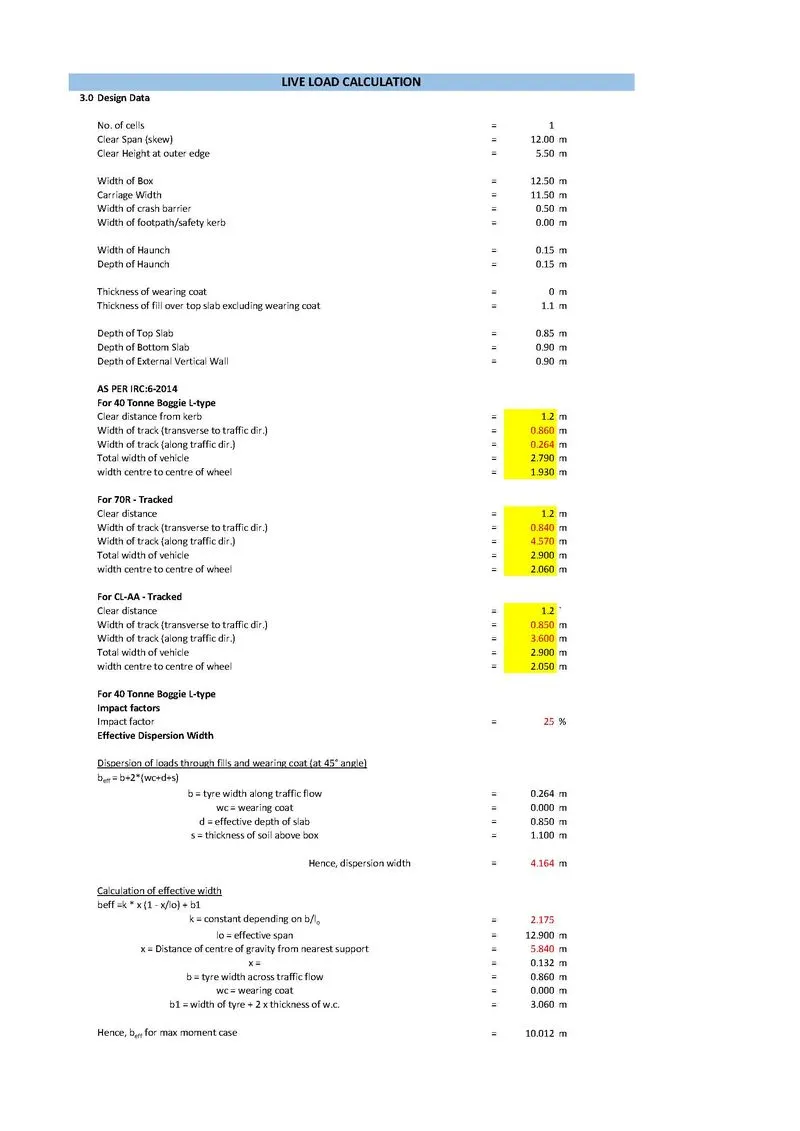

4. 70R load

For 70R loading 70ton of vehicular loading is being applied on the structure.

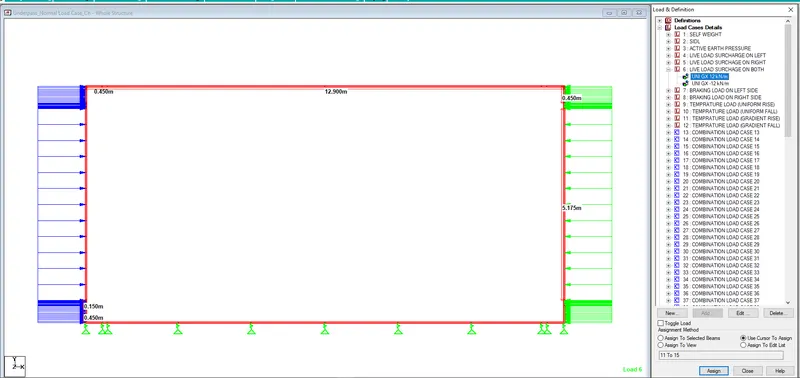

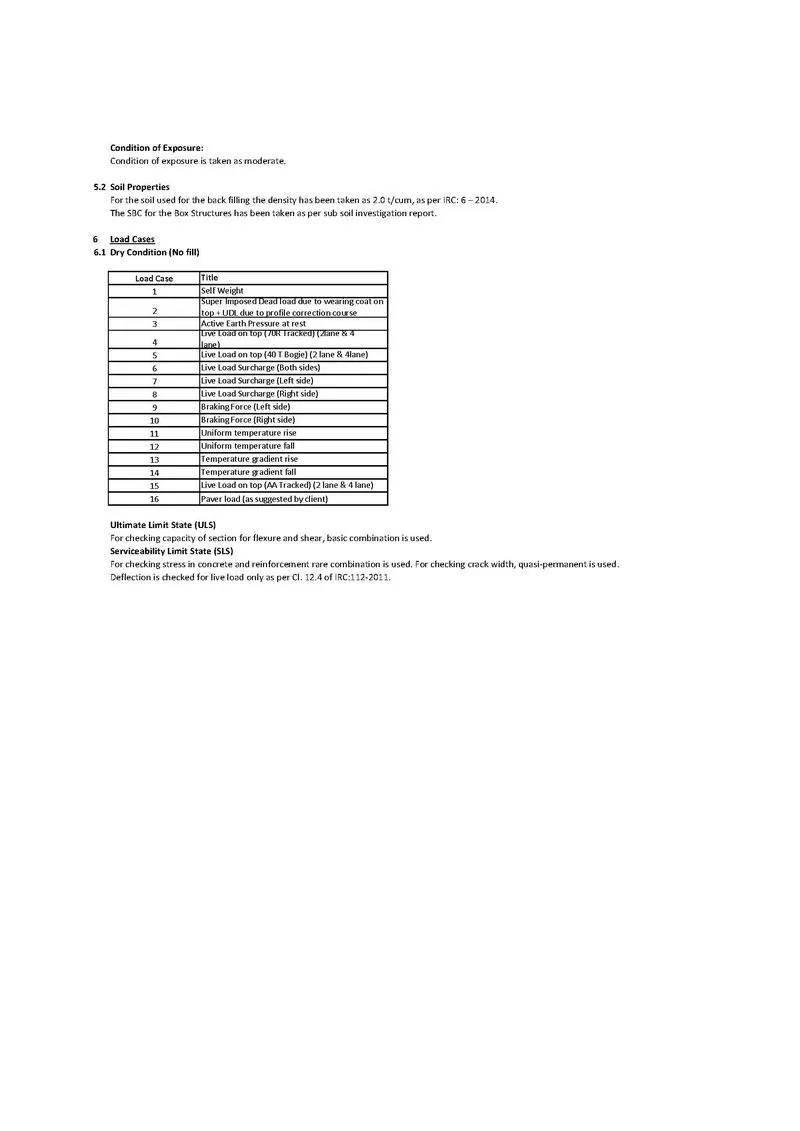

Applying in staad model

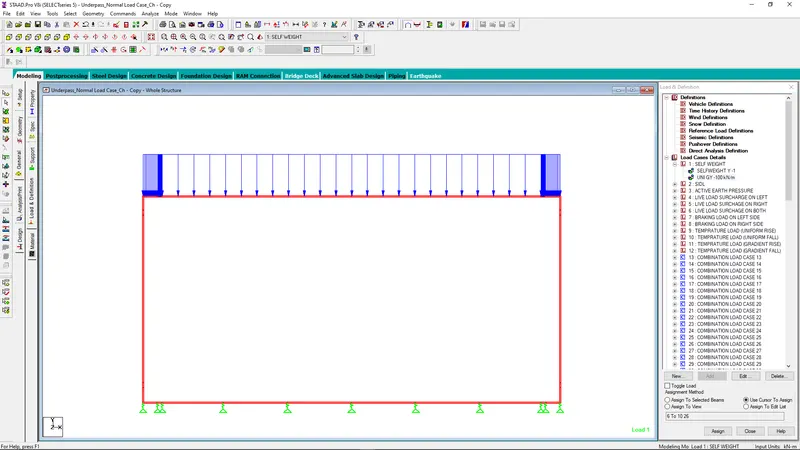

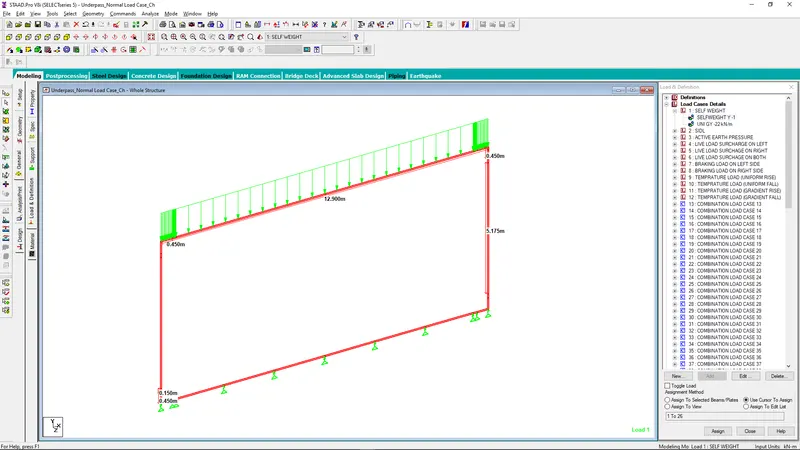

1. Self Weight

Self wt has been applied to the structure by inputing the self wt. as -1 in staad.

2. Earth Pressure

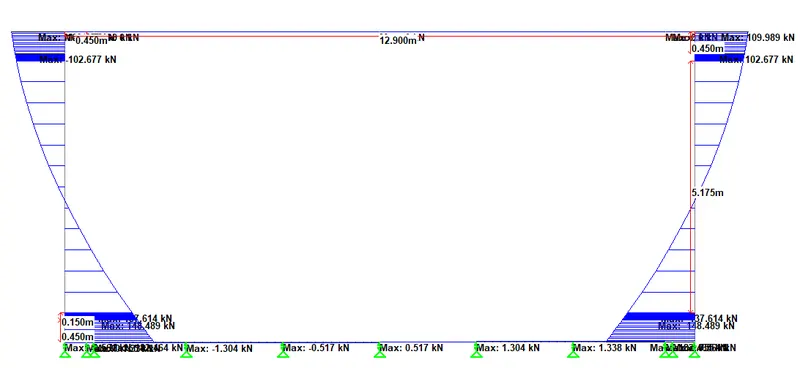

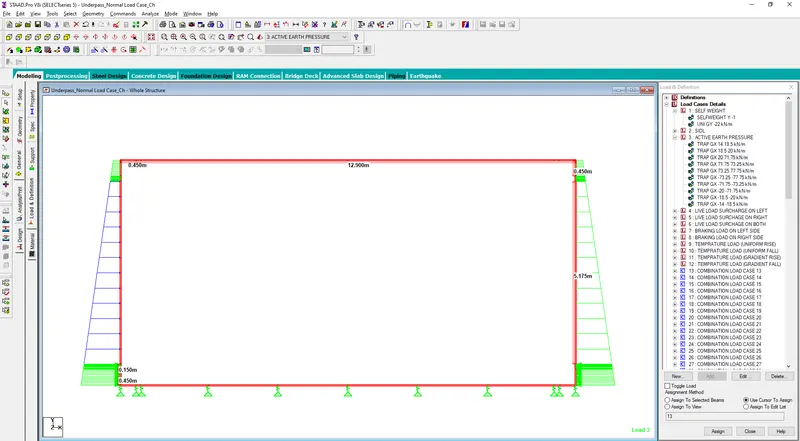

The Earth pressure applied to the structure from top to bottom in trapizoidal format.

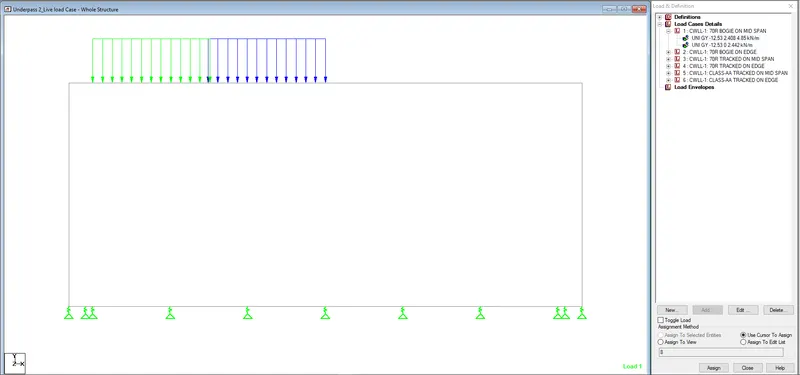

3. Live load surcharge

4. 70R load

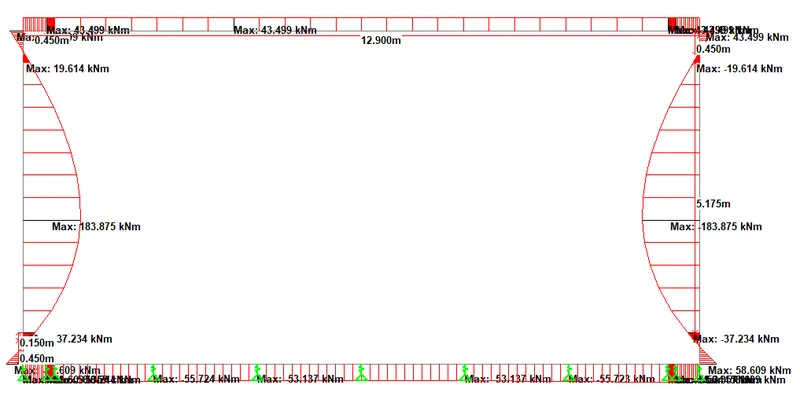

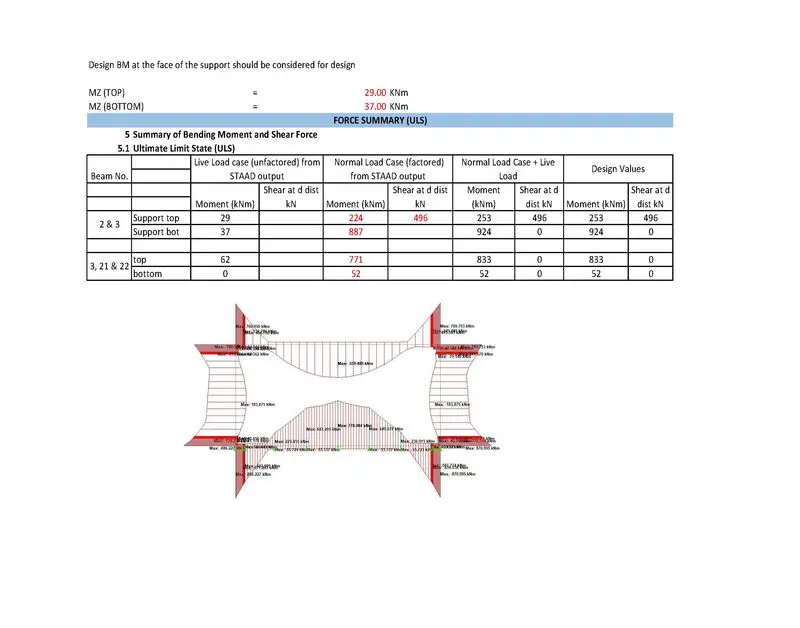

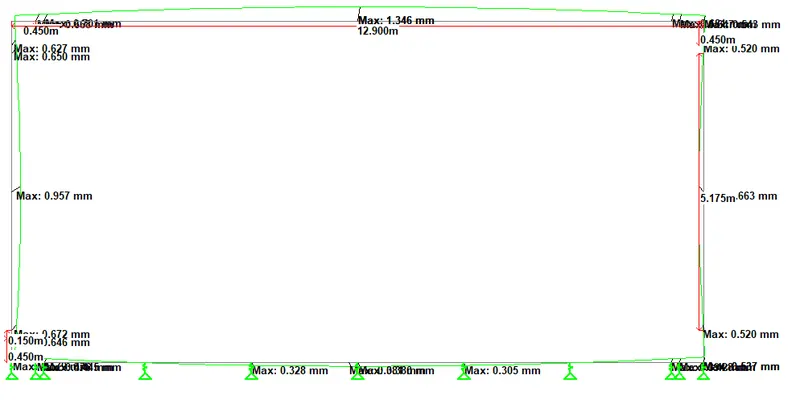

Bending Moment, SFD & Deflection

1. Self Weight

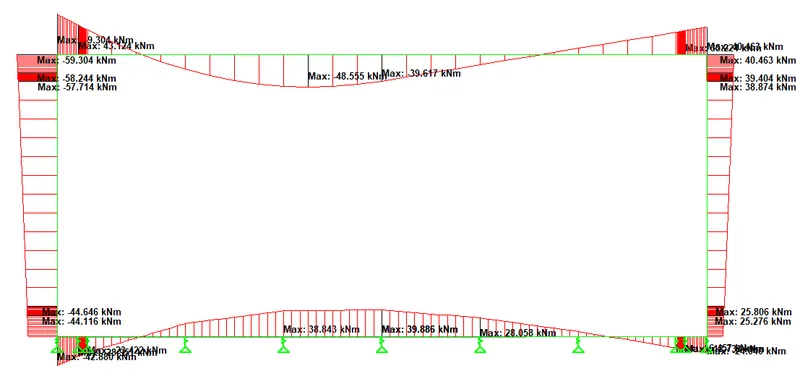

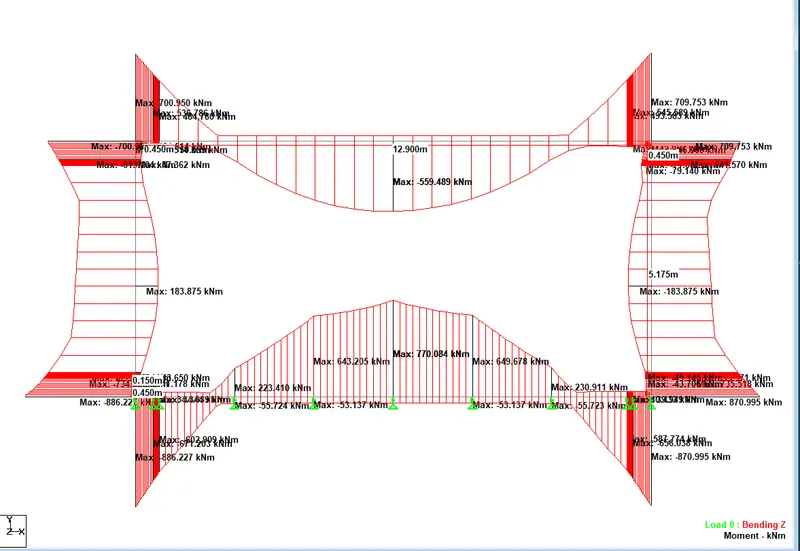

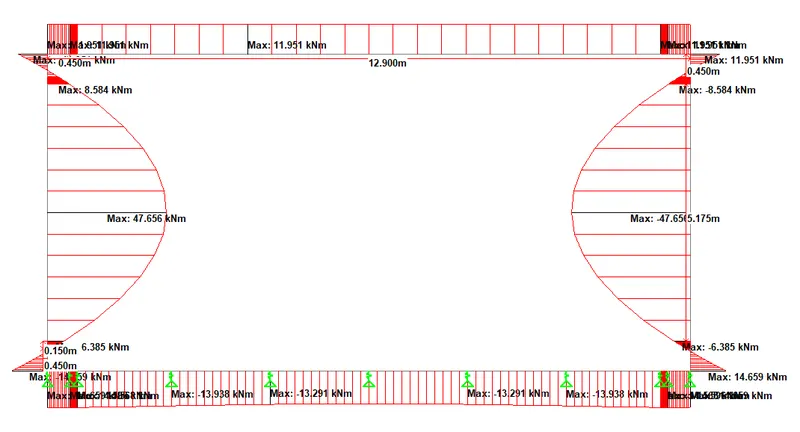

BM-

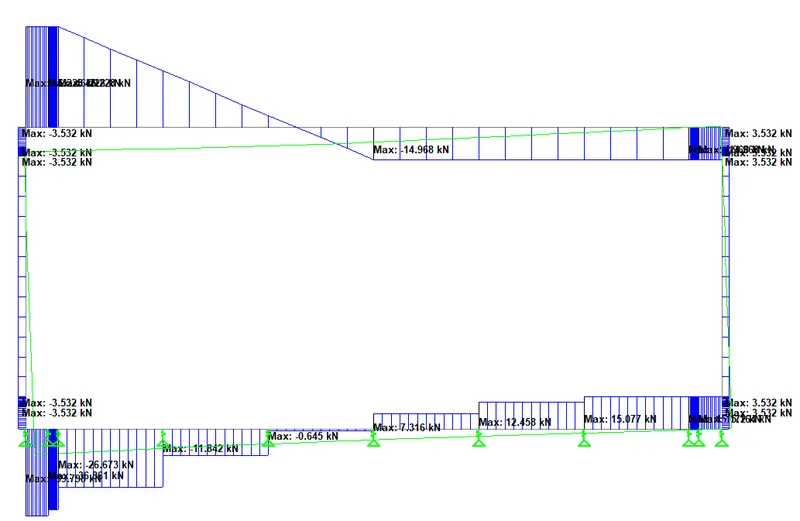

SF-

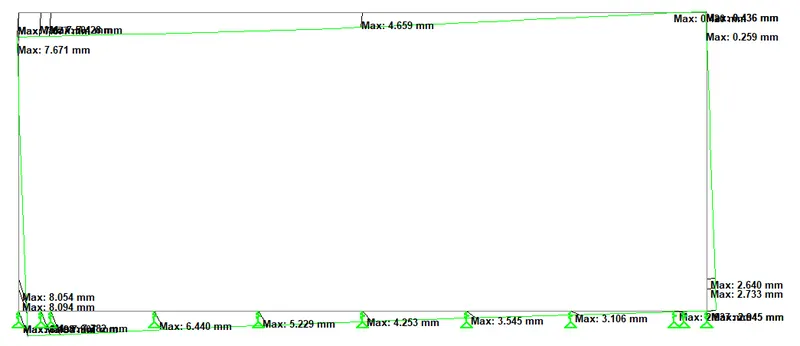

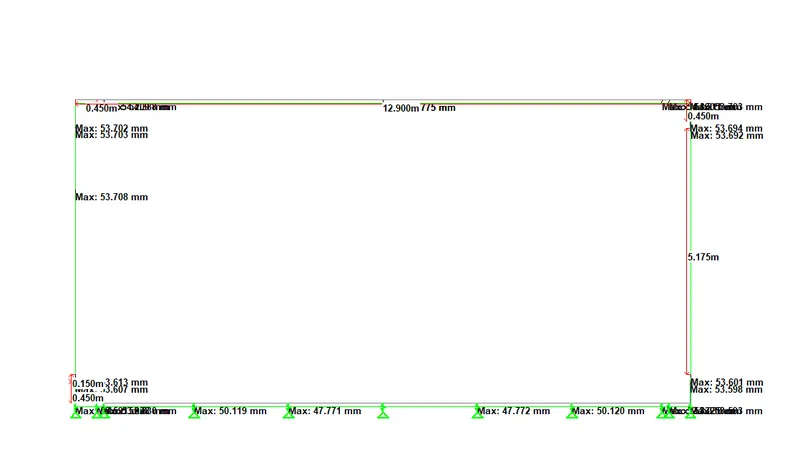

Deflection-

2. Earth Pressure

BM-

SF-

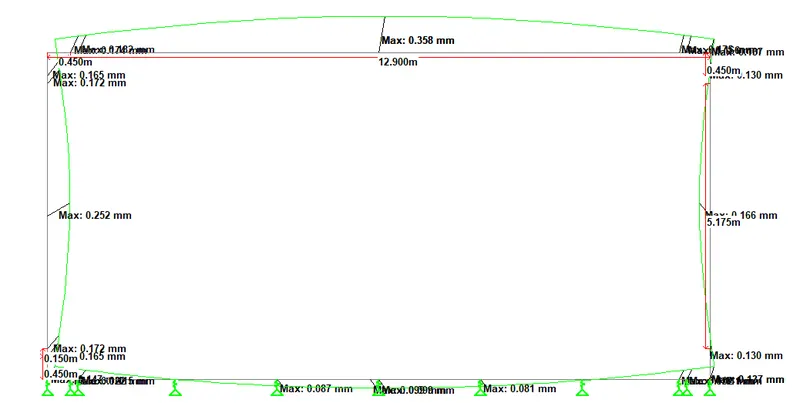

Deflection-

3. Live load surcharge

BM-

SF-

Deflection-

4. 70R load

BM-

SF-

Deflection

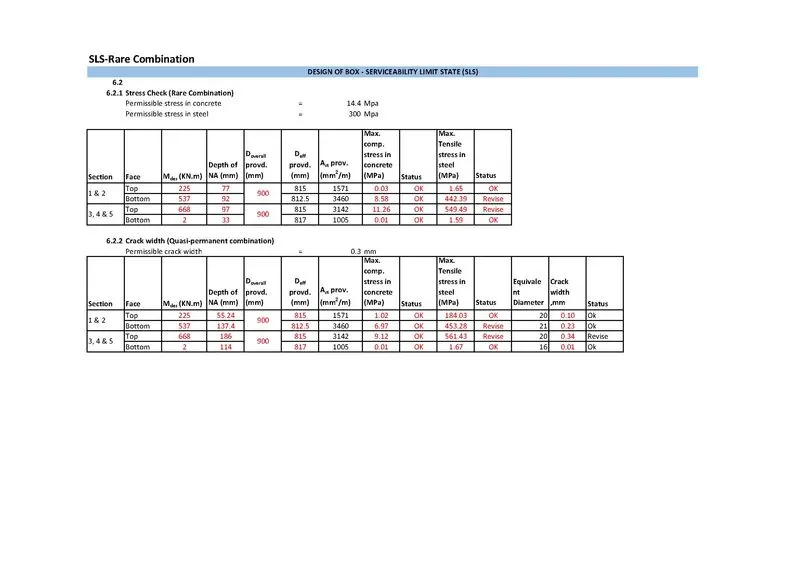

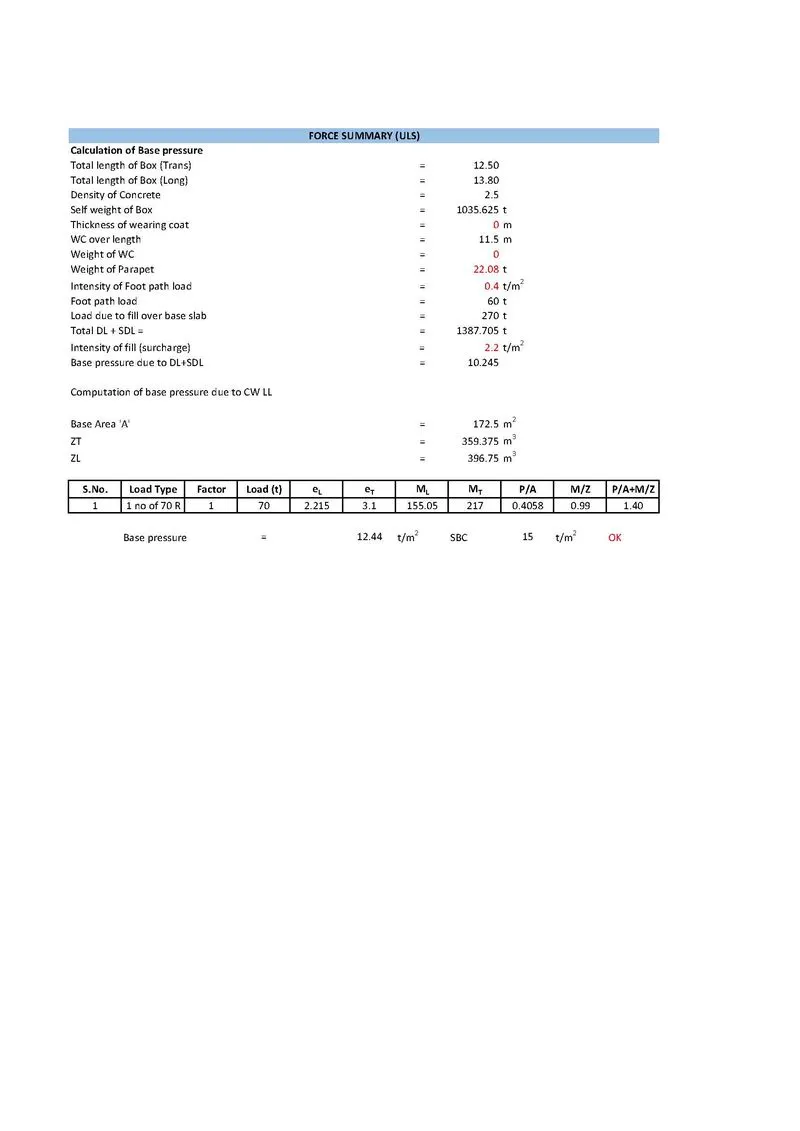

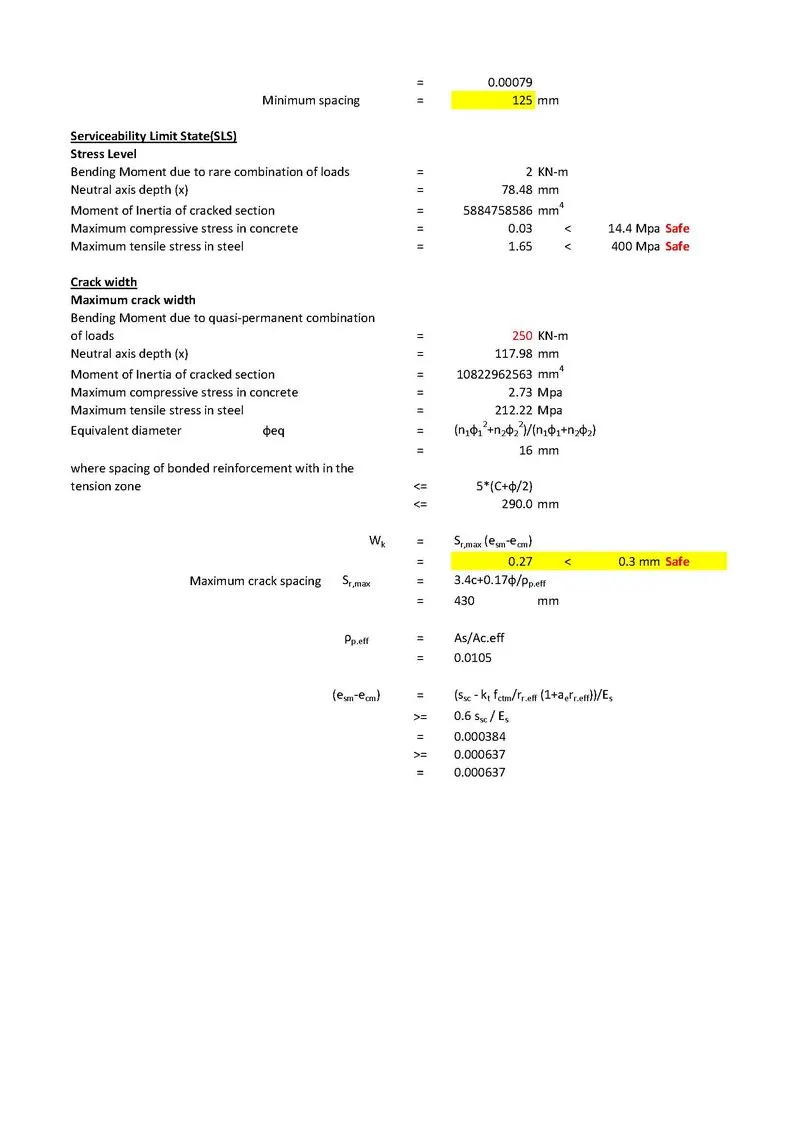

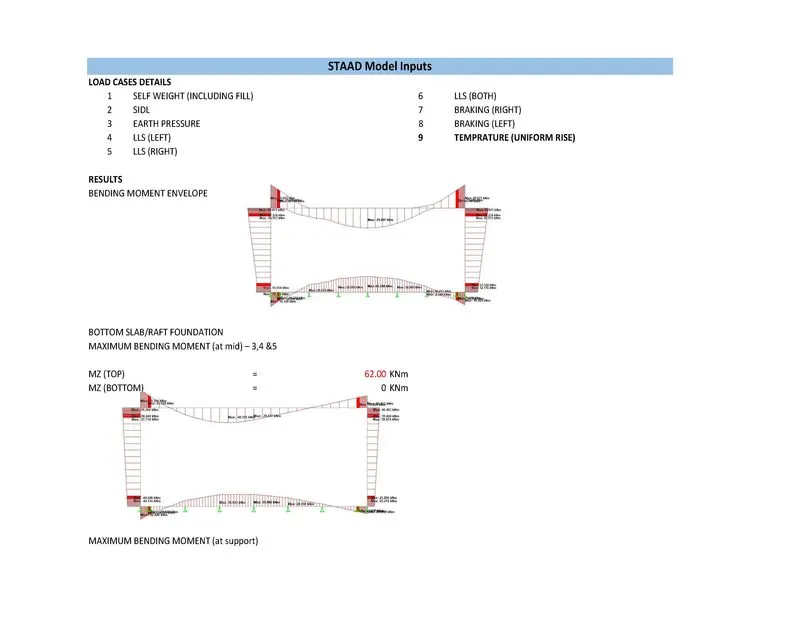

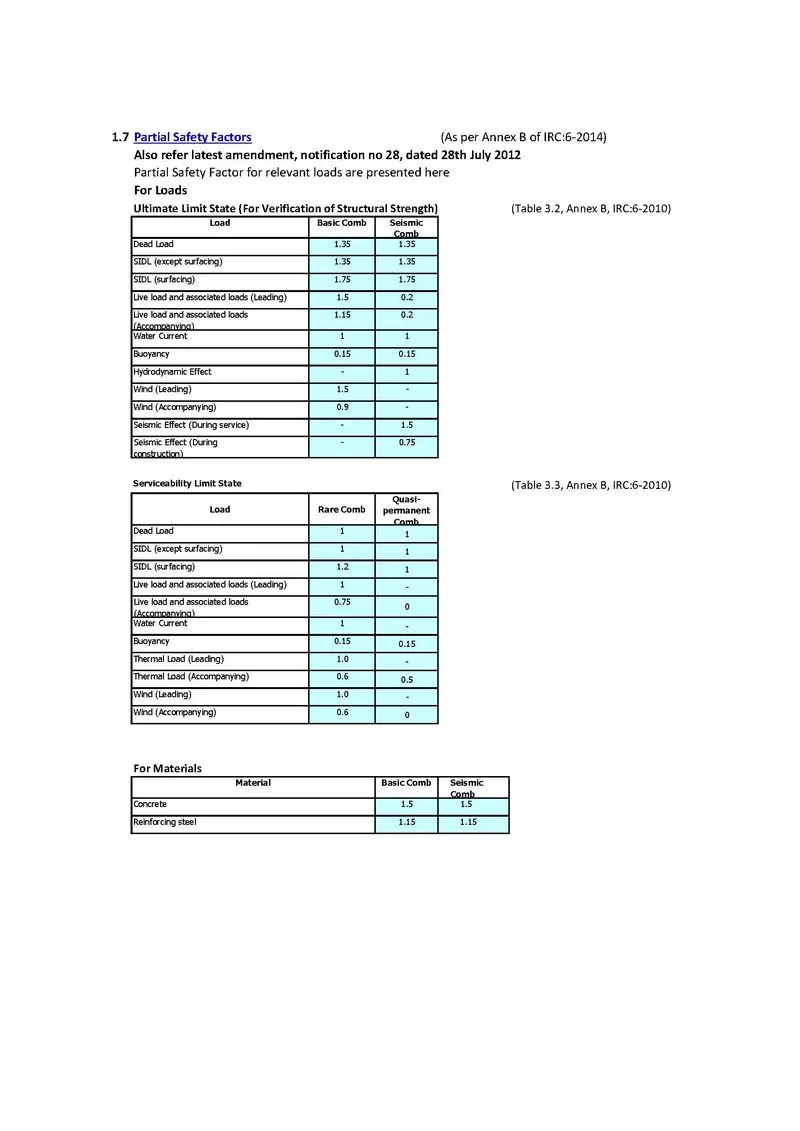

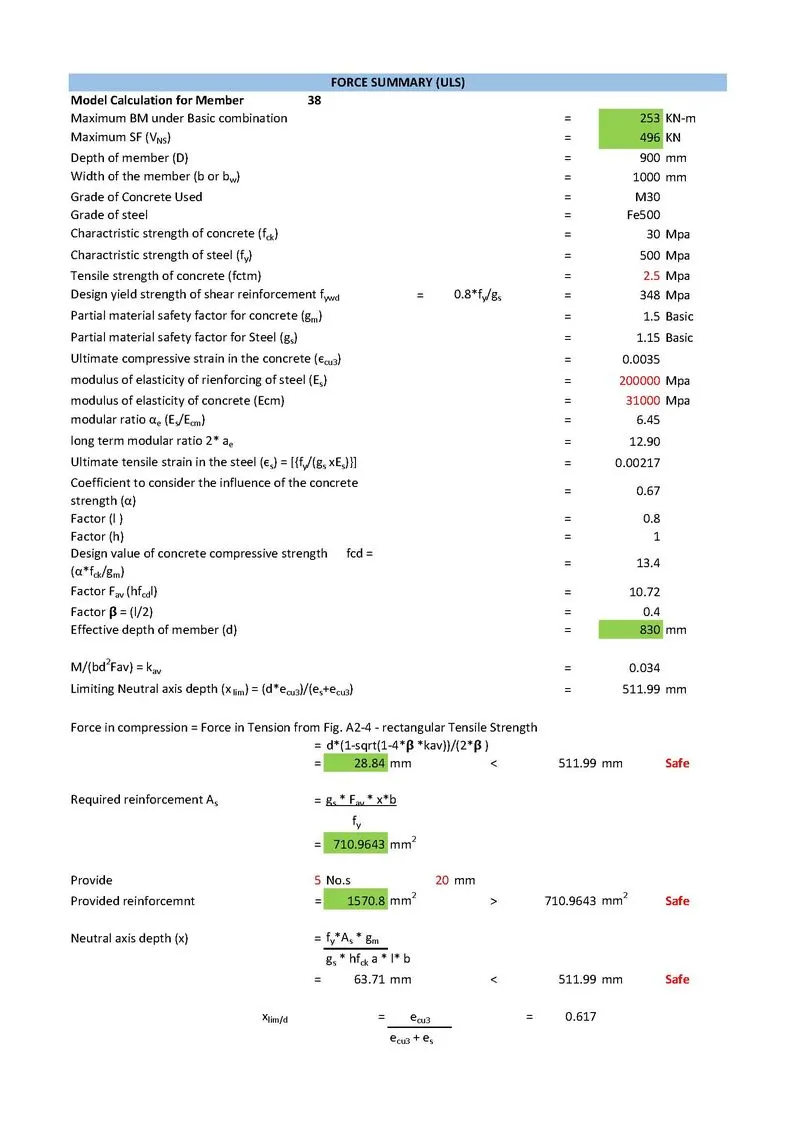

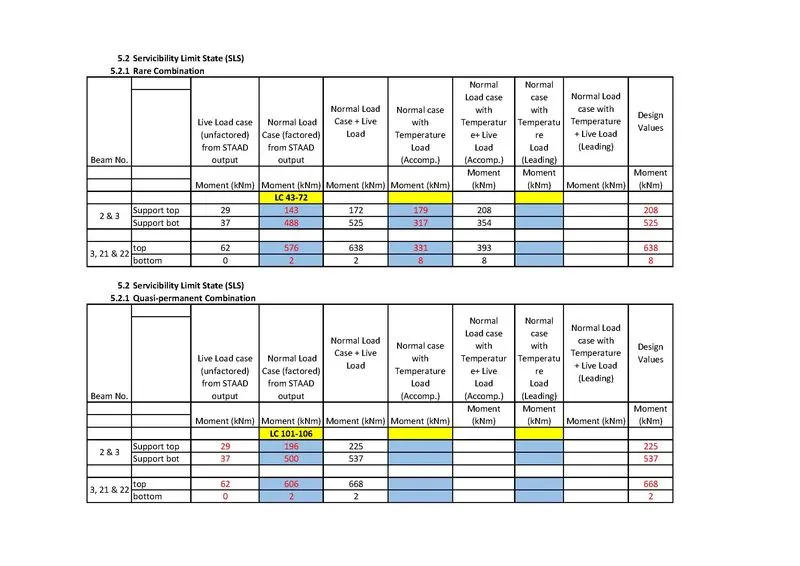

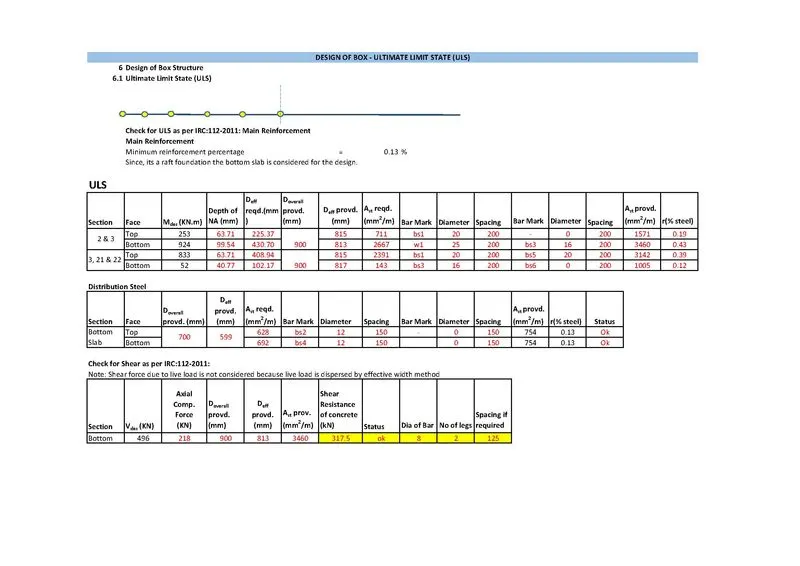

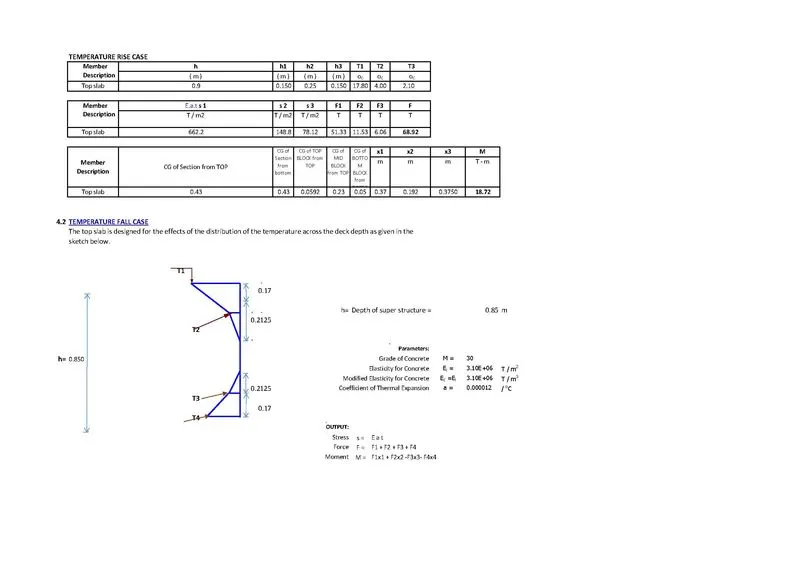

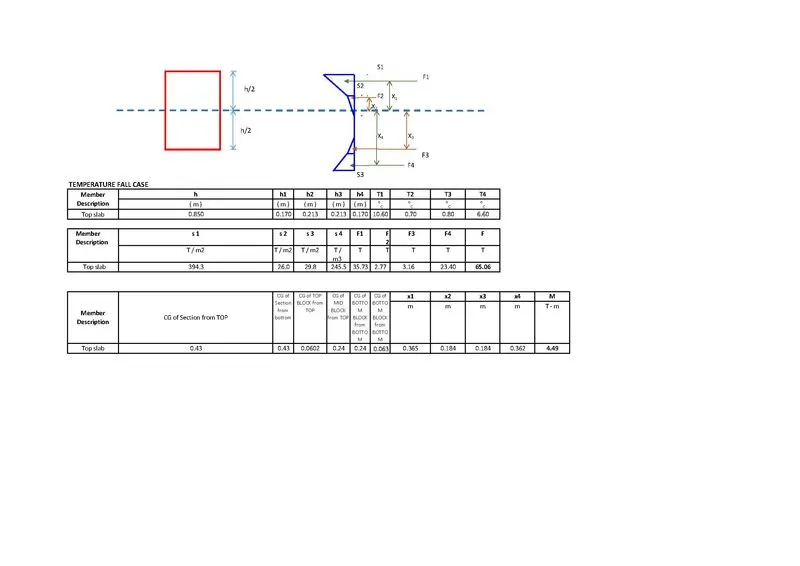

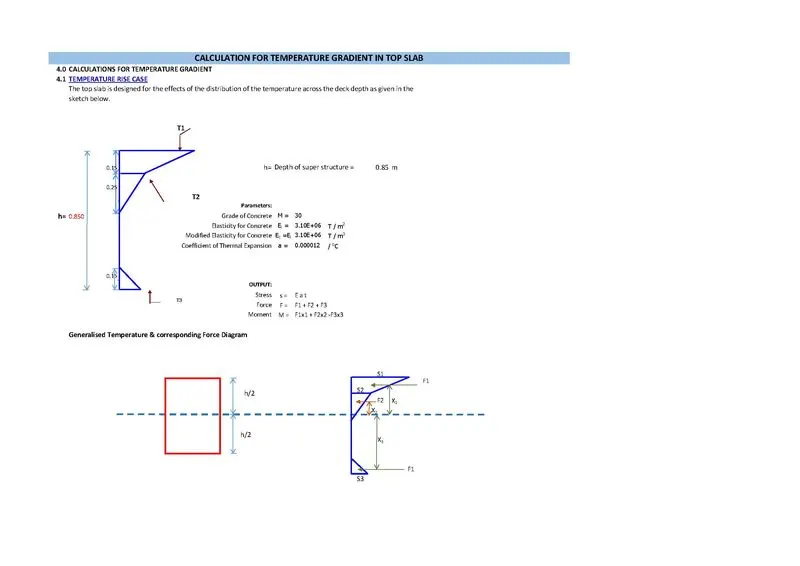

2.Based on the analysis design the members and outline the thought process in selecting the member sizes along with the raft foundation design.

ANS

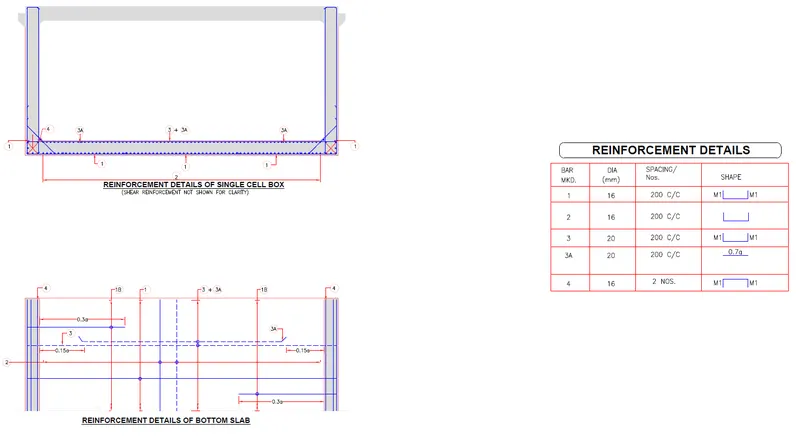

3.Detailing of reinforcement in the base slab.

4.Also, what will be the change in shear in base slab if there is

a)5 m fill

It is being analyzed by applying the load in Staad pro.

Height of fill				=	5	m
Load (UDL) on top slab				=	100.0	KN/m

Applying the load

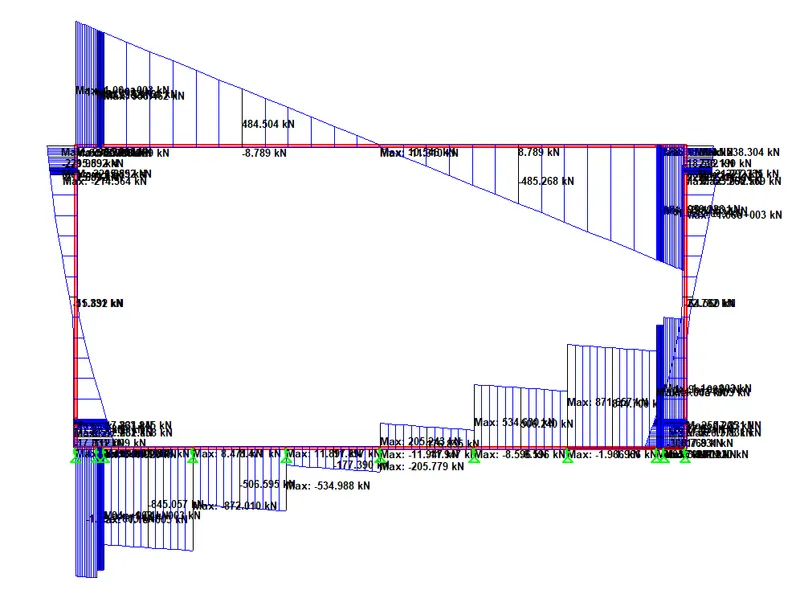

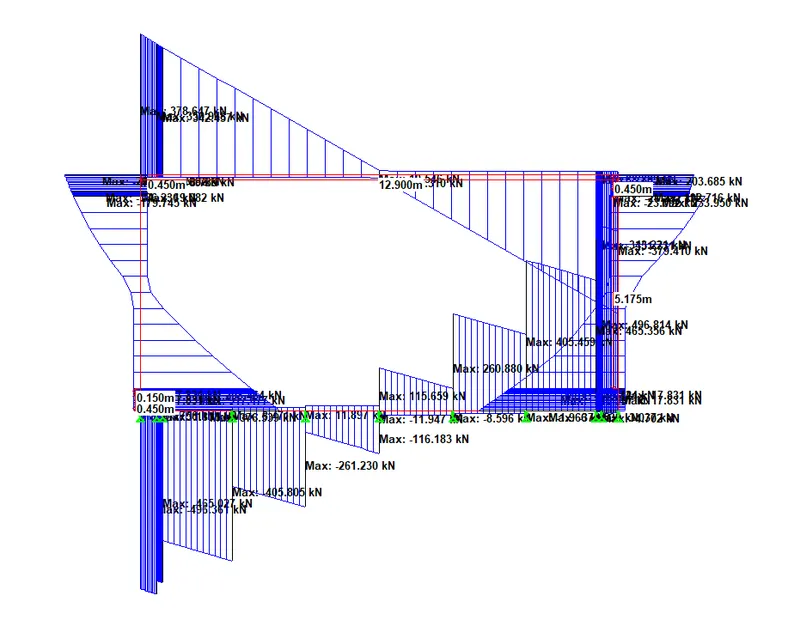

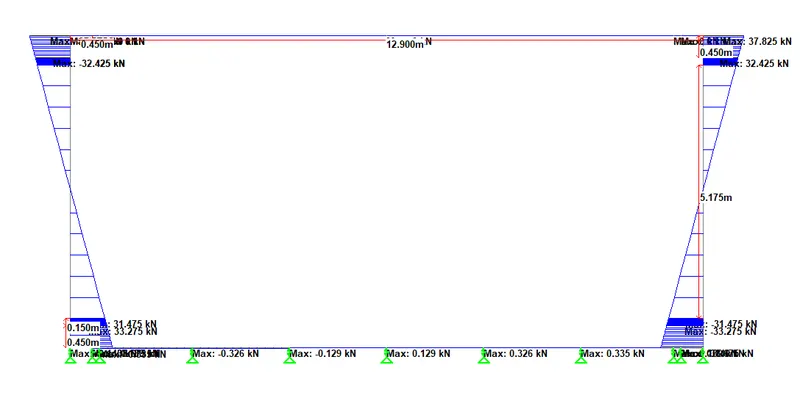

Shear Force Diagram

• As per the analysis the maximum shear force for design is = 1102KN

Maximum SF (VNS)							=	1102	KN
Shear design
Shear force VEd				=	0.5*bw*d*ν*fcd
				=	90411.1	KN	>	1102 KN	Safe
Where ν is a strength reduction factor				=	0.6(1-fck/310)fck
				=	16.26
Longitudinal force (NEd)				=	0	KN
Sh. Force by shear reinforcement (V Rd.s)				=	Aswzfywdcotθ/s
Shear resistance of section without shear reinforcement (VRd.c)				=
					[0.12K(80ρ1.fck)0.33+0.15σcp]bw.d
			Where	K=	1+	200	=	1.490881
						d
			νmin=	0.031K3/2fck1/2			=	0.309091
			σcp=	NEd/Ac	<=	0.2fcd	=	0
			ρ1=	Asl/bw.d	<=	0.02	=	0.004
				VRd.c	=	317.52	KN
Subject to a Minimum shear resistance (νRd.c)					=	(νmin+0.15σcp)bw.d
					=	256.55	KN
				VRd.c	=	317.52 KN	>	1102 KN
			Shear Reinforcement required
If required
				VNS	=	VRd.max
					=	acwbwzν1fcd/(cotθ+tanθ)
					=	acwbwzν1fcd/(2/sin2θ)
				sin2θ	=	VNS/acwbwzν1fcd/2
					=	0.338
				θ	=	9.89
				Cotθ	=	5.735258828	<= 2.5	>= 1
Dia of bar used as shear reinforcement				=	12	mm	2	Legged
Shear Force by shear reinforcement (V Rd.s)					=	Aswzfywdcotθ/s
					=	VNS
			Sapcing, s		=	Aswzfywdcotθ/s
					=	145	mm
Provide Shear reinforcement vertically				2	Legged	12	mm dia @	125	mm C/C

b)1 m fill on top of bridge.

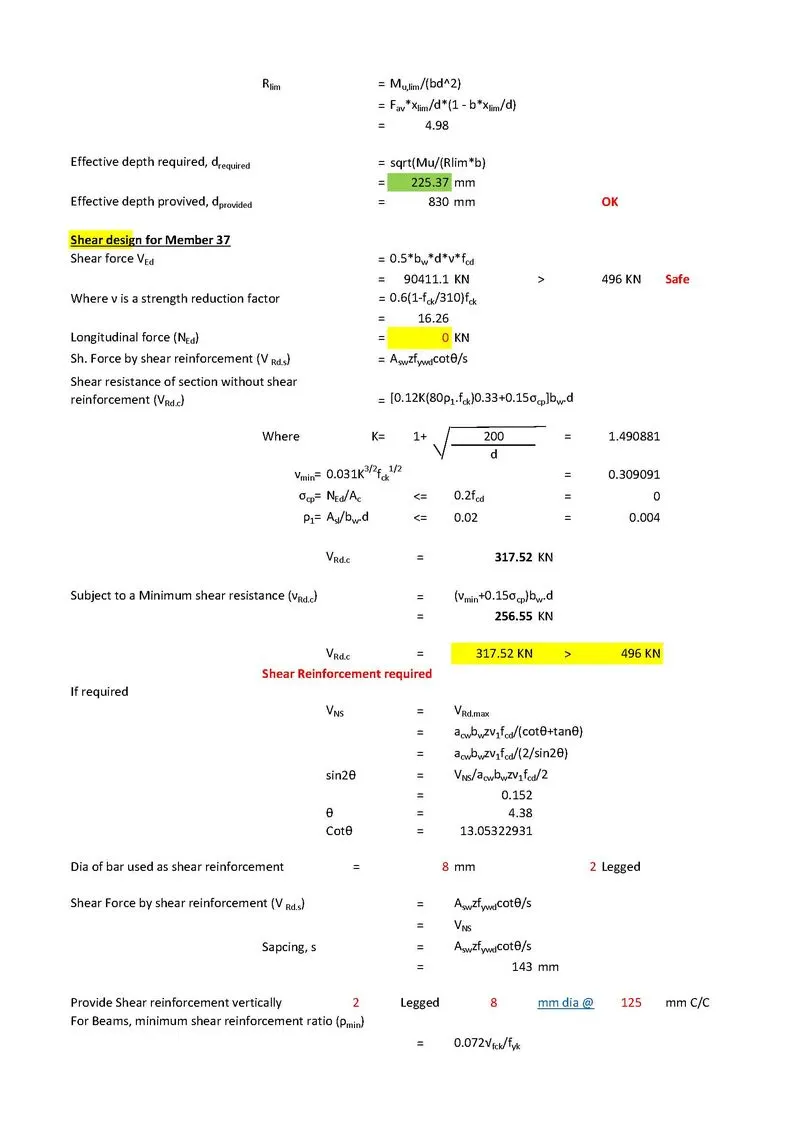

Maximum SF (VNS)							=	497	KN
Shear design
Shear force VEd				=	0.5*bw*d*ν*fcd
				=	90411.1	KN	>	497 KN	Safe
Where ν is a strength reduction factor				=	0.6(1-fck/310)fck
				=	16.26
Longitudinal force (NEd)				=	0	KN
Sh. Force by shear reinforcement (V Rd.s)				=	Aswzfywdcotθ/s
Shear resistance of section without shear reinforcement (VRd.c)				=
					[0.12K(80ρ1.fck)0.33+0.15σcp]bw.d
			Where	K=	1+	200	=	1.490881
						d
			νmin=	0.031K3/2fck1/2			=	0.309091
			σcp=	NEd/Ac	<=	0.2fcd	=	0
			ρ1=	Asl/bw.d	<=	0.02	=	0.004
				VRd.c	=	317.52	KN
Subject to a Minimum shear resistance (νRd.c)					=	(νmin+0.15σcp)bw.d
					=	256.55	KN
				VRd.c	=	317.52 KN	>	497 KN
			Shear Reinforcement required
If required
				VNS	=	VRd.max
					=	acwbwzν1fcd/(cotθ+tanθ)
					=	acwbwzν1fcd/(2/sin2θ)
				sin2θ	=	VNS/acwbwzν1fcd/2
					=	0.153
				θ	=	4.39
				Cotθ	=	13.02665484	<= 2.5	>= 1
Dia of bar used as shear reinforcement				=	8	mm	2	Legged
Shear Force by shear reinforcement (V Rd.s)					=	Aswzfywdcotθ/s
					=	VNS
			Sapcing, s		=	Aswzfywdcotθ/s
					=	142	mm
Provide Shear reinforcement vertically				2	Legged	8	mm dia @	125	mm C/C
