Week 6

AIM- In this model, we have to deploy the connection wherever it is required.

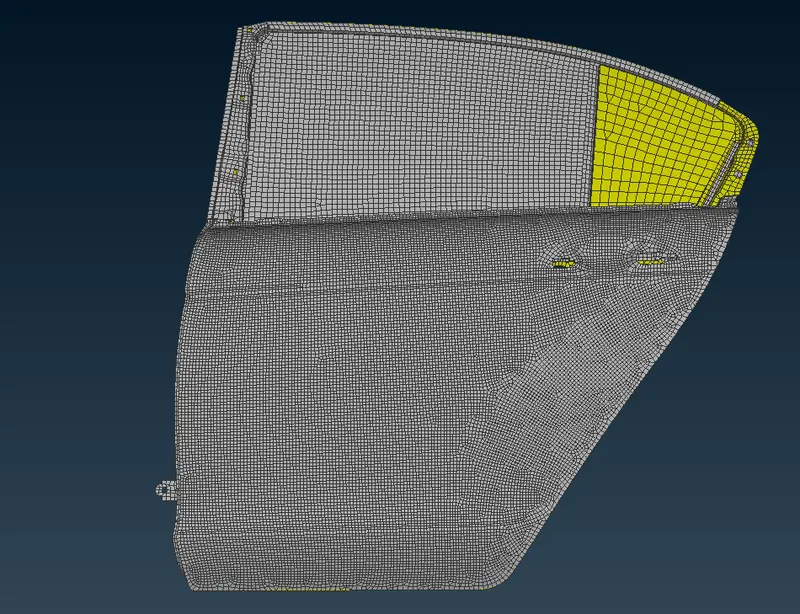

PROCEDURE- This how the model looks like at the beginning in fig. 1

after giving the connection how the model look like fig.2

fig.2

In our model we have to deploy different types of connection that we disscuse over here

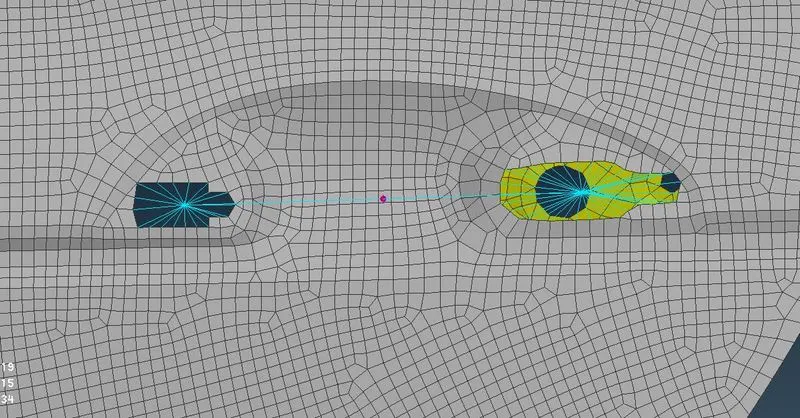

1. RBE2 - In this type of connection you can see there is only one master node and other are the salves nodes ,it is most simple connection you see in model in fig.3

fig.3

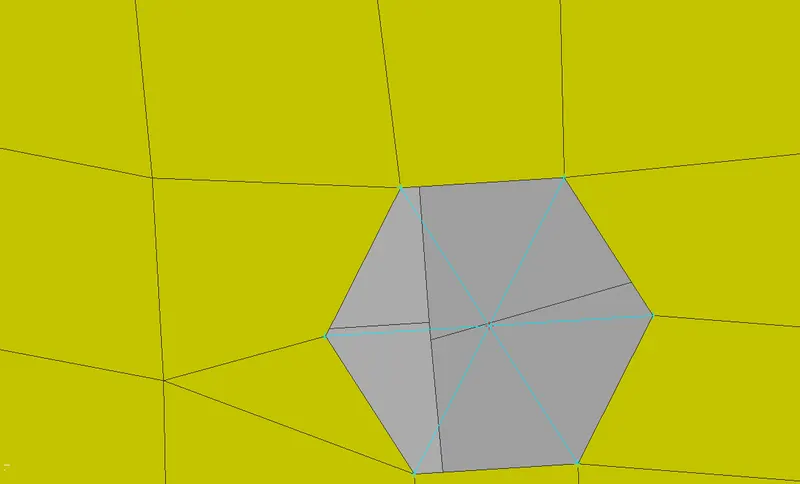

2. CLUSTER RBE2 - In this type of connection you can see where is the rigid joint shown as a rivit and it's cog lies in the middle of the n no. of surface,it's also shown in the fig.4

fig.4

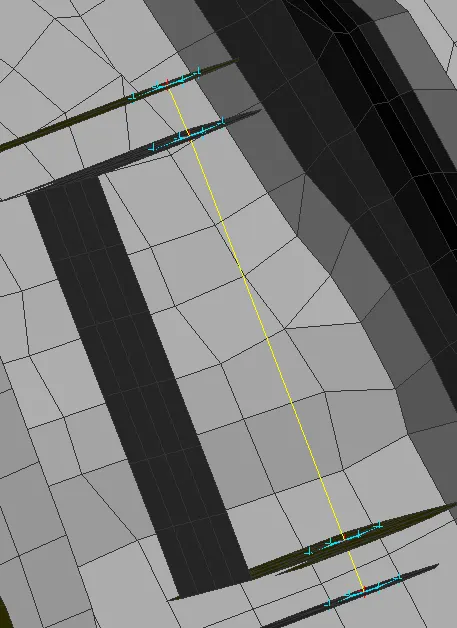

3.RBE2 STEM- In this type of connection we can see the yellow line in between the 2 RBE2 shown in fig.5

fig.5

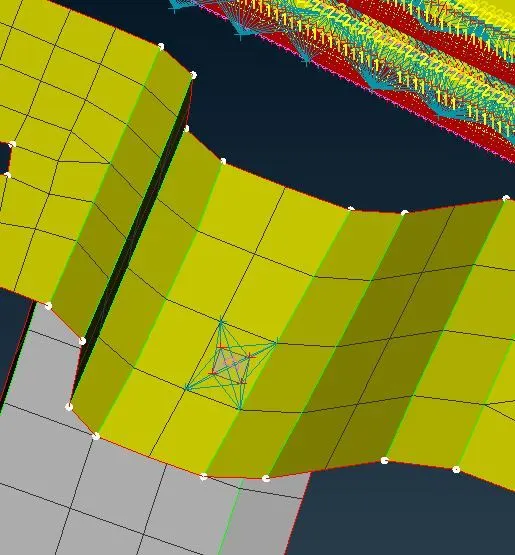

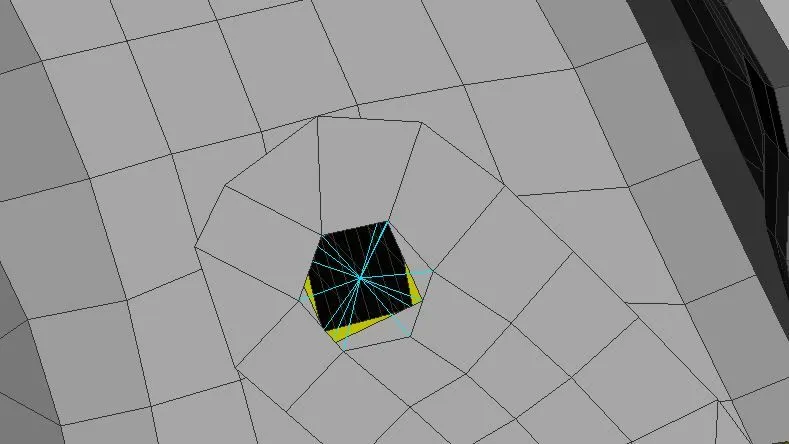

4.SPOT WELD- In this type of connection we have deploy this type of connection as show in fig.6 and fig.7

fig.6

fig.7

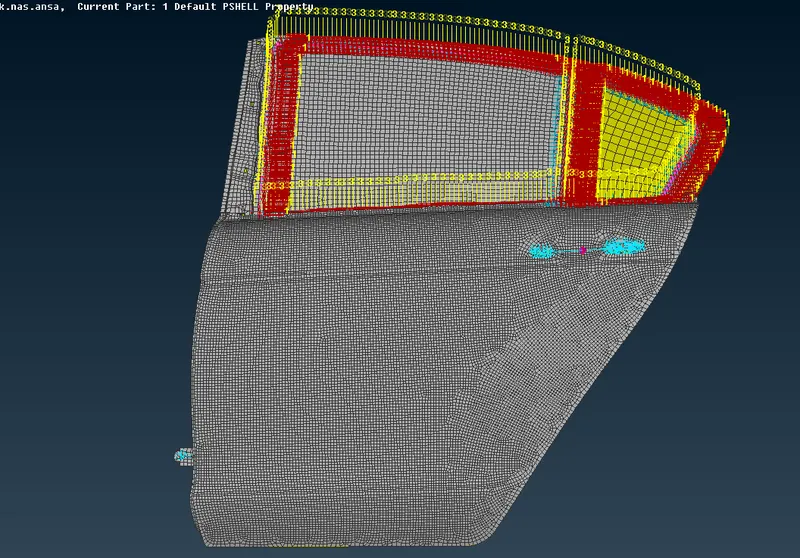

5.After that we have to give a load on door handle as shown in fig.8

fig.8

LEARNING OUTCOMES- In this model I learned how to deploy the connection in different manners as shown above .

CONCOLUSION - As per given instructions we deploy the connection where it's required.
