Week 6-3D Tetra Meshing Challenge

3D Tetra Meshing Challenge

AIM:

• To perform 3D tetra mesh on the given models.

Objective:

1. Create a Teramesh for Housing component with the following quality criteria.

TetraMesh Generation Method: 2D to 3D Conversion

Elements sizes: Min- 2 Units, Target- 5 Units, Max- 7 Units

Tet collapse: 0.15

2. For the given model, Create a 3D Tetramesh with the following quality criteria.

TetraMesh Generation Method: Quick Tetra Mesh/ Volume Tetra Mesh

Target Element size: 3 Units.

Tet Collapse: 0.15

3. For the given assembly model, Create a 3D Tetramesh with the following quality criteria.

TetraMesh Generation Method: Quick Tetra Mesh/ Volume Tetra Mesh

Target Element size: 4 Units.

Tet Collapse: 0.15

PROCEDURE:

• Model 1(Housing)

Step 1:

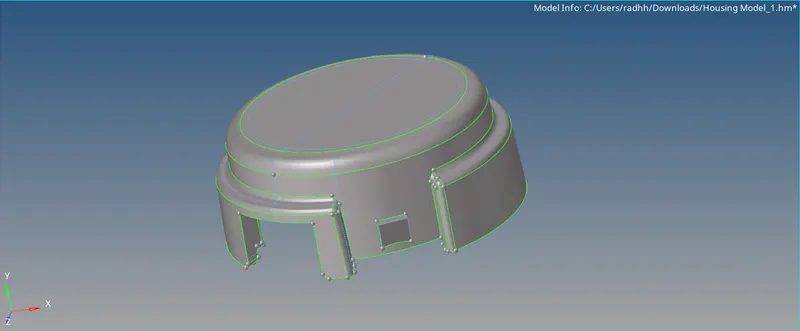

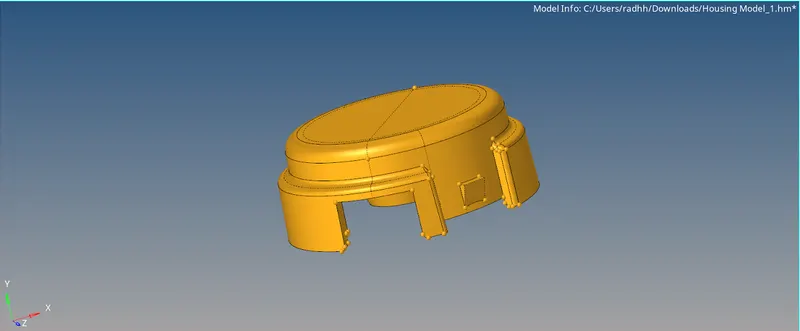

• Import the given model and check for any geometrical erros.

Step 2:

• Next defeature some edges which might fail for minimum length quality criteria.
• Remove the unnecessary fillets, toggle and unwanted edges.

• Now we can proceed for meshing the model with 2D tria elements.

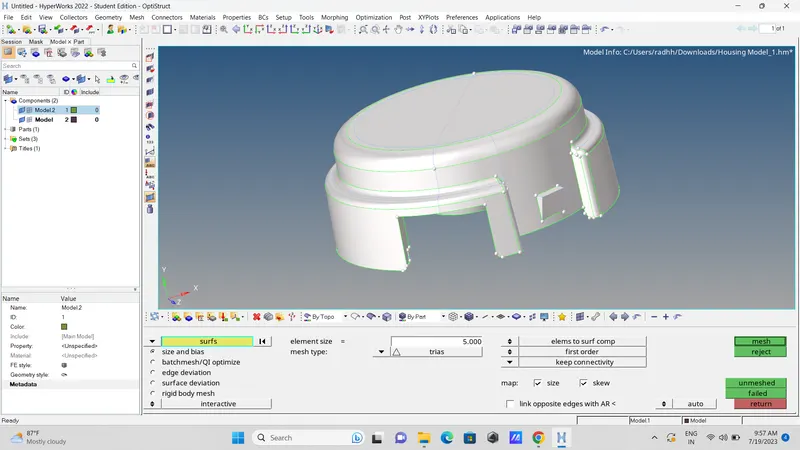

• Go to 2D>Automesh and give proper element size and type as trias only, as we need to later convert them to tetras.

Step 3:

• Initially Mesh the surface using 2D tria elements.

• Check for minimum and maximum element size error from and clear the same

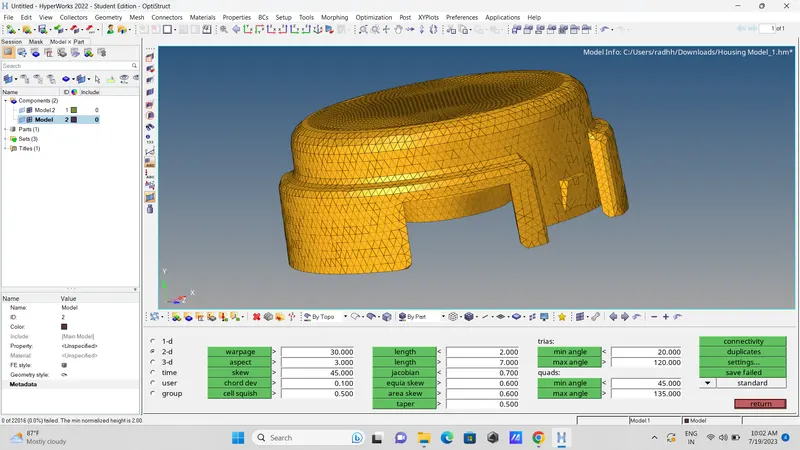

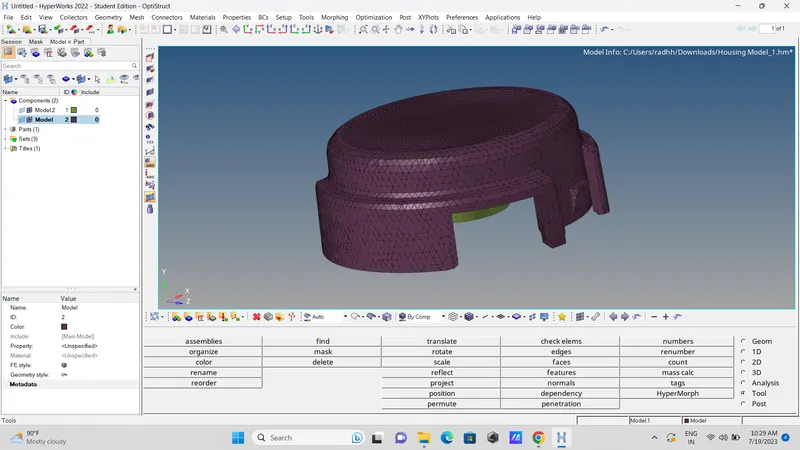

• Below the image shows there no min and max element size error

Step 4:

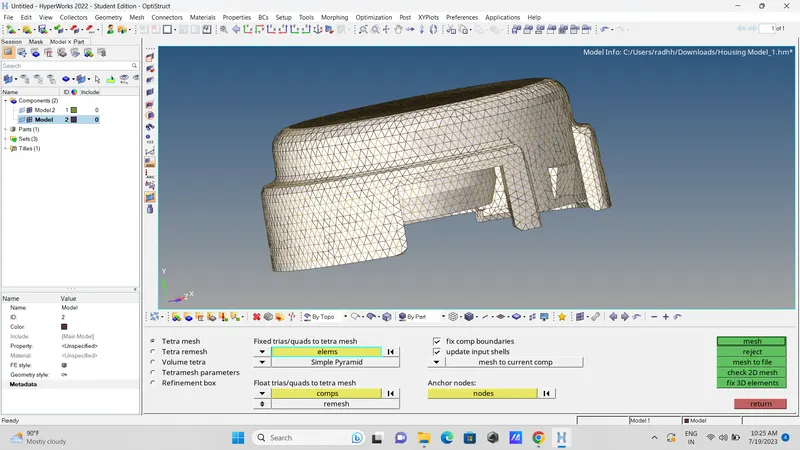

• Perform 3D tetramesh using the 2D tria elements, 3D>Tetramesh>select all the elements.

• Check tet collapse for 0.15, in tools>check elements>3d>tet collapse, fix the errors by tetra remesh or manually by moving the nodes

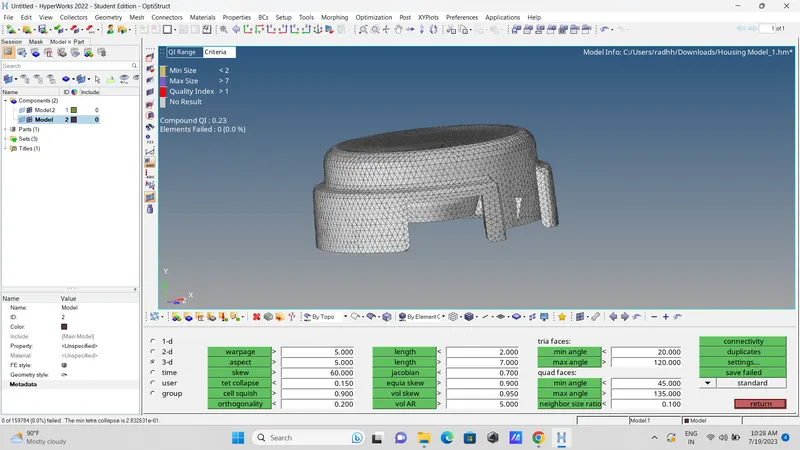

• Below image shows there is no tet collapse error.

Model 2:

Step 1:

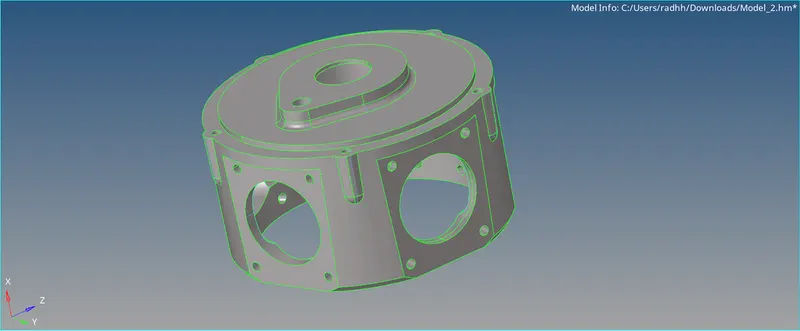

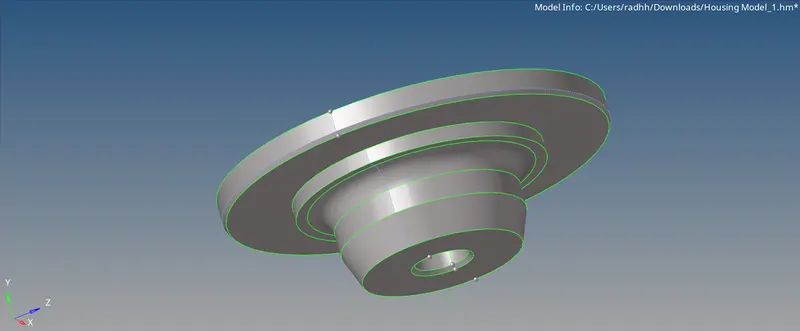

• Import the given model and check for any geometrical erros.

Step 2:

Volume Tetra Mesh

• Go to 3D>Tetramesh>Volume Tetra, select the volume we need to mesh, select the 2d element type (Trias),select the 3D Elements as Tetras , give proper element size and hit mesh.
• Here we do not need to mesh the component into 2D trias separately, In volume tetra menu it asks for both the 2D as well as 3D elements specifications and applies them simulteniously. So basically it saves some time.
• In this model there is no minimum and maximum element size criteria

Quick Tetra Mesh

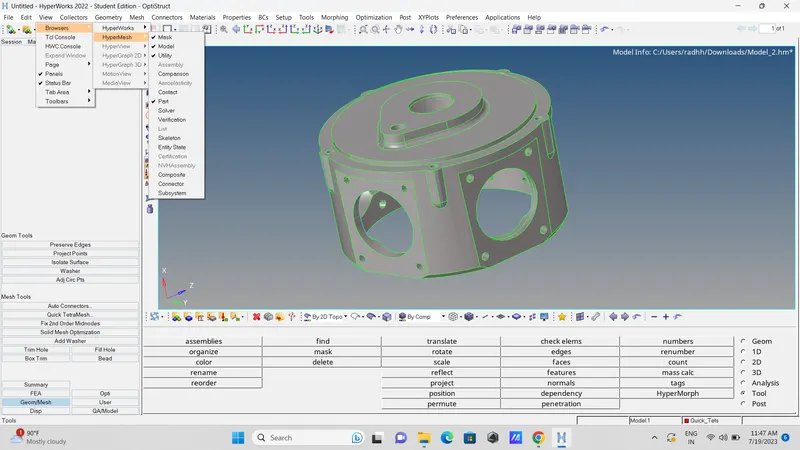

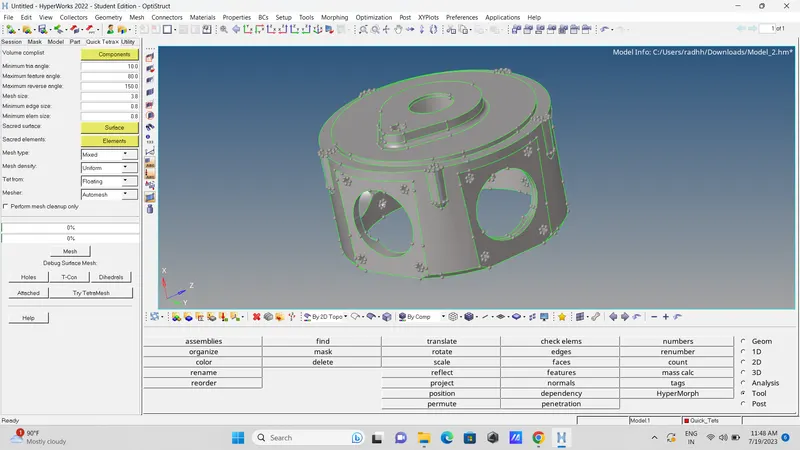

• For doing quick tetra mesh we need to first open the utility tab by going to View>Browsers>Hypermesh>Utilities Then, by going to the utilities tab, Under the optistruct menu, there is a tab called Geom/mesh, once we click that, Mesh tools menu will be visible and we can then choose the Quick tetra command from there

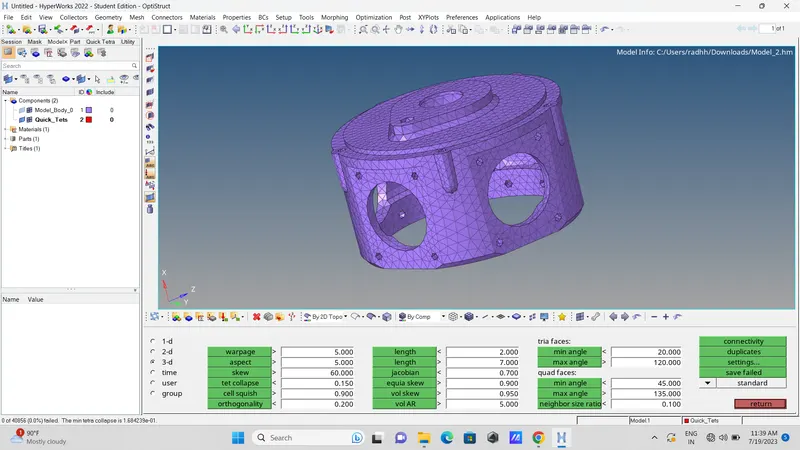

• The given model is meshed and fixed all the tet collapse error

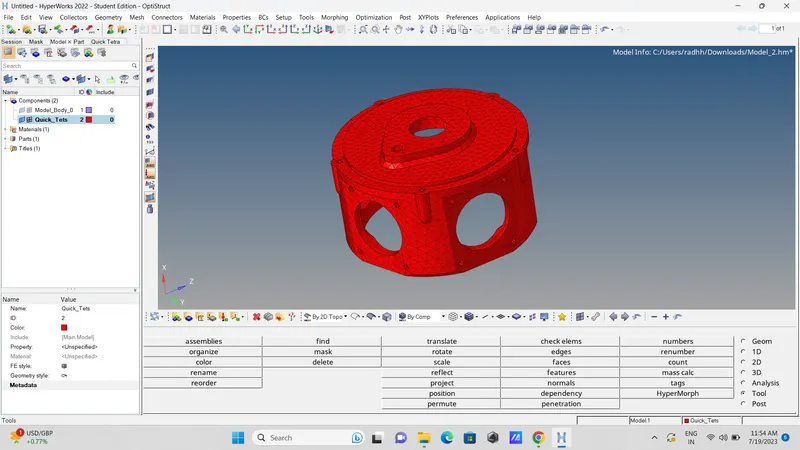

• Below image shows the final result

Model 3:

Steps carried out :

• Import the given model and check for any geometrical erros.
• There are 4 different components in this model, mesh each the component in different methods
• Casing 1 is meshed using volume tetramesh method.
• Casing 2 is meshed using volume tetramesh method.
• Central hub is meshed using quick tetramesh method.

• Check for only tet collapse error in this model and fix the same

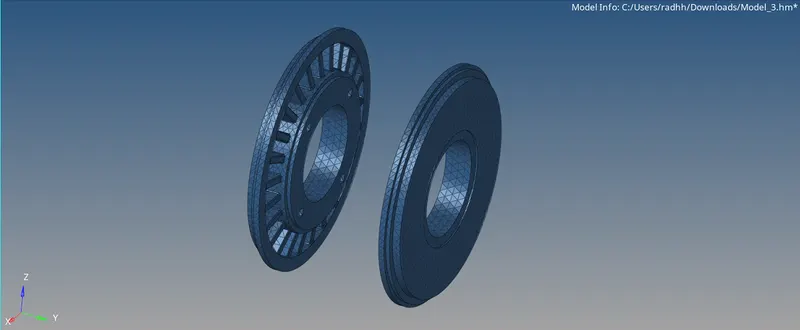

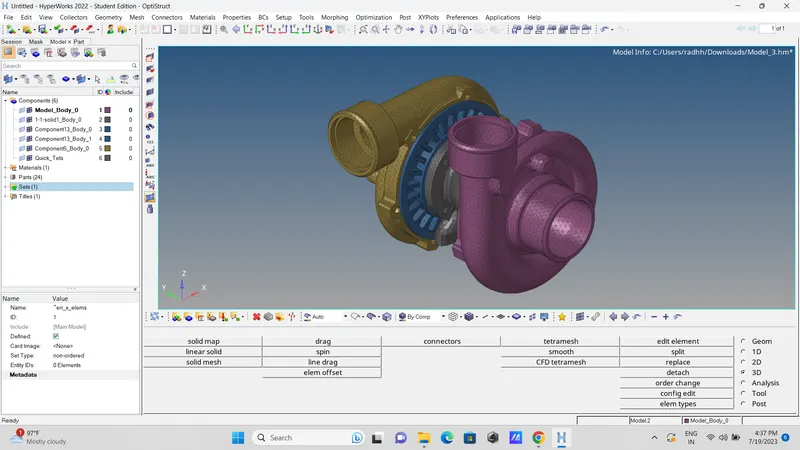

• Final output is shown in below image

CONCLUSION:

• Understood the types of 3d mesh used in different scenario
• The given model is meshed using 3d tetra elements
