Week 4 - 2D Meshing for Sheet Metal

AIM : To the given CCB CAD model, Check for the Geometry cleanup (if required), Take the mid surface, and Mesh it with the below 2D element Quality criteria.

S.No	Quality Criteria	Value
1	Target/Average length	5
2	Minimum Length	3
3	Maximum Length	7
4	Aspect	3
5	Warpage	15
6	Skewness	45
7	Jacobian	0.7
8	Minimum Quad Angle	45
9	Maximum Quad Angle	135
10	Minimum Tria Angle	30
11	Maximum Tria Angle	120
10	Tria Percentage	15

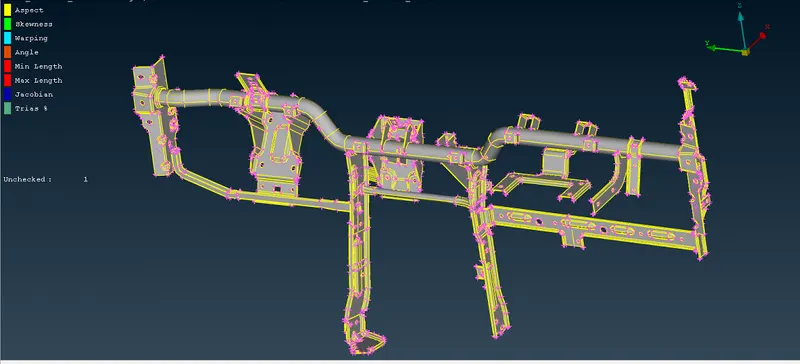

Image 1 Given Model

The following procedure is done to generate the meshed model of the CCB model.

1. Import the .iges model of the CCB model into the ANSA environment.

2. Run the geometry check and fix the critical errors by right-clicking and selecting the fix option or fixing the error manually.

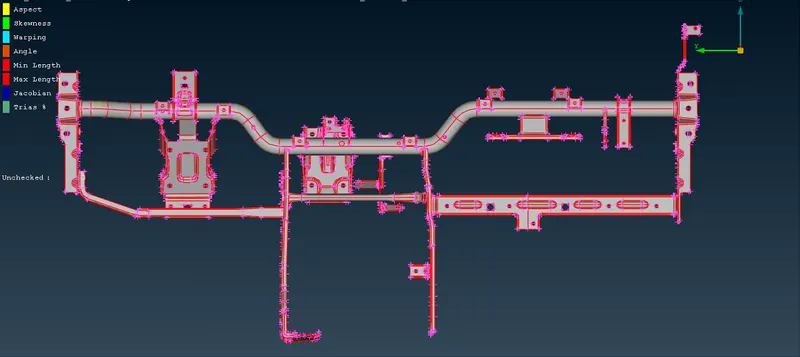

3. Run Topo to stitch the model.

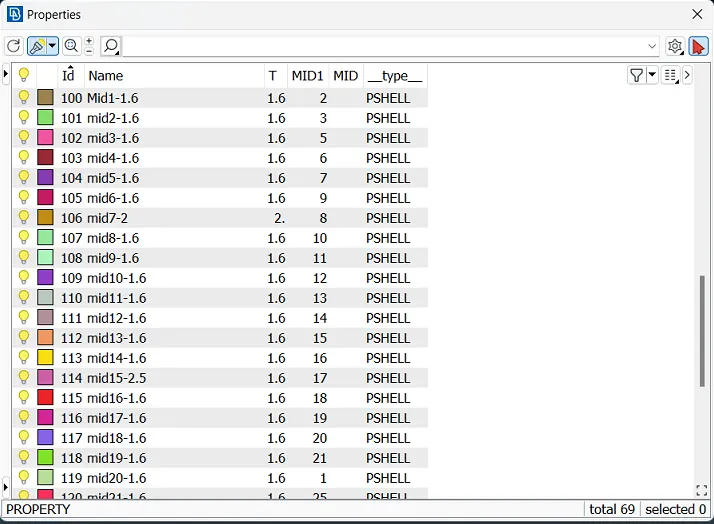

4. Divide the model into different PIDs.

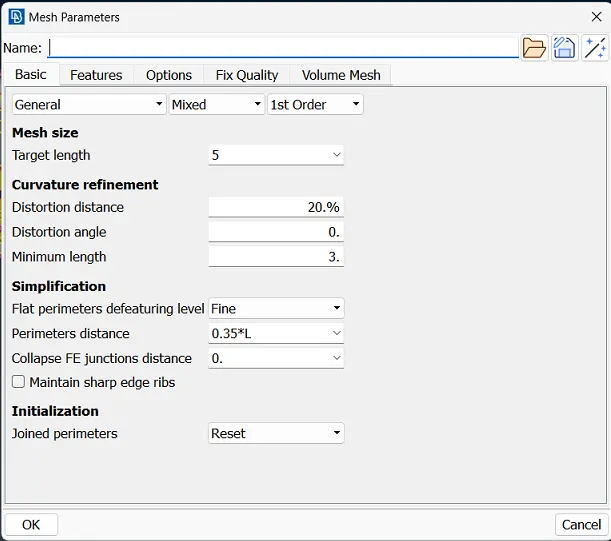

5. Mesh the model using Auto mid for parts having a uniform thickness.

6. Offset option is to be chosen for the parts having irregular thickness.

Result:

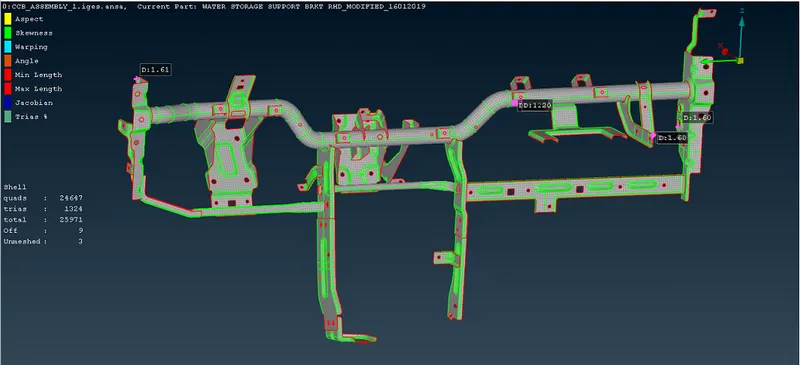

The given CCB CAD model, the midsurface for all the component is generated and checked for geometrical error and mesh is done on the midsurface with the given quality criteria.
