Week 6-3D Tetra Meshing Challenge

Aim:

Generate a 3d tetra mesh for a given model without any failure

Procedure :

• First to import the model
• next i check the minimum lenght of the surface
• find the minimum surface and delete
• because the minimum lenght surface are going to failure for minimum lenght of the elements
• next i create 2D mesh for model 1 and check the 2d quality criteria minimum and maximum lenght of the elements

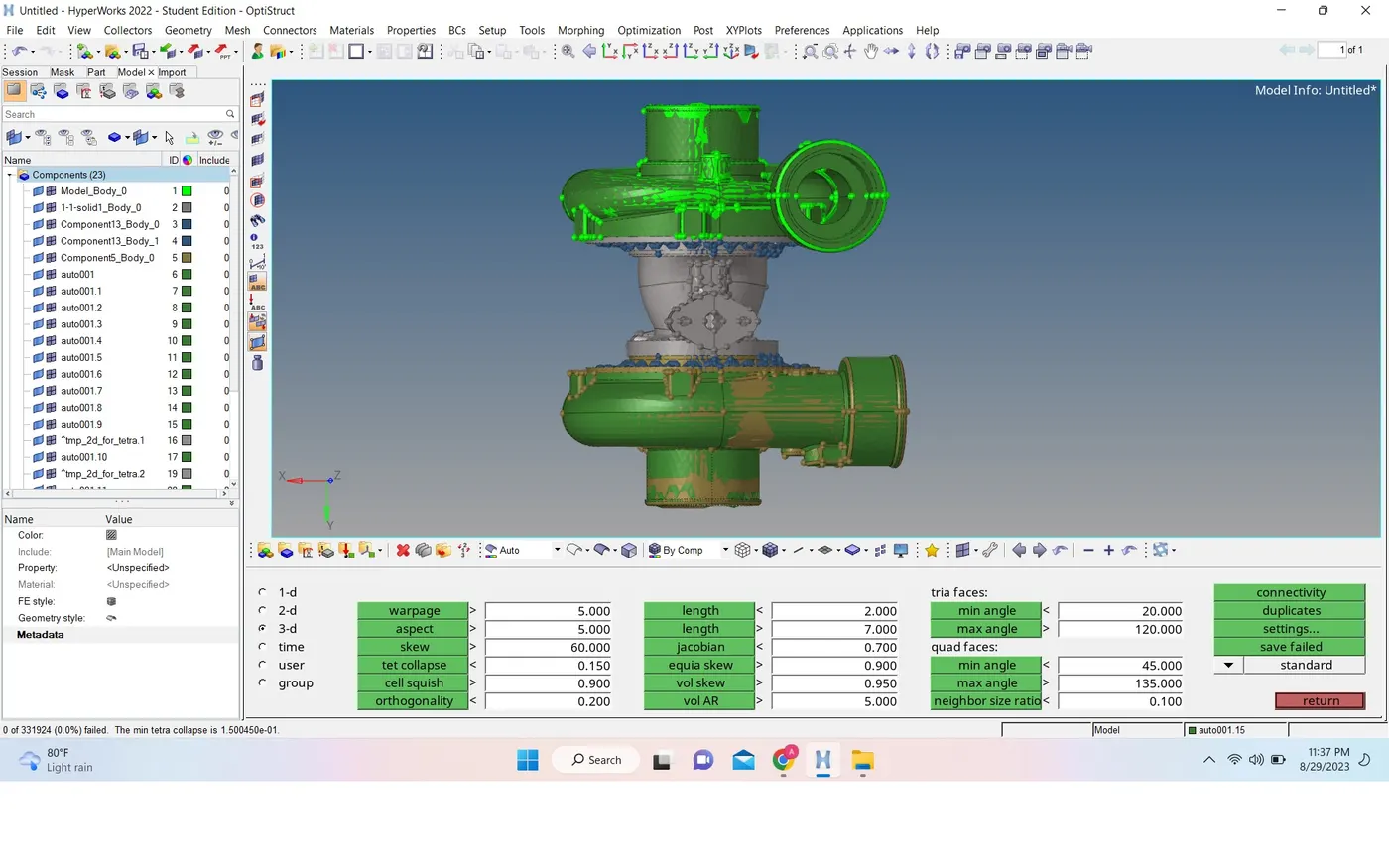

• next i converts the elements 2d to 3d mesh and 3d elements

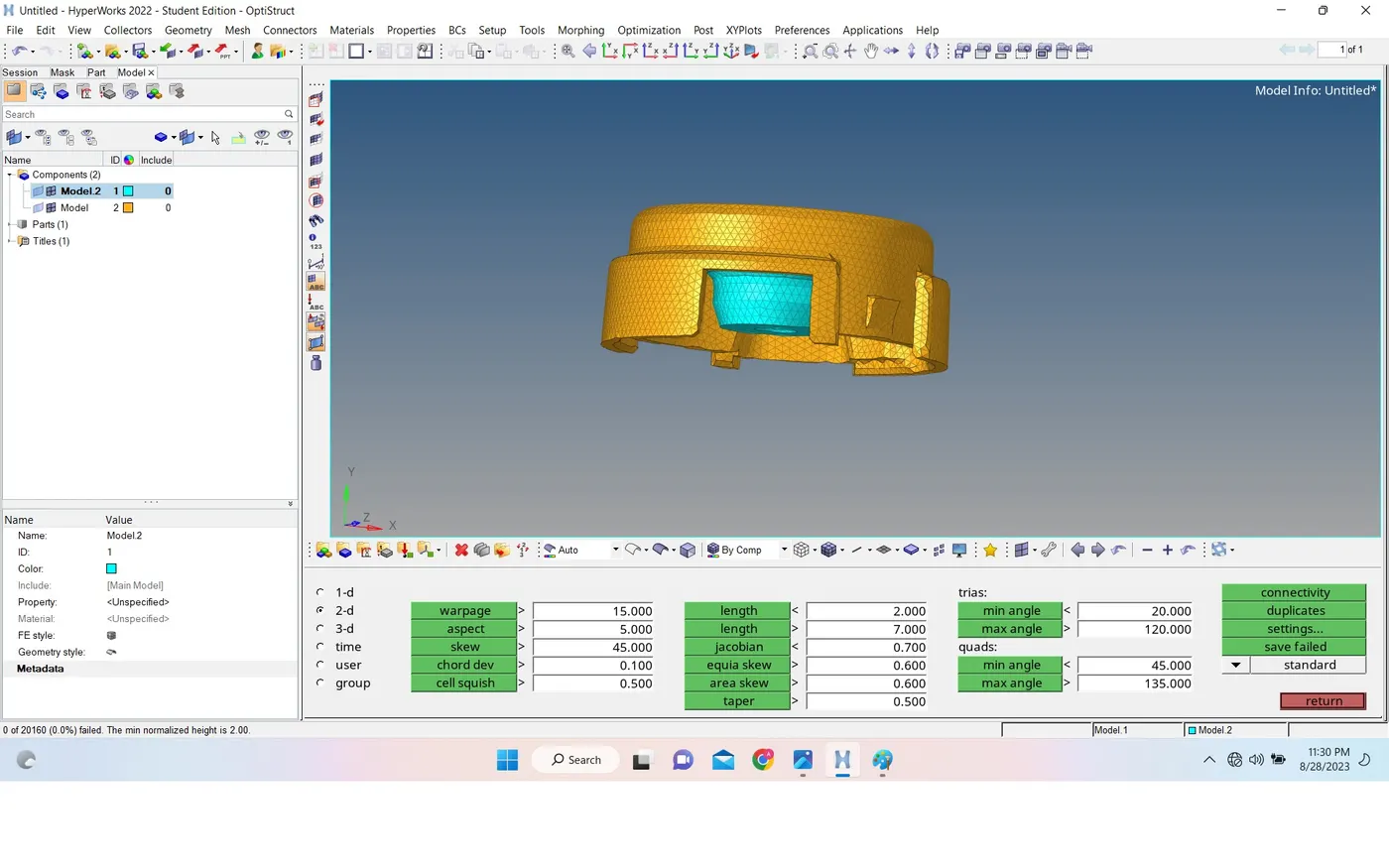

• next i import the another 2 and 3 models and directly create the 3d mesh of these components

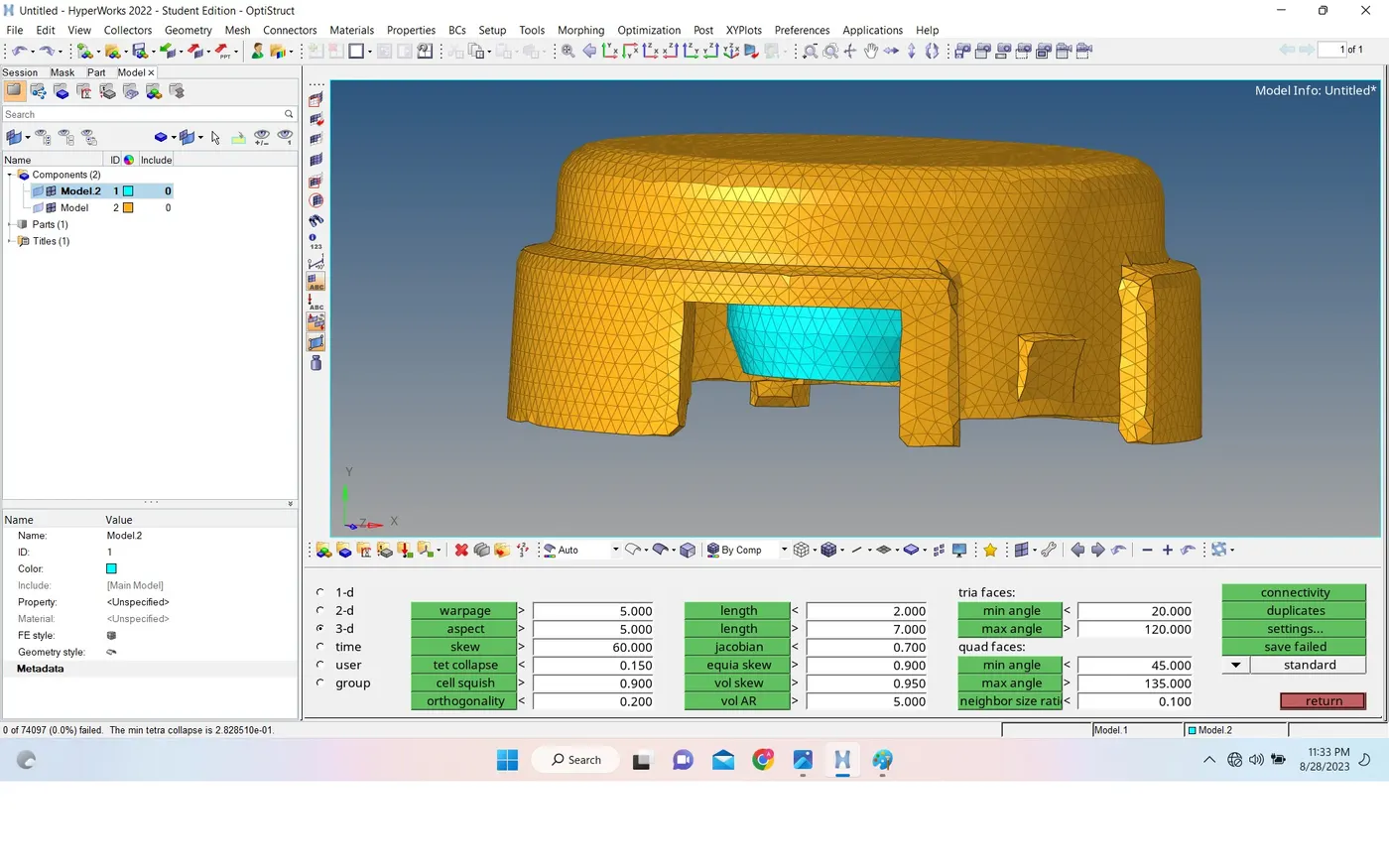

• next i chech the quality criteria

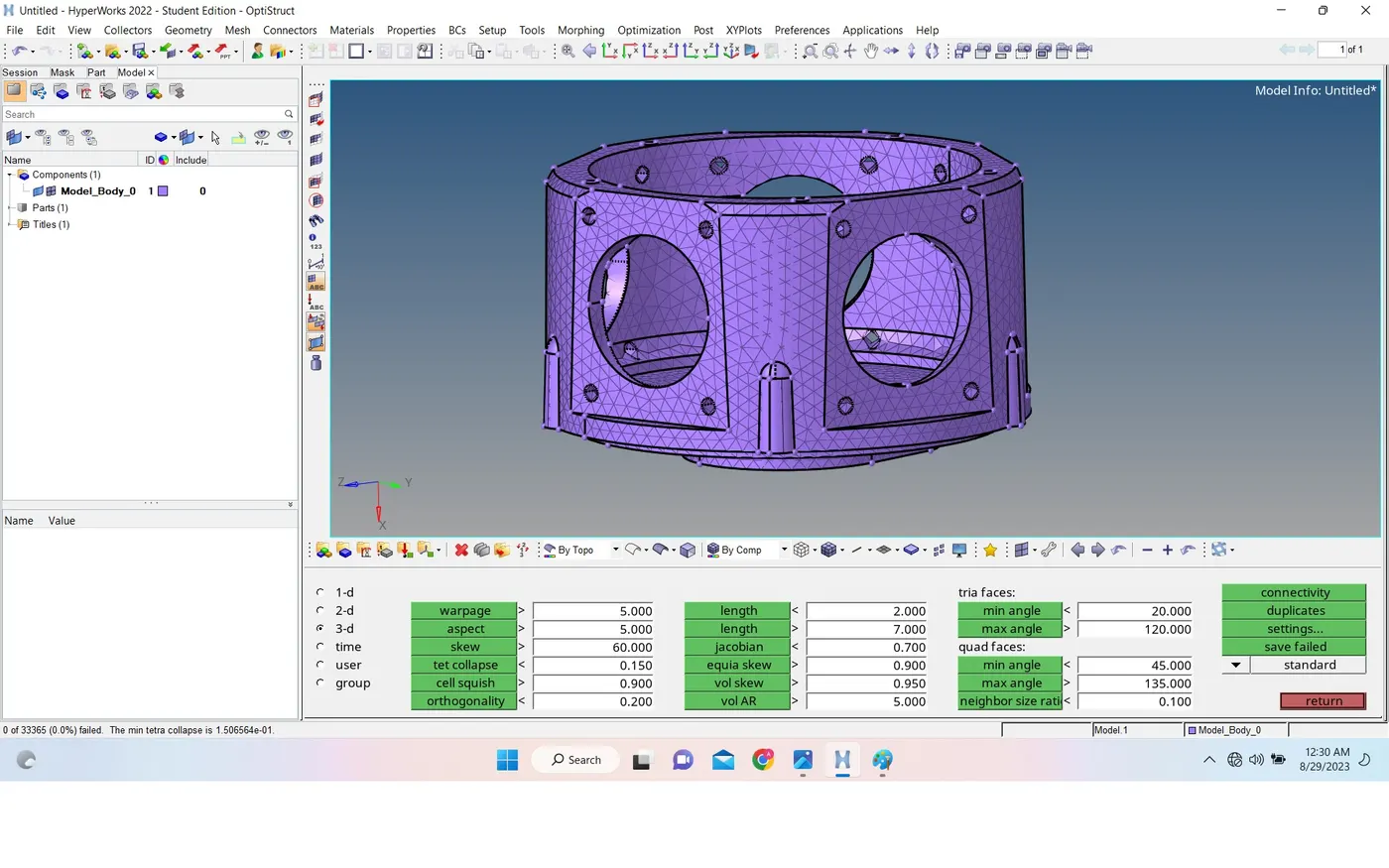

• finally i check and solve the all failure elements of the components
• finally successfully passed all quality criteria.

after the 3d mesh

Results :

I completed all the task of the given components and submit the models
