Project-2-Meshing of Door Inner Panel Challenge

MESHING DOOR INNER PANEL

Target Element Length = 4 Units

S.N	Quality Criteria	Value
1	Aspect Ratio	5
2	Skewness	45
3	Warping	15
4	Taper	0.5
5	Min. Length	2 Units
6	Max. Length	6 Units
7	Min angle Quad	45
8	Max angle Quad	135
9	Min angle Tria	20
10	Max angle Tria	120
10	Tria %	10

AIM:

Extract the midsurface and create a perfect mesh.

output file :https://drive.google.com/file/d/12R0rkBT7Mdlp-vIIx-dDT_2flKRxa0BJ/view?usp=drivesdk

PROCEDURE:

1.First import the iges format file then check for any mistake.

2.then make the geometry cleam up for the component then create a mid surface manual method.

3.Create a mid surface at the base area use the manual method

Using the auto mesh option create a mesh at 5 unit at the base area

Then create select all elements and offset it 1.25 aith surface then create a midsurface with mesh

4.Then create a midsuraface at another component

5. Next check the quality at the midsurface component .

6. Then select the other components step by step then create a perfect mesh at manualy with low tria element.

7. Then the part is the quality criteria we must satisfy those given condition

TOOLS : SURFACE EDIT AND TRANSLATE MOSTLY USED TO CREATE A PERFDECT MESH

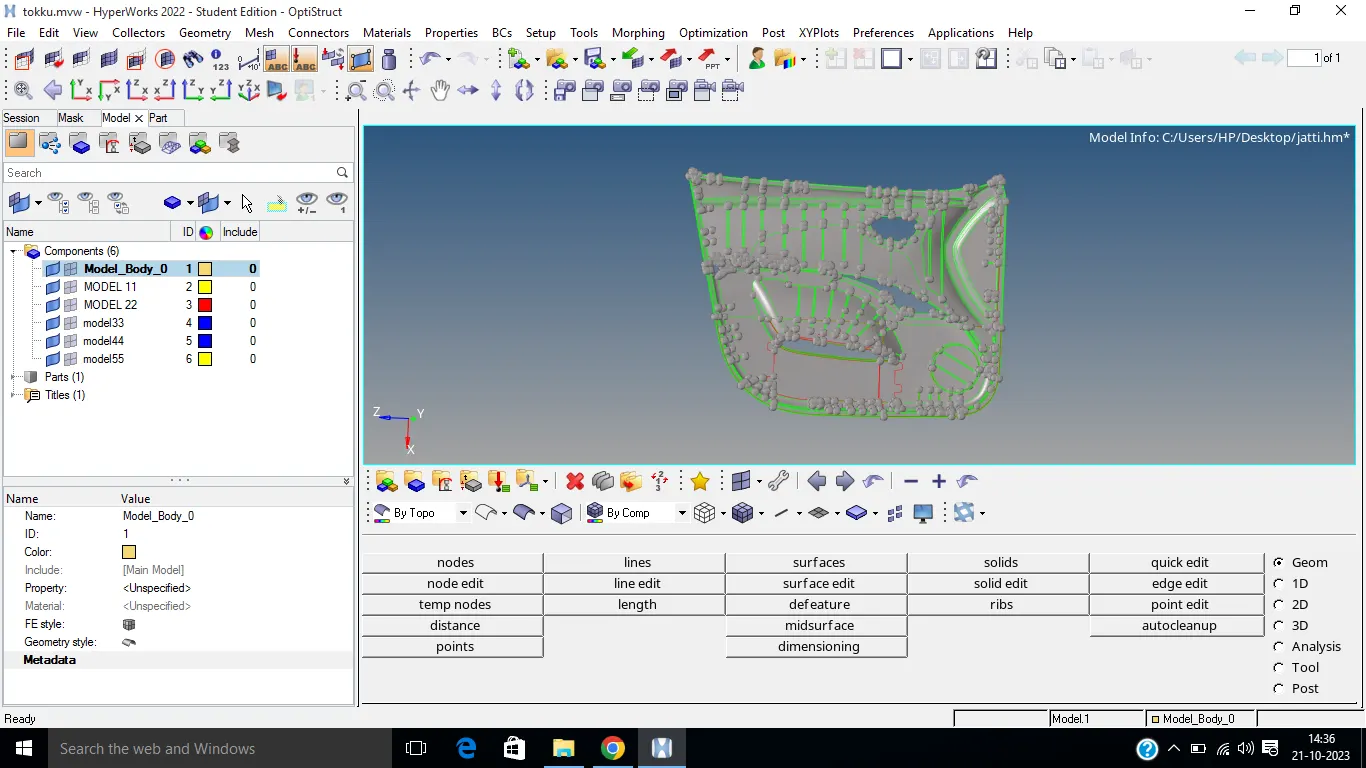

GIVEN MODEL

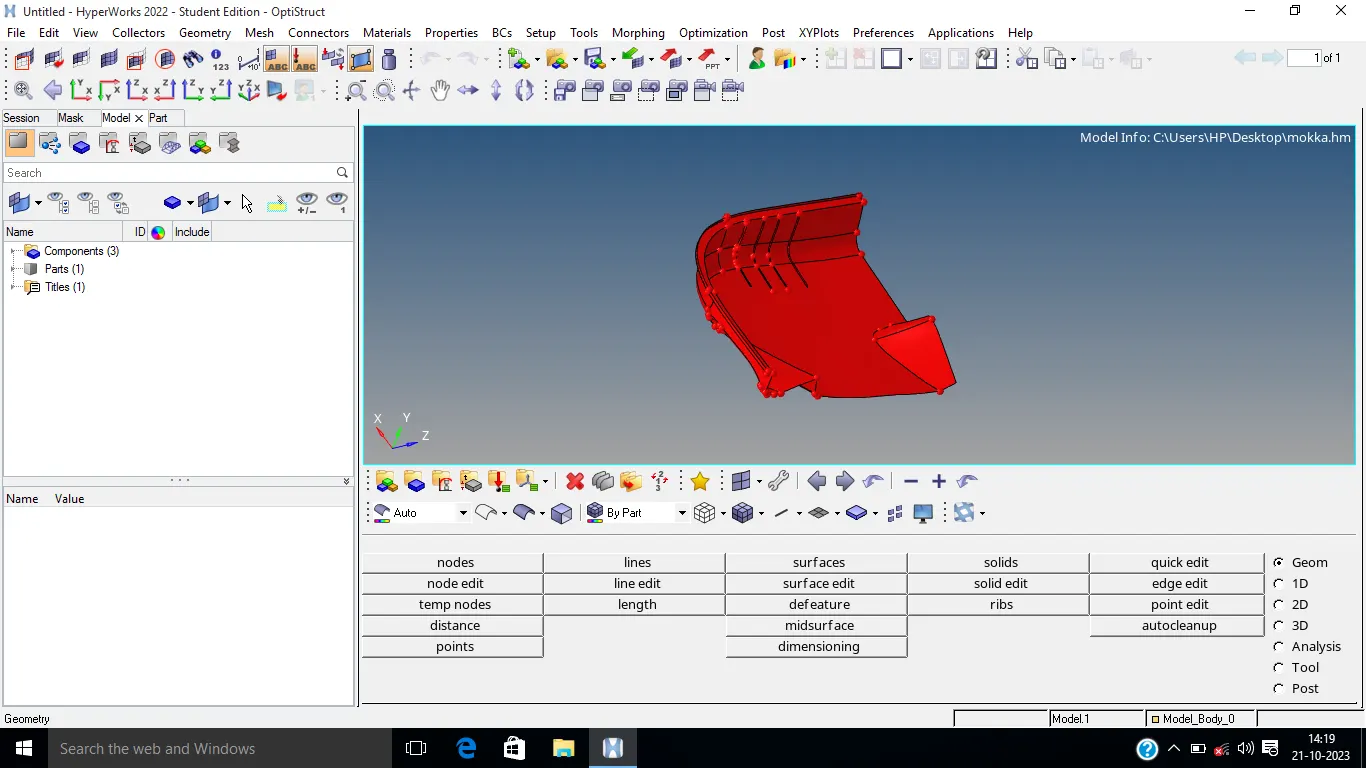

SPLIT THE SURFACE AND CLEAN IT

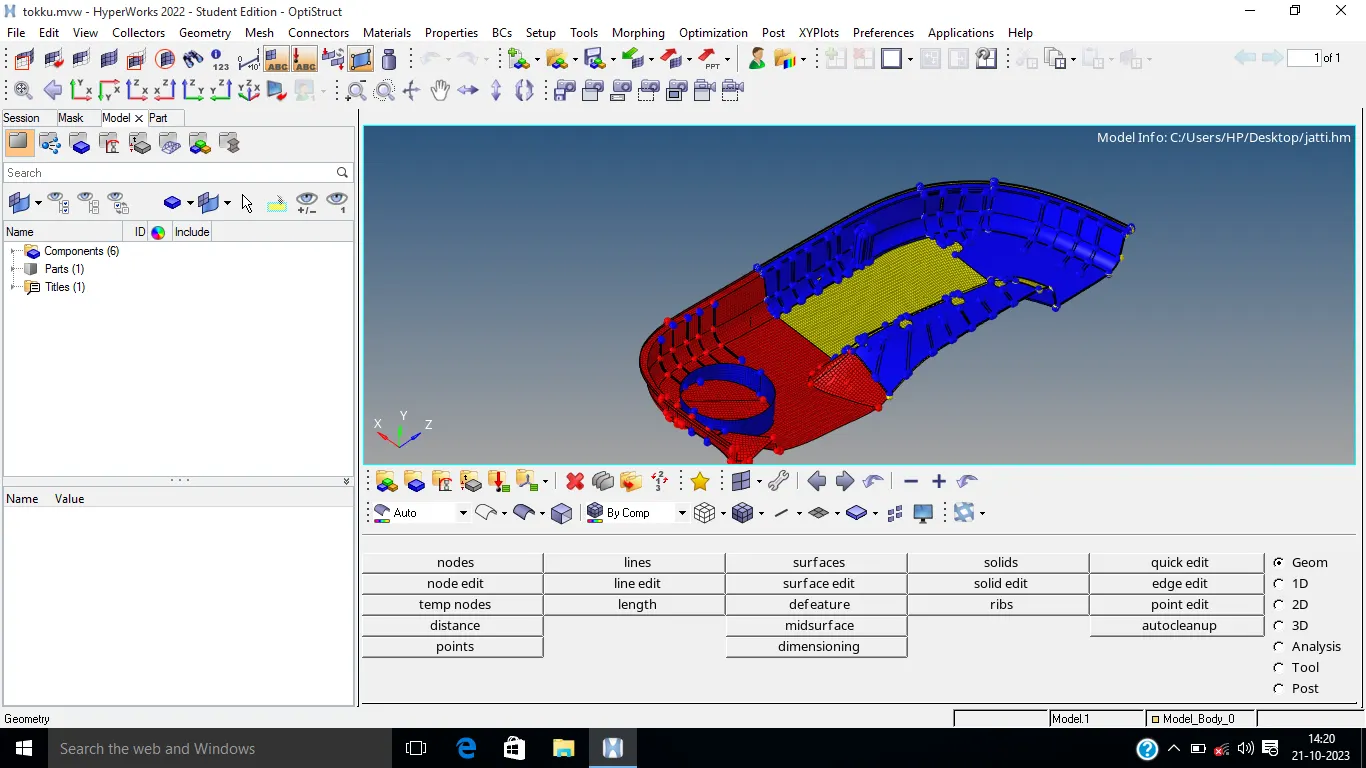

TAKE A PERFECT MANUAL MIDSURFACE

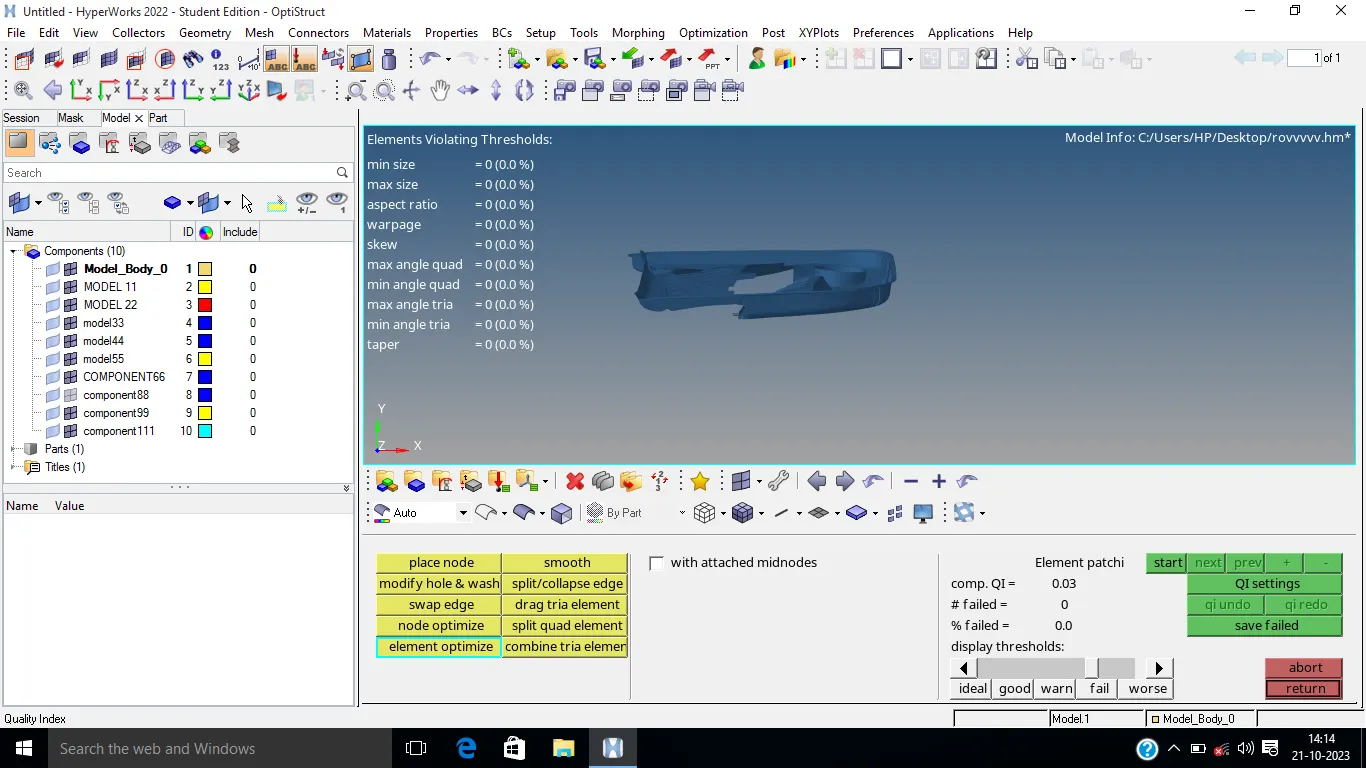

SATISFY THE QUALITY CRITERIA

RESULT

Satisfy the qwuality criteria at the given given component and create a perfect mesh at the component.i cant upload the file directly so kindly use the drive link

https://drive.google.com/file/d/12R0rkBT7Mdlp-vIIx-dDT_2flKRxa0BJ/view?usp=drivesdk
