Week 4- Meshing of Backdoor Challenge
BACKDOOR QUALITY MESH AND QUALITY CRITERIA
GIVEN
| S.N | Quality Criteria | Value |
| 1 | Aspect Ratio | 5 |
| 2 | Skewness | 45 |
| 3 | Warping | 15 |
| 4 | Taper | 0.5 |
| 5 | Min. Length | 3 Units |
| 6 | Max. Length | 7 Units |
| 7 | Min angle Quad | 45 |
| 8 | Max angle Quad | 135 |
| 9 | Min angle Tria | 30 |
| 10 | Max angle Tria | 110 |
| 10 | Tria % | 15 |
PROCEDUER
1.First import iges file
2.Then check all the three component
3.Then check component are symmetry
4.the model is symmetry so delete the half symmetry component
5.After assign property to the component

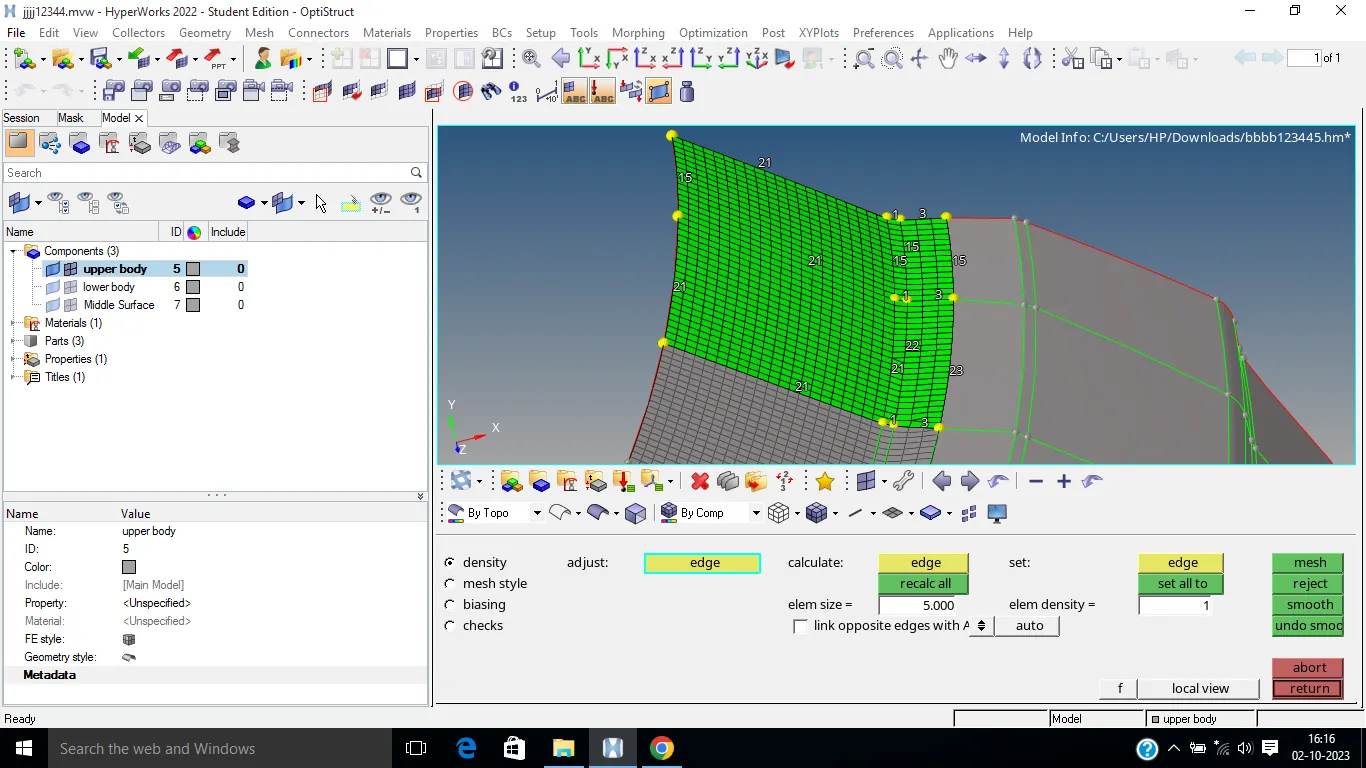

6.Then create mesh at the three component seperately
7.increase the mesh quality with the use of quick edit and other edit tools

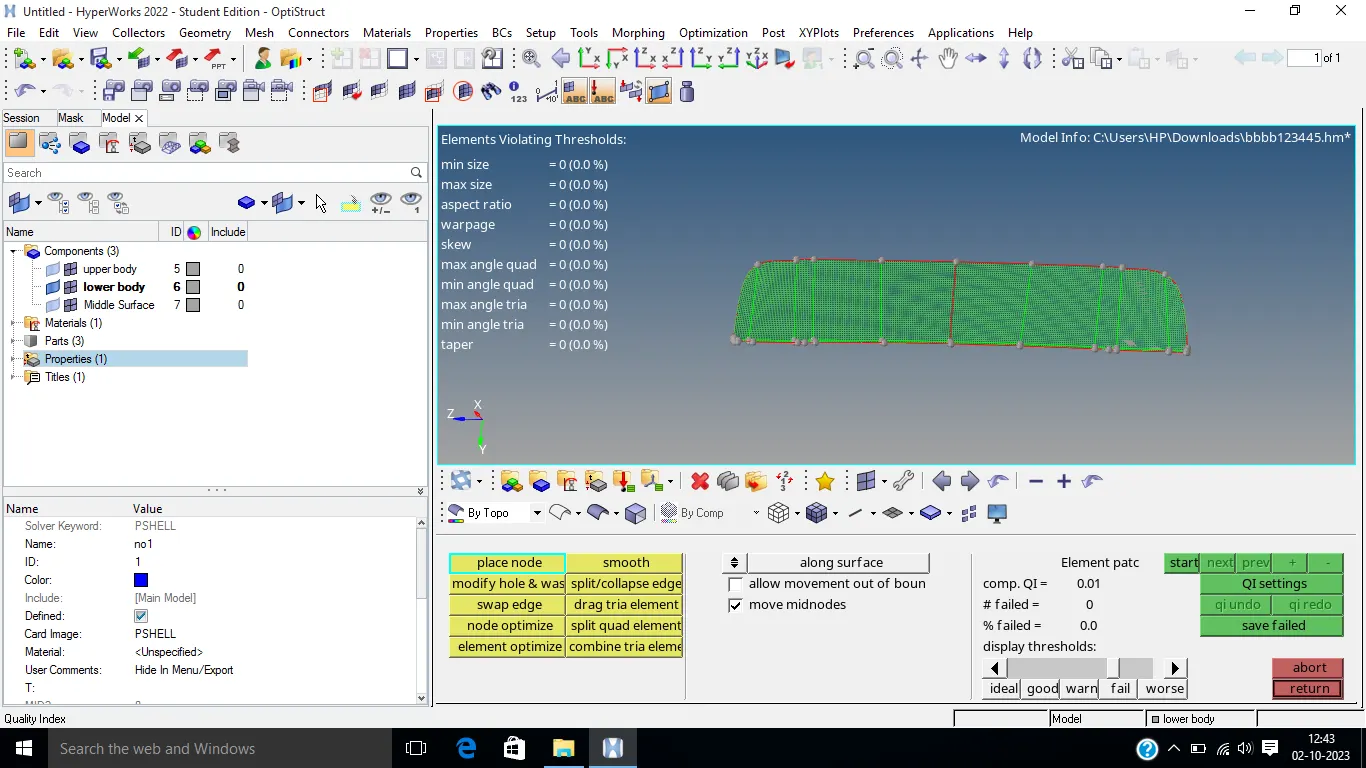

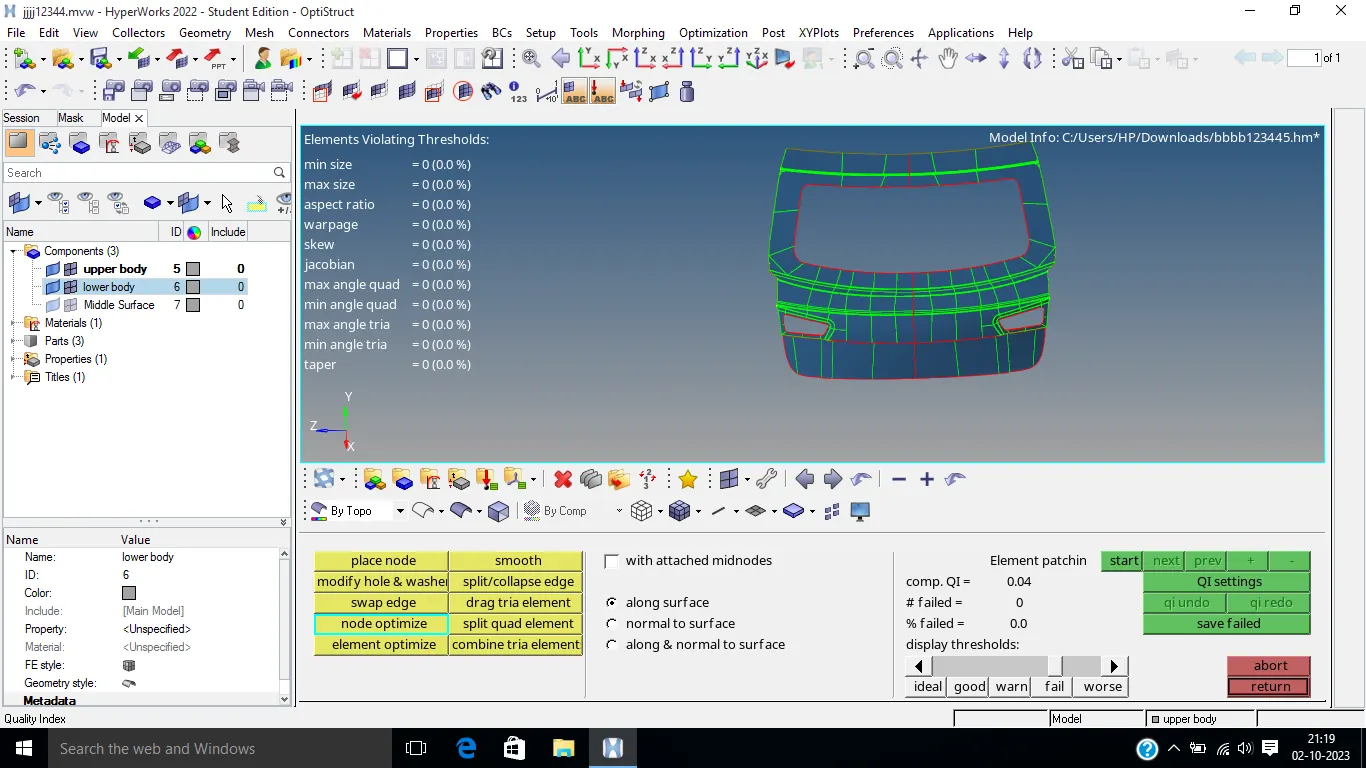

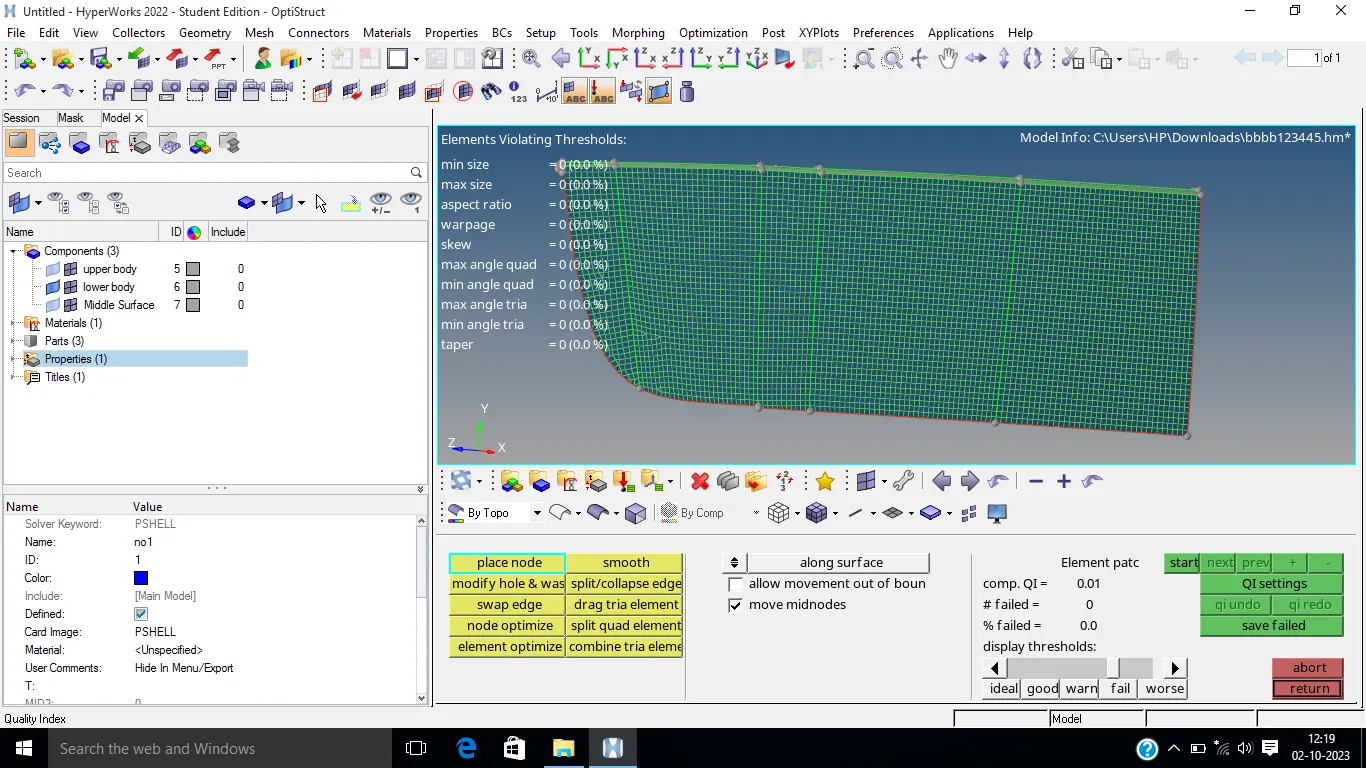

8.Then satisfy the quality criteria

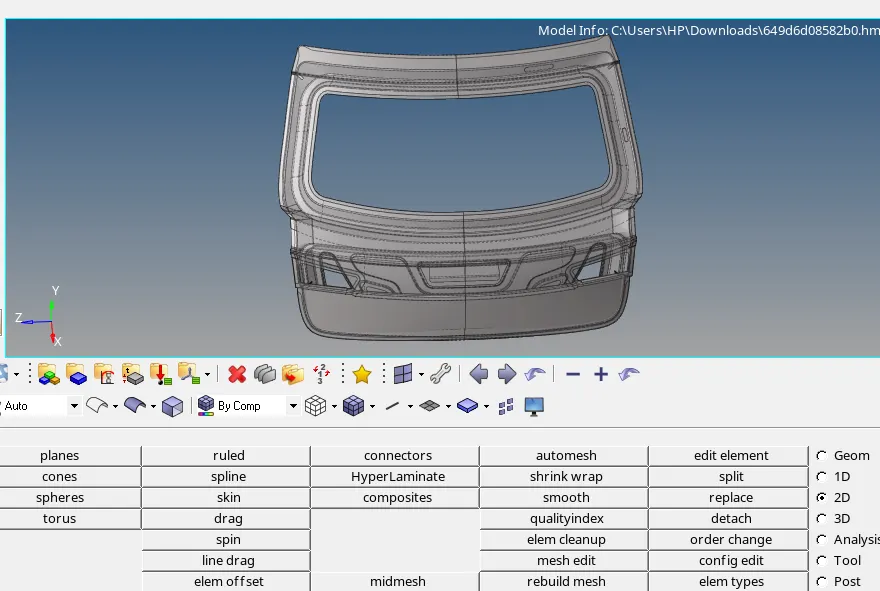

Import the iges file

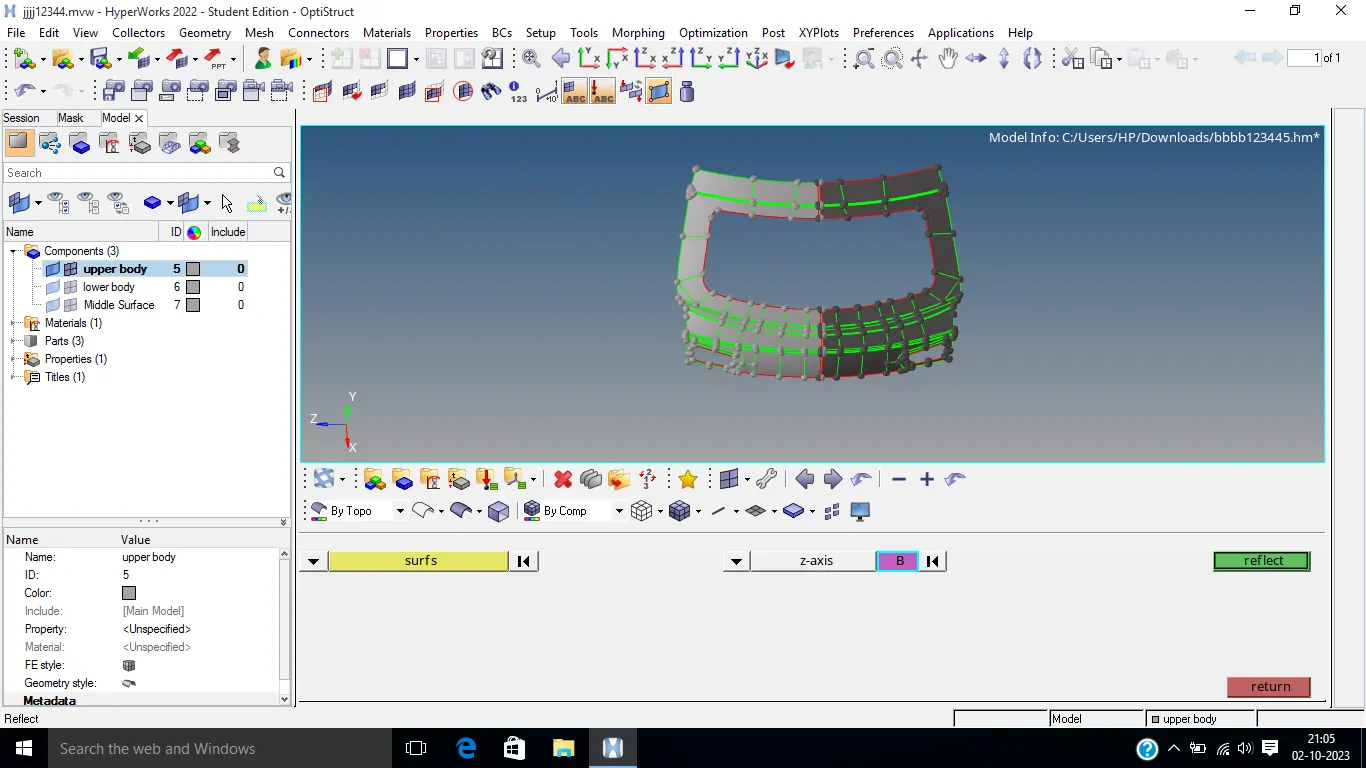

delete the half symmetry and mesh the parts seperatly
RESULT

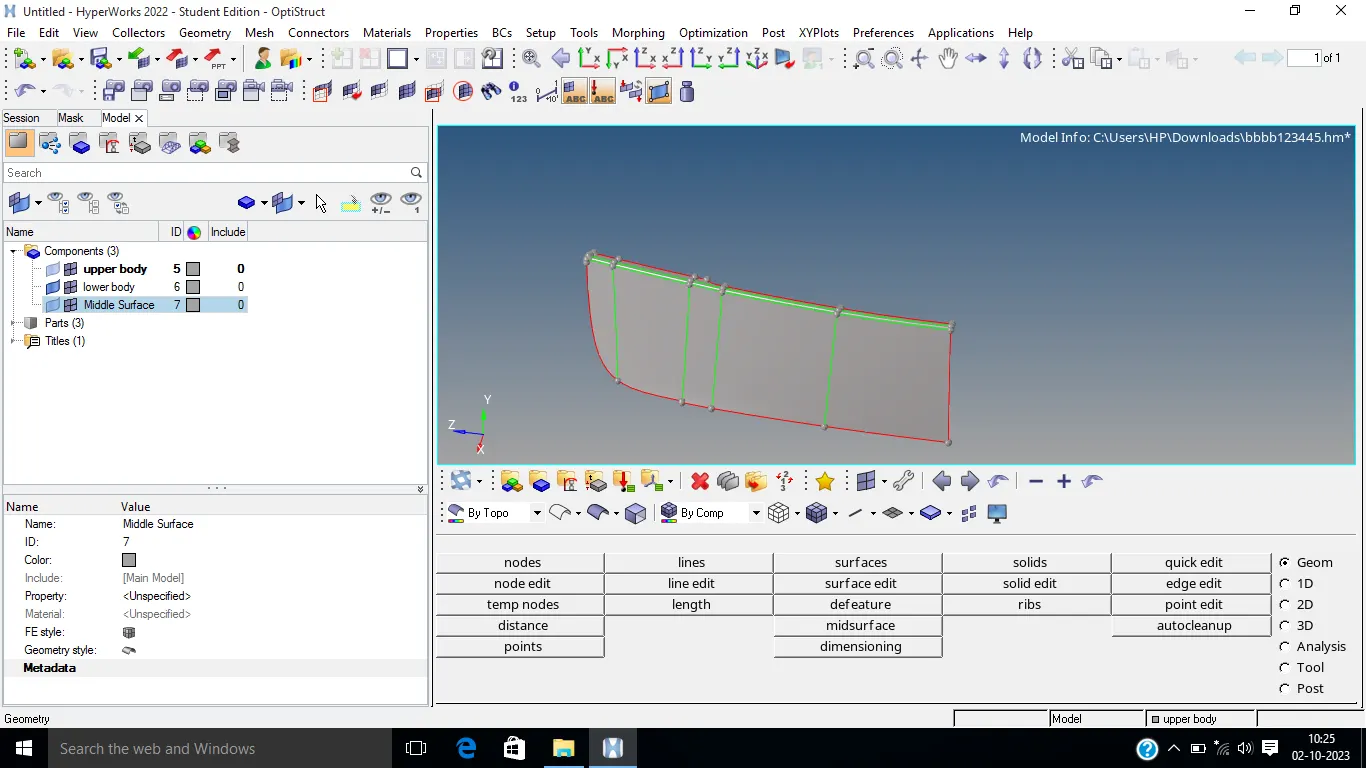

Hence the mid surface for every individual compponent has been ectracted manually and every component has been with proper good mesh flow and attain the quality criteria also.
......... the student version software doesnt support 100000 nodes so couldnt save the inner body model............
