Week 6-3D Tetra Meshing Challenge

Aim
To Solid Mesh the Given component

Procedure:

Step 1

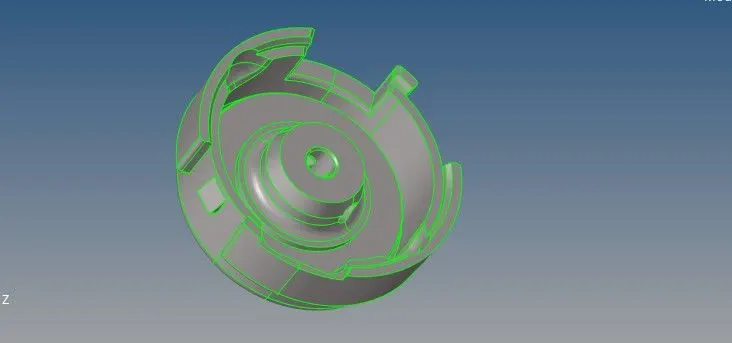

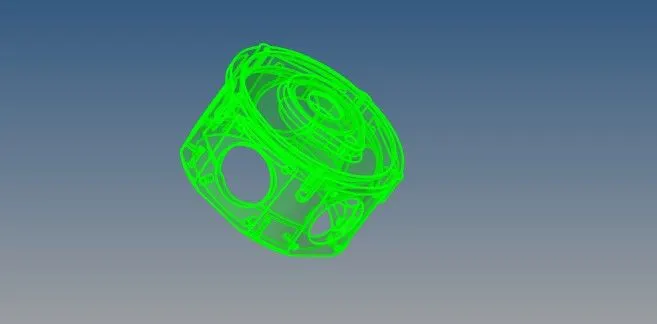

Import geomentry

Model 1

step 1

Import geomentry

Model 2

step 1

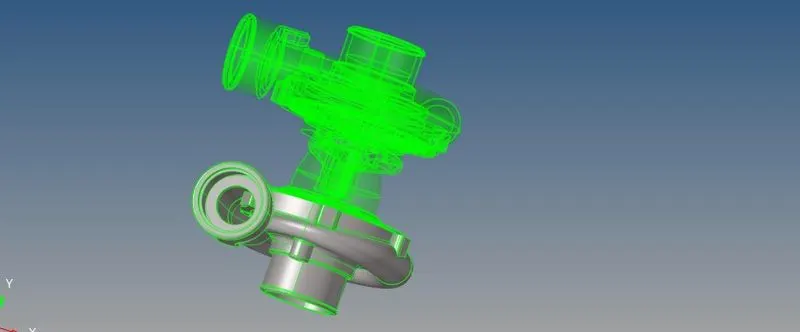

Import geomentry

Model 3

Meshing

step 1

Model 1

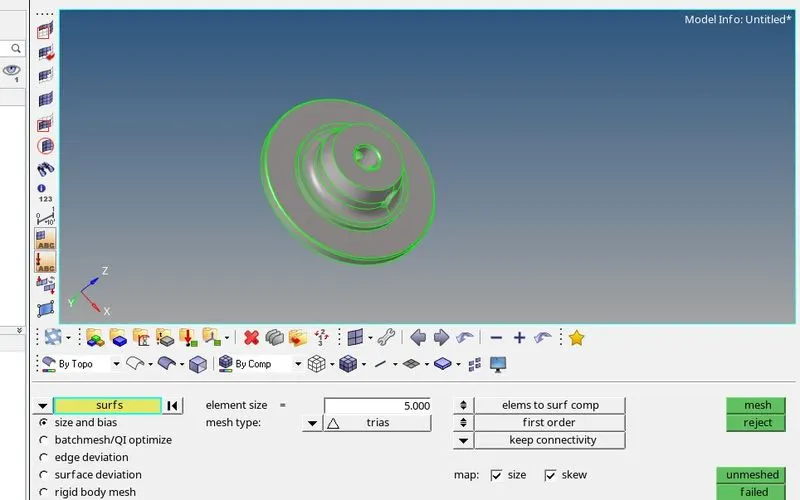

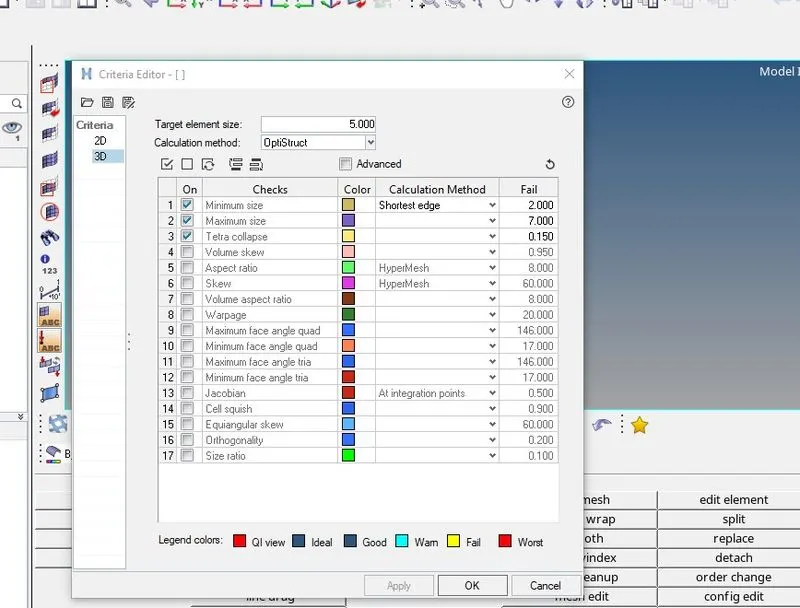

Using criteria editor set value for solid tetra meshing as shown in below

step 2

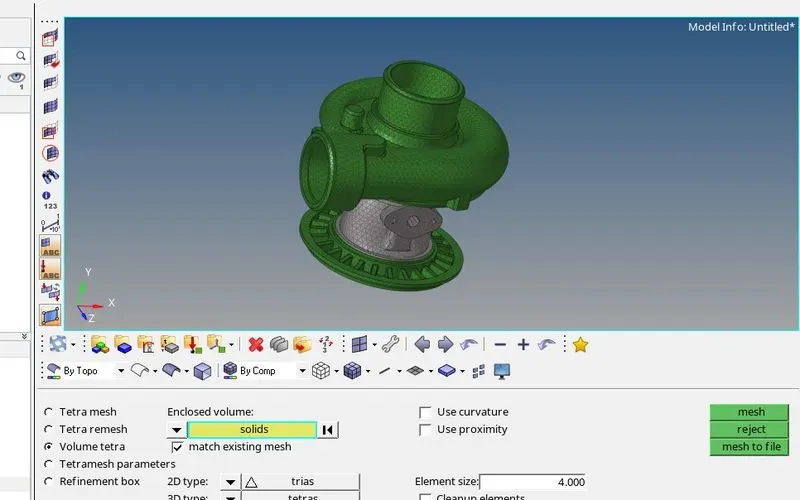

After setting the quality criteria the componet is solid mesh using tetramesh

step 3

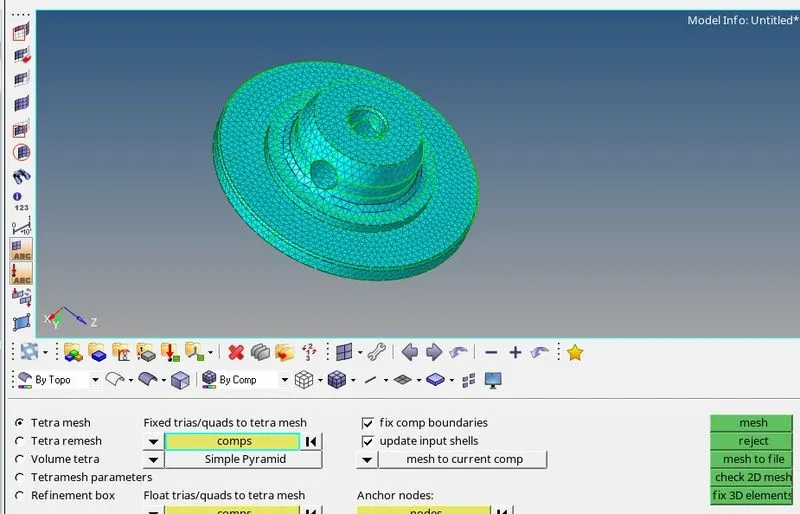

As shown below componet is tetra mesh with given quality criteria

step 4

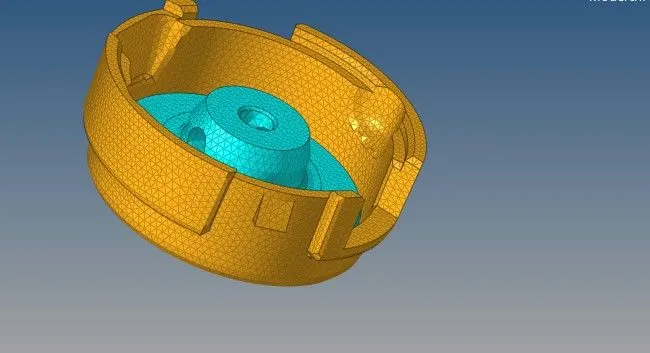

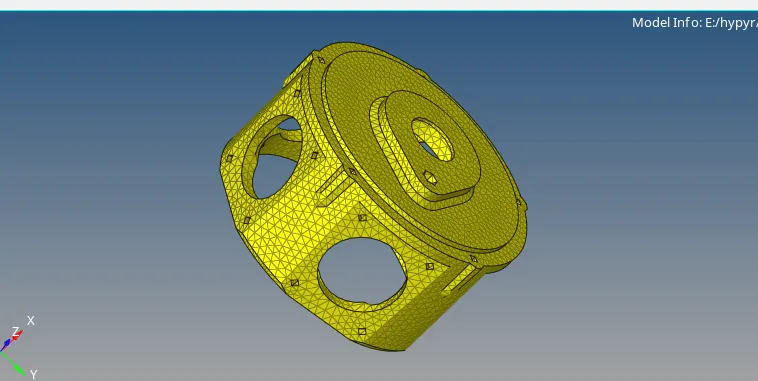

Final Result

Model 2

Similarly from model 1 same procedure are used to tetra mesh the model 2 only difference is the qulaity criteria

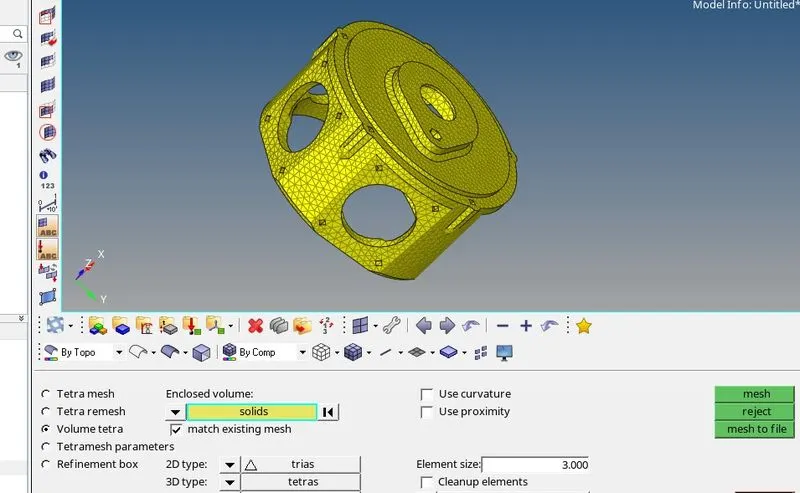

Final Result

Step 1

Model 3

Similarly from model 2 same procedure are used to tetra mesh the model 3 only difference is the qulaity criteria final result as below

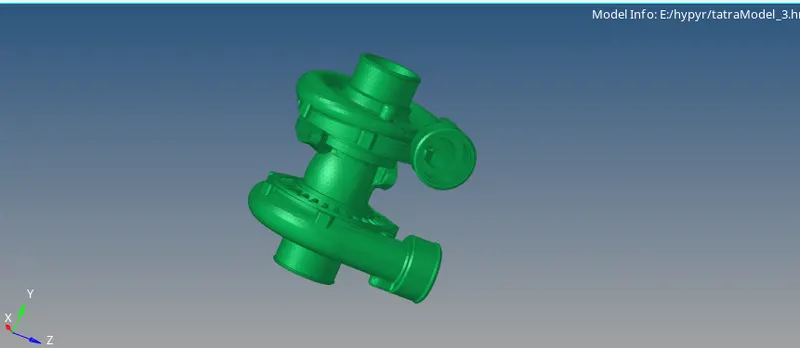

Final Result
