Week 5 Sphere pressing on a plate

Aim: Aimof the task is to simulate a sphere pressing plate operation. The plastic deformation of the plate need to be submitted.

For the simulation:

• Sphere is pressed for 4mm in downwards direction.
• Material of plate is structural steel non linear.

Results:

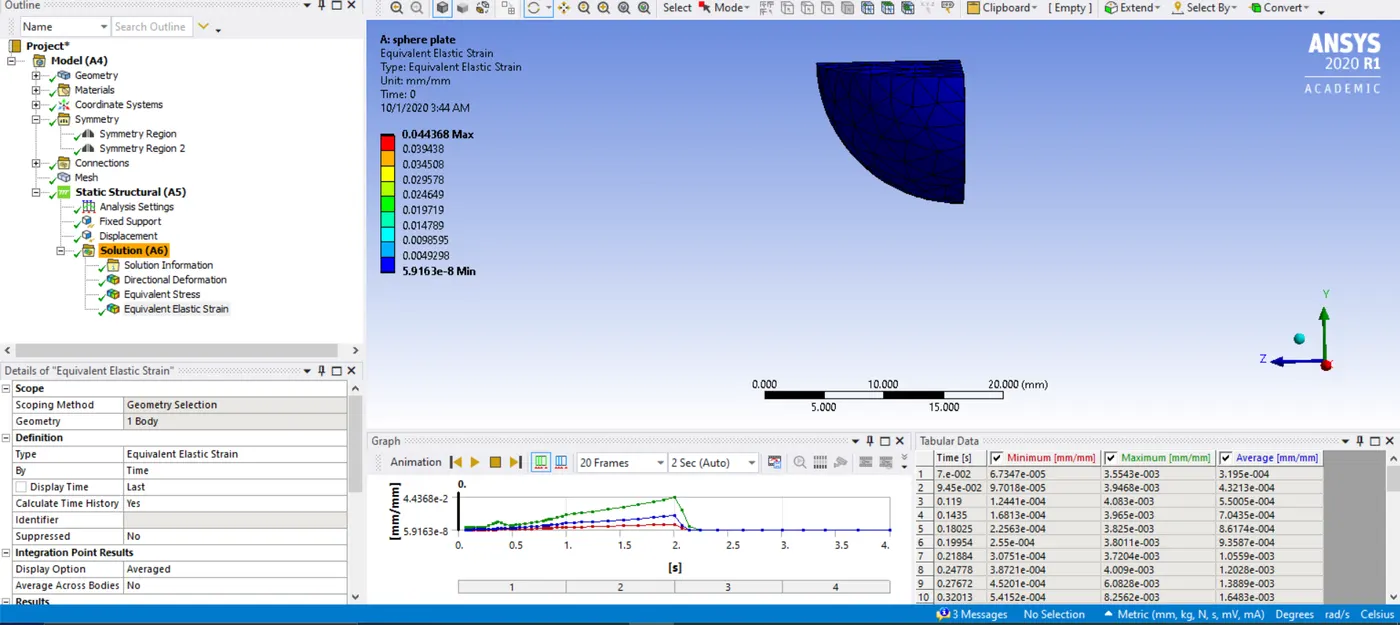

Plastic deformation of plate

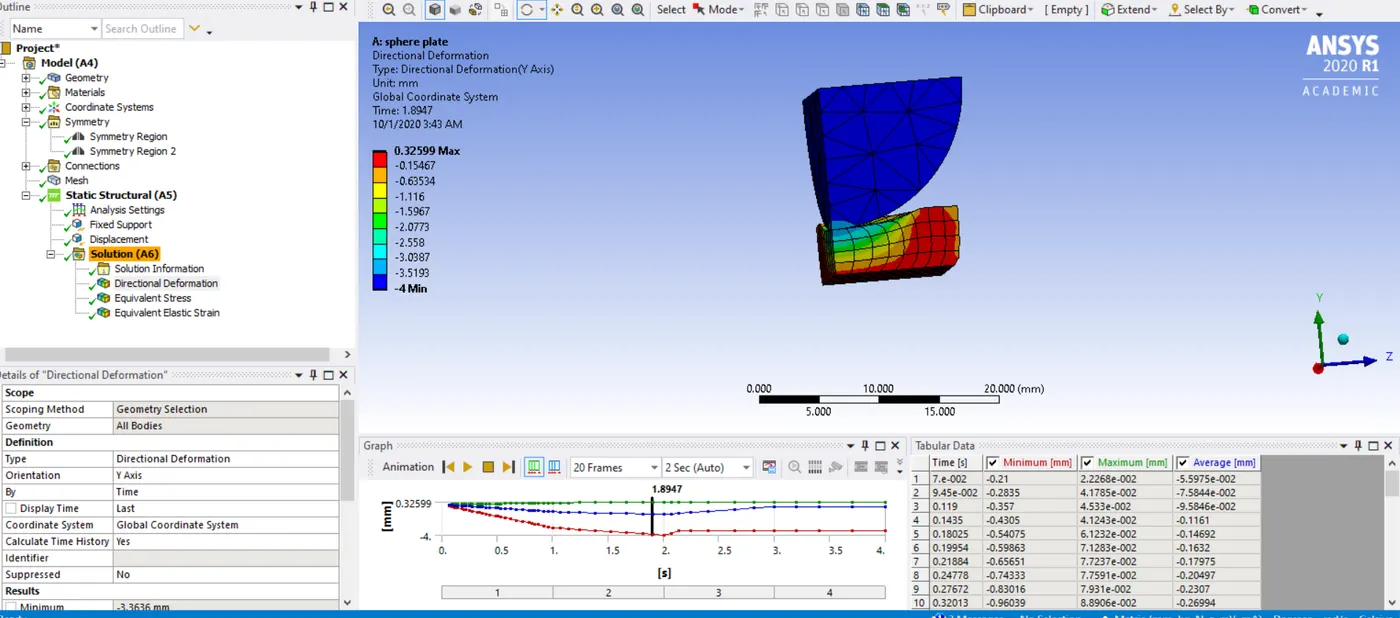

Directional deformation during process:

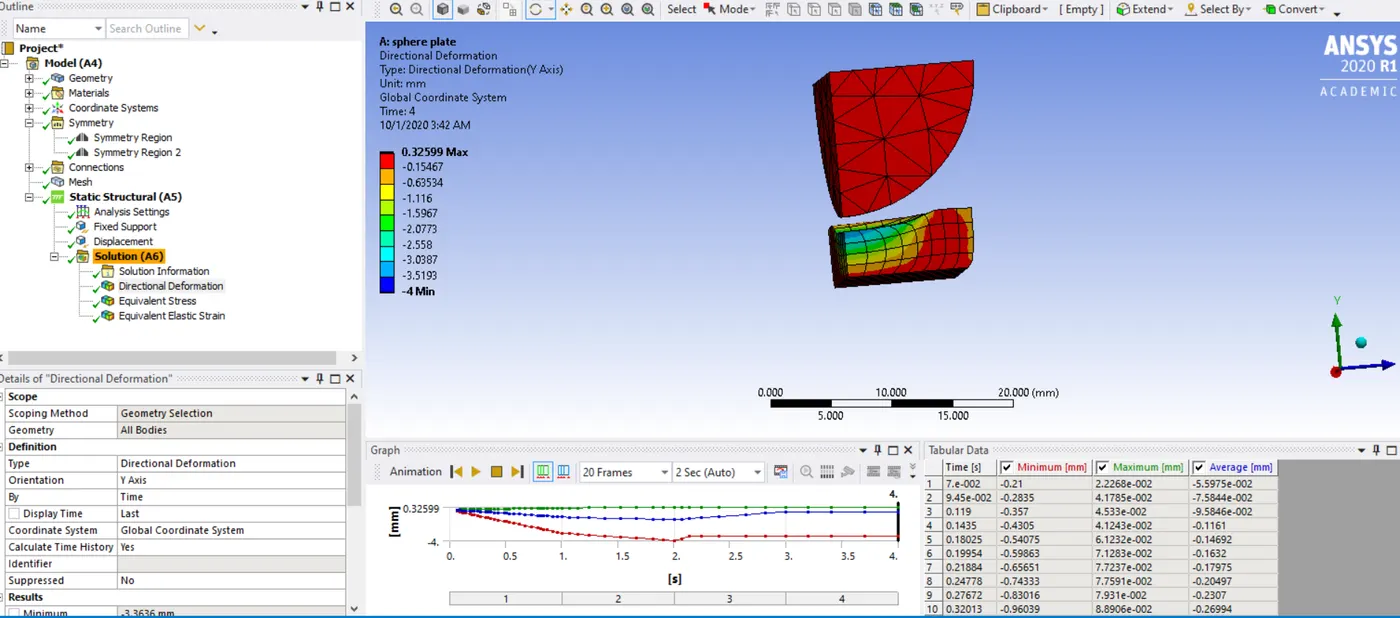

Directional deformation end of process:

Deformation of sphere

Video link for the process:

https://photos.app.goo.gl/hZoithRjuCUyJ2mr8
