Week 5 Sphere pressing on a plate

Objective: To analyse the simulation of a sphere pressing a plate and its relevant parameters like stress, deformations and strains  were observed.

(For the ease of simulation the 1/4th of the geometry is considered, and then it is further multiplied  using symmetry option for the whole geometry).

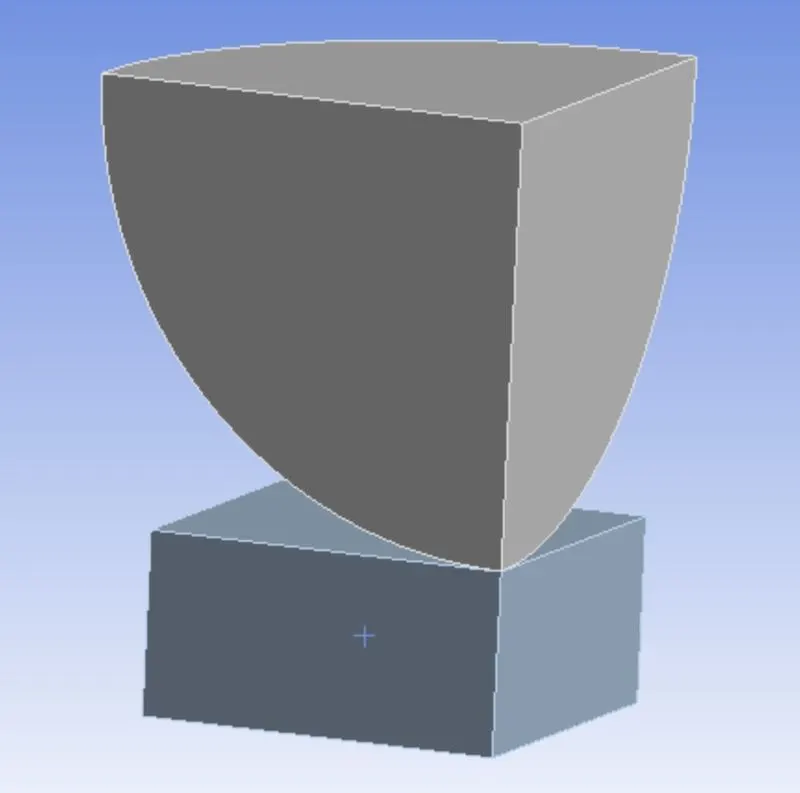

1. Geometry :

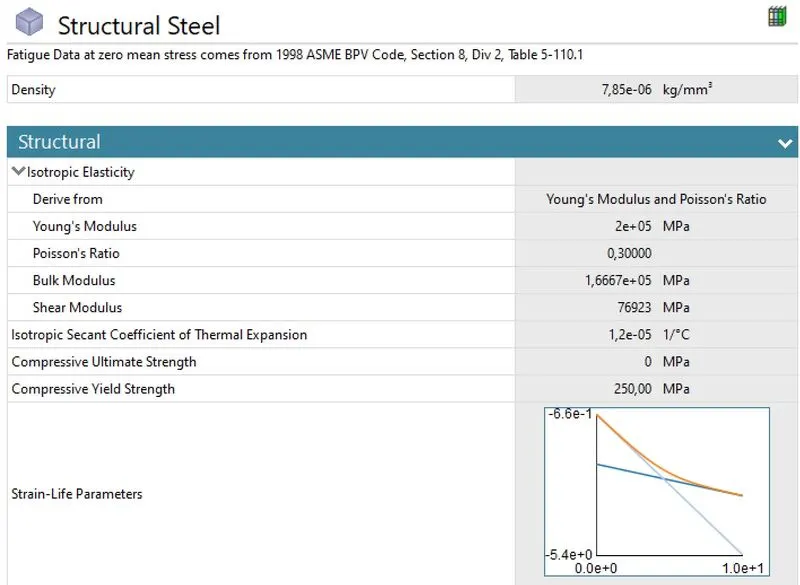

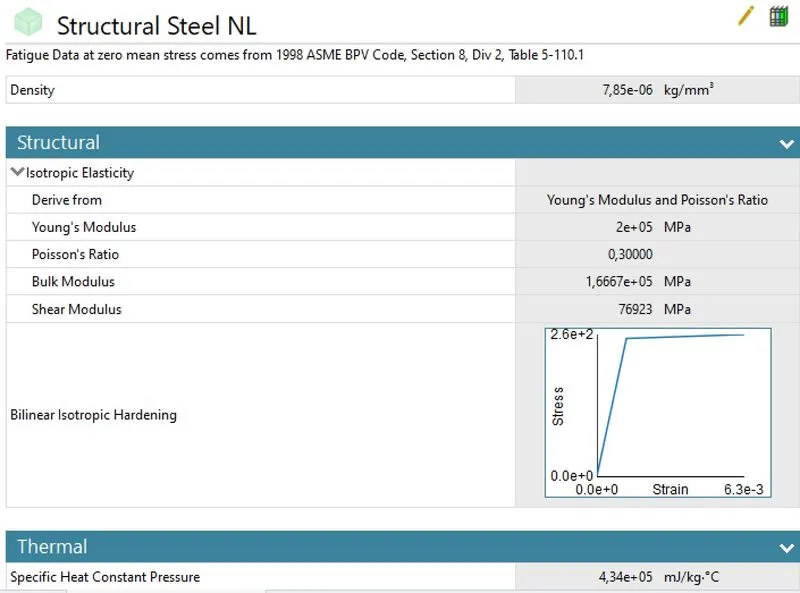

2. Material data:



3. Symmetry:

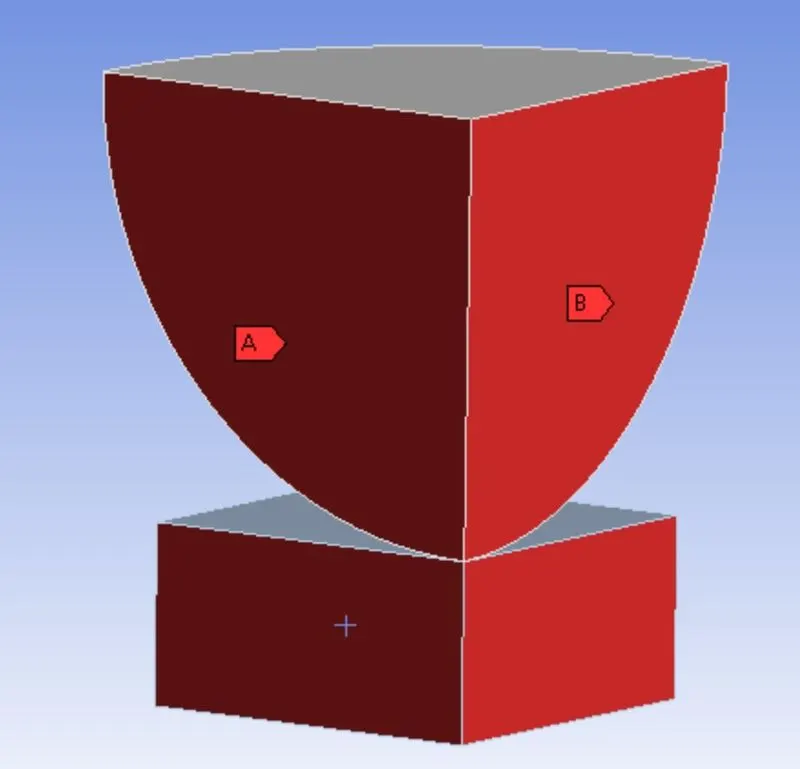

As mentioned earlier, for the ease of working, 1/4th of geometry is considered and the symmetry option is applied.



The side A is with respect to Z axis and side B is with respect to x Axis.

4. Simulation Set up and Settings:

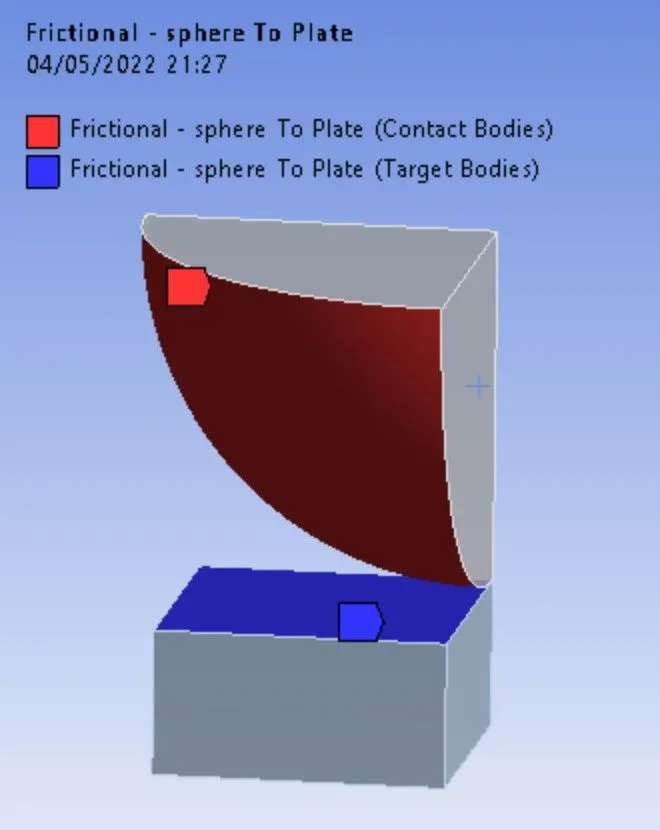

i. Connection:

Frictional connection is made with the sphere and the plate. The frictional coefficient of 0.74 for steel is taken from roymech tribology tables.

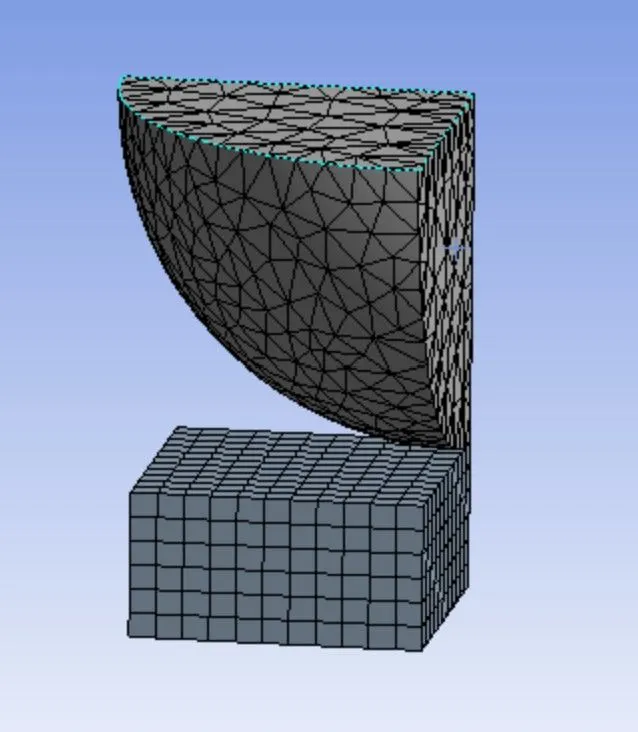

ii. Mesh:

Default mesh element size is considered. The sphere is a hexagonal element and the plate is of tetragonal element.



iii. Structural Inputs:

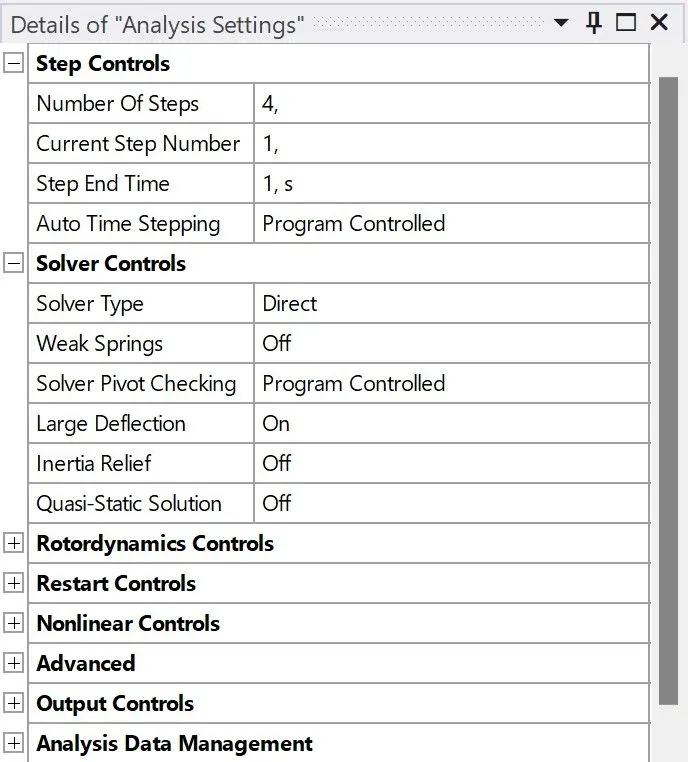

a. Analysis setting:

The pressing process was done in 4 steps. Large deflection is turned on, and the solver type is made to direct.

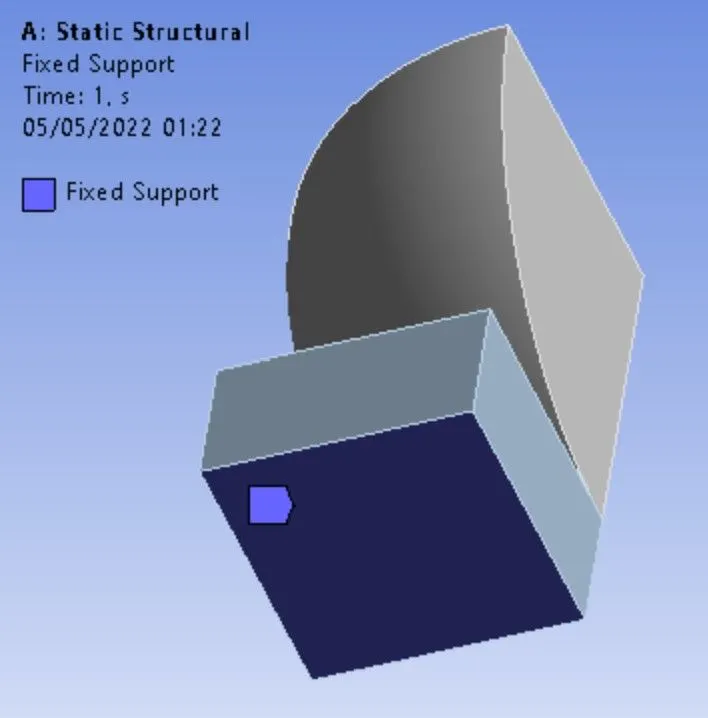

b. Fixed support:

For proper fixation of the geometry, the bottom base of the geometry is fixed.

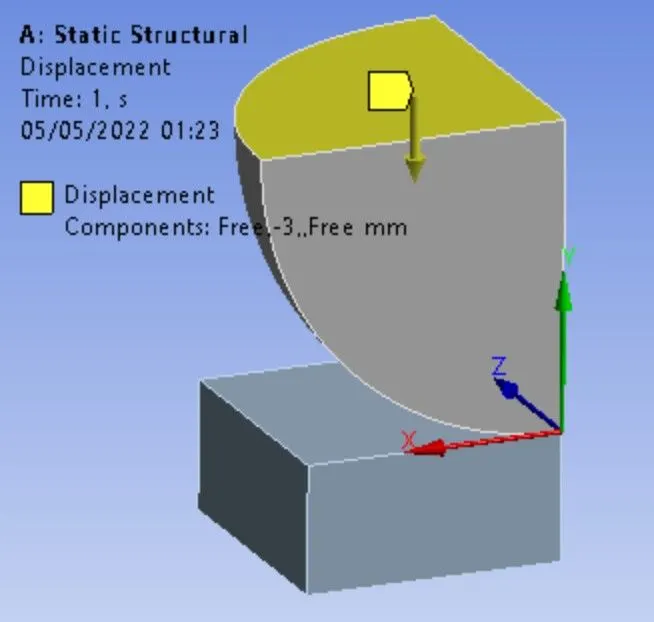

c. Displacement:

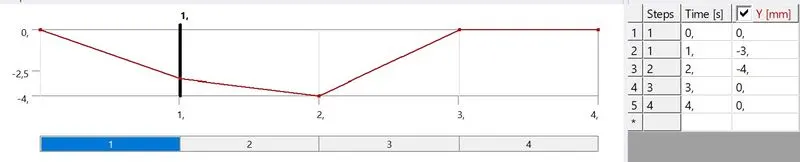

With the 4 steps, the sphere is made to deform the plate and is retracted back to its original state. The sphere is pressed onto the plate for 4 mm in y direction.



5. Solution:

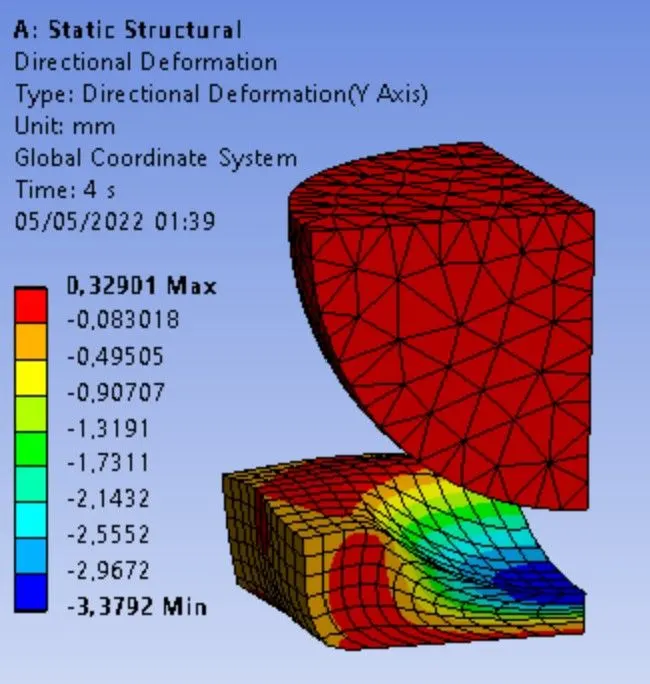

a. Directional Deformation (Y axis):

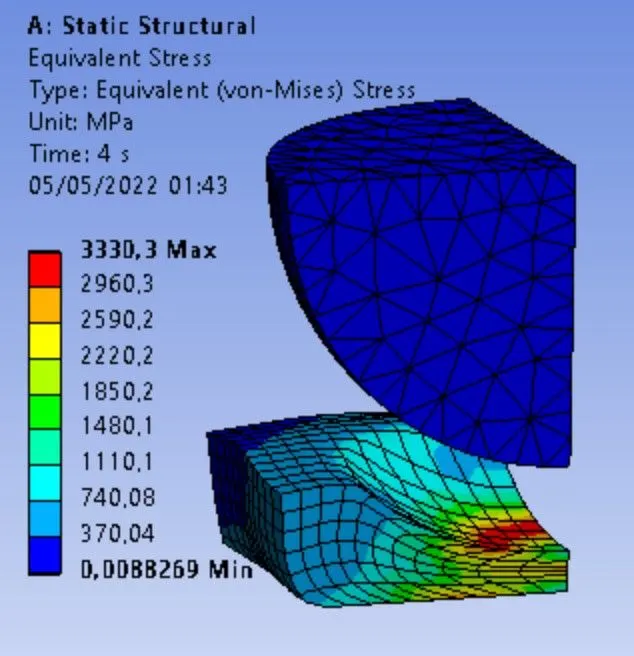

b. Equivalent stress:

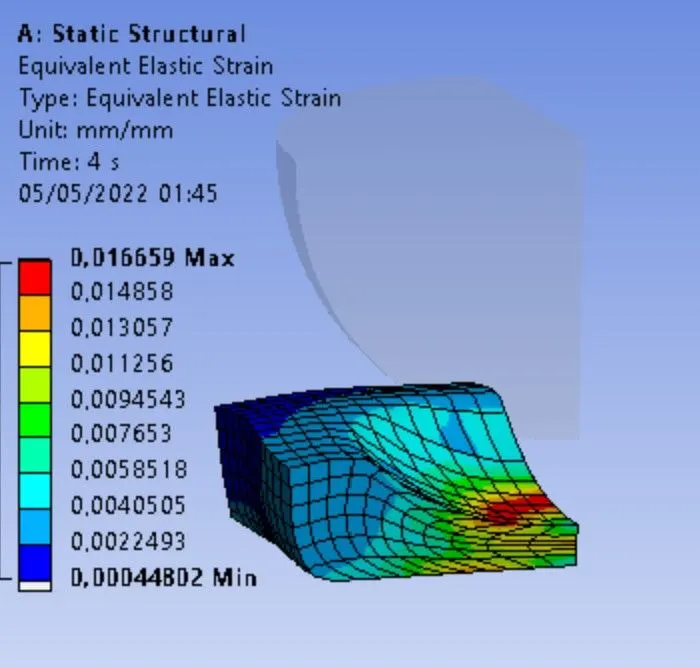

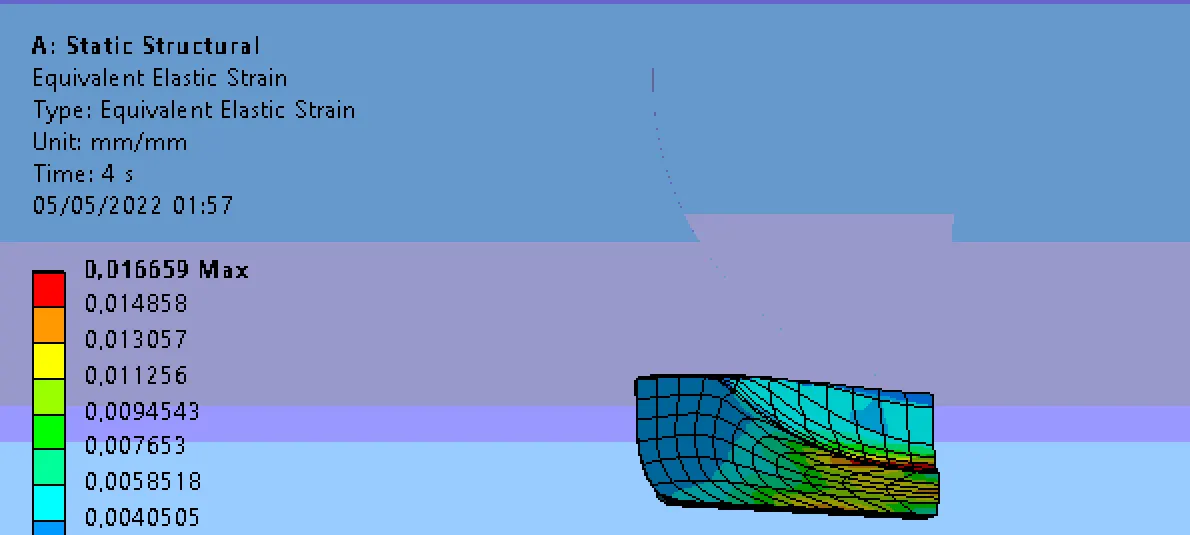

c. Equivalent strain on Plate:

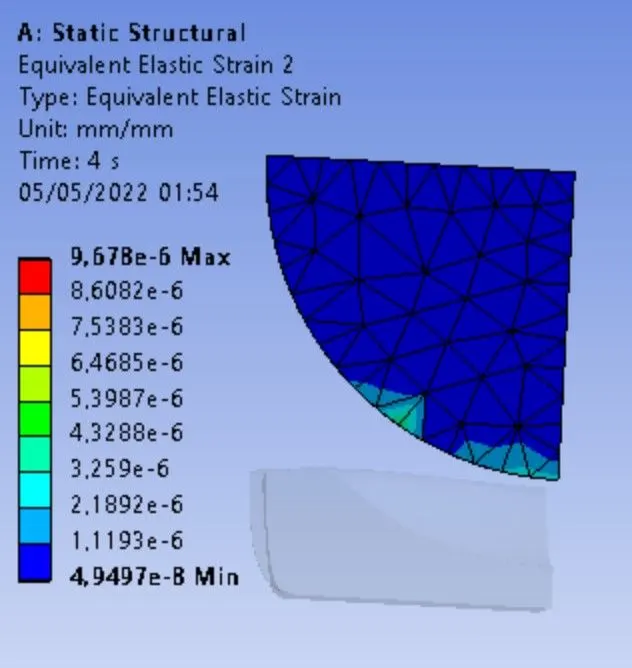

d. Equivalent strain on sphere:



6. Result:

(Max values are considered)	Directional Deformation (mm)	Equivalent stress (MPa)	Equivalent strain on Plate (mm)	Equivalent strain on sphere (mm)
Sphere pressing Result	-3.379	3330.3	0.0167	9.6e-6

7. Conclusion

• The plasticity of the Non-linear structural steel on the plate is observed. The directional deformation in Y axis is about -3.379 mm, which is significantly higher.
• The sphere has negligible deformation, as the equivalent strain on the sphere is 9.6e-6 mm.
• Symmetry Option is utilized for the efficient calculation of the Analysis.

8. Animation
