Week- 5 - Solid meshing

First of all we will do cons resolution for better visual of graphics..

there are 4 PIDs

select one PID from pid manager

we will perform the tasks in that particular PID

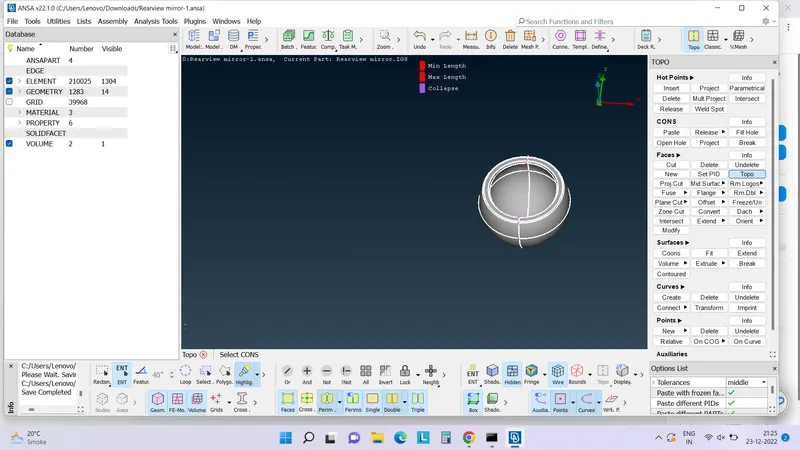

then we will check the connectivity...and we will perform topo to remove single cons....

next step is orient..

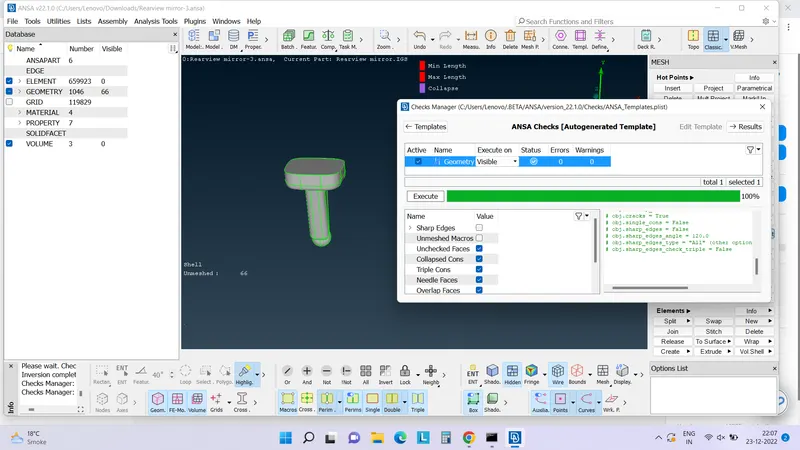

Now check the geometry check to detect the geomtery errors and fix it if found any..

now we can move to the mesh module...

 set the mesh parameters and qualities parameter as given in challenge

do the meshing using best, spot mesh, batch mesh in mesh module..

select element type as tria for flat surface and ortho tria for curve surface...

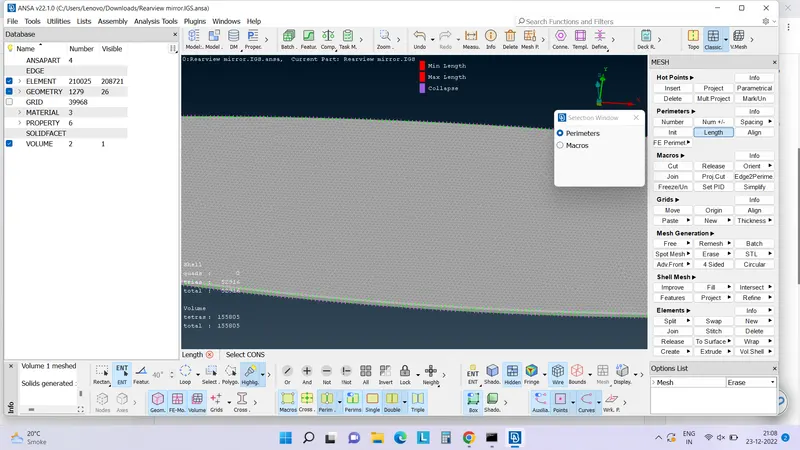

Generate the mesh... and fix the off elements if there any found...

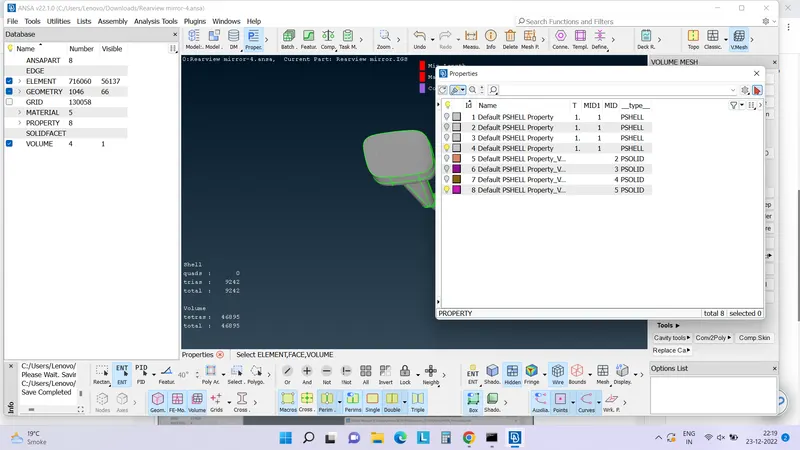

After fixing all the errors go to V. mesh module and there define (from Volume----Define) the volume mesh..

mesh that volume with the option tetra rapid and check if there any errors like tetcollapse

 after fixing the errors...you are done with that particular PID..

repeat the same process for other remaining PIDs...
