Week- 5 - Solid meshing

Aim- For the given Rear view mirror component, check for the geometrical errors and mesh the Surfaces with the given 2D element Quality criterias.

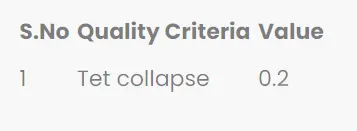

Quality Criteria-

Process-

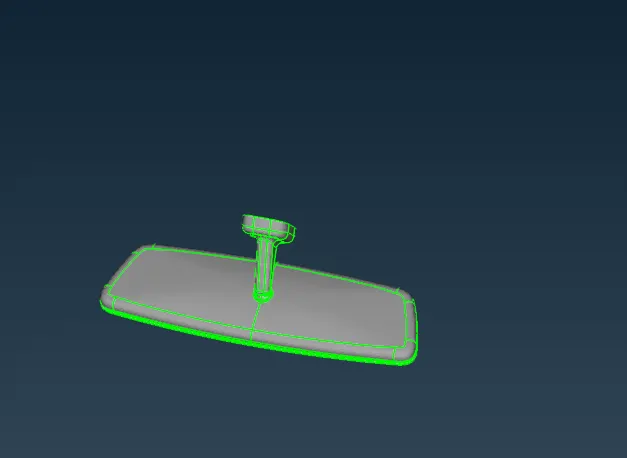

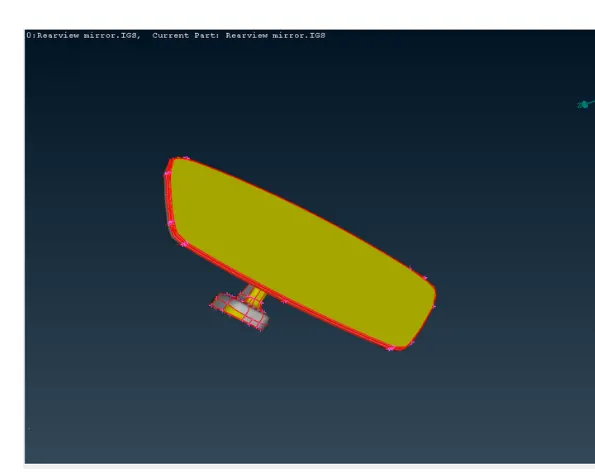

1.Import given cad model to ansa software.

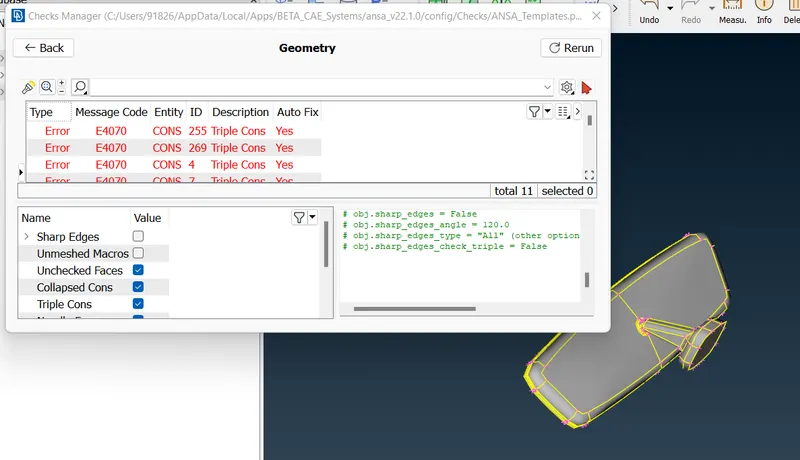

2.Go for Topology and Geometry cleanup.

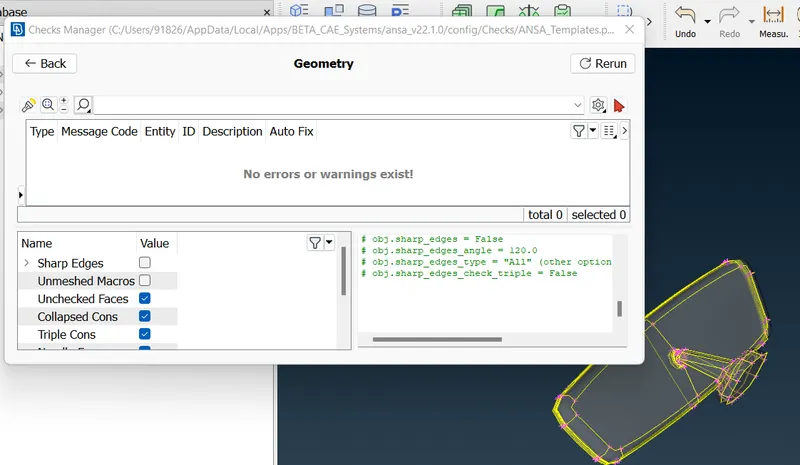

3.Fix the errors by autofix or manually.

As it is solid mesh mid surface generation not required.

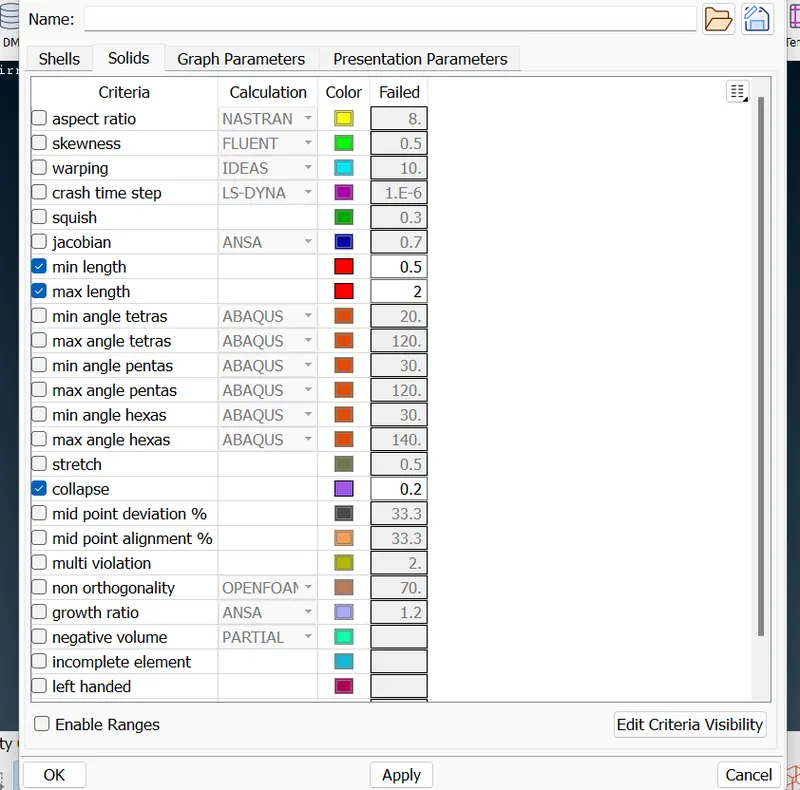

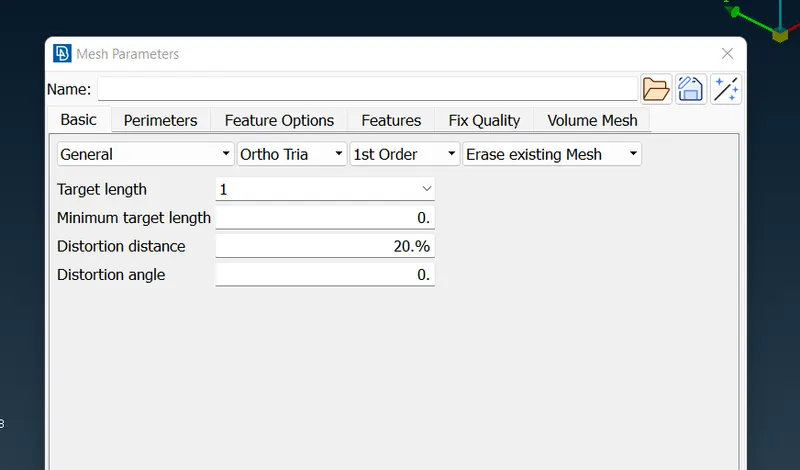

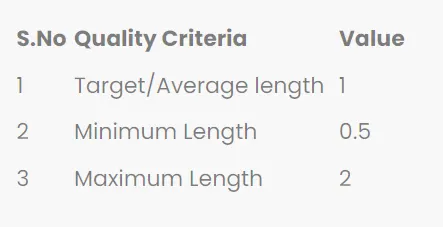

Next step is to assign mesh and quality parameters.

After defining the quality parameters.

Need to mesh the model.

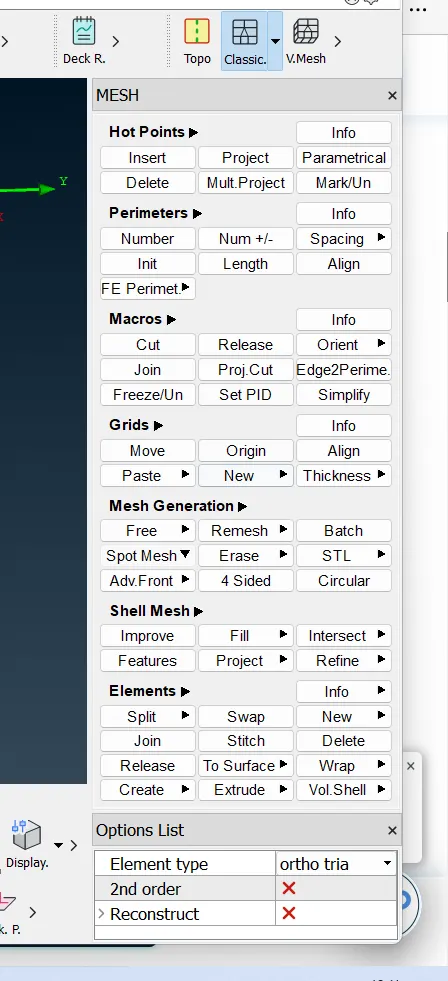

Selet spot mesh in that there are element types like ortho tria and tria mesh.

for fillets holes we go for ortho tria mesh and for flat surface use tria mesh.

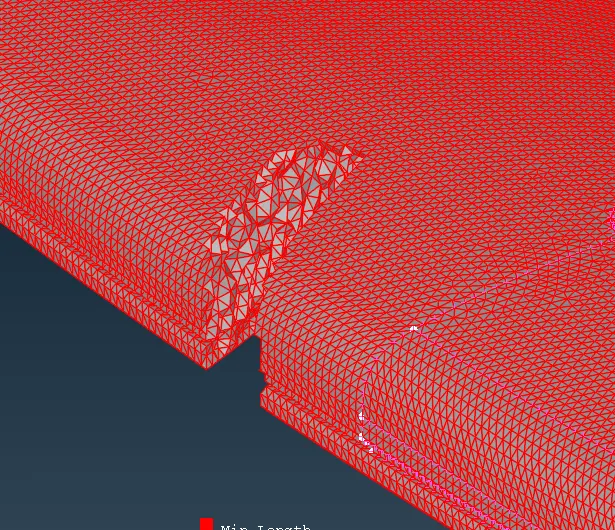

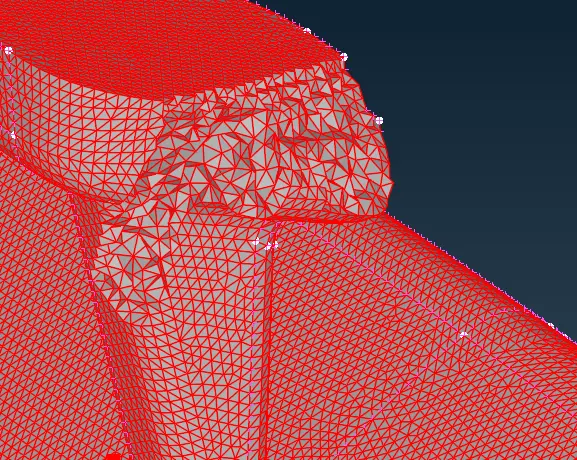

So the meshed model is combination of tria and ortho tria mesh.

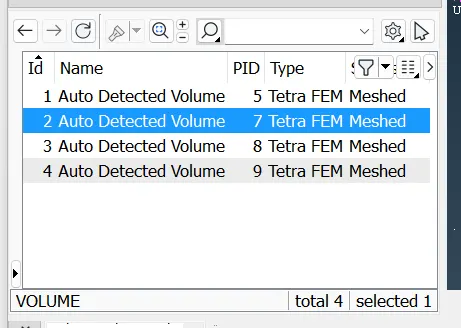

After completion of meshing next step is to define volume.

Prperty card of psolid generated for parts.

originally the volume is unmeshed and unstrutcherd.

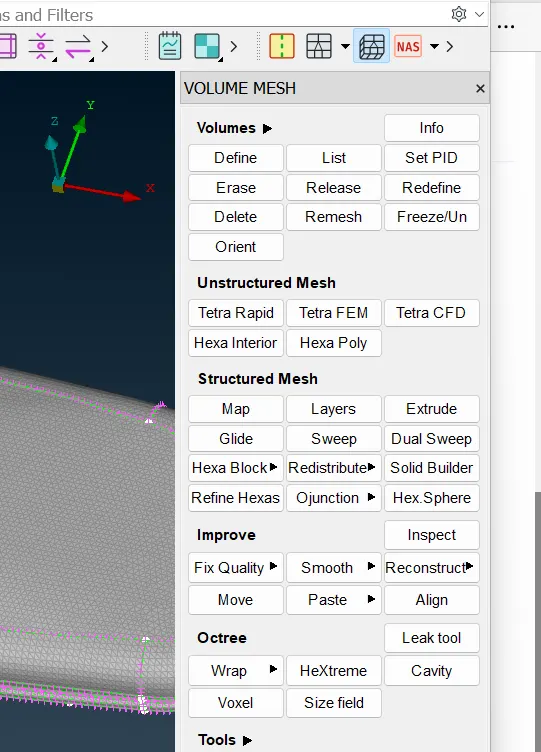

we can do tetra rapid or tetra fem.

After completion cut the object using inot to see volume structure.

final model

Conclusion-

Given component is meshed suscessfully.

Learning outcomes-

how to use spot mesh and ortho tria and tria options.

how to geterate volume and volume meshing.
