Week 5 - Rayleigh Taylor Instability

• Diesel Spray Simulation and KH-RT Wave Model 2003-01-3231 :This study presents diesel spray breakup regimes and the wave model basic theory from literature. The RD wave model and the KH-RT wave model are explained. The implementation of the KH-RT wave model in a commercial CFD code is briefly presented. This study relies on experimental data from non-evaporating sprays that have earlier been measured at Helsinki University of Technology.The simulated fuel spray in a medium-speed diesel engine had a satisfactory match with the experimental data. The KH-RT wave model resulted in a much faster drop breakup than with the RD wave model. This resulted in a thin spray core with the KH-RT model. The fuel viscosity effect on drop sizes was well predicted by the KH-RT wave model.
• The Richtmyer–Meshkov instability (RMI) occurs when two fluids of different density are impulsively accelerated. Normally this is by the passage of a shock wave. The development of the instability begins with small amplitude perturbations which initially grow linearly with time. This is followed by a nonlinear regime with bubbles appearing in the case of a light fluid penetrating a heavy fluid, and with spikes appearing in the case of a heavy fluid penetrating a light fluid. A chaotic regime eventually is reached and the two fluids mix. This instability can be considered the impulsive-acceleration limit of the Rayleigh–Taylor

• The Plateau–Rayleigh instability, often just called the Rayleigh instability, explains why and how a falling stream of fluid breaks up into smaller packets with the same volume but less surface area. It is related to the Rayleigh–Taylor instability and is part of a greater branch of fluid dynamics concerned with fluid thread breakup. This fluid instability is exploited in the design of a particular type of ink jet technology whereby a jet of liquid is perturbed into a steady stream of droplets.

  The driving force of the Plateau–Rayleigh instability is that liquids, by virtue of their surface tensions, tend to minimize their surface area. A considerable amount of work has been done recently on the final pinching profile by attacking it with self-similar solutions.^[1][

• ^{The Kelvin–Helmholtz instability (after Lord Kelvin and Hermann von Helmholtz) is a fluid instability that occurs when there is velocity shear in a single continuous fluid or a velocity difference across the interface between two fluids. Kelvin-Helmholtz instabilities are visible in the atmospheres of planets and moons, such as in cloud formations on Earth or the Red Spot on Jupiter, and the atmospheres of the Sun and other star}

^{Define the Atwood Number:}

The Atwood number (A) is a dimensionless number in fluid dynamics used in the study of hydrodynamic instabilities in density stratified flows. It is a dimensionless density ratio defined as

A = ρ 1 − ρ 2 ρ 1 + ρ 2 {\displaystyle \mathrm {A} ={\frac {\rho _{1}-\rho _{2}}{\rho _{1}+\rho _{2}}}}

where

ρ 1 {\displaystyle \rho _{1}} = density of heavier fluid

ρ 2 {\displaystyle \rho _{2}} = density of lighter fluid

stimulation of Rayleigh Taylor Instability

case 1: base line stimulation

steps invalving in analysis are shown below

• geometry
• meshing
• setup
• solution
• result

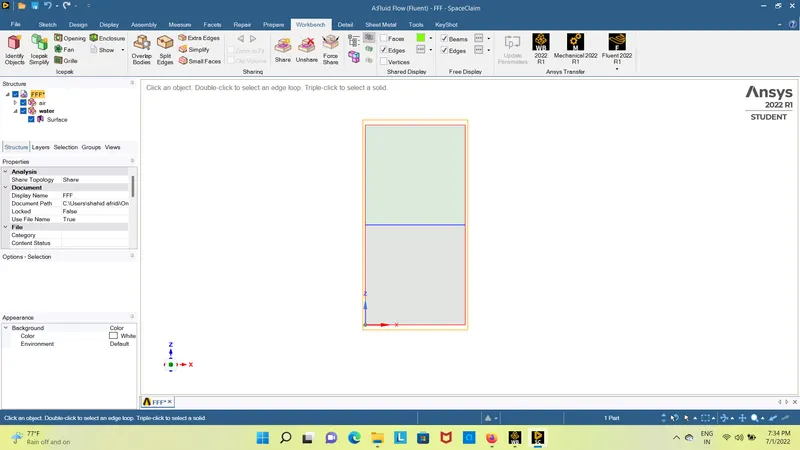

geometry: we have to create the two rectangular surfaces as shown below

• for air and water of demensions 20mmX20mm
• after taht we have to share the information between two layes as shown below

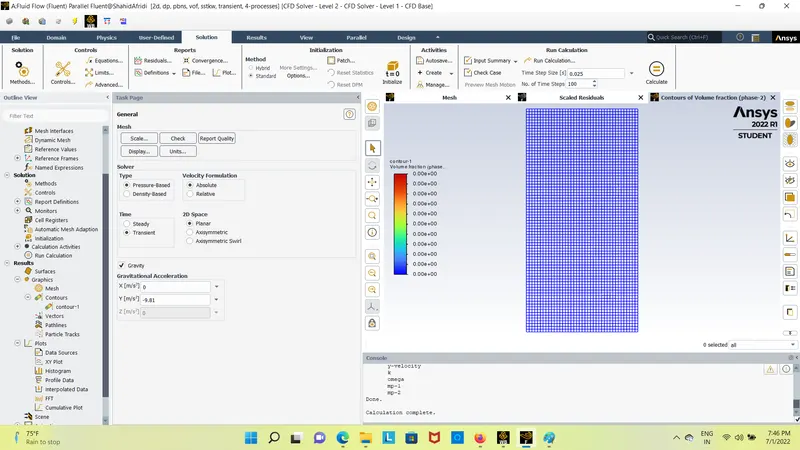

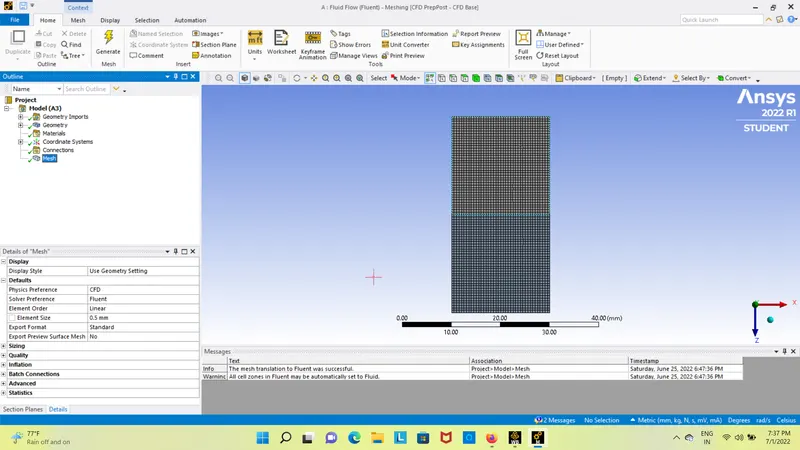

meshing: here first we have to create the basic mesh as show below

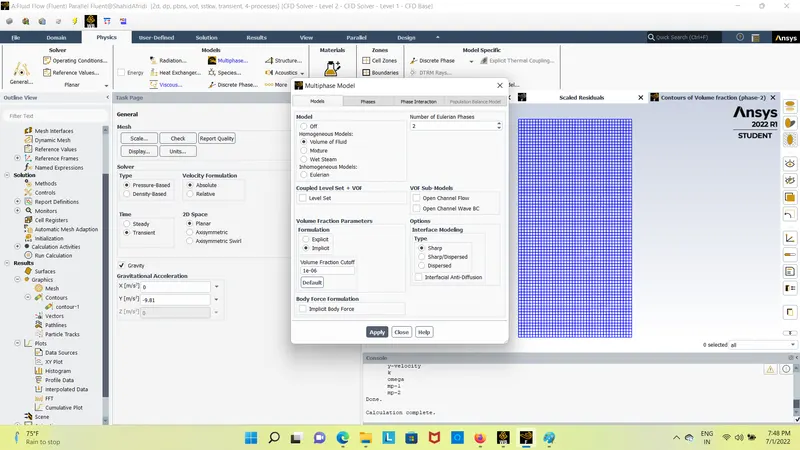

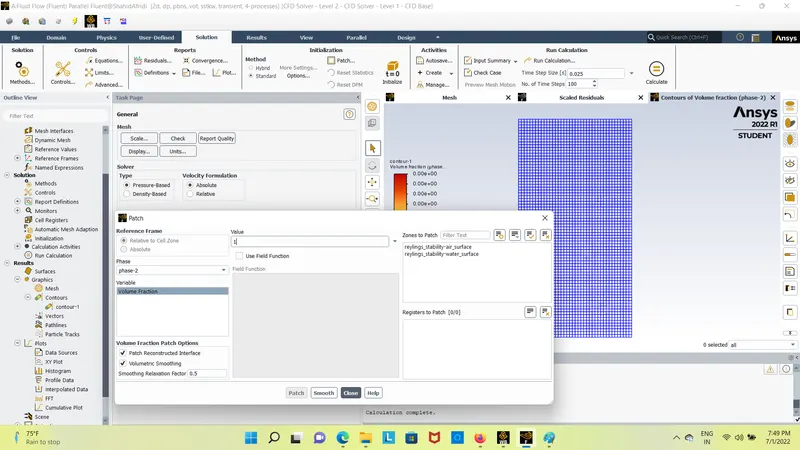

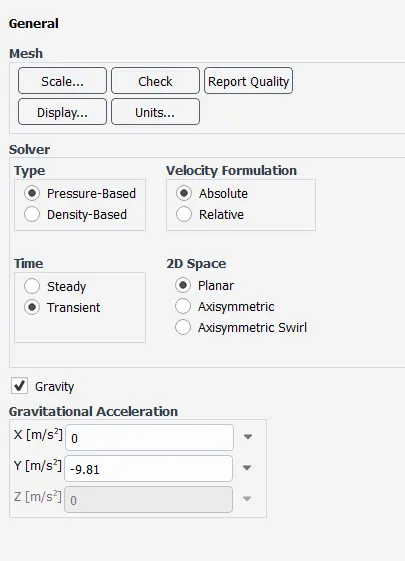

setup:here we are using transient stete and presure solver as shown below

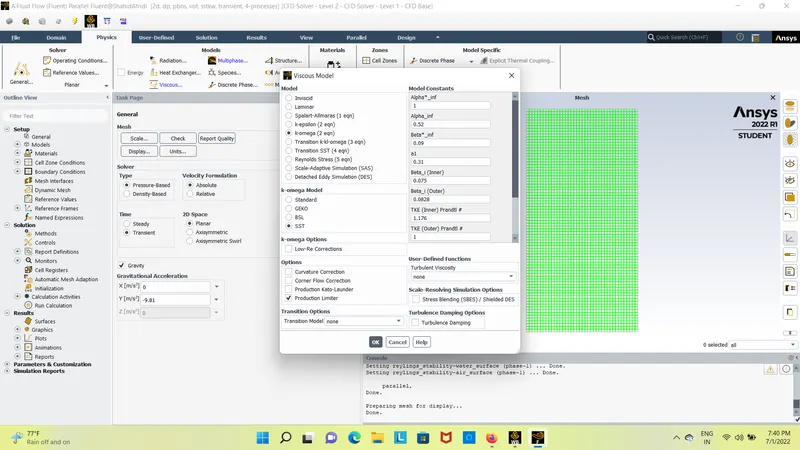

here we are using k-omega based viscouse model

solution:

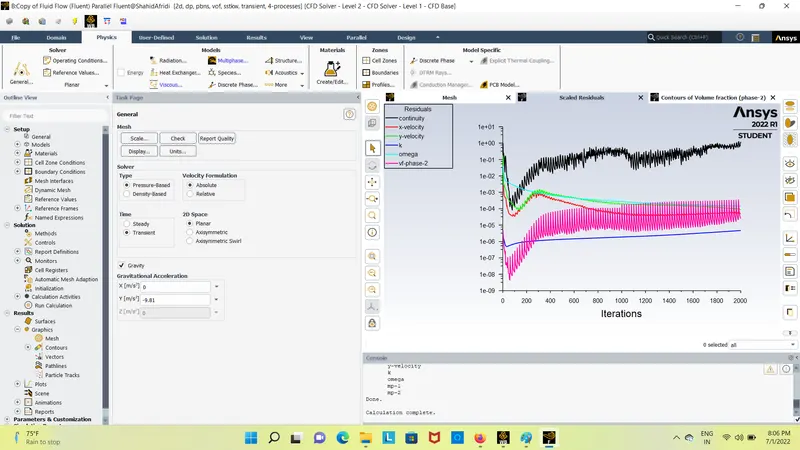

residuals:

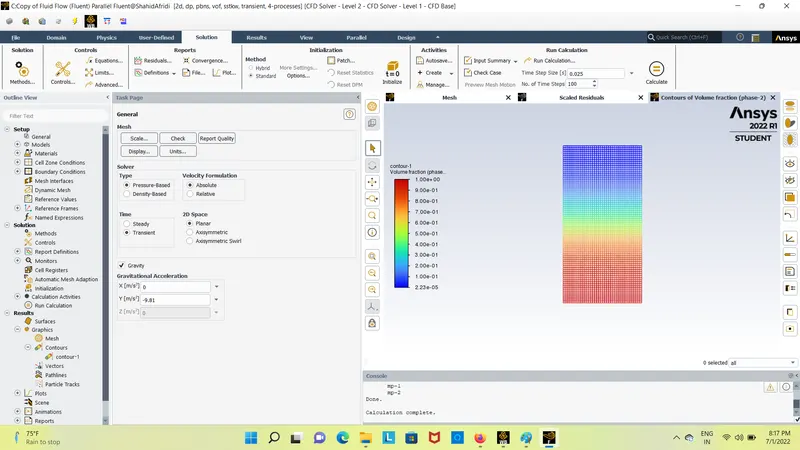

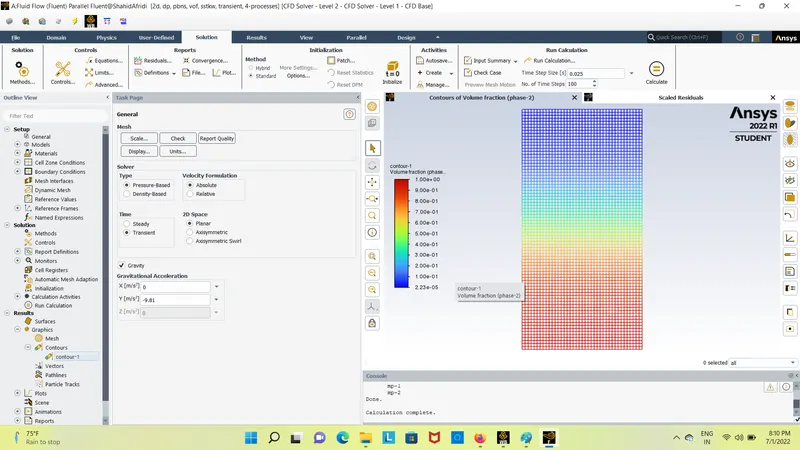

valume fraction:

animation link:https://1drv.ms/u/s!AvvLa2FhdyA4tjVpaC6kuT0QW6QS

case 2: meshing 0.5mm

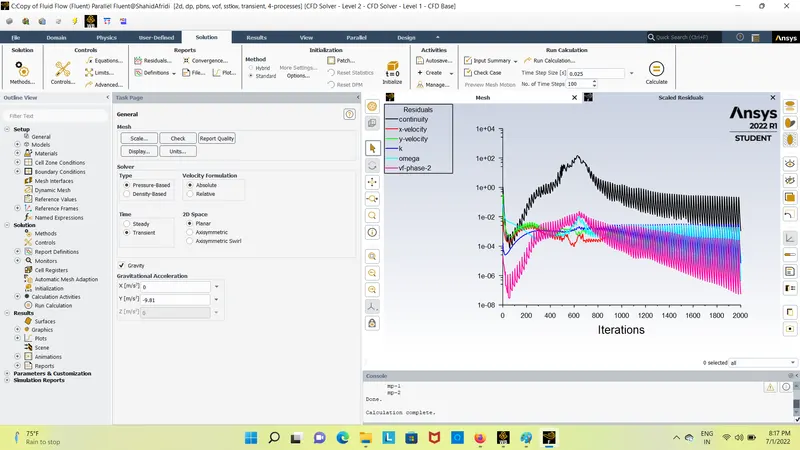

residuals:

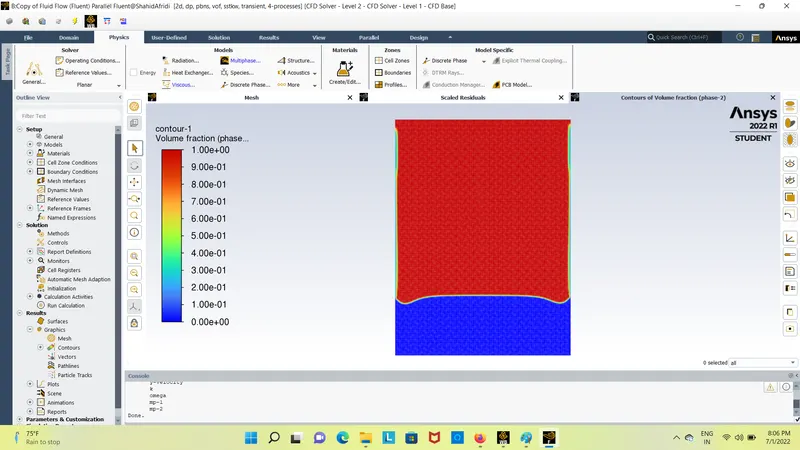

valume fraction:

animation link:https://1drv.ms/u/s!AvvLa2FhdyA4tj_LbblYWguK1-ve

case 3: meshing 0.25mm also we have definesd a material

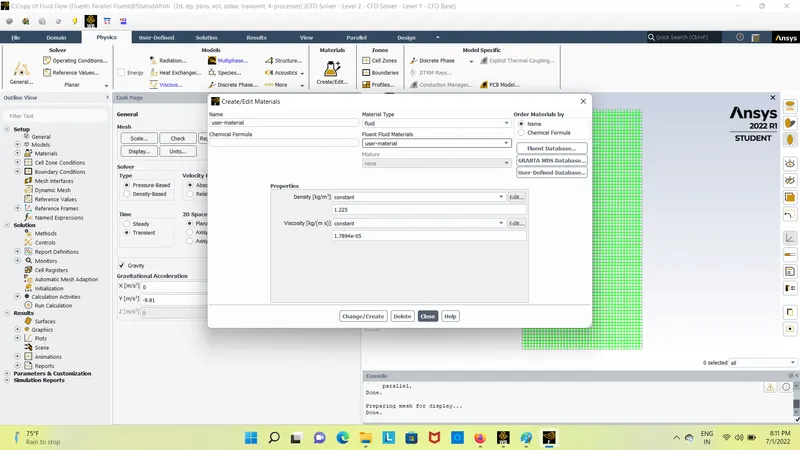

material properties shown below

residuals:

valume fraction:

animation link:https://1drv.ms/u/s!AvvLa2FhdyA4tj_LbblYWguK1-ve
