Week 5: Prandtl Meyer Shock problem
Objective:
- Effect of SGS parameter on shock location
In the Prandtl Meyer shock problem, look at the effect of SGS temperature value on cell count and the shock location
It is expected to show the mesh generation using PARAVIEW.
Also create an animation and upload it on You tube and provide the You tube link for an animaion in your report.
Answer:

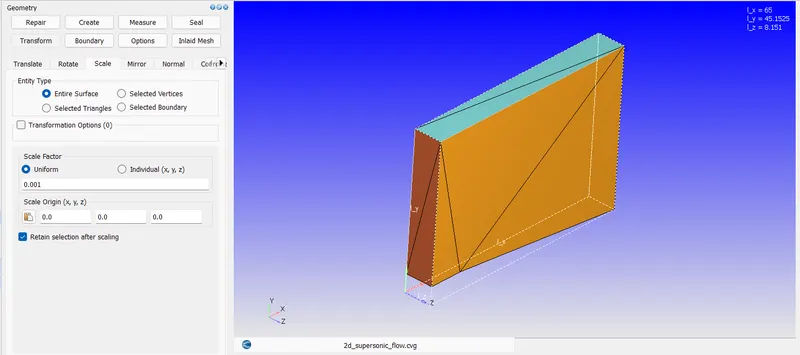

Scaling Geometry

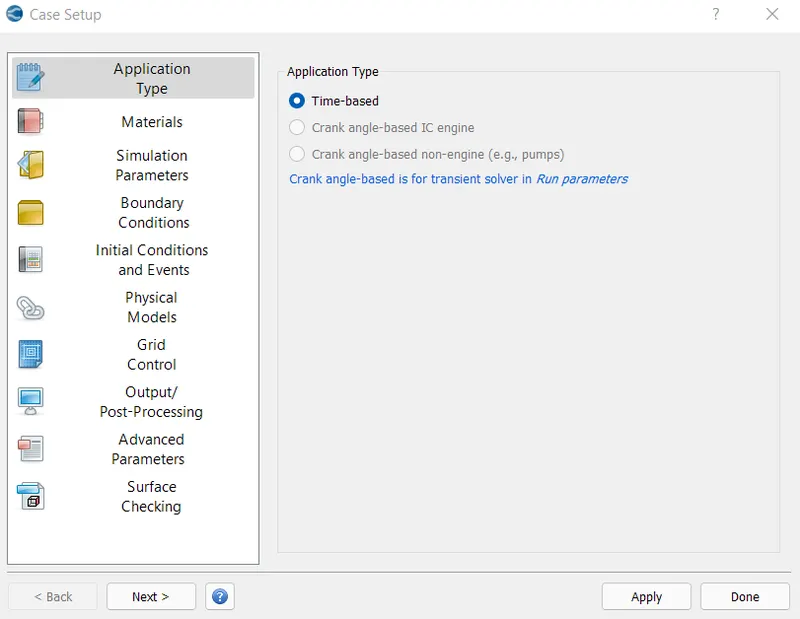

Case Setup

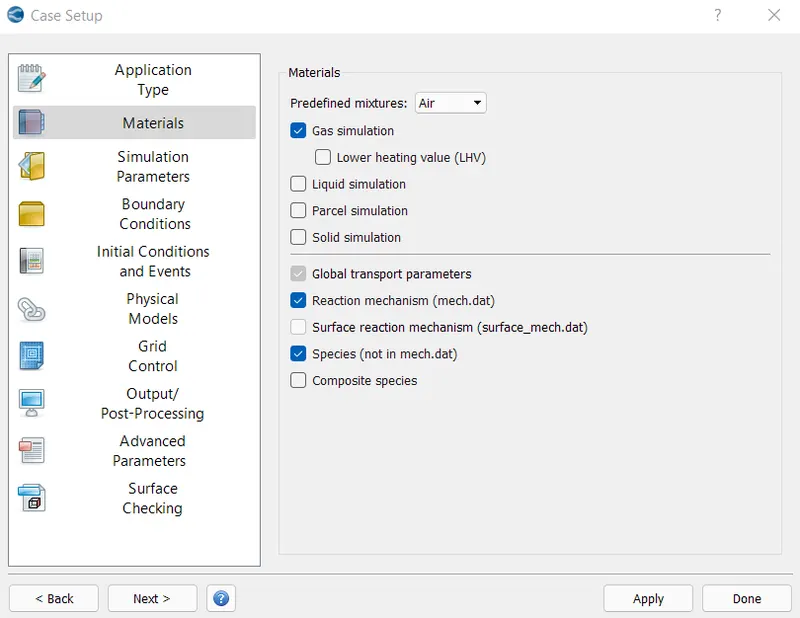

Material

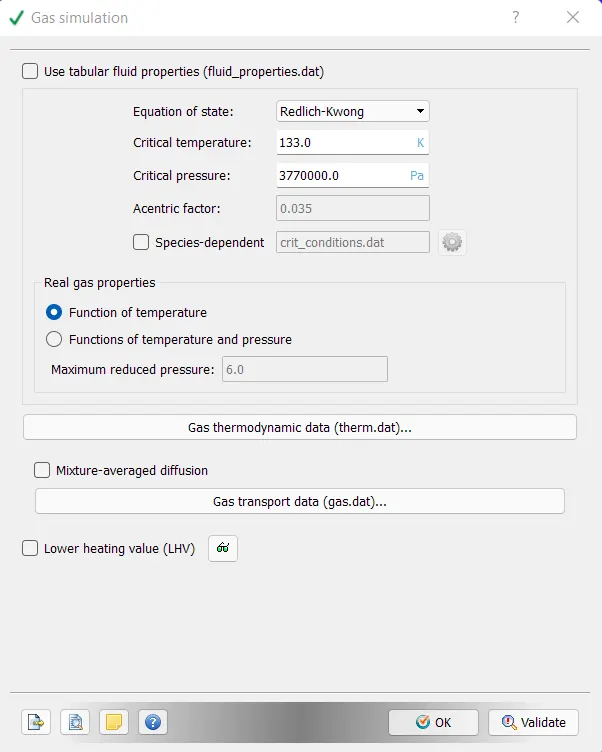

Gas Simulation

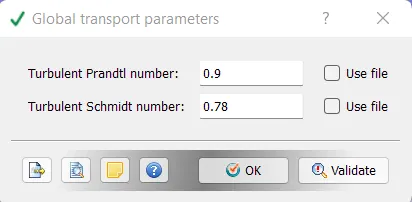

Gas Transport Parameters

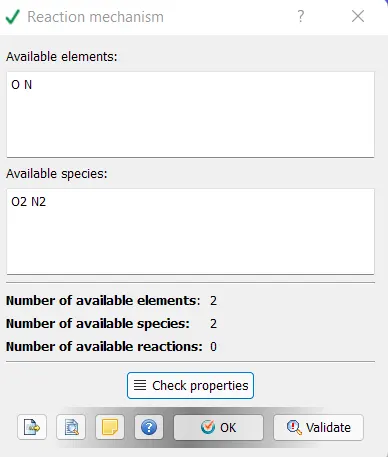

Reaction Mechanism

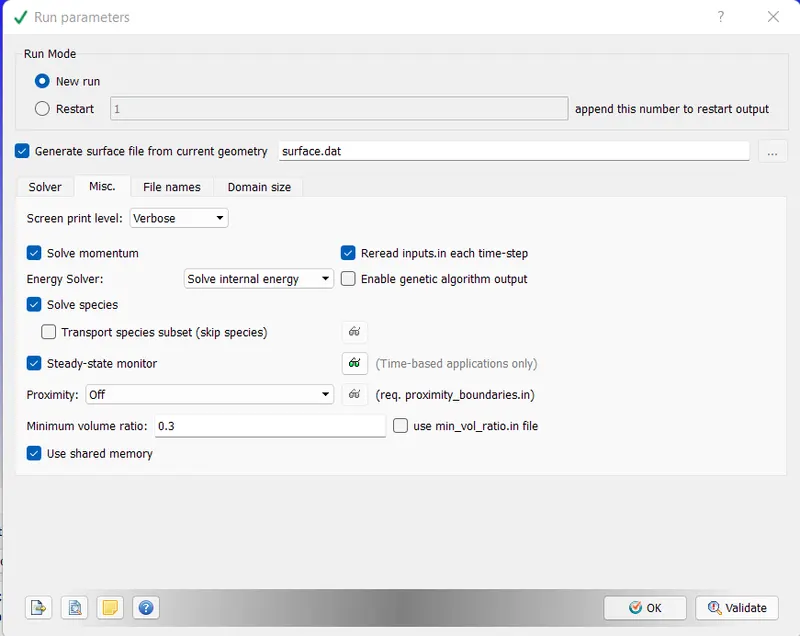

Run Parameters

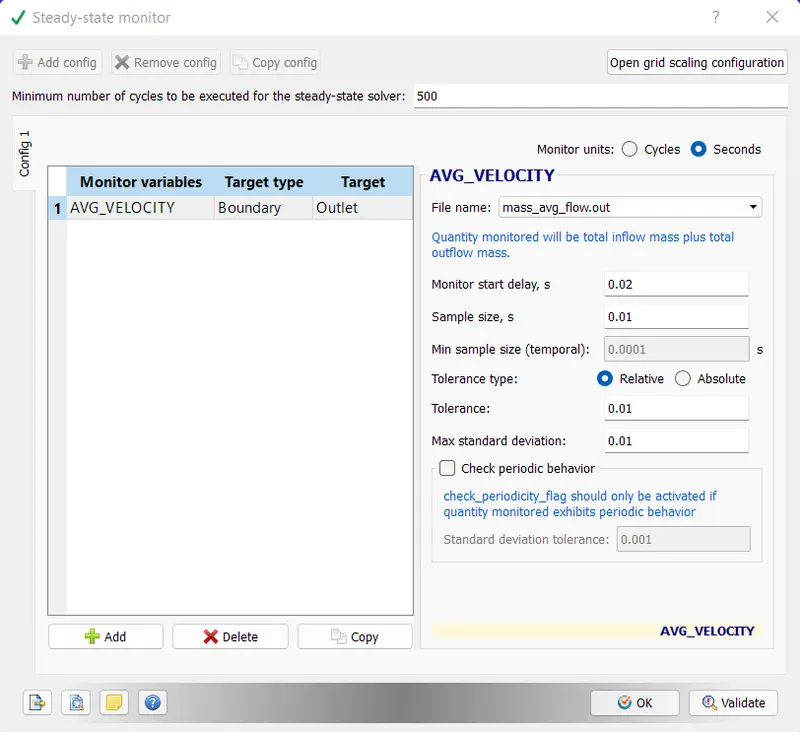

Steady State Monitor

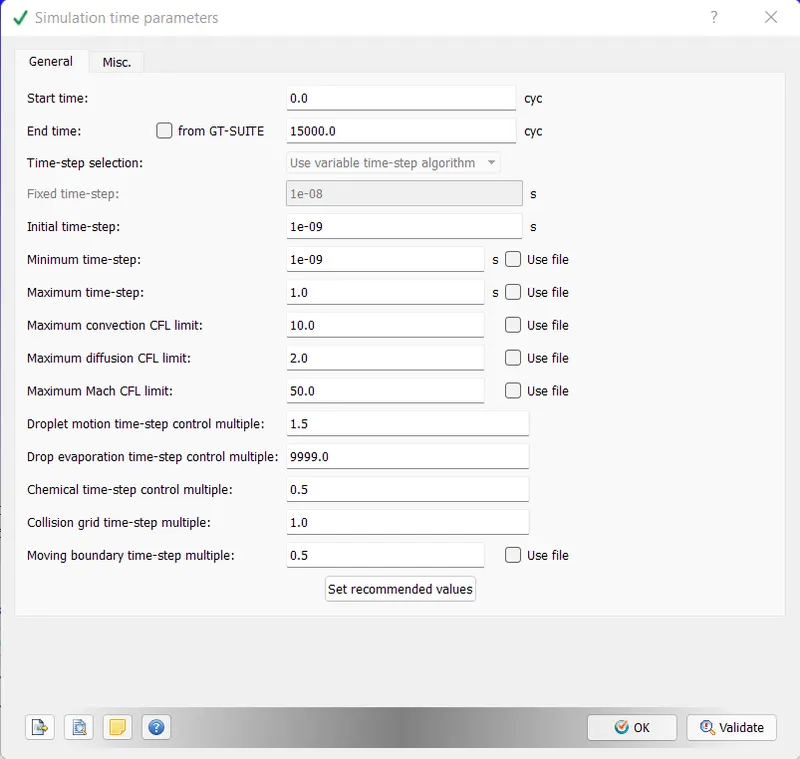

Simulation Time Parameters

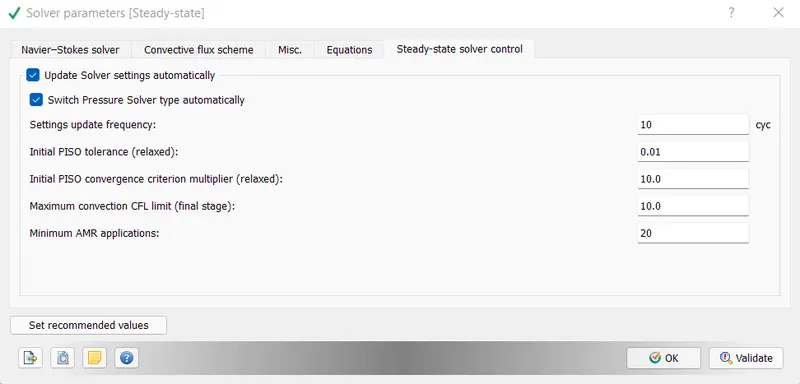

Solver Parameters

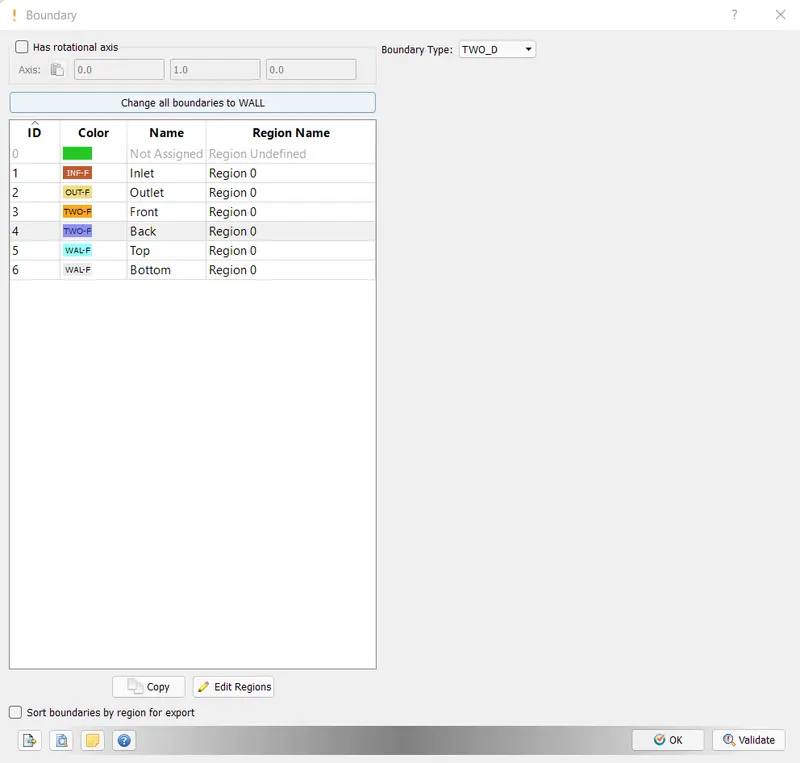

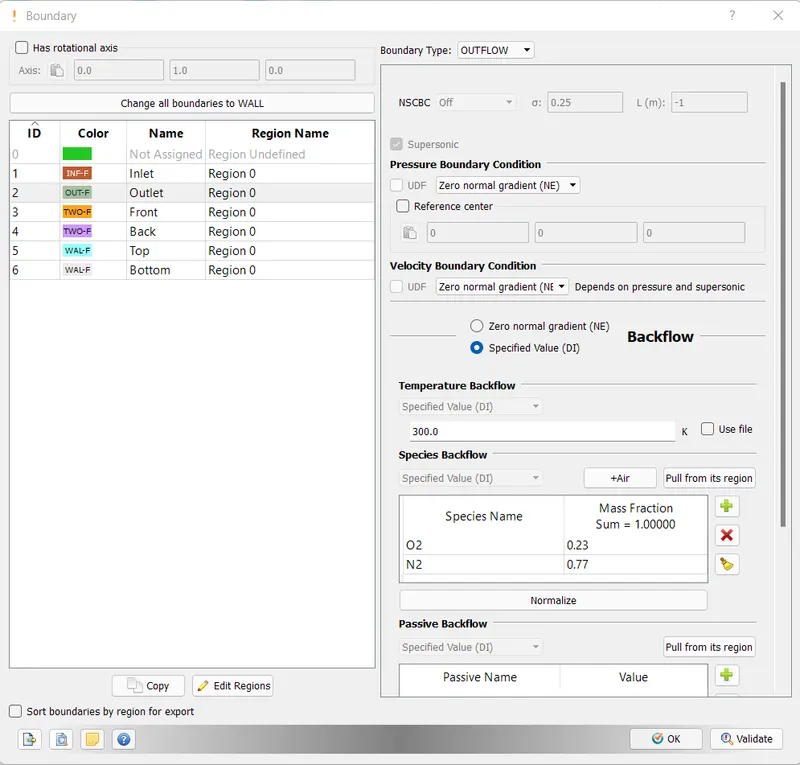

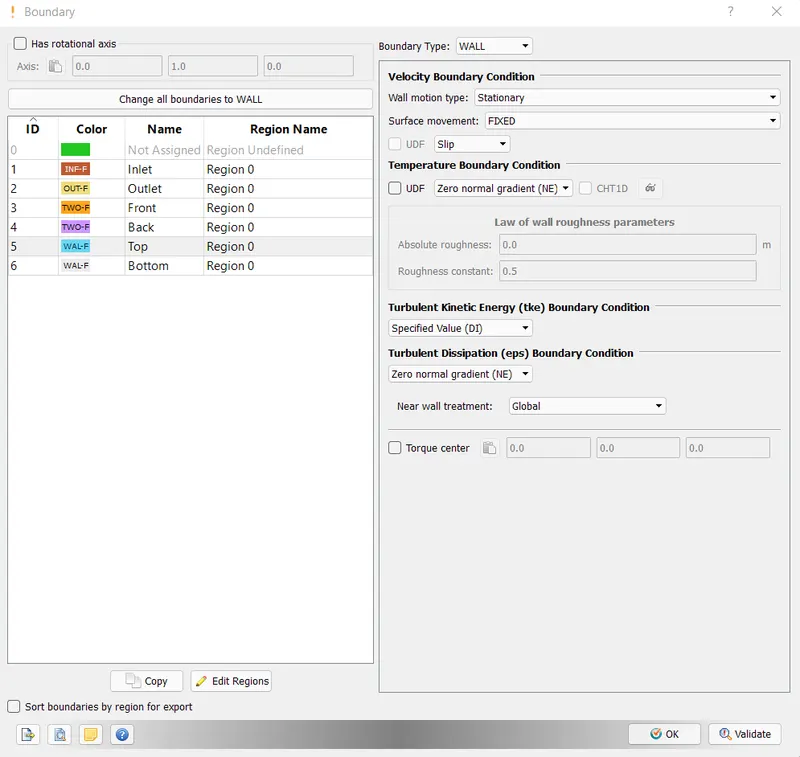

Boundary Conditions

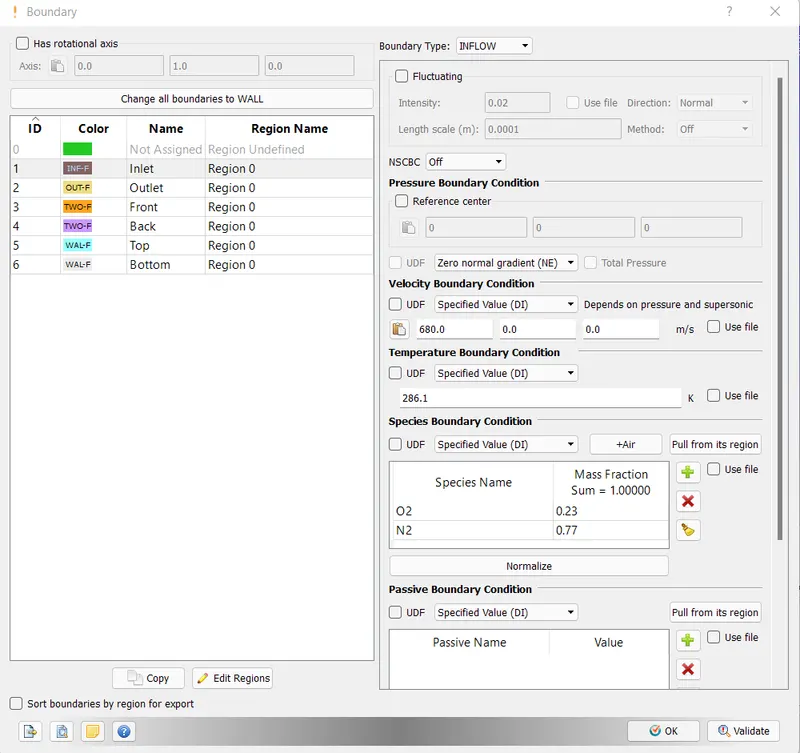

Inlet
outlet
Front
Back

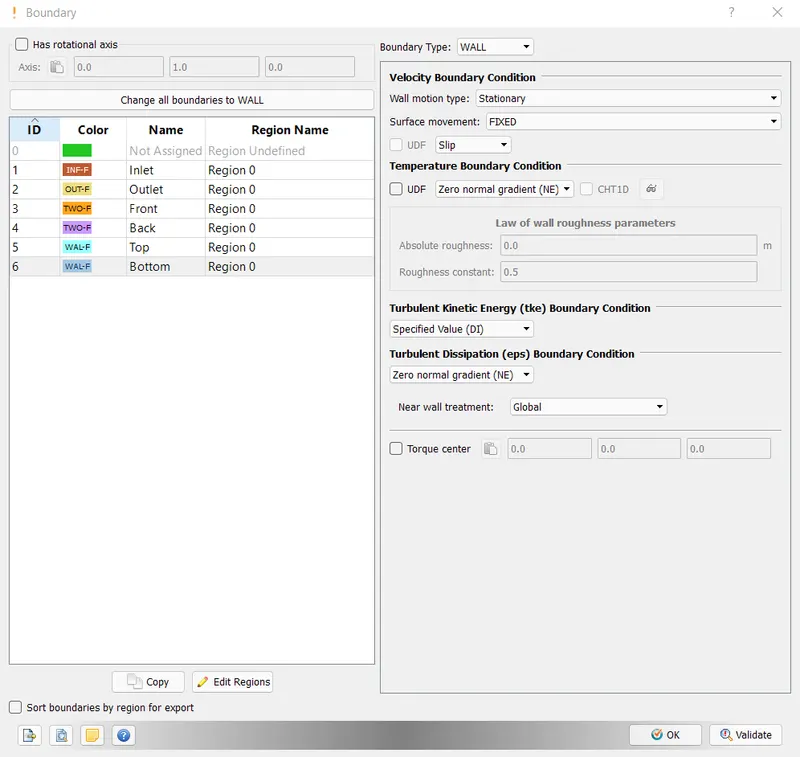

Top
Bottom

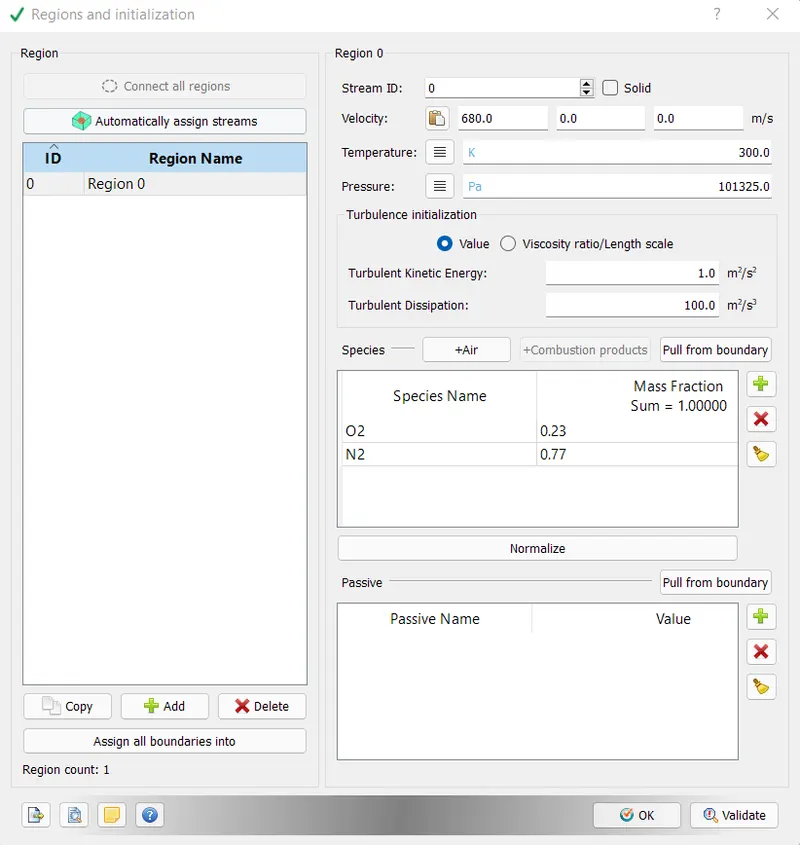

Regions & Initialization
Initial velocity is fixed at 680 m/s.

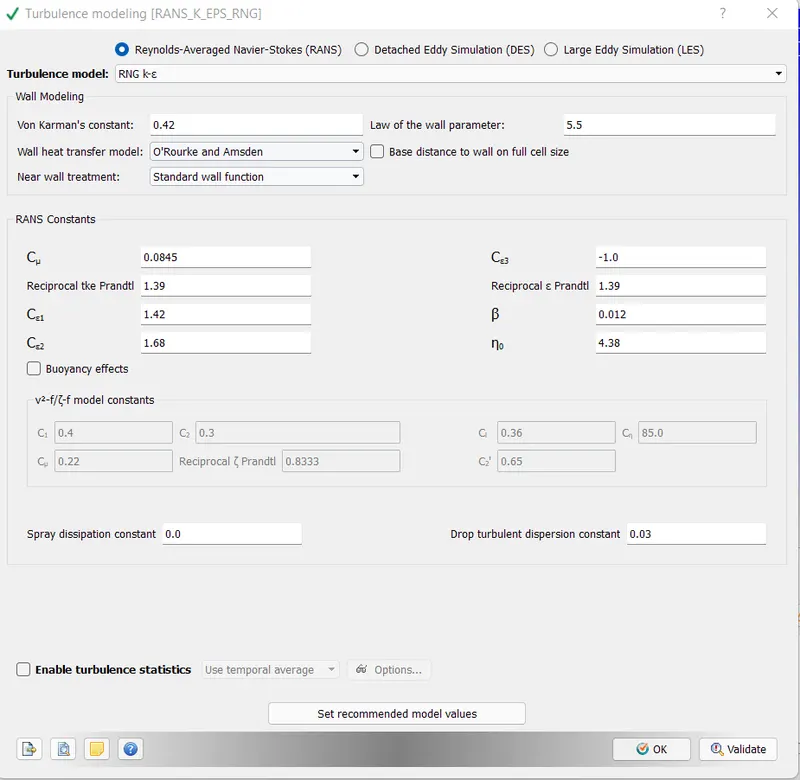

Turbulence Modeling

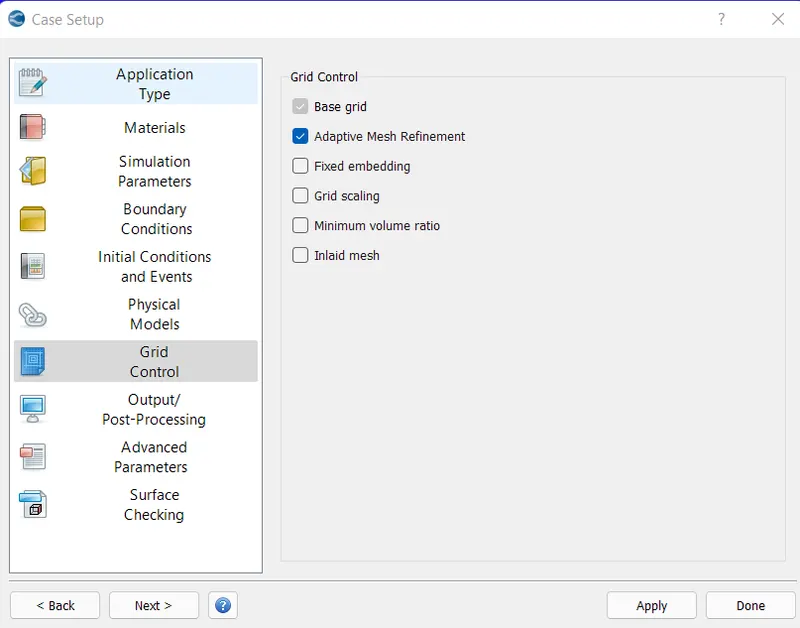

Grid Control

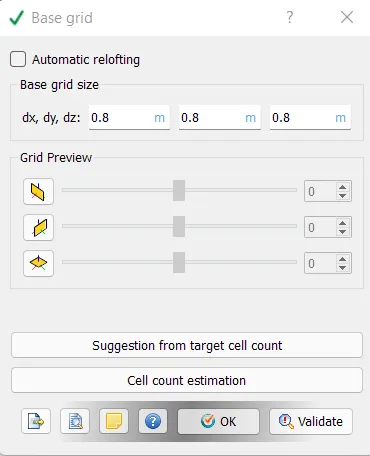

Base Grid

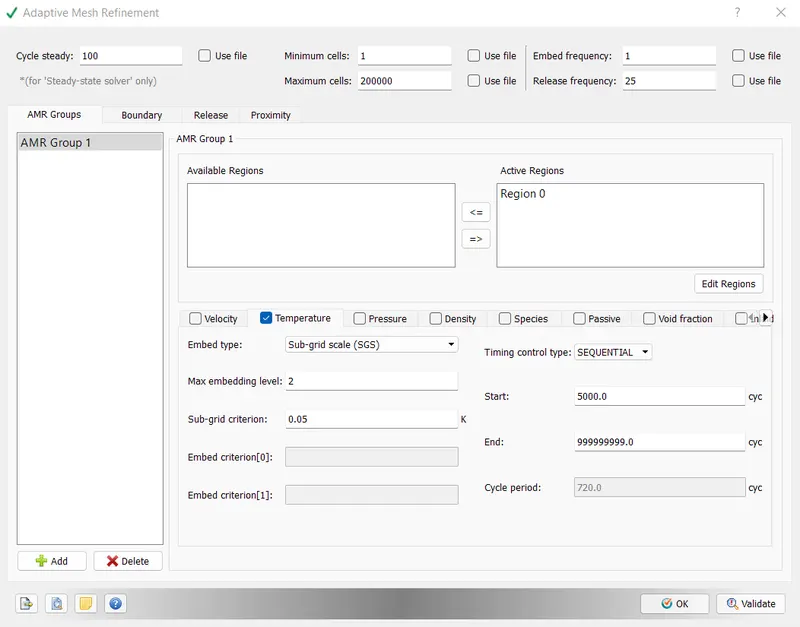

Adaptive Mesh Refinement
SGS = 0.05
Initially sub grid criterion has been kept at 0.05 to make the chnages in the element sizes with respect to change in temperature.
The max embedding level is kept at 2. The maximum fineness of the mesh will be calcualted using below formula.
`"base grid" = ("base grid size")/2^("max embedding level")`
Ouput

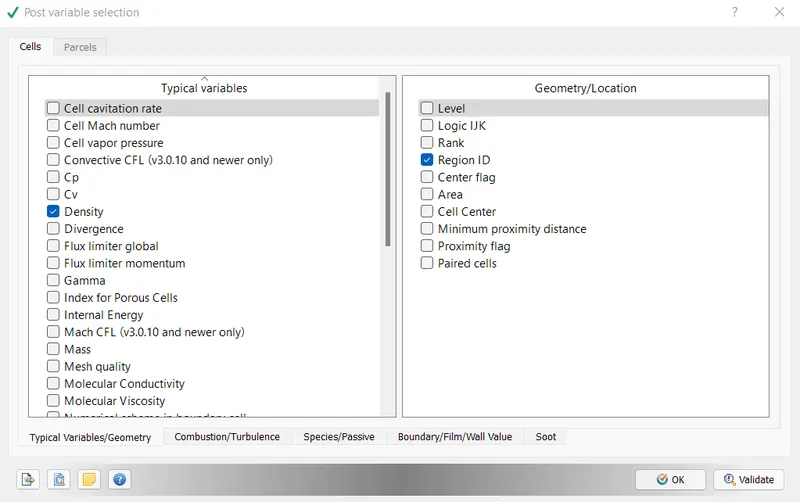

Post Variable Selection

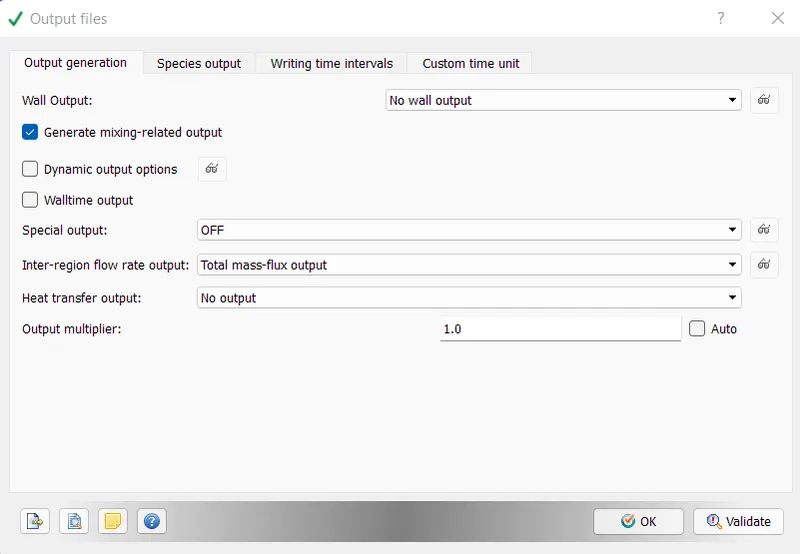

Output Files

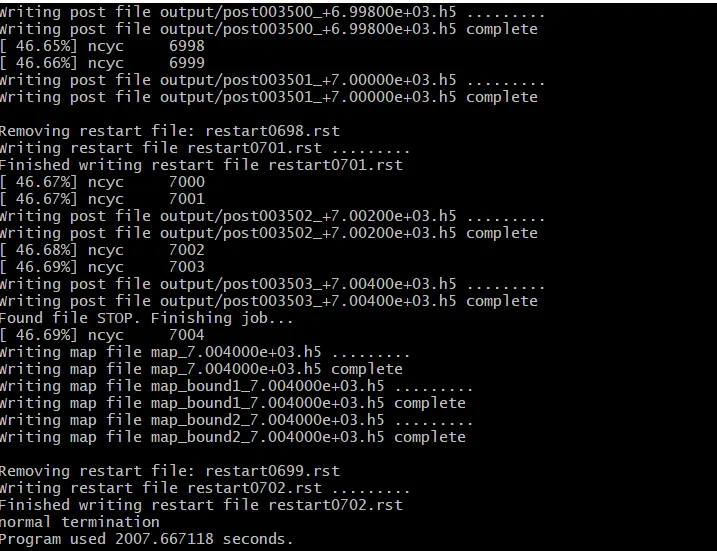

Results

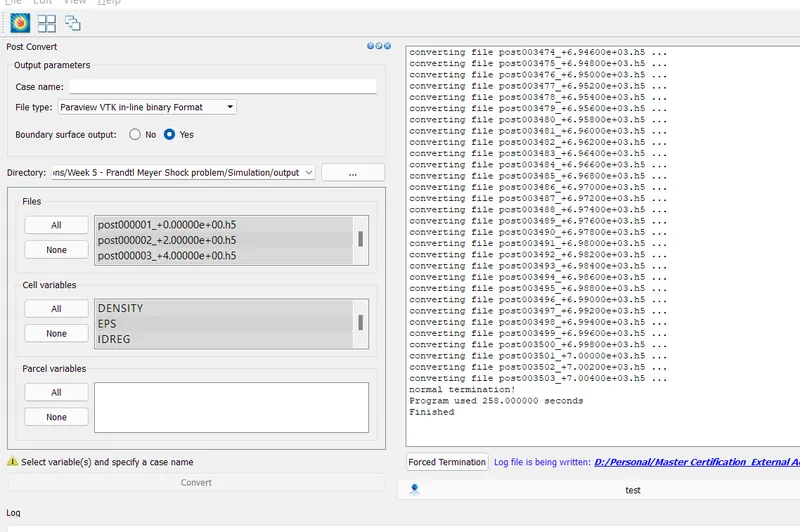

Post-conversion

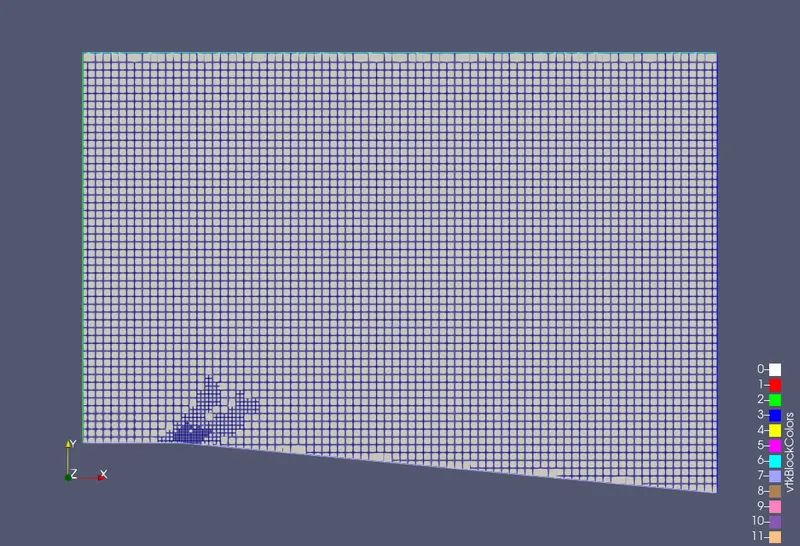

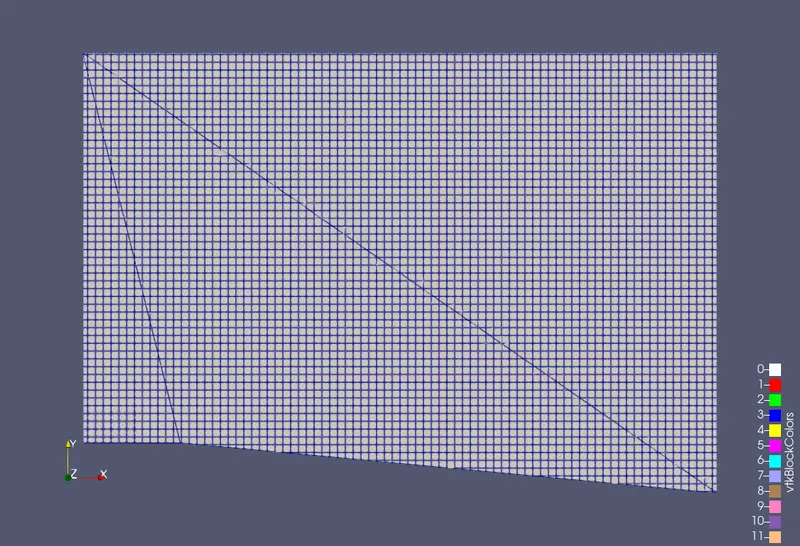

Mesh

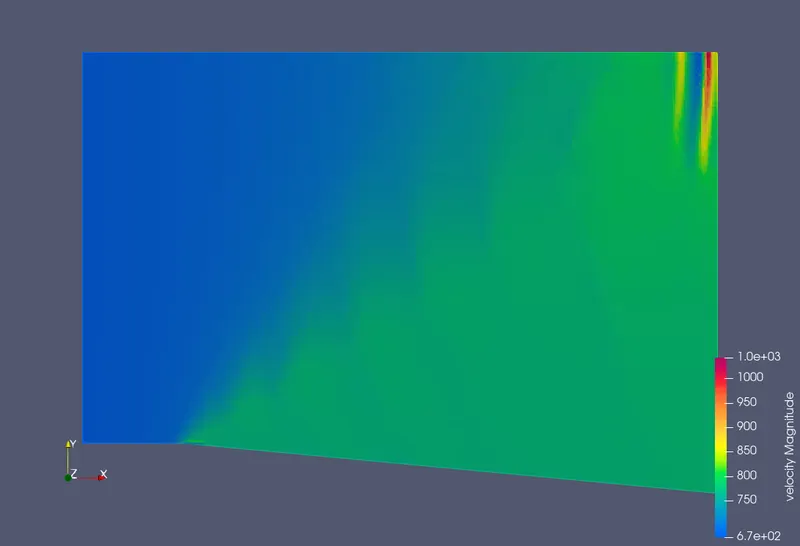

Velocity Contour

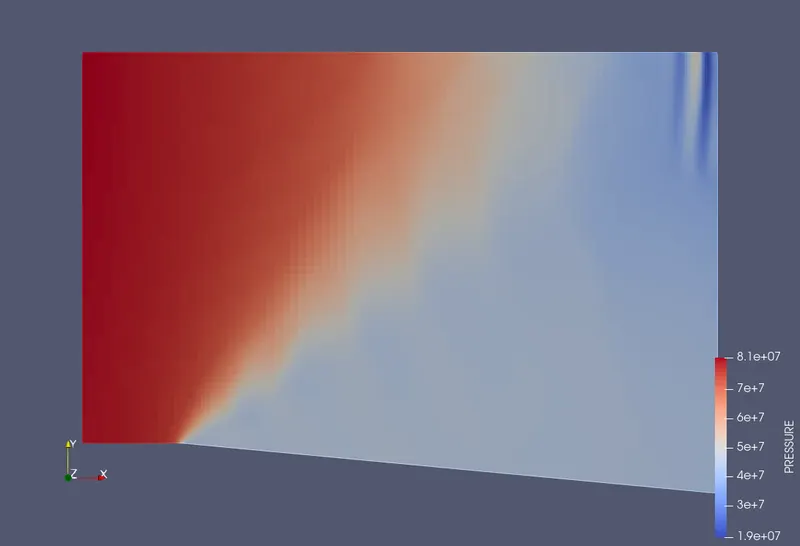

Pressure Contour

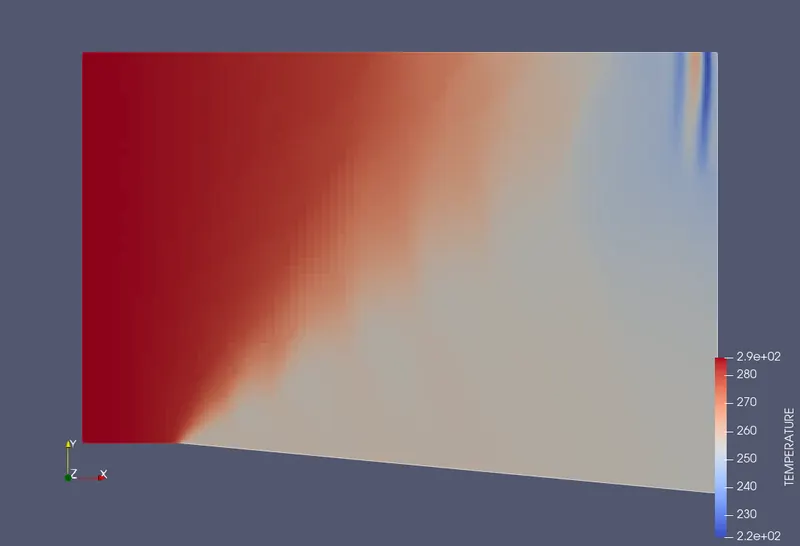

Temperature Contour
Plots

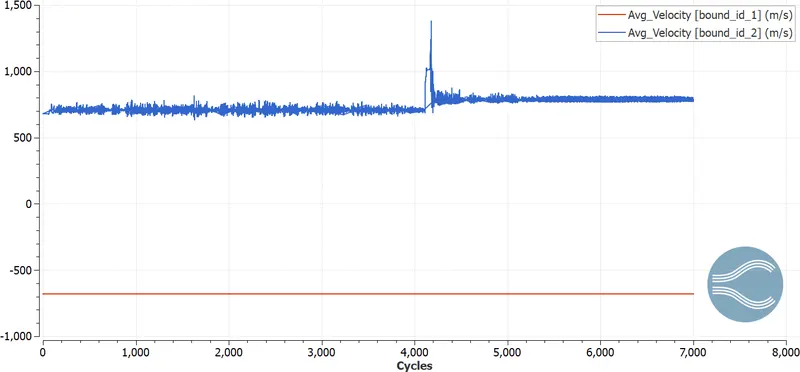

Avg. Velocity

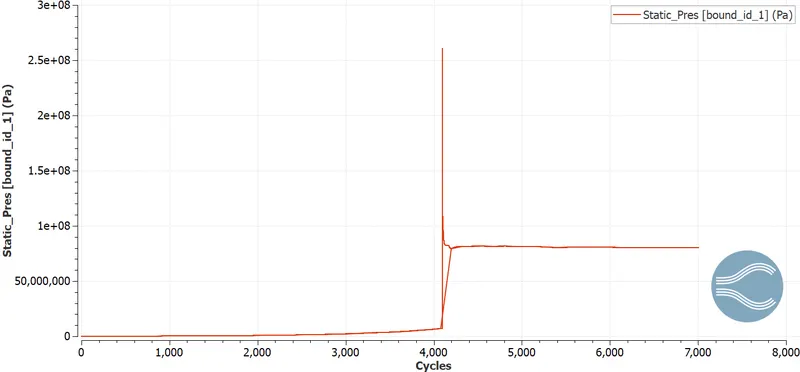

Pressure

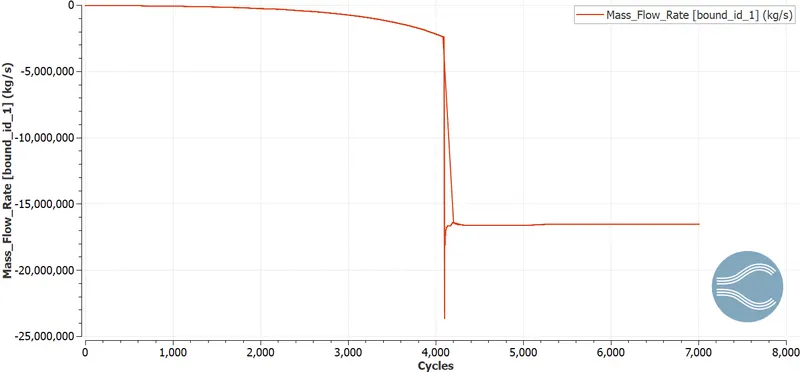

Mass Flow Rate - from Inlet
Animation

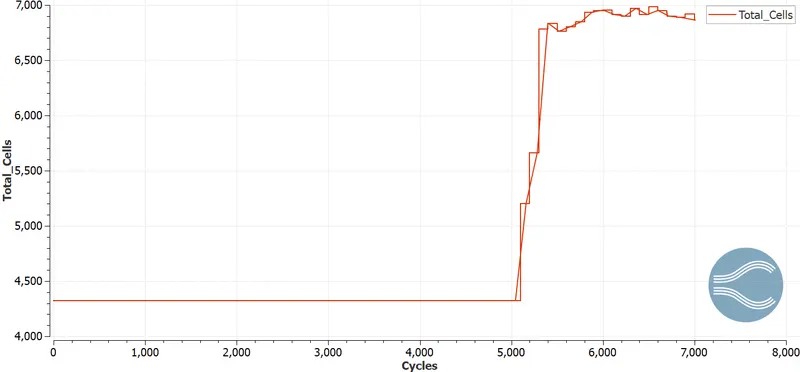

Total Cell Count
For SGS = 0.05
Max Cell Count = 7000
For SGS 0.03

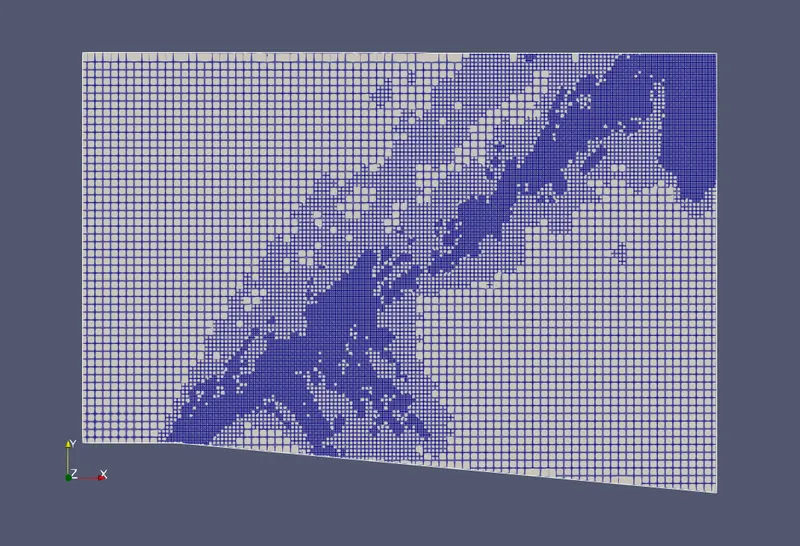

Mesh

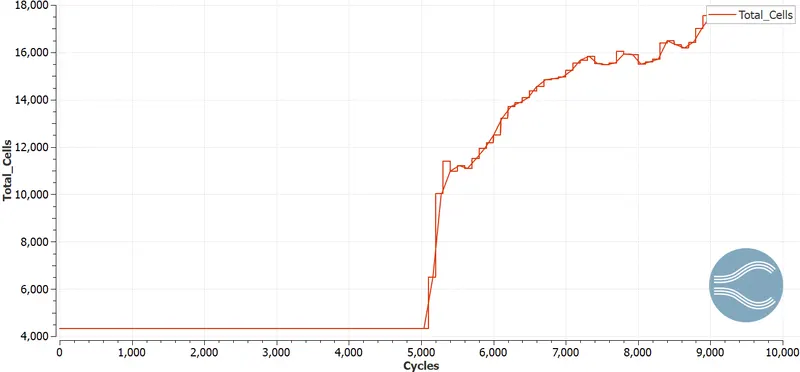

Total Cell Count
Max = 17543
For SGS 0.07
Mesh

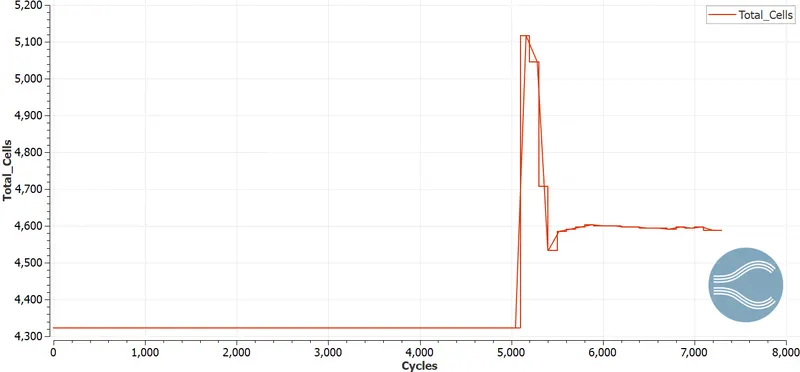

Total Cell Count
Max cells = 5114
As it can be seen from the above results that as the SGS (Sub Grid Criterion) is getting increased, the number of cells & quality of the mesh is decreasing. The mesh of SGS 0.03 has very fine mesh quality compare to others.
