Week - 5 - Checking and correcting the Normals
AIM ; To write the program for checking and correcting the normals
| *clearmarkall 1 | #It will clear all the previously selected elements | |
| *setnormalsdisyplaytype 1 | # It will display the normals in colour. | |
| *createmark elements 1 "displayed" | # It will display the all the displayed element. | |
| *normalsdisplay elements 1 | #It will turns on the display of element normal. | |
| *clearmarkall 1 | ||
| *createmarkpanel elements 1 " Select elements to reverse" | #It will create a panel to select the element and stored it. | |
| *normalreverse elements 1 | #This will reverse the normal of elements which you have selected | |
| *createmark elements 1 "displayed" | ||
| *normalsdisplay elements 1 |

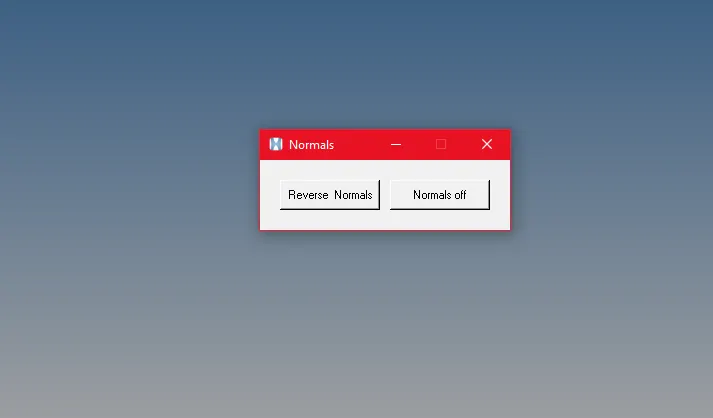

CODE-2
set a .window
catch {destroy $a}
toplevel $a -class TopLevel
#managing window size and name
wm title $a "Normals"
wm geometry $a 250x70+100+500
wm resizable $a 0 0
wm deiconify $a
#assigning buttons
button $a.01 -text " Reverse Normals" -command {*createmark elements 1 "displayed" ; *normalsreverse elements 1} ;
place $a.01 -x 20 -y 20 -width 100 -height 30
button $a.02 -text " Normals Off" -command {*createmark elements 1 "displayed" ; *normalsoff} ;
place $a.02 -x 130 -y 20 -width 100 -height 30
