Week 5 Challenge : Surface wrap on Automotive Assembly

Geometry

Basically 3 models are given

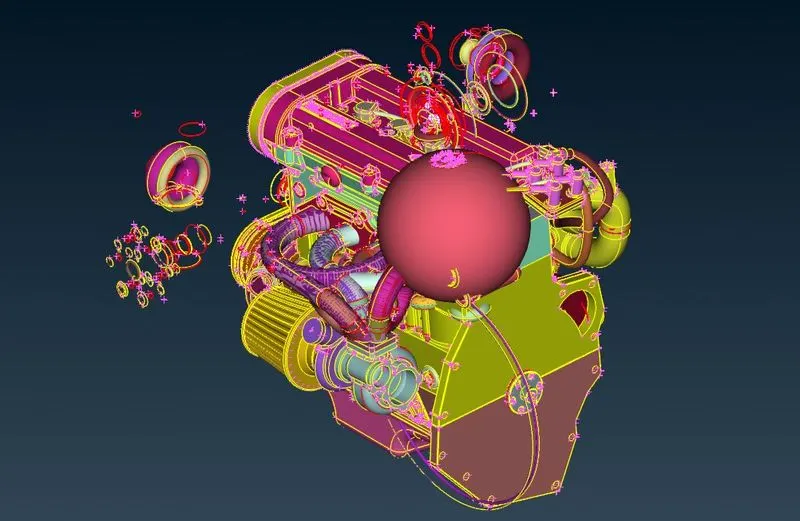

Engine model

as part of geometry cleanup all unnecessary parts are deleted

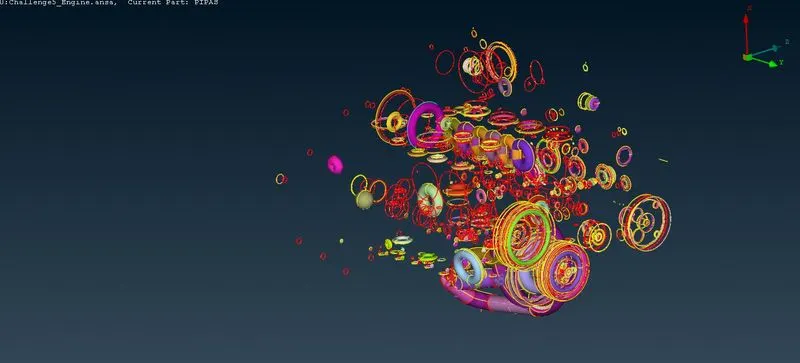

Parts to be deleted

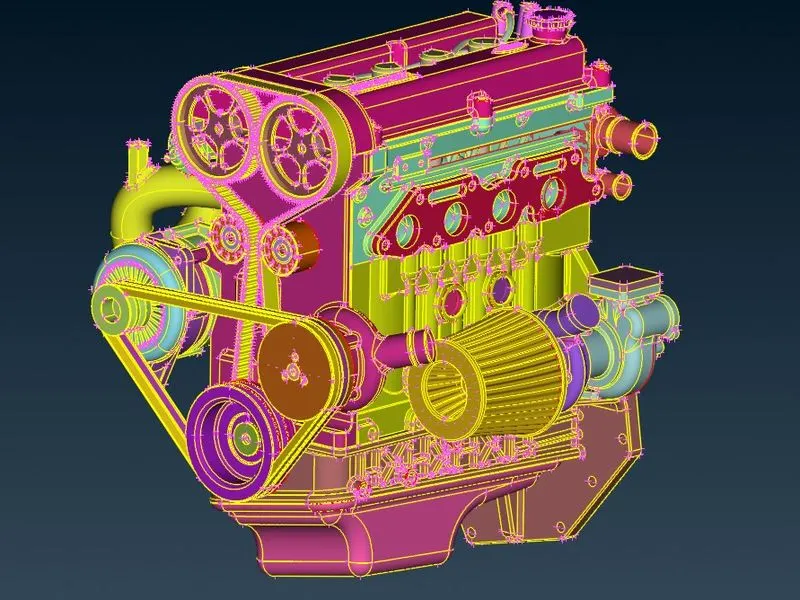

after cleanup

then belts over pullies are also removed as they are thin

thin parts are not properly captured in surface wrapping

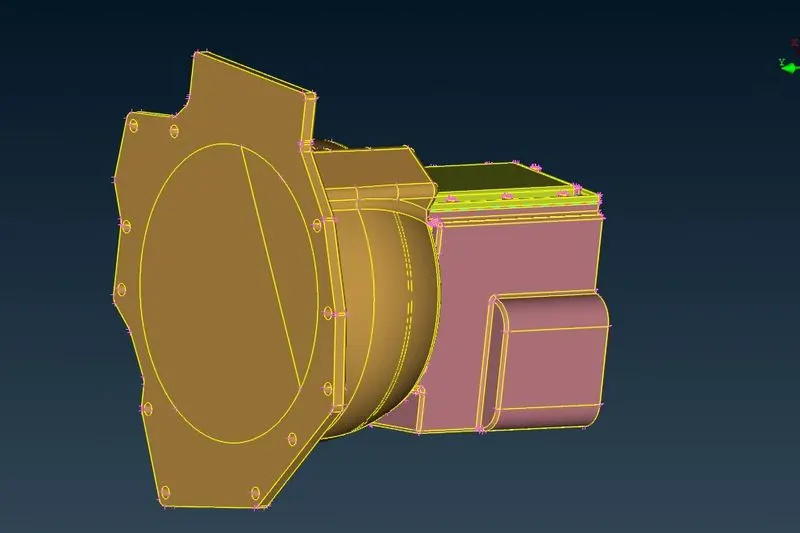

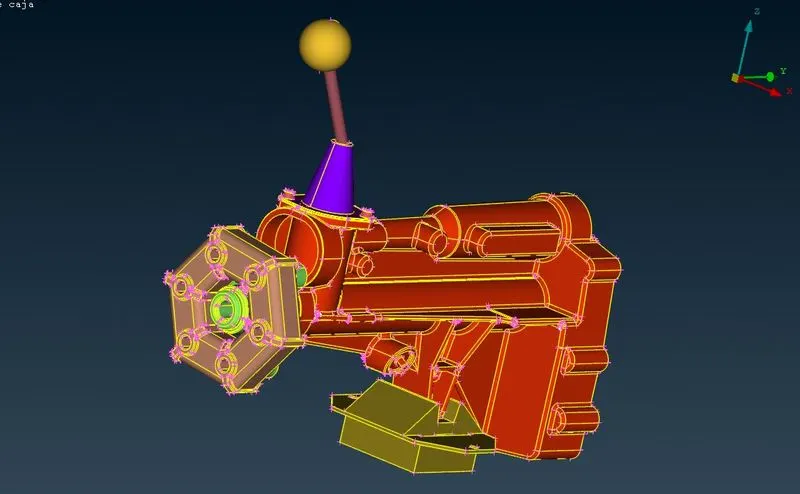

Gearbox

Transmission

As we are doing surface wraping here we are only concerned about the errors that are visible outside

Errors that are present inside the geometry is irrelevant when coming to surface wraping

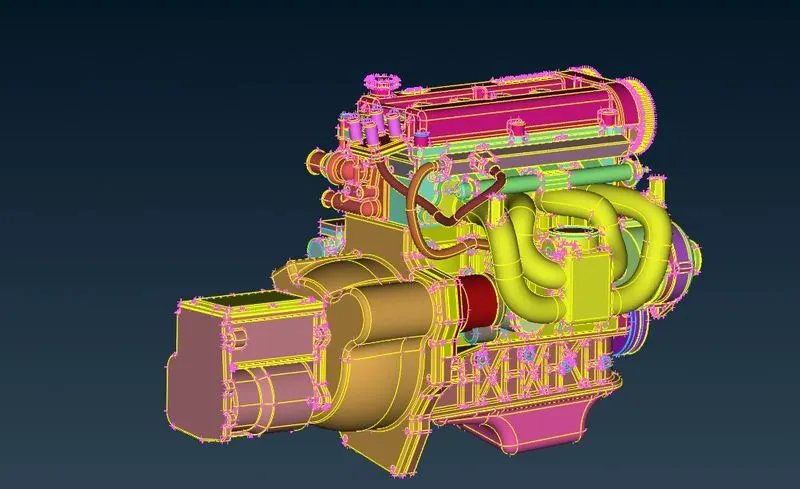

After the necessary geometry cleanup

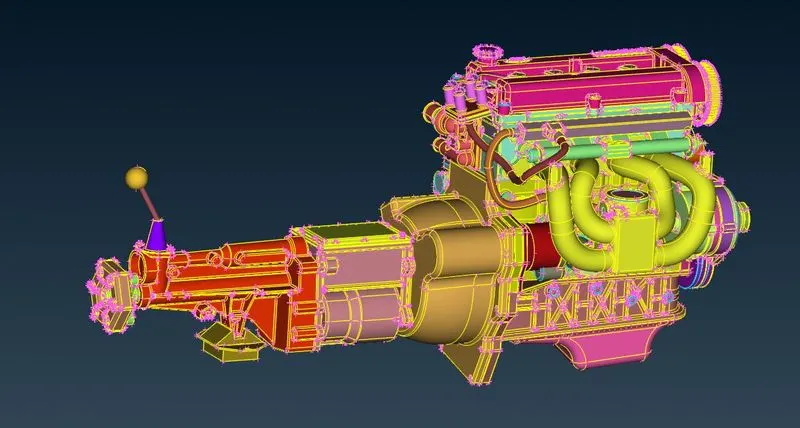

The three components are merged

Also all the holes or gaps that are visible outside are closed so that when surface wraping is done it shoudnot cause any irregularity

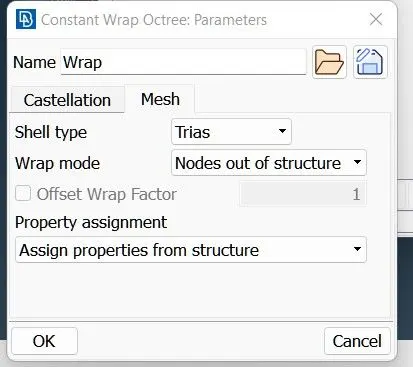

Then Under Mesh ----> elements---> Wrap is selected

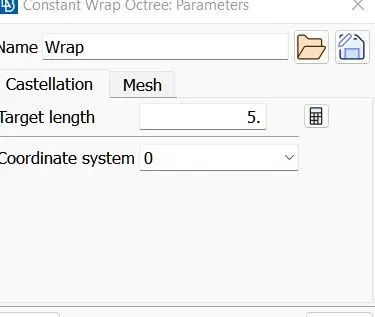

Target length 5 mm and mesh parameters are given

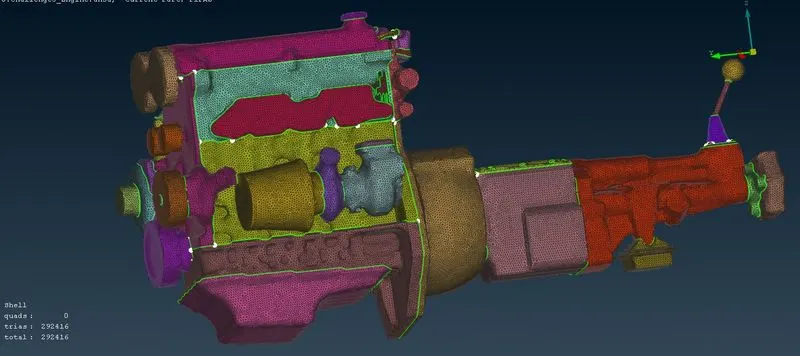

Then after selecting the pids ,run is given , the surface wrap is generated

The ANSA file link is shared below

Thank you
