Week 5 Challenge : Surface wrap on Automotive Assembly

Aim:

check for the geometrical errors and delete surfaces for given 3 models and merge them them perform the surface wrap.

Procedure:

step 1:

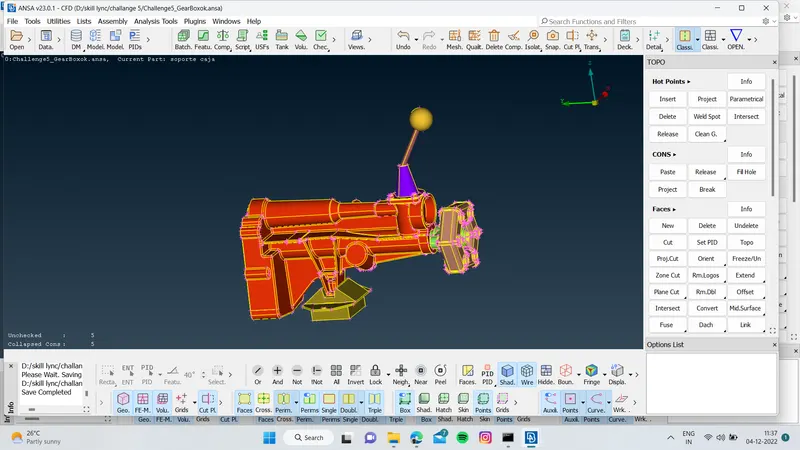

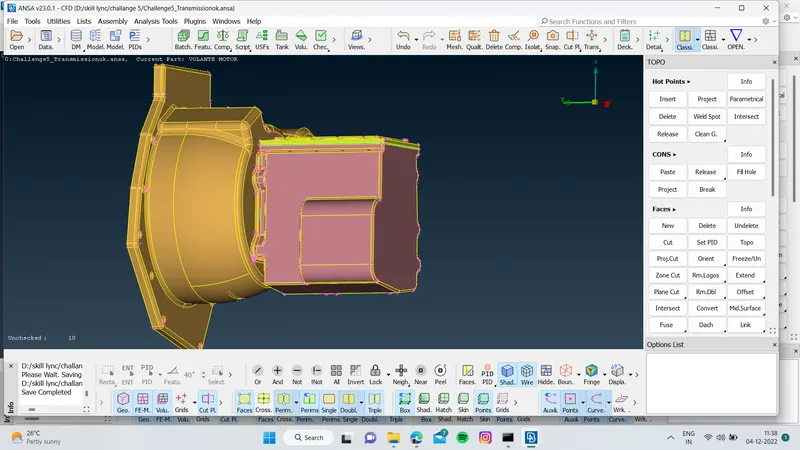

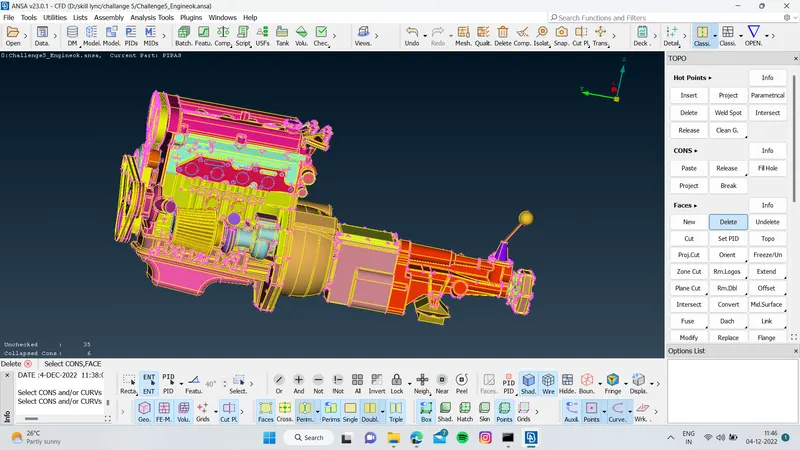

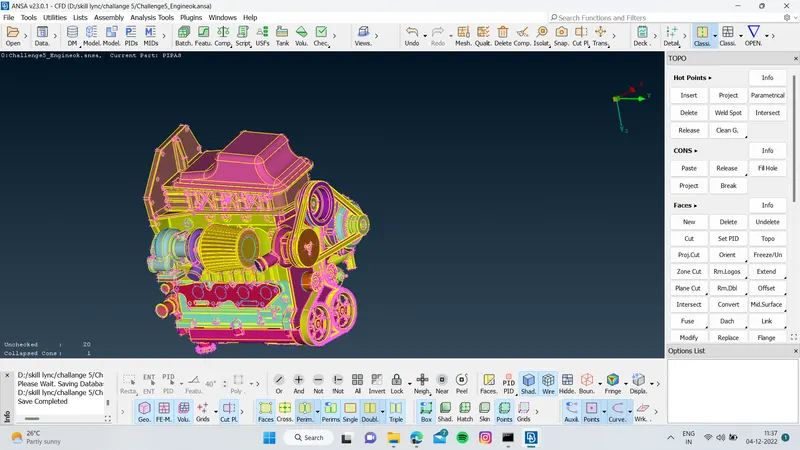

deleteing the unwanted faces and clear the errors for the three models.

step 2:

merge the models

file>merge>select model>ok>waring with no errors>cancel

step3:

start wrap

befor the wrap madel should be closed and compress the PIDs

start the wrap the model

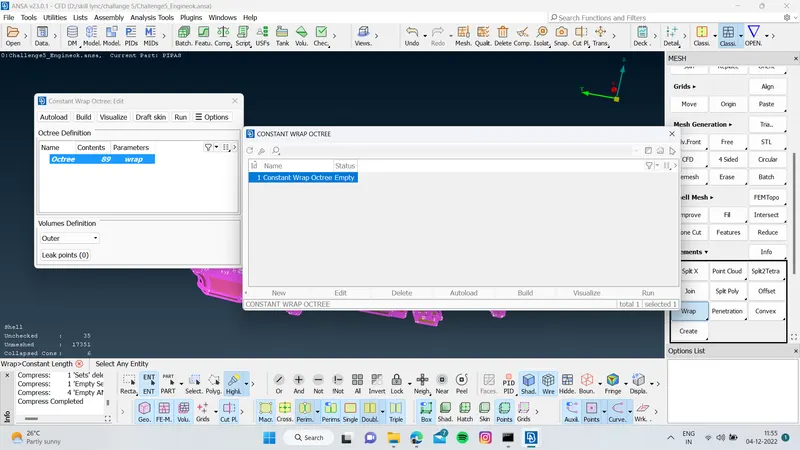

classic mesh>elements>wrap>double click on constant wrap octree>give the name and TL>ok>double click on constant wrap octree>select all PIDS>cleick on right mark>run

Result :

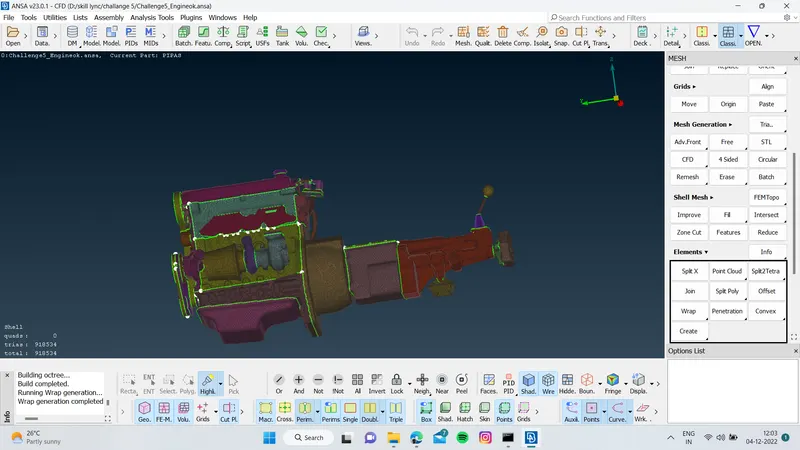

wraping the model which are more complex and many errors.https://drive.google.com/drive/folders/1C9yVFdq97RQFcyhjA8pEwniDLppiNqTZ?usp=sharing
