Week 2 Challenge : Surface meshing on a Pressure valve
Aim: clean the geometrical errors and perform topology cleanup and mesh with different target length for given model
Procedure:

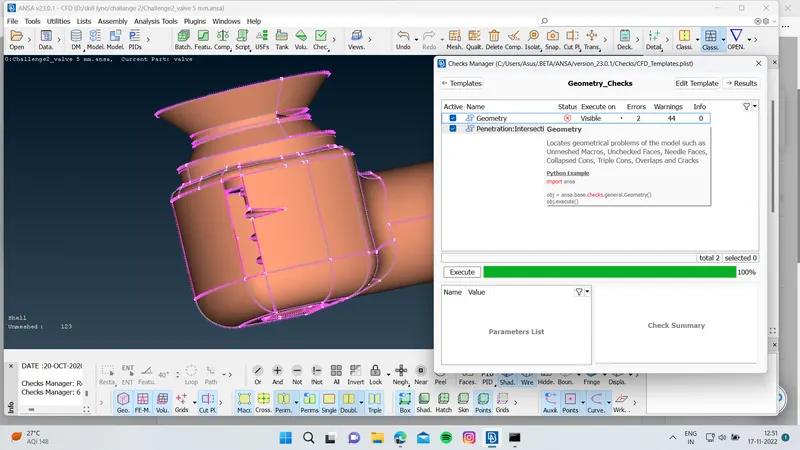

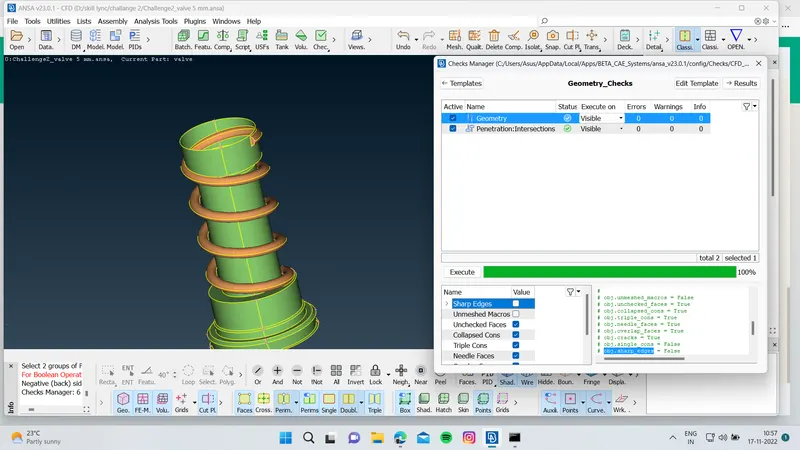

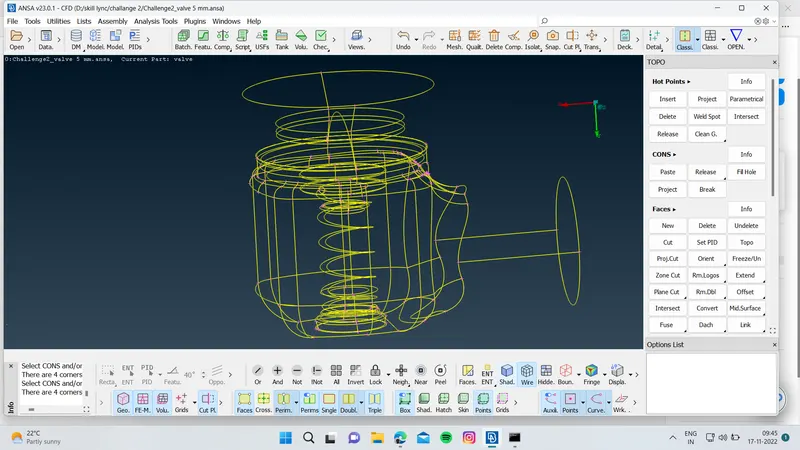

step1:check the geomatrical errors
checks>check manager>geomatric check>execute

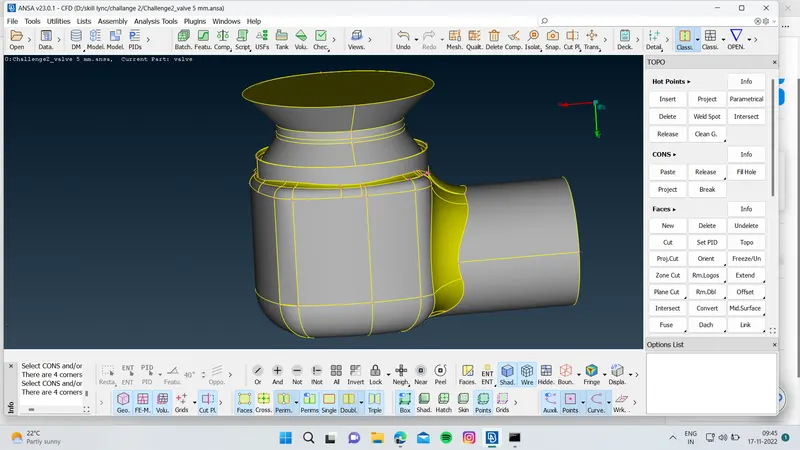

step2:topology clean up or clearering the geomatric errors
here,i use planar,fillhole,CONS with loopang with ENT etc.
step 3.

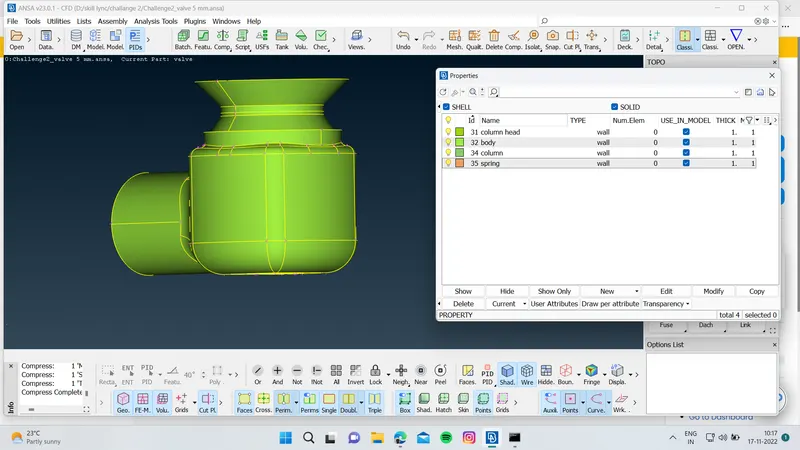

giving PIDs for indivitual parts
step 4:

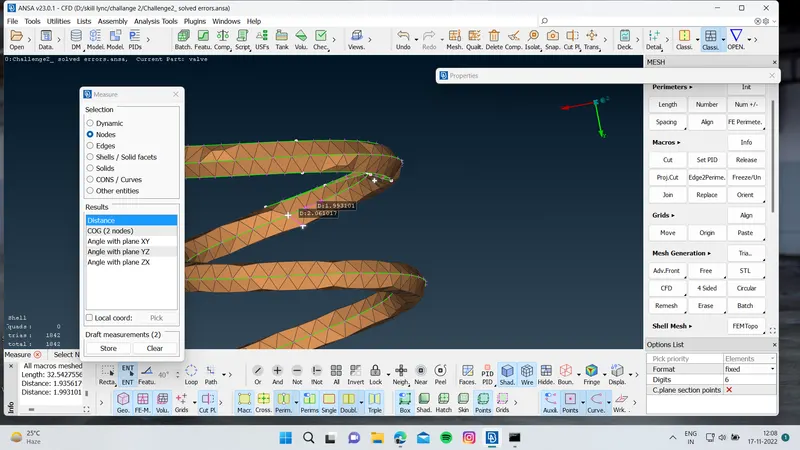

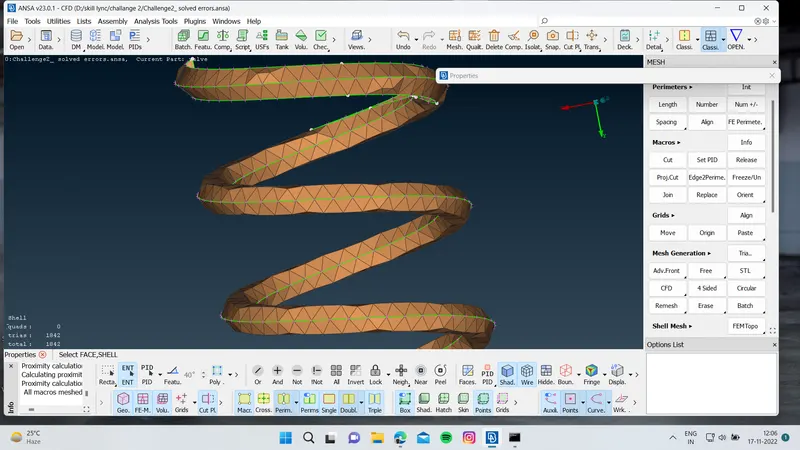

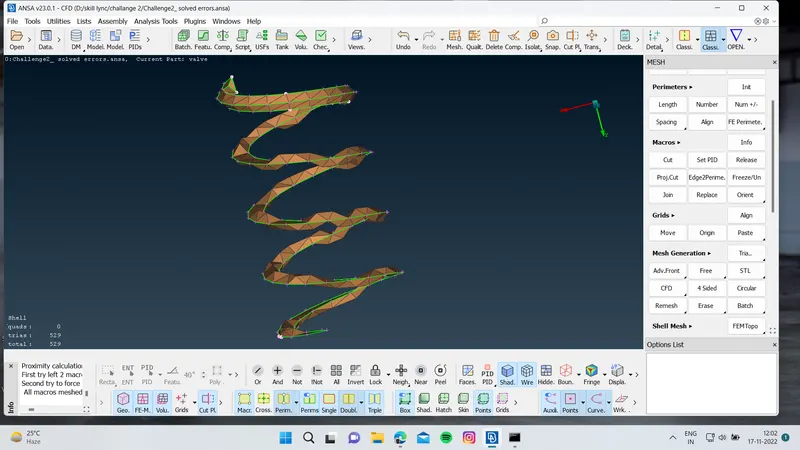

clearing intersection errors with spring
using the intersect option
intersect>selecting tow intersected surfaces or parts>delete unwanted thing
save the model after topo done

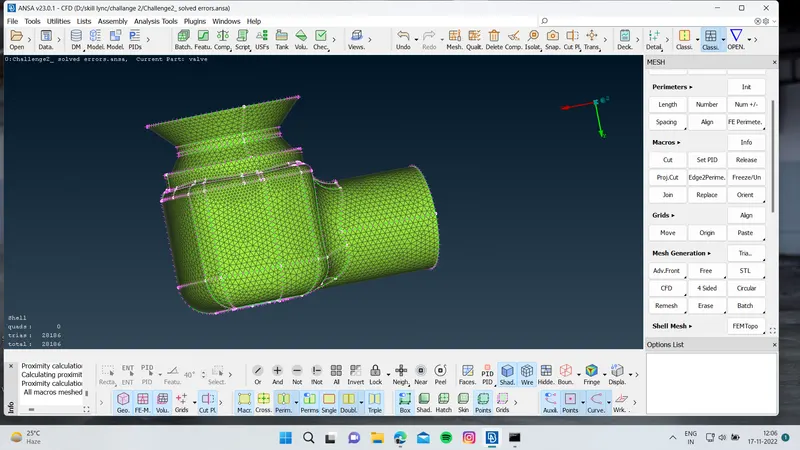

step 5:
mesh with 5mm target length.
giving maximum target length -5.5mm
minimum target length-4.5mm
step 6:mesh with 3mm target length
giving maximum target length -3.5mm
minimum target length-2mm

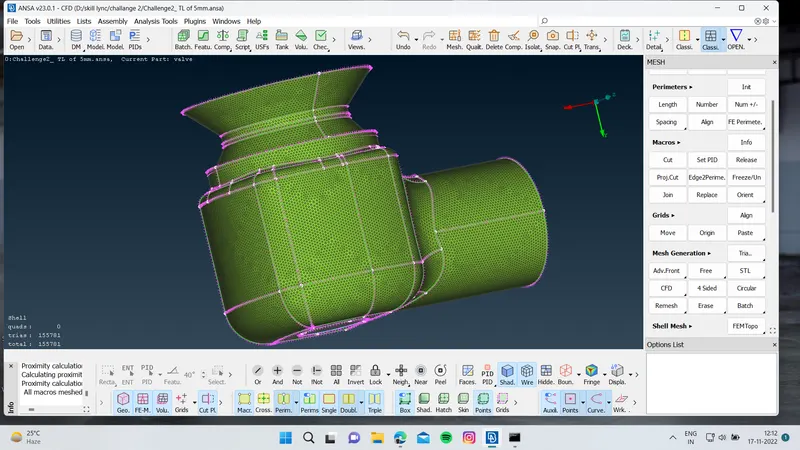

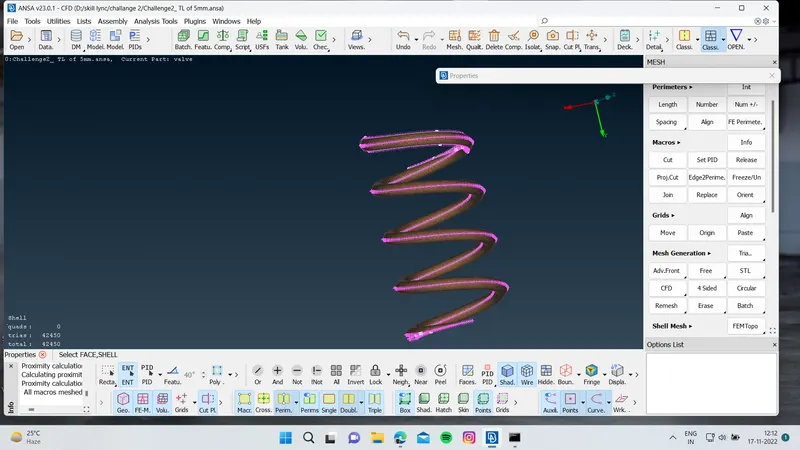

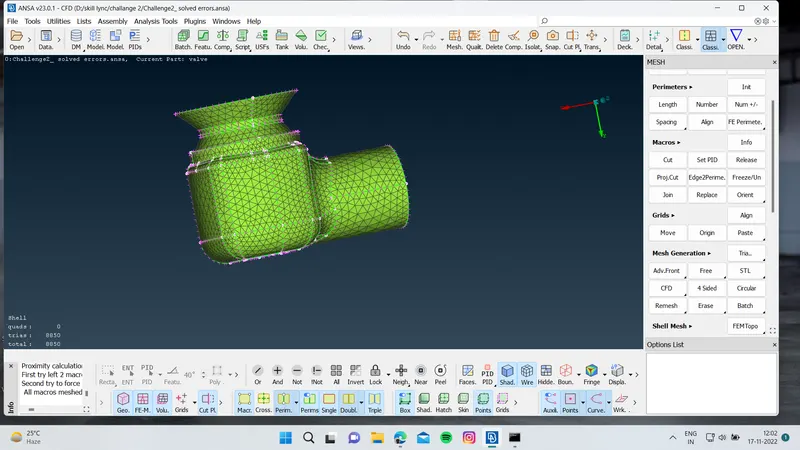

step7:
mesh with 1mm target length
giving maximum target length -1.5mm
minimum target length-0.2mm
Resullt:
1mm meshing is better than than the two
because of perfect mesh at spring.
link of my chalenges
https://drive.google.com/drive/folders/1UVLD97qY4LPUj2oLtrWYS67FWW0AaDsu
