Project 1 : CFD Meshing for Tesla Cyber Truck
Aim:
solve all geometrical errors and Assign appropriate PIDs. meshing with the suitable Target length and element Quality criteria.
Procedure:
step1:
- check the units.
- click TOPO for minor errors of single CONS.

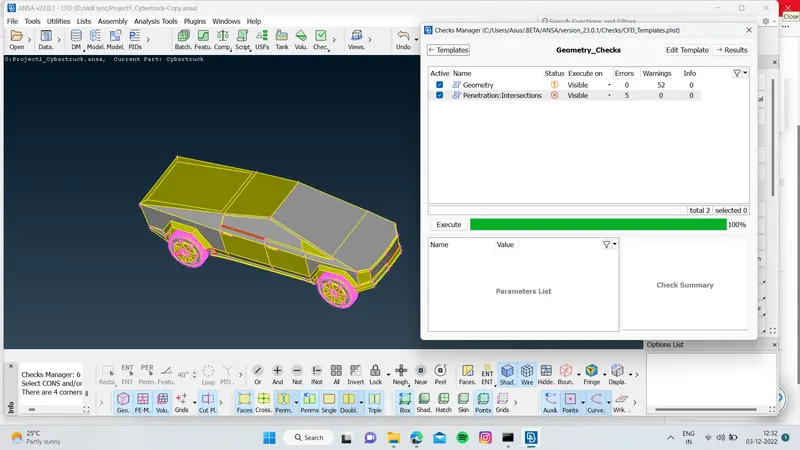

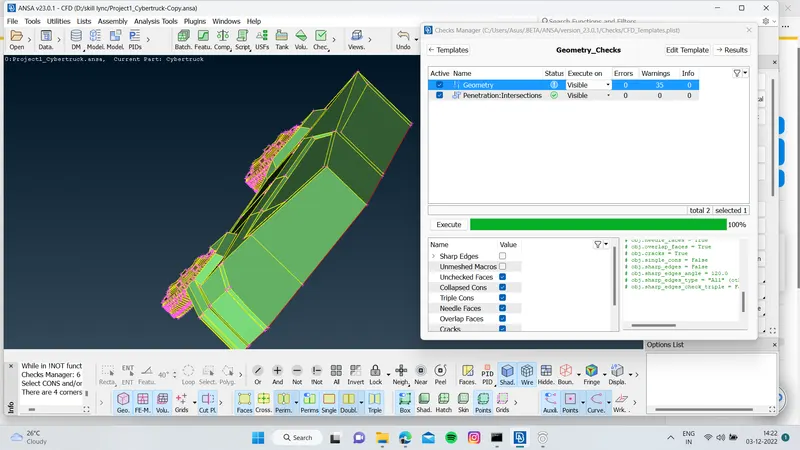

- geometric check
step2:

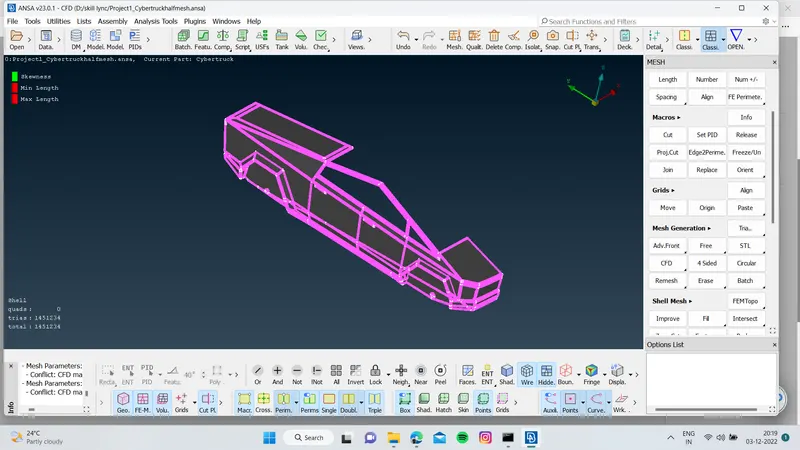

due to the symmetric shape of model ,can cut the model into half part .
plane cut>single >select 3points>ok
step3:
- deleted the half part with more errors.

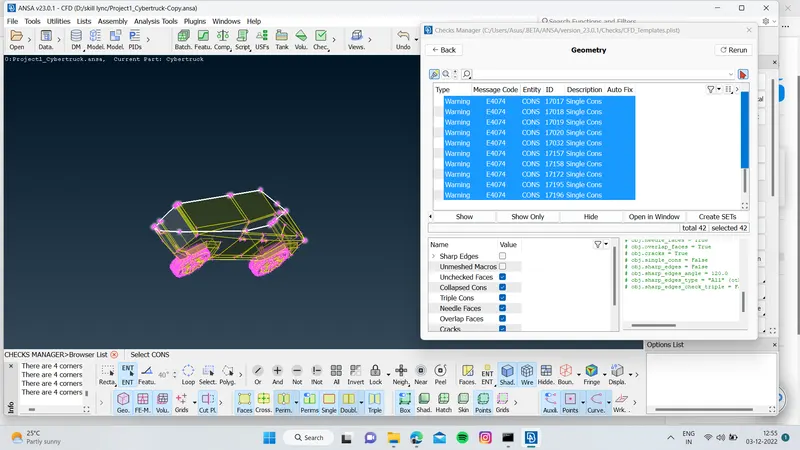

- check the geomatrical errors.
- cleared the geomatricerrors.
step4:
assign the PIDs
step5:
set the quality criteria with min length=0.5mm and max length=7mm.

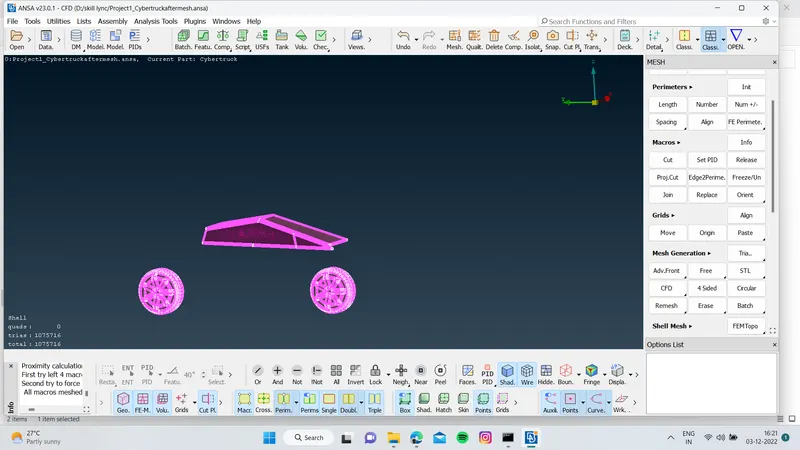

mesh the window and tyres with target length as2mm
mash the body with target length min=1mm and max=5mm.
step6:
- mirror the half part.

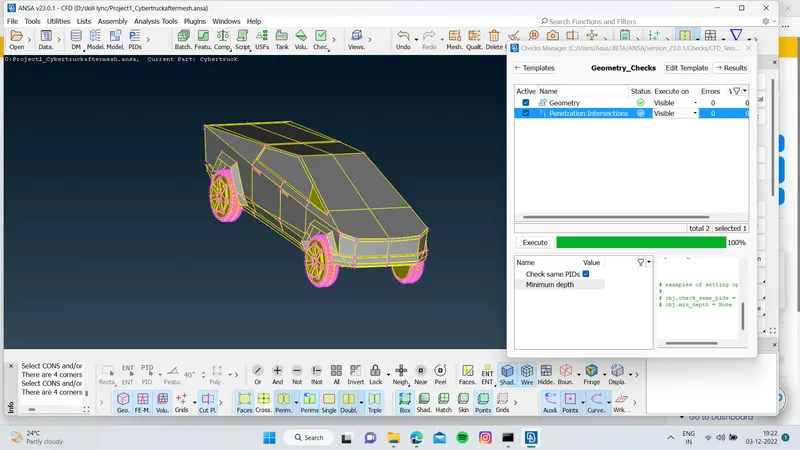

- check again the geomatric errors.
- cleare the errors.
step7 :
- check the quality criteria.

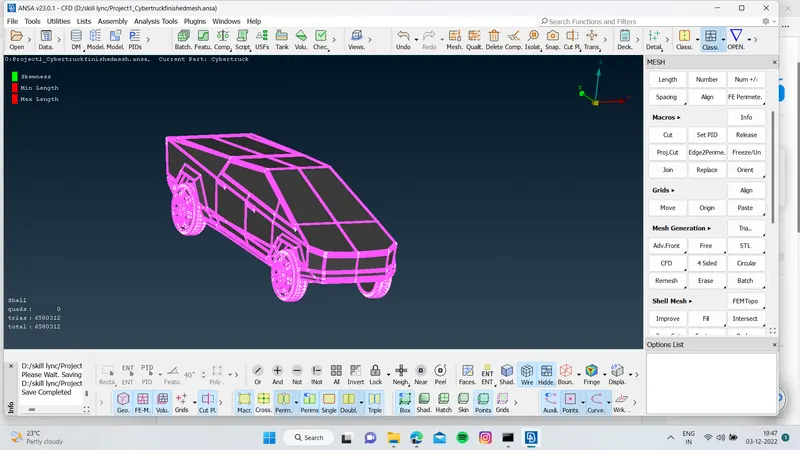

- mesh the full model.
Step7:

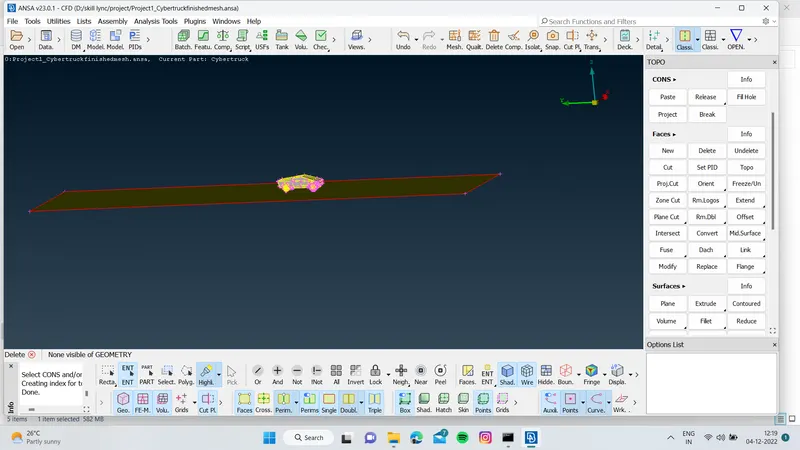

creat the wind tunnel
- create the point below the model with 600mm.
- with reffrence the creaed point ,creat the front and bcak with 25650mm and37050mm respectively.
- create the side piont on both side with 6950mm.

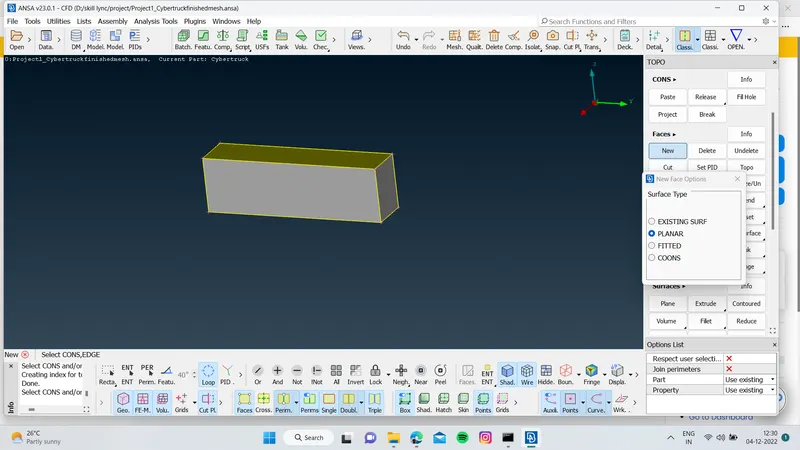

- create the face using the created points.
- created the top face with reffrence with bottom face.(use offset>face> selet face and direction).
- create the side face.
- create the side face.
step8:

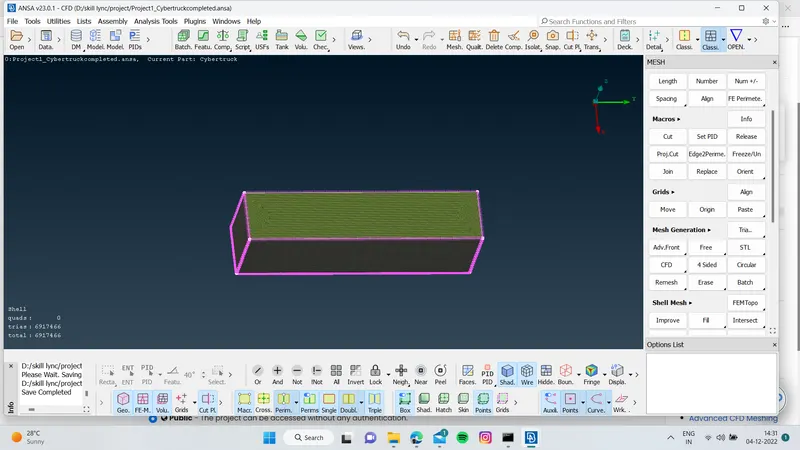

mesh the wind tunnel .

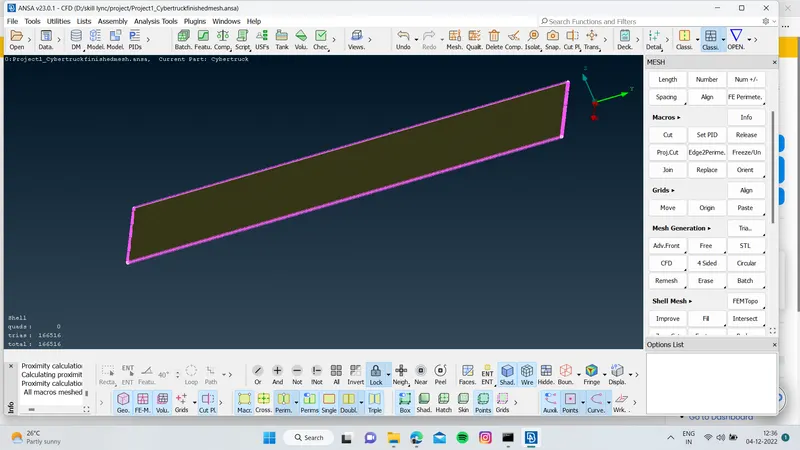

bottom face with 100mm

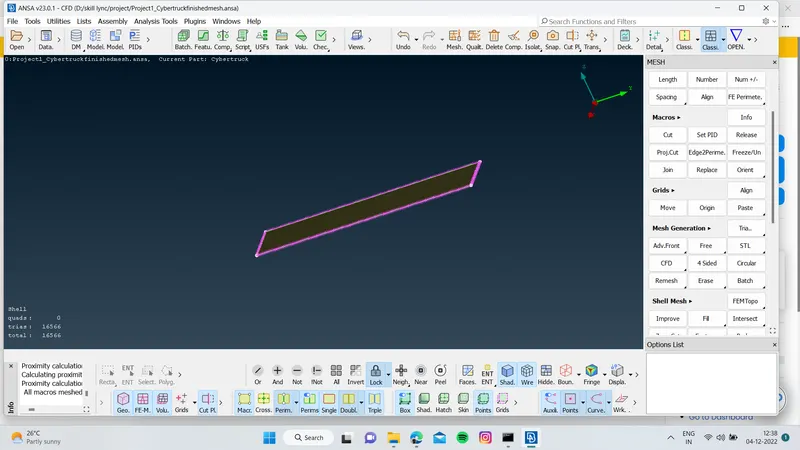

top face with 300mm

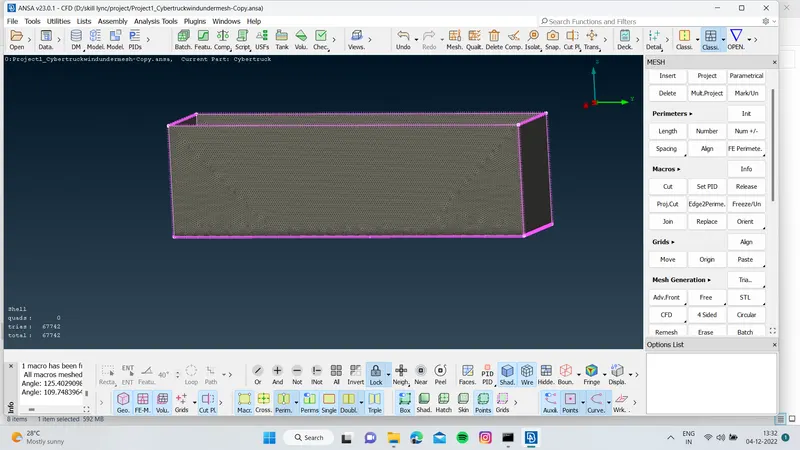

side face with growing mesh with Dstart=100mm
and Dlimite=300mm.

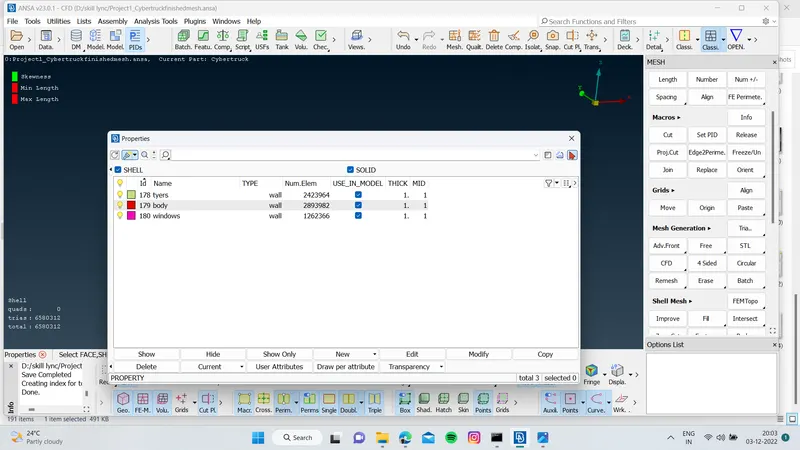

final view with all PIDs
Result:
finer mesh with better quality criteria for the given model.
https://drive.google.com/drive/folders/1ZH8CD-9tx4t7IJTbNAwrDc7a8TSwtSVU?usp=sharing
