Week 5 Challenge : Surface wrap on Automotive Assembly

Aim: To perform Surface wrap on Automotive Assembly.

Procedure:

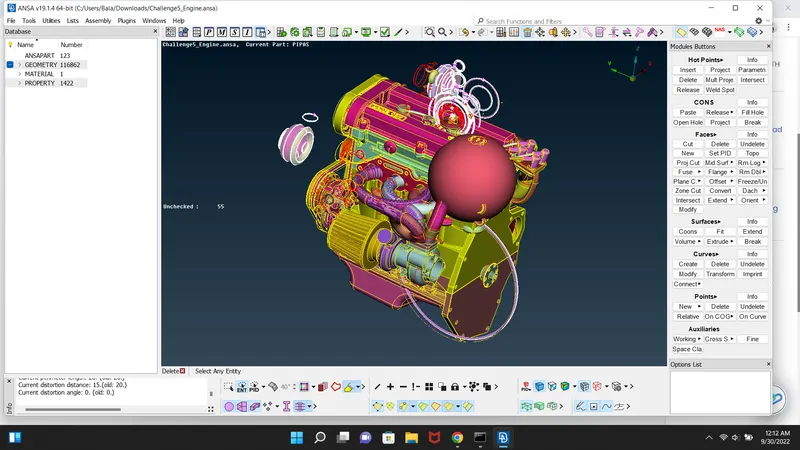

Step 1: Delete the unwanted rings and other overlapping surfaces present in the engine and close the open valves.

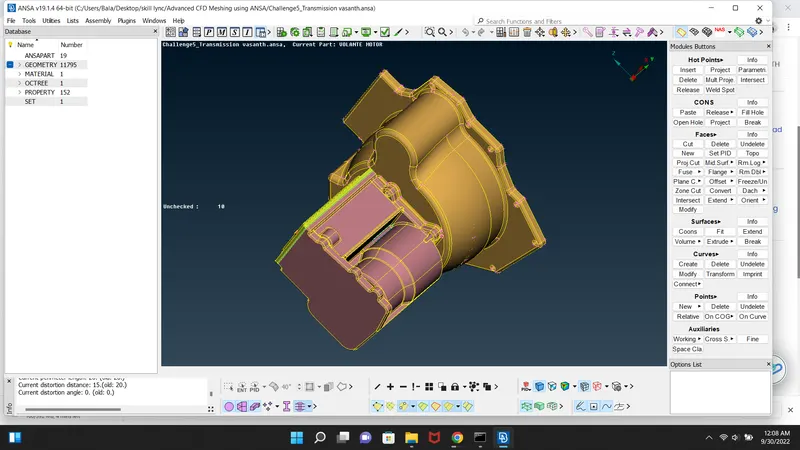

Step 2: Delete the unwanted rings and other overlapping surfaces present in the transmission system, sue the or option to isolate PIDs.

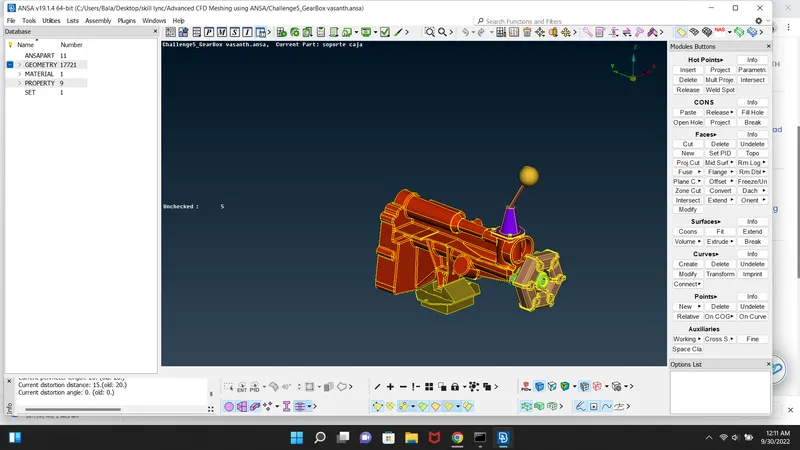

Step 3: Delete the unwanted rings and other overlapping surfaces present in the gear box.

Step 4:Join the surfaces in the engine file using merge option.

Step 5:Use the wrap option and mesh the 3 components together.

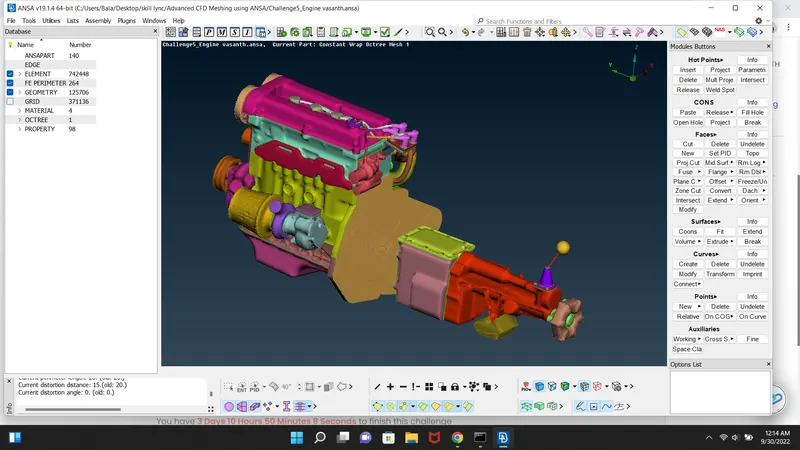

Result: Thus Surface wrap on Automotive Assembly was performed for a target length of 3mm.

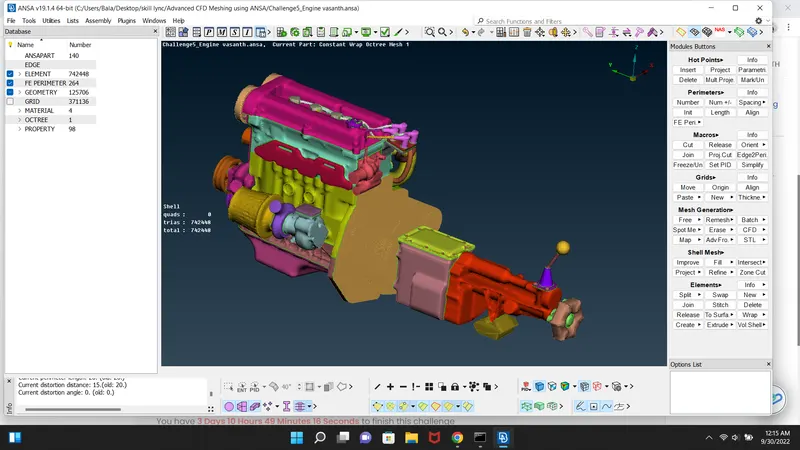

Conclusion: Thus 742448 triangular elements were formed and surface wrap for uniform length was used for combining 3 different components.
