Week 1- Mixing Tee

Aim: To study the CFD analysis of Mixing Tee

Theory: convergence of fluids.

Application: HVAC ducts.

Procedure:

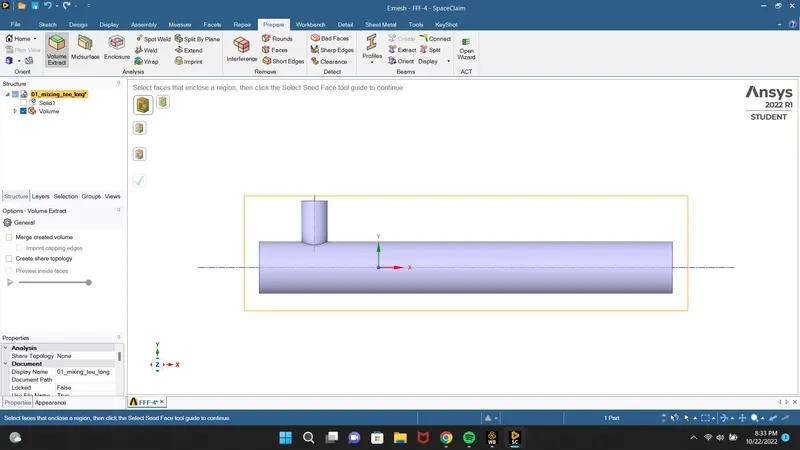

Step 1:Import the geometry to spaceclaim and extract the volume.

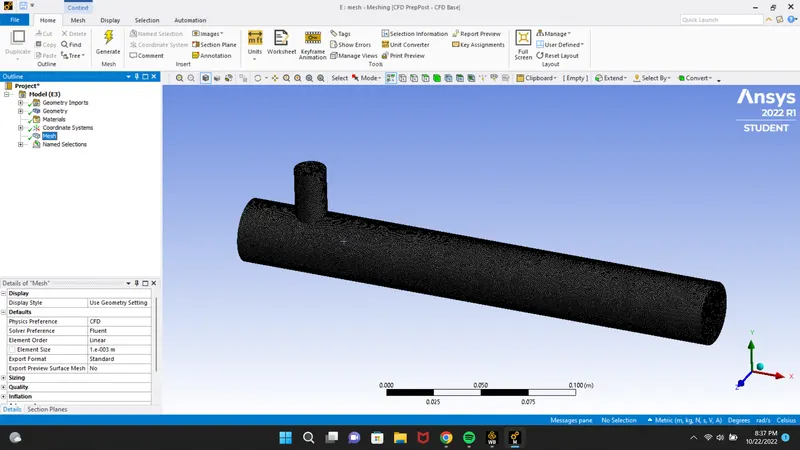

Step 2:Open mesh option and assign face name and mesh the surface.

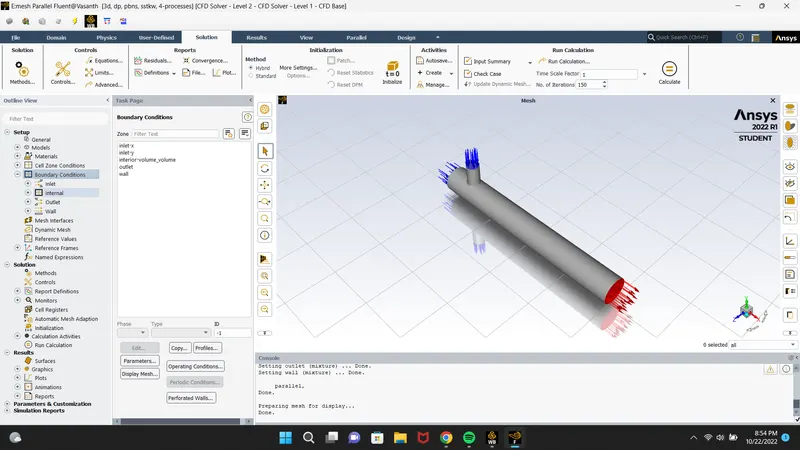

Step 3:Open setup, assign the solver k-epsilon or k-omega and assign the material & boundary conditions. Then intialize followed by calculate.

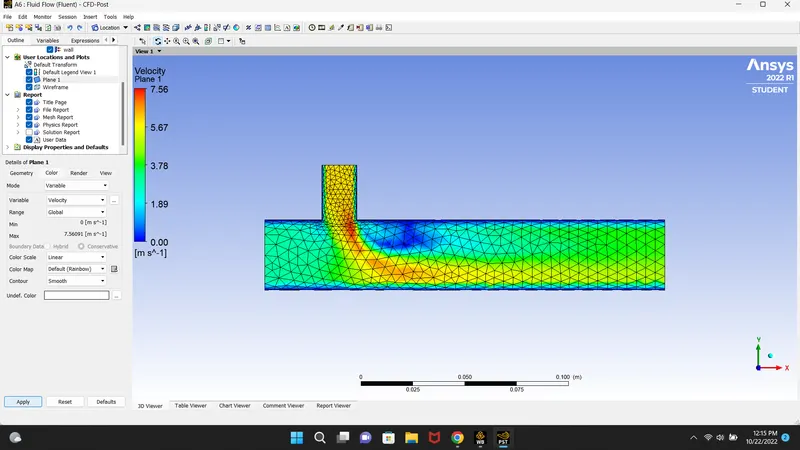

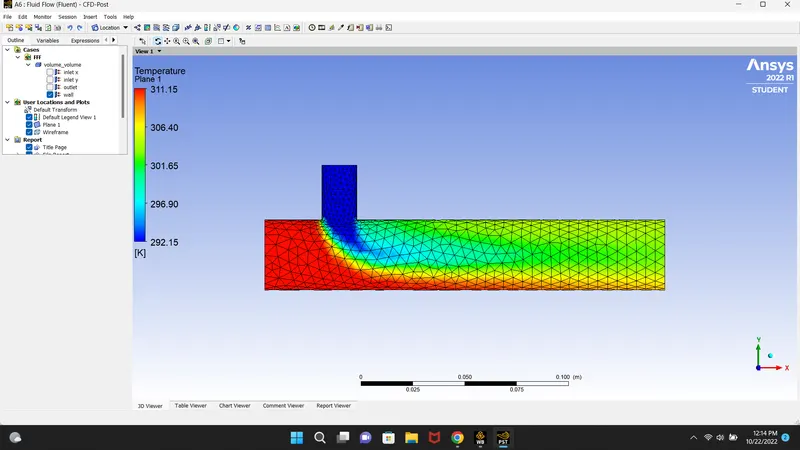

Step 4: open result and and create a plane and calculate the outlet temperature and velocity.

Conclusion:

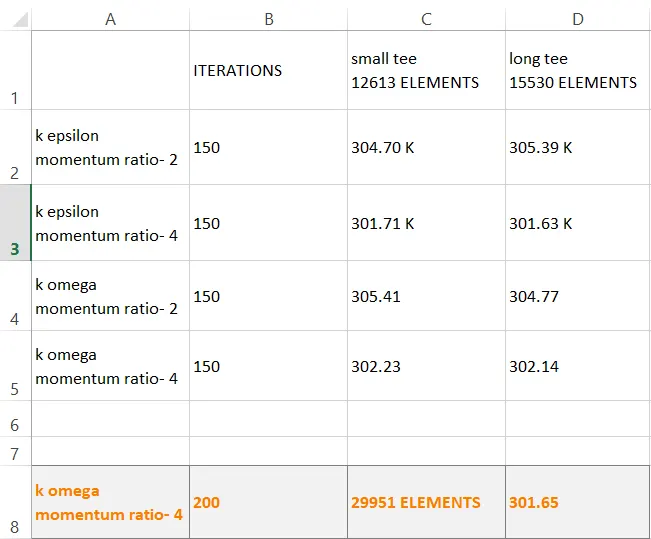

Result:

.

As the temperature and velocity(momentum ratio) of the cold liquid increases the temperature reduces significantly.

As the mesh size decreases/the number of elements increases and number of iteration increases the temperature decreases.

The difference in temperature considering the length of the tee is less.
