Week 5 Challenge

Design of Plate Girder

1. Shear resistance of web problem

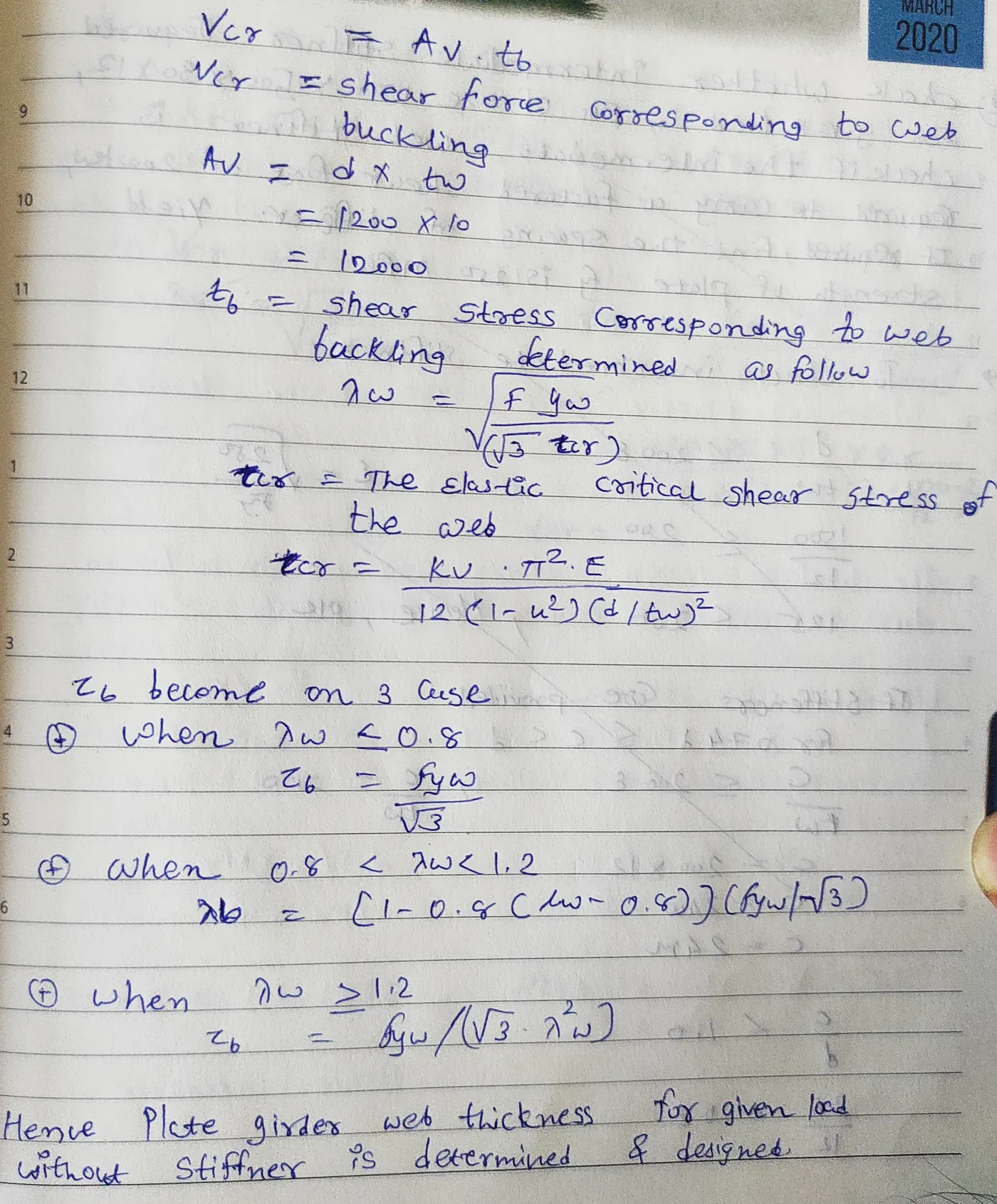

Determine PG Web thickness for given load without stiffener

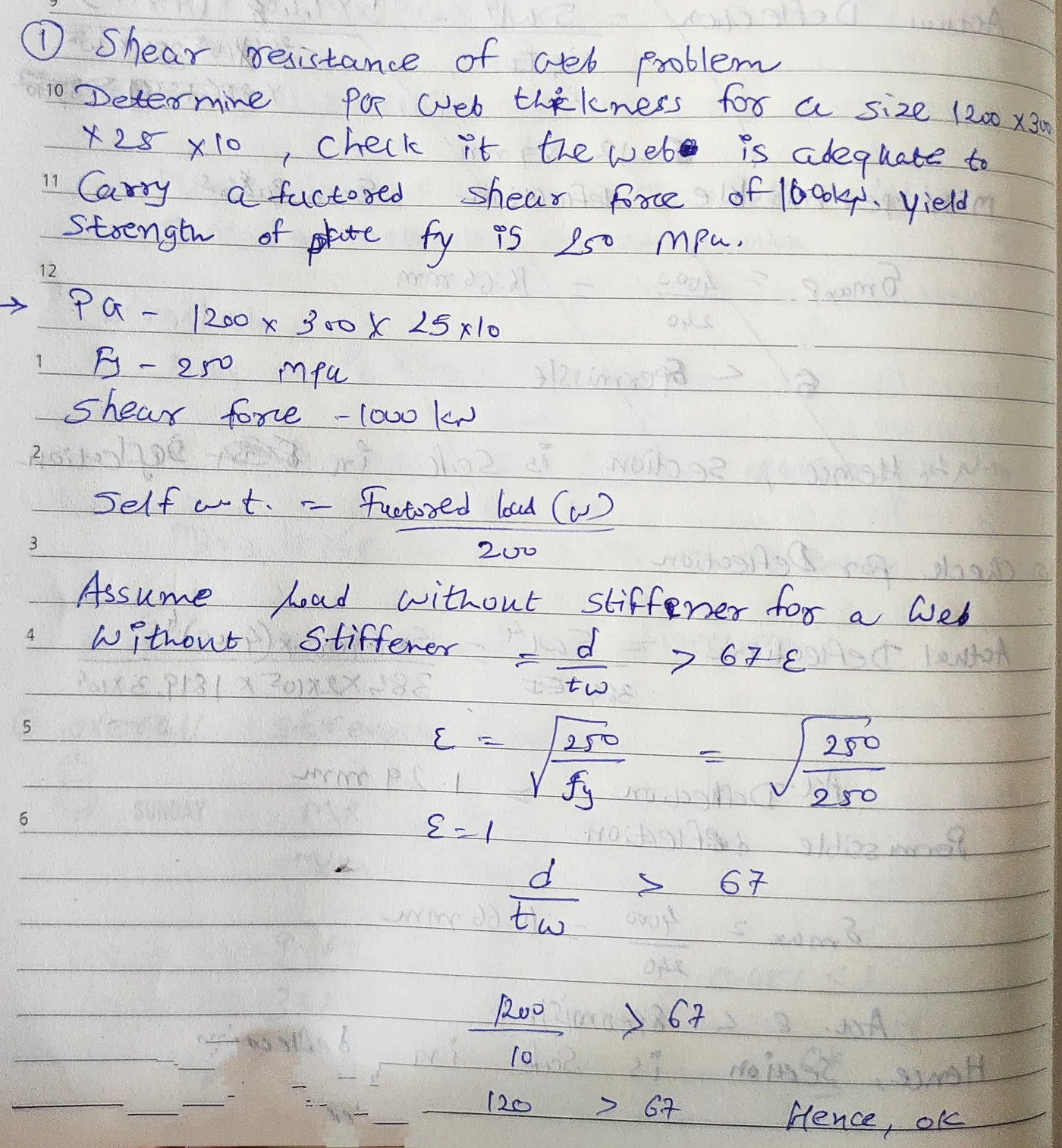

For a PG of size 1200 x 300 x 25x 10, Check if the web is adequate to carry a factored shear force of 1000 kN. Yield strength of plate fy is 250 Mpa.



2. Check whether intermediate stiffener required for given load

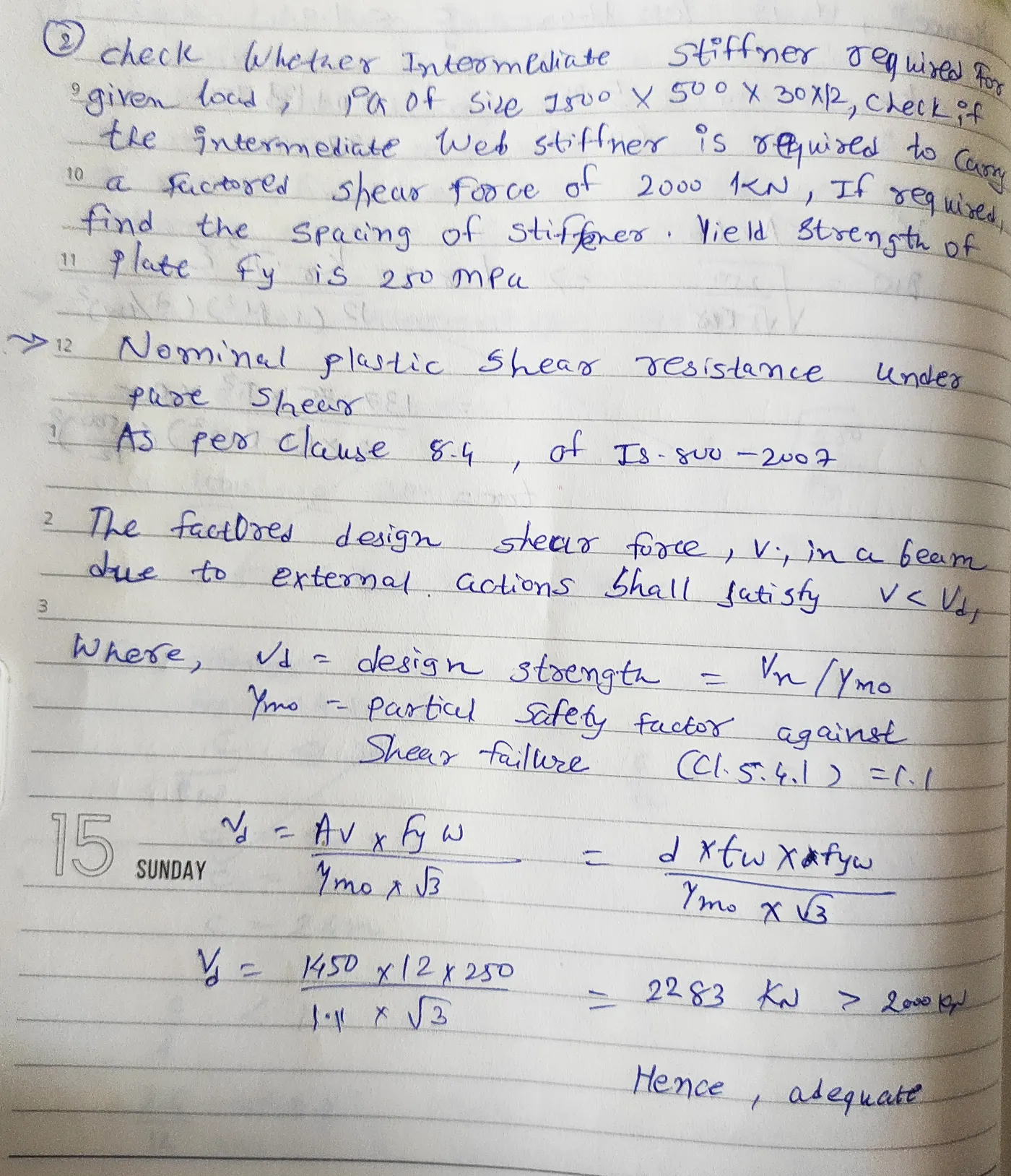

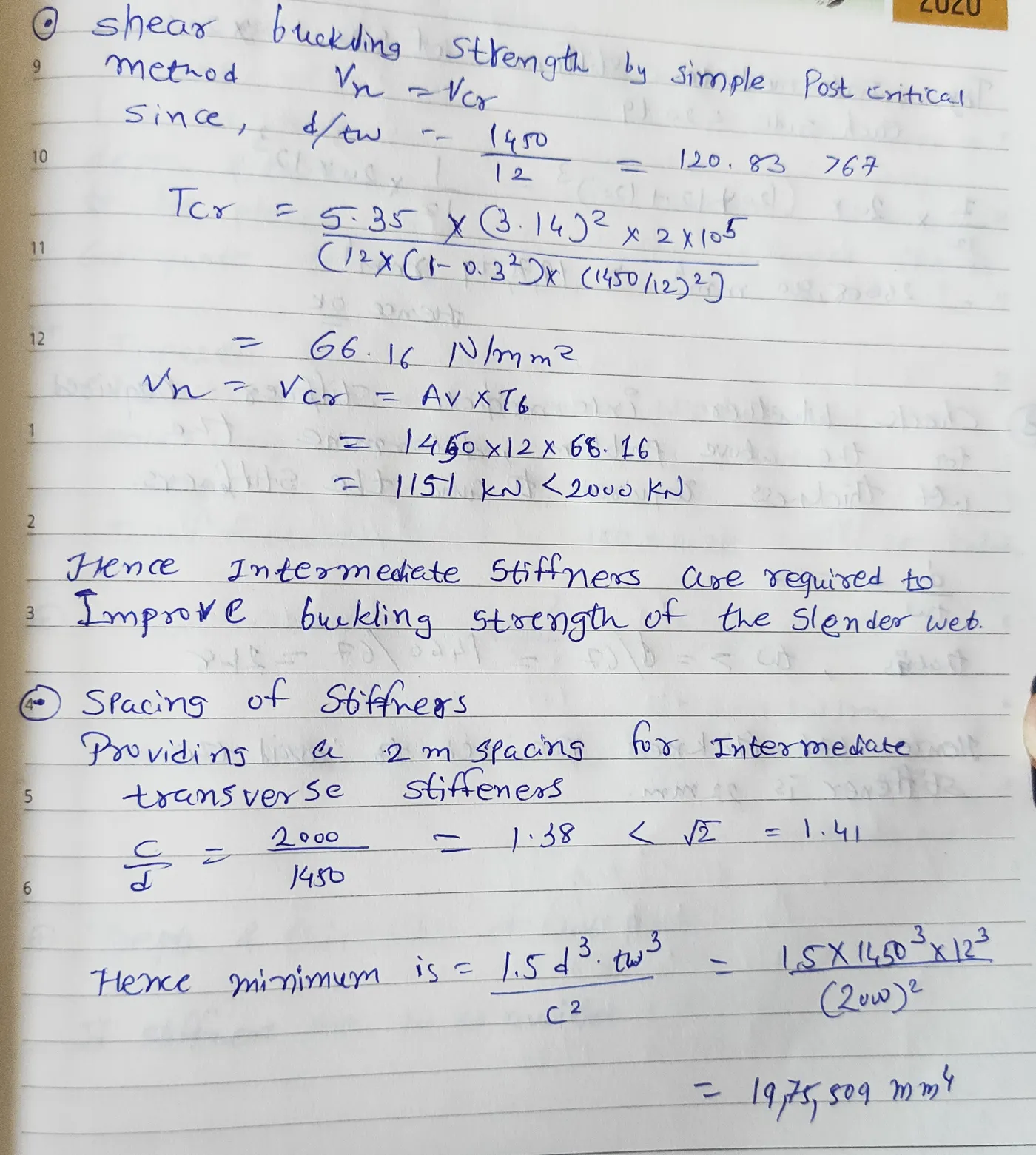

For a PG of size 1500 x 500 x 30 x 12,check if the intermediate web stiffener is required  to carry a factored shear force of 2000 kN, if required, find the spacing of stiffener. Yield strength of plate fy is 250 Mpa.



3. Check whether intermediate stiffener required for given load

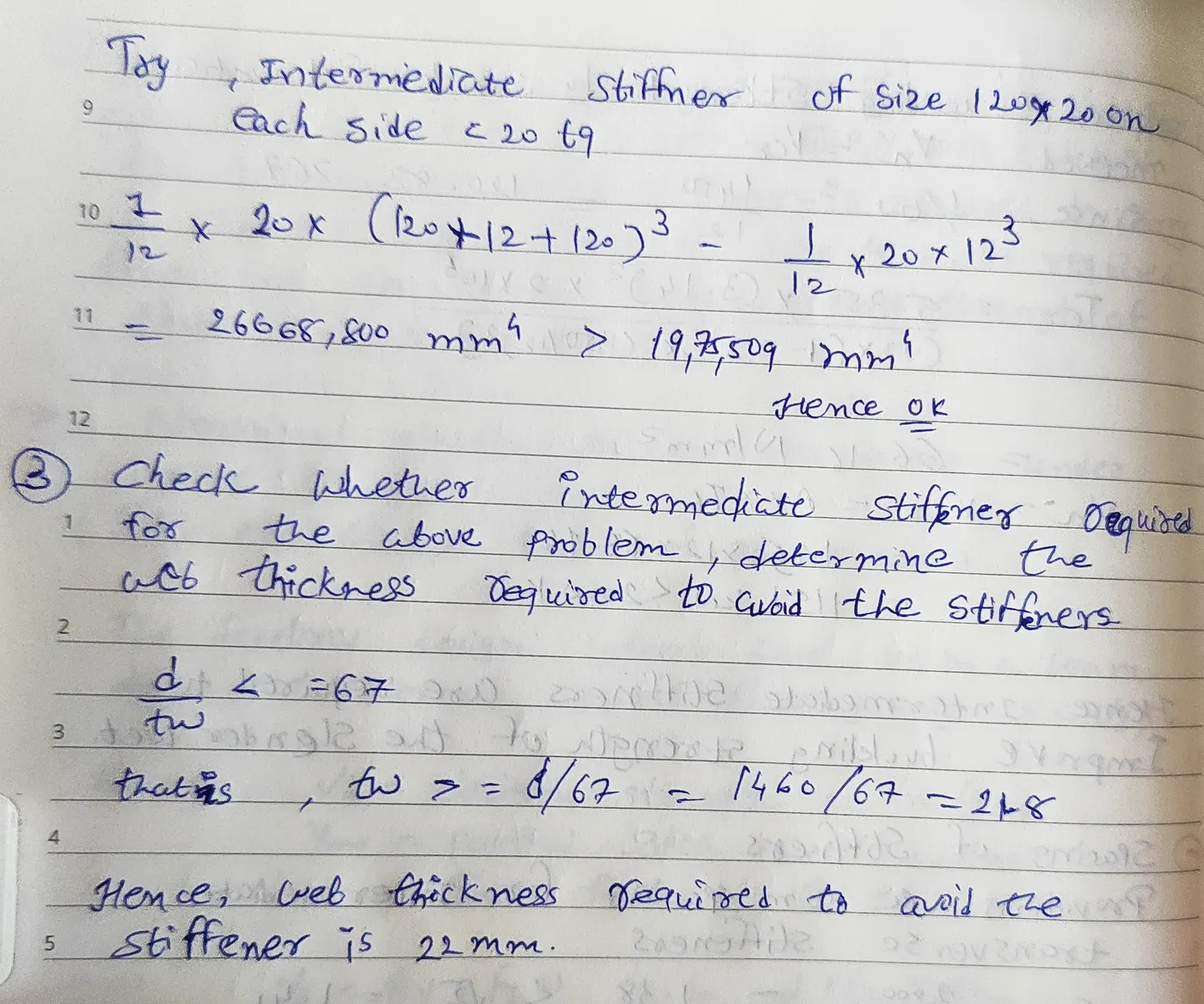

For the above problem, determine the web thickness required to avoid the stiffeners.



4. Proportioning problem

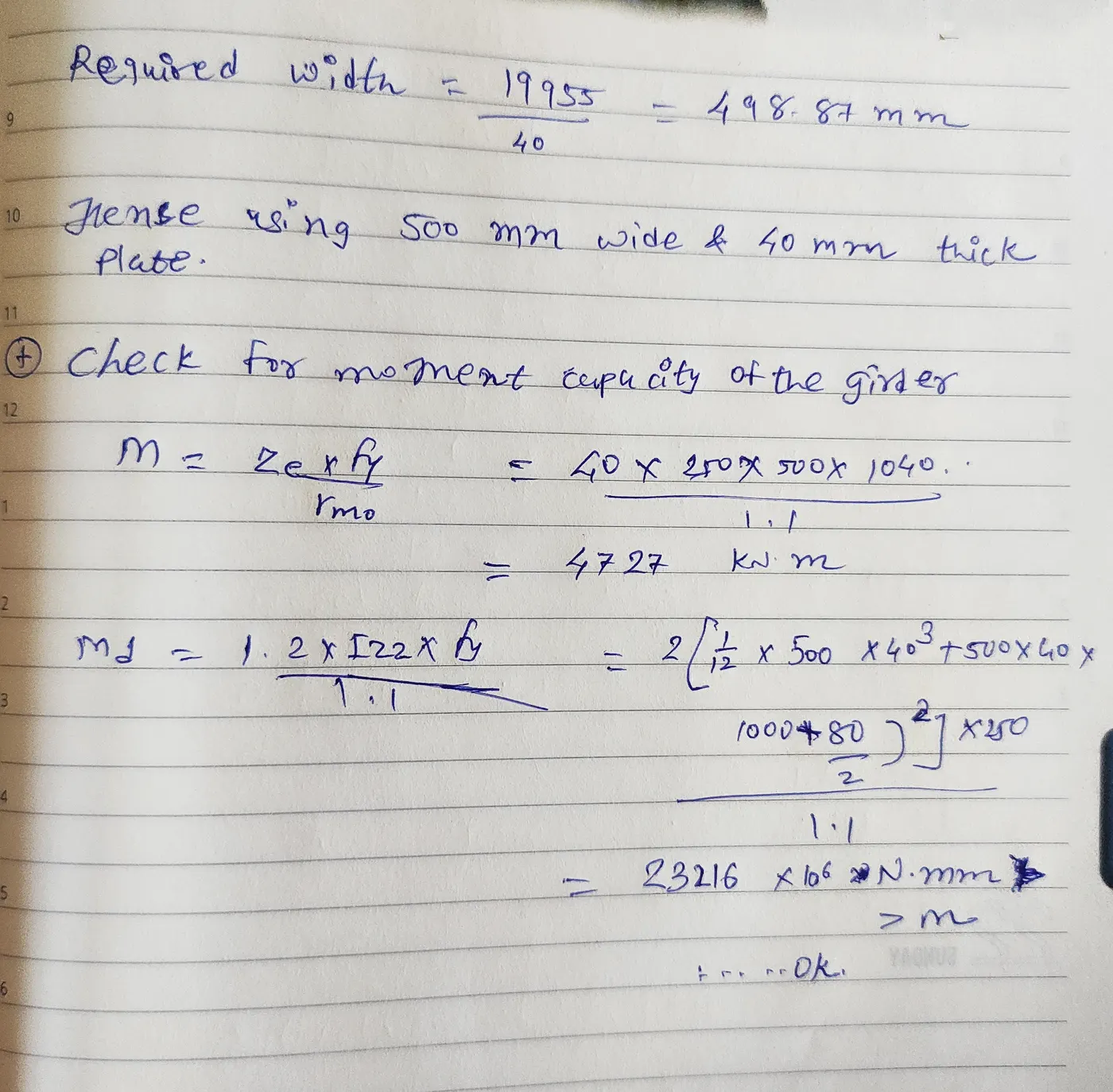

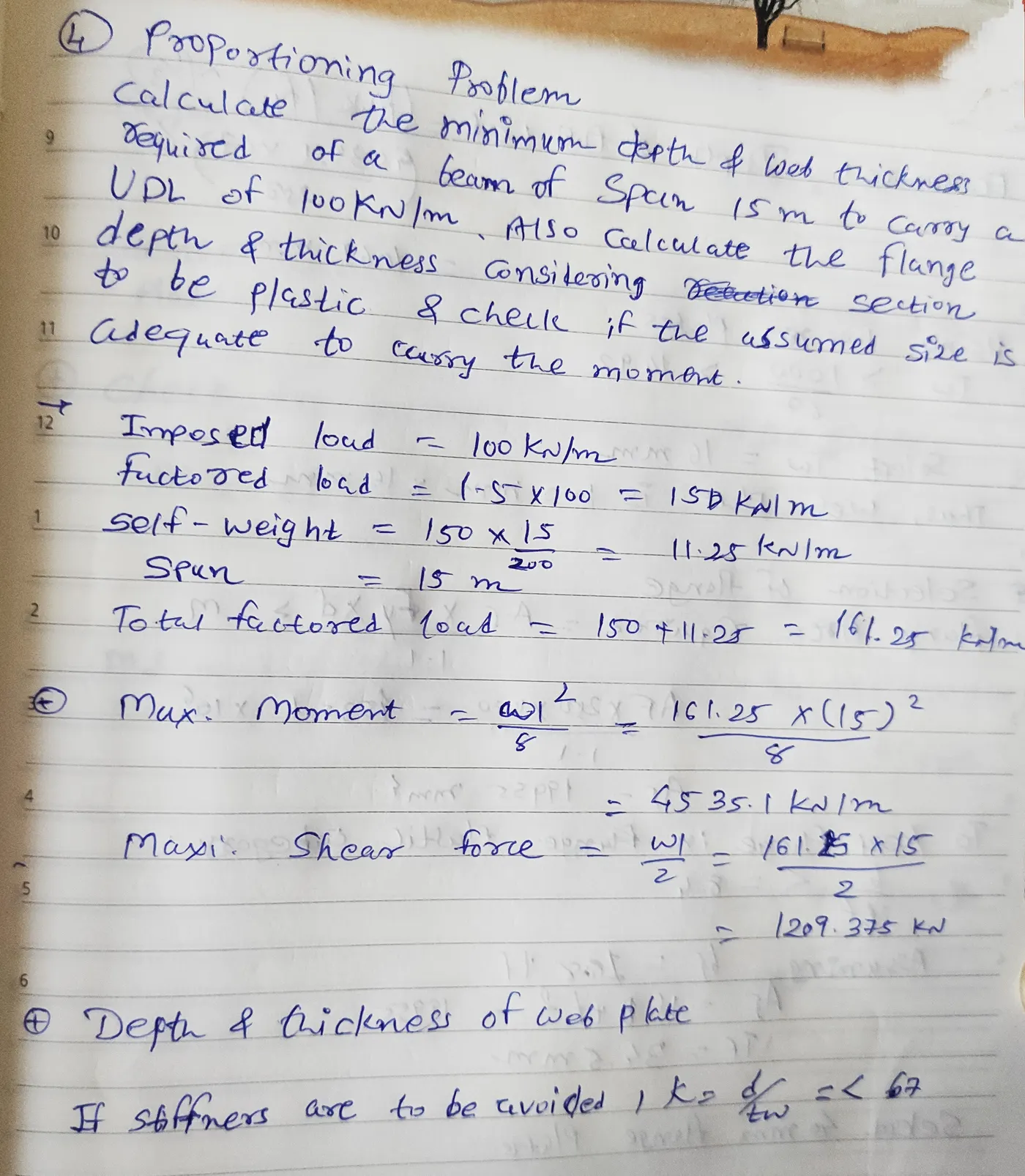

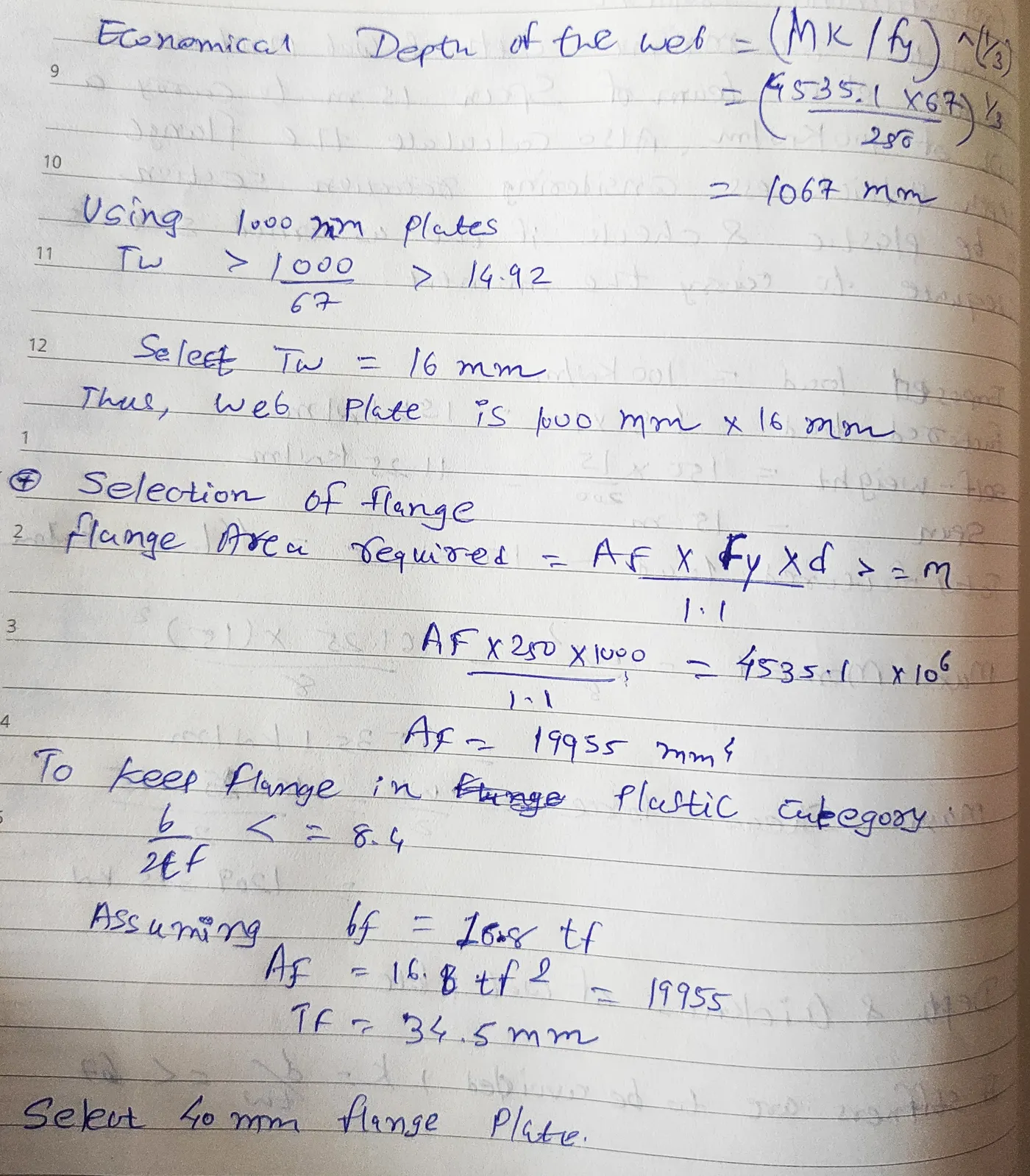

Calculate the minimum depth & web thickness requirement of a beam of span 15 m to carry a UDL of 100 kN/m. Also calculate the flange depth & thickness considering section to be plastic and check if the assumed size is adequate to carry the moment.
