Week 4 Challenge

Design of Beams

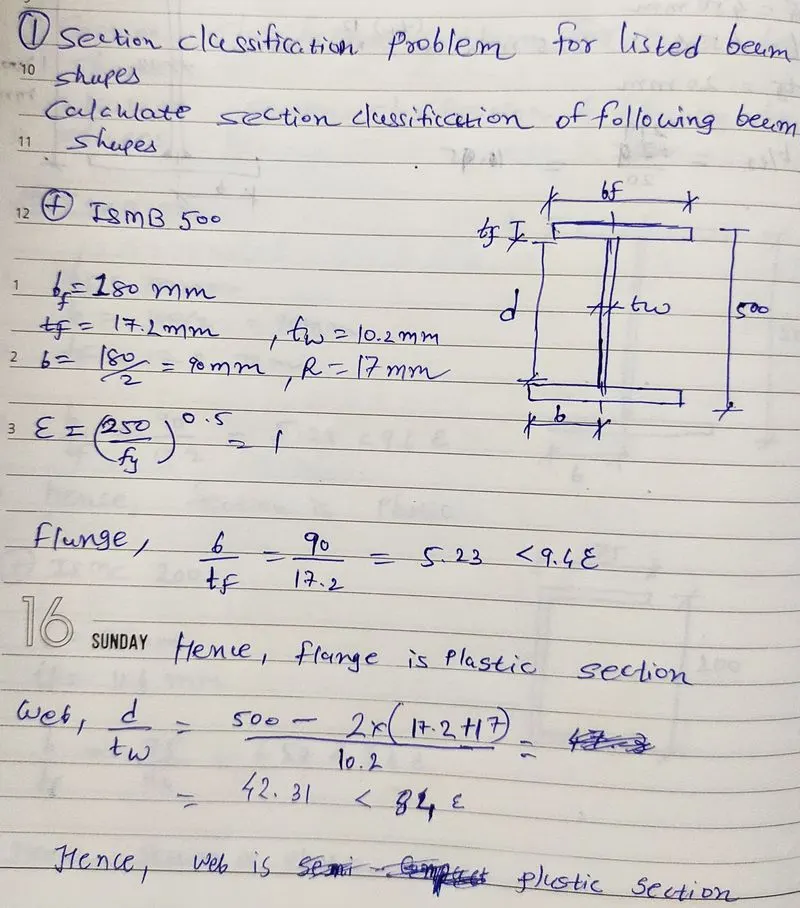

1. Section classification problem for listed beam shapes

Calculate section classification of following beam shapes

• ISMB 500

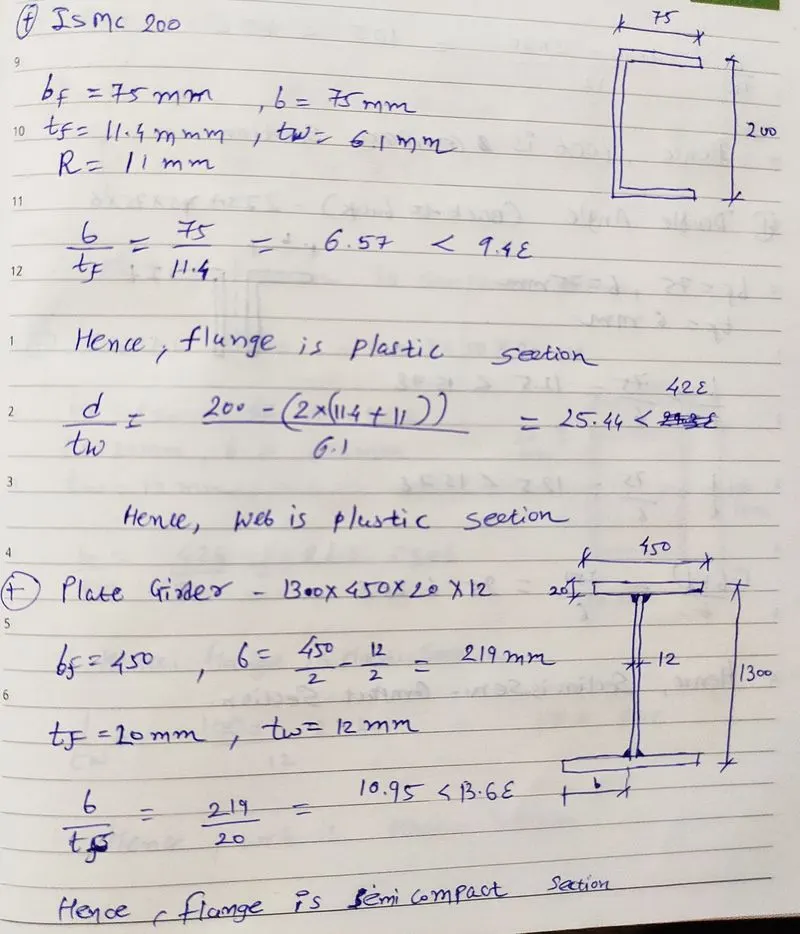

• ISMC 200
• PG 1300 x 450 x 20 x 12

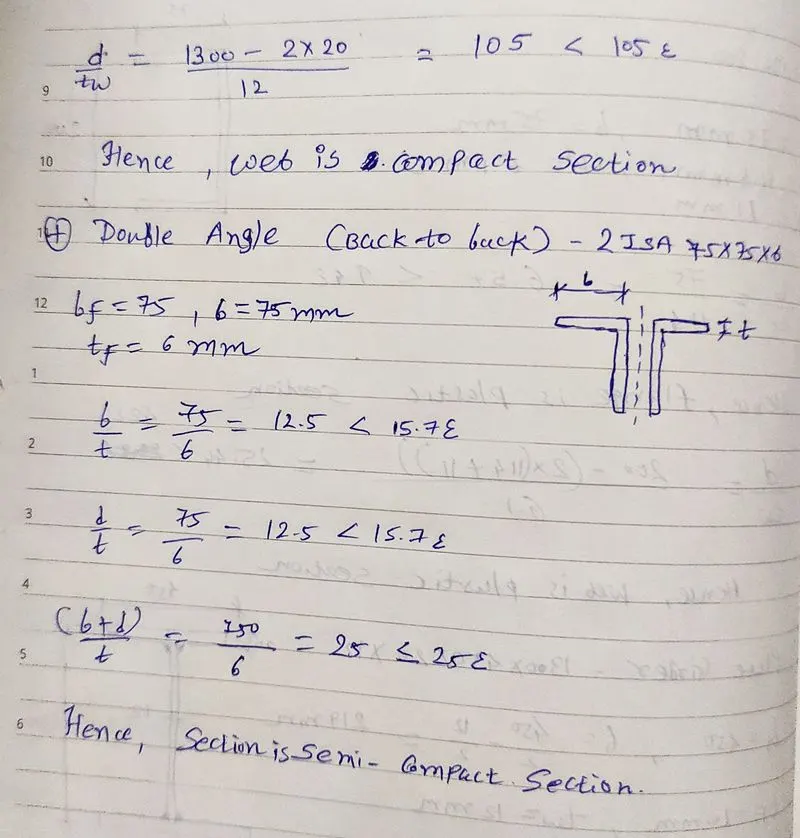

• Double angle (Back to back) – 2 x ISA 75x75x6

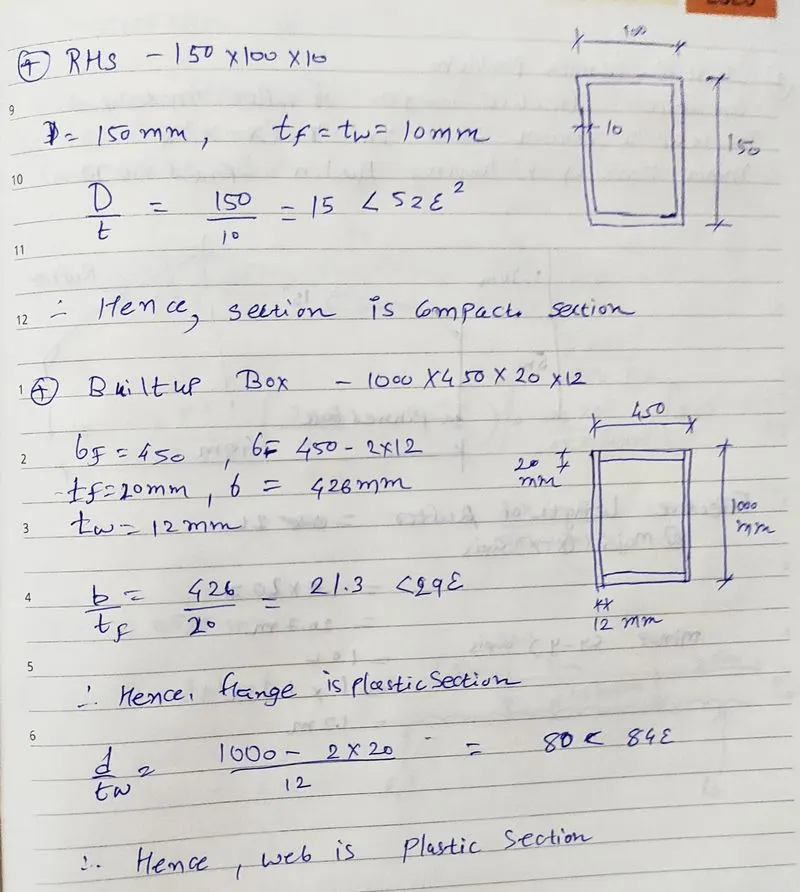

• RHS - 150 x 100 x10
• Builtup box – 1000 x 450 x 20 x 12

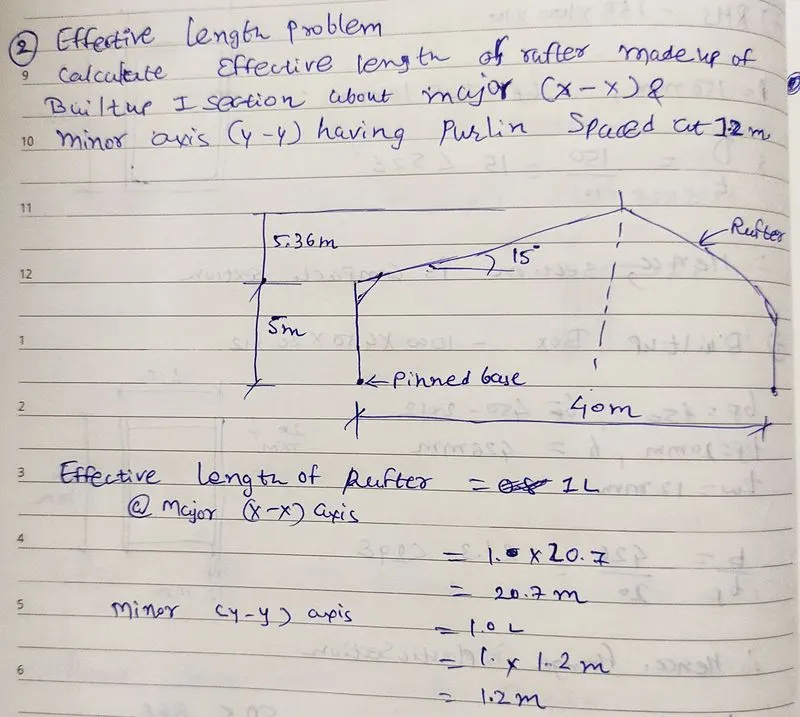

2. Effective length problems

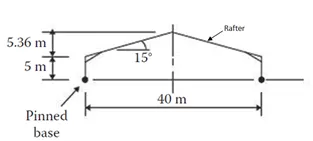

Calculate effective length of rafter madeup of Builtup I section about major (x-x) and minor axis (y-y) having purlin spaced at 1.2 m.

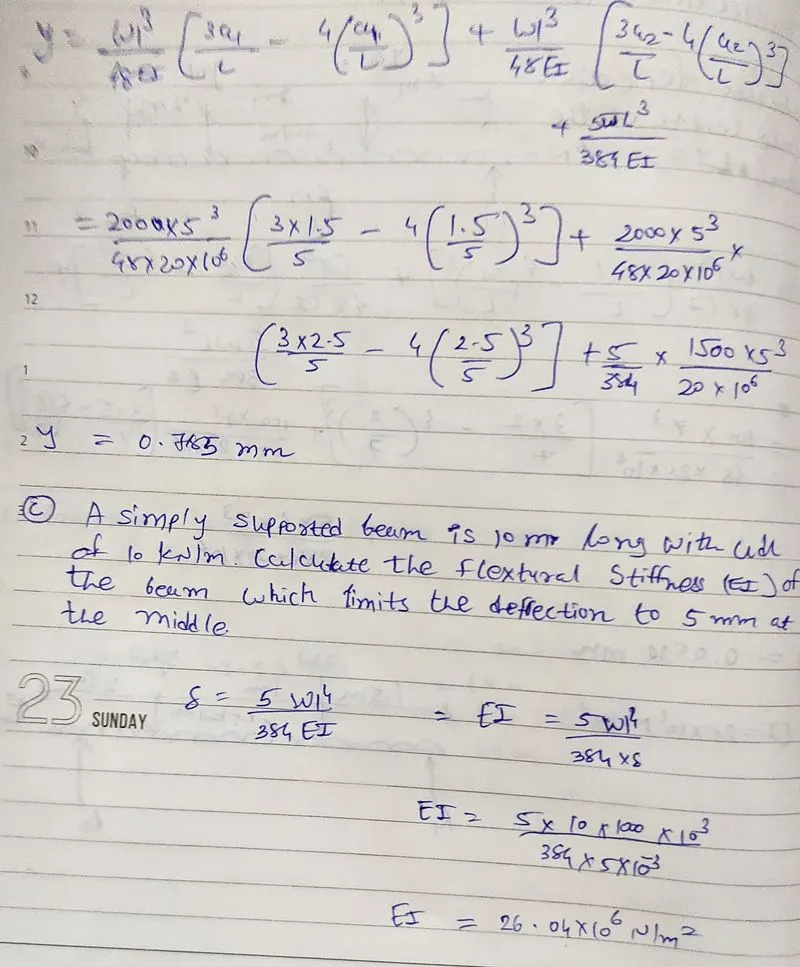

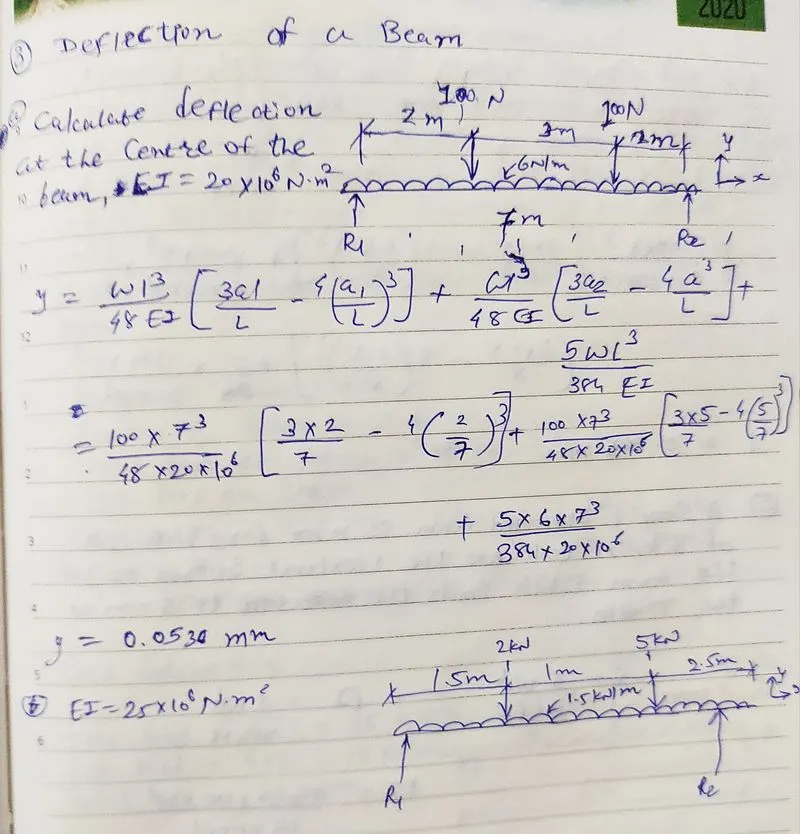

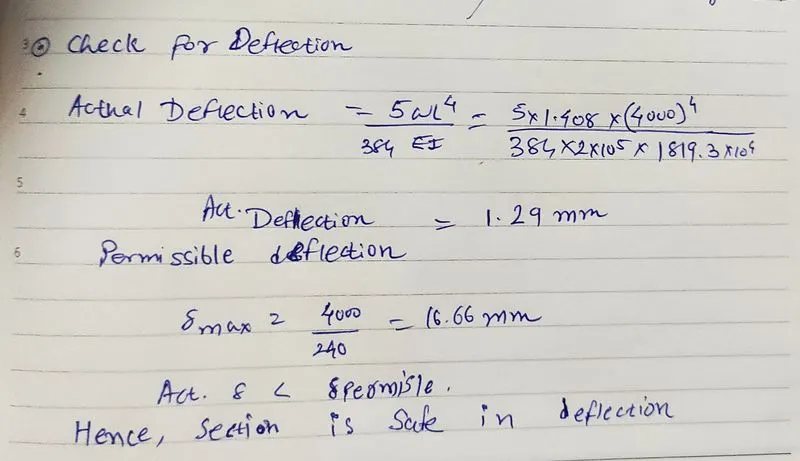

3. Deflection of a beam problem

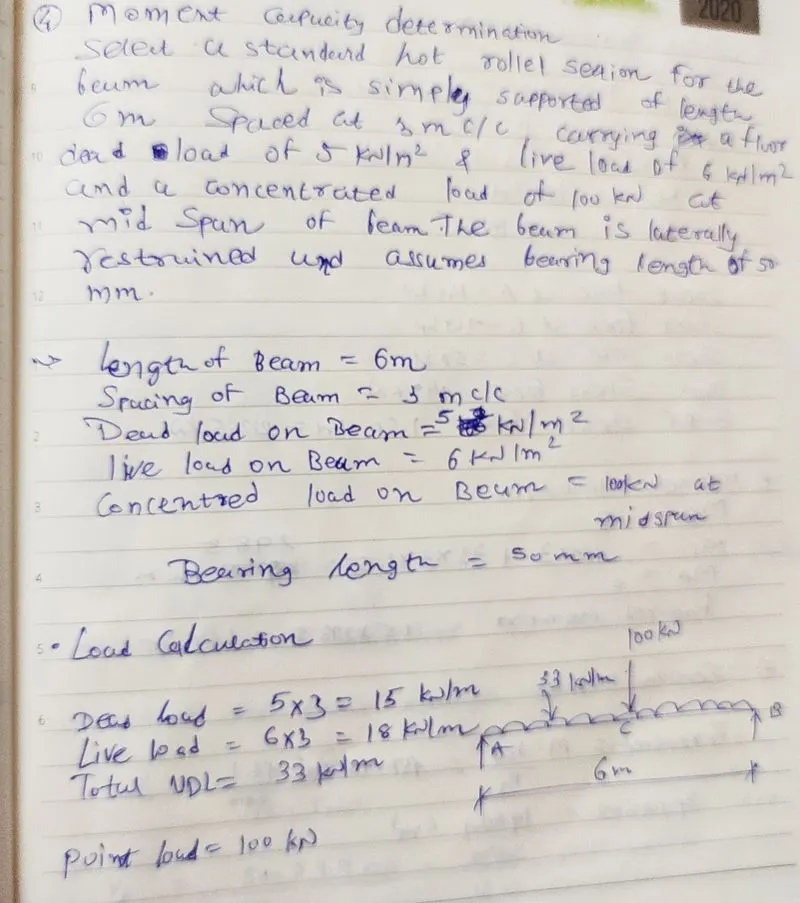

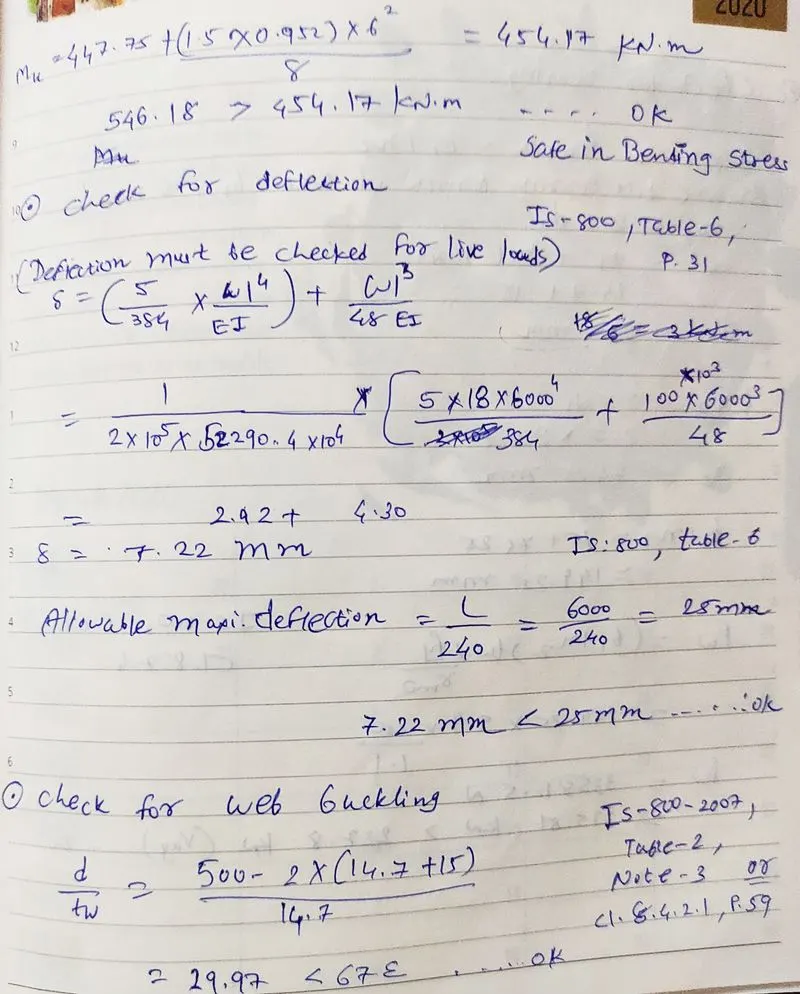

4. Moment capacity determination problem

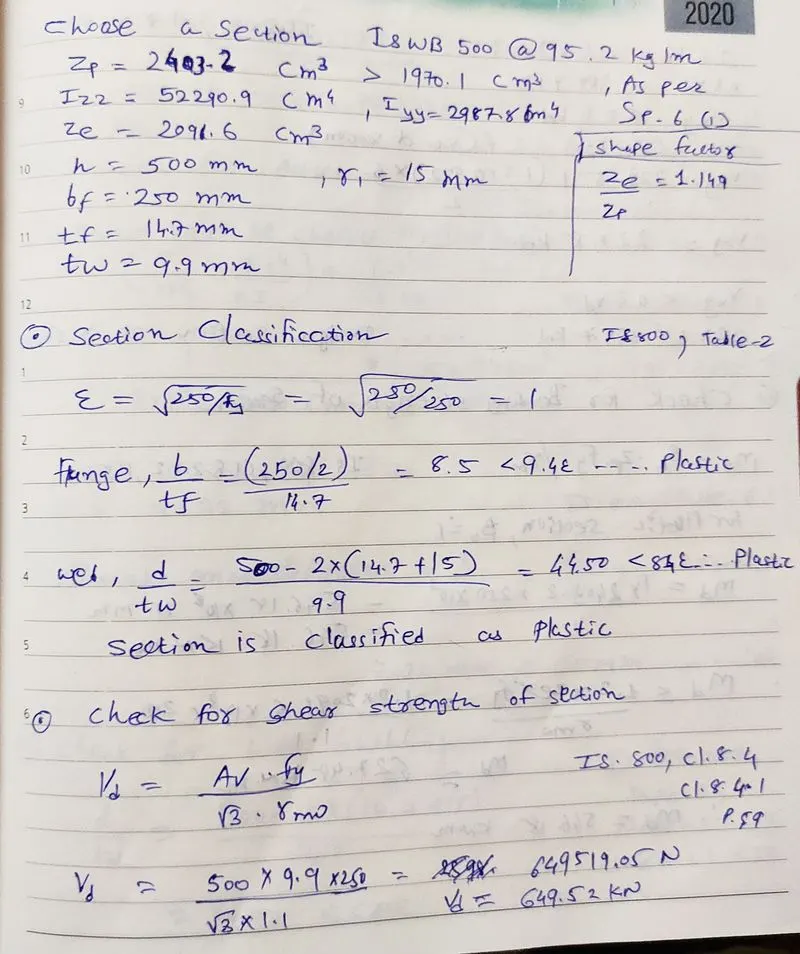

Select a standard hot rolled section for the beam which is simply supported of length 6 m spaced at 3 m c/c, carrying a floor Dead load of 5 kN/m² (including Self weight) & Live load of 6 kN/m² and a concentrated load of 100 kN at mid span of beam. The beam is laterally restrained and assumes bearing length of 50 mm.

Tip steps:

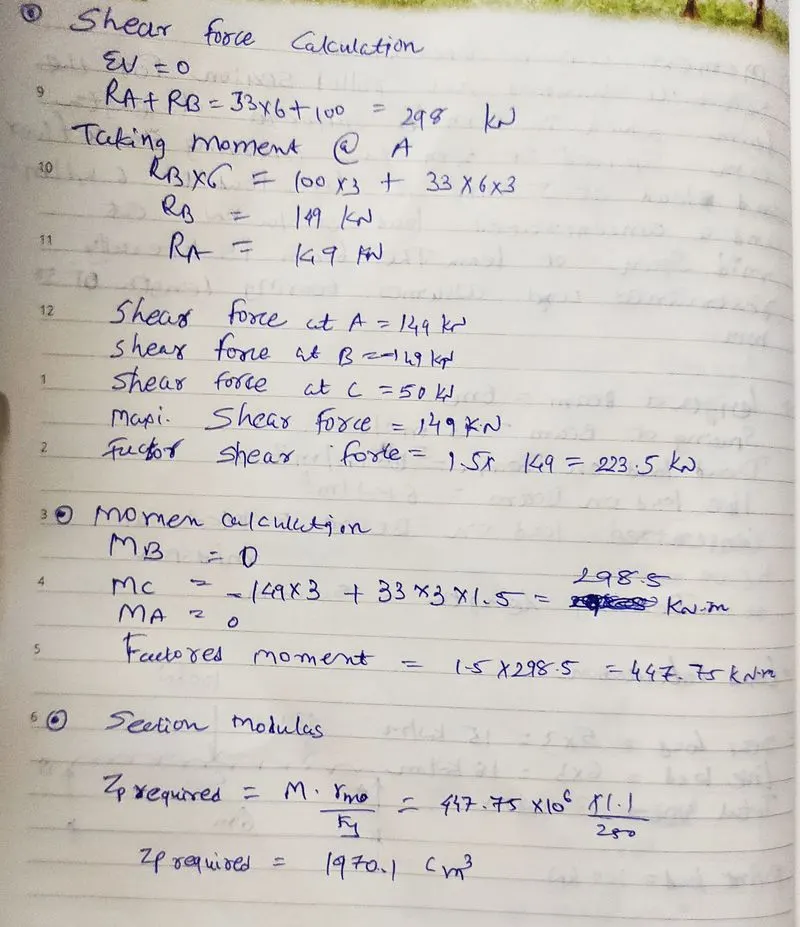

• Calculate maximum bending moment & required plastic modulus
• Select suitable trial section
• Calculate design shear force and design shear strength

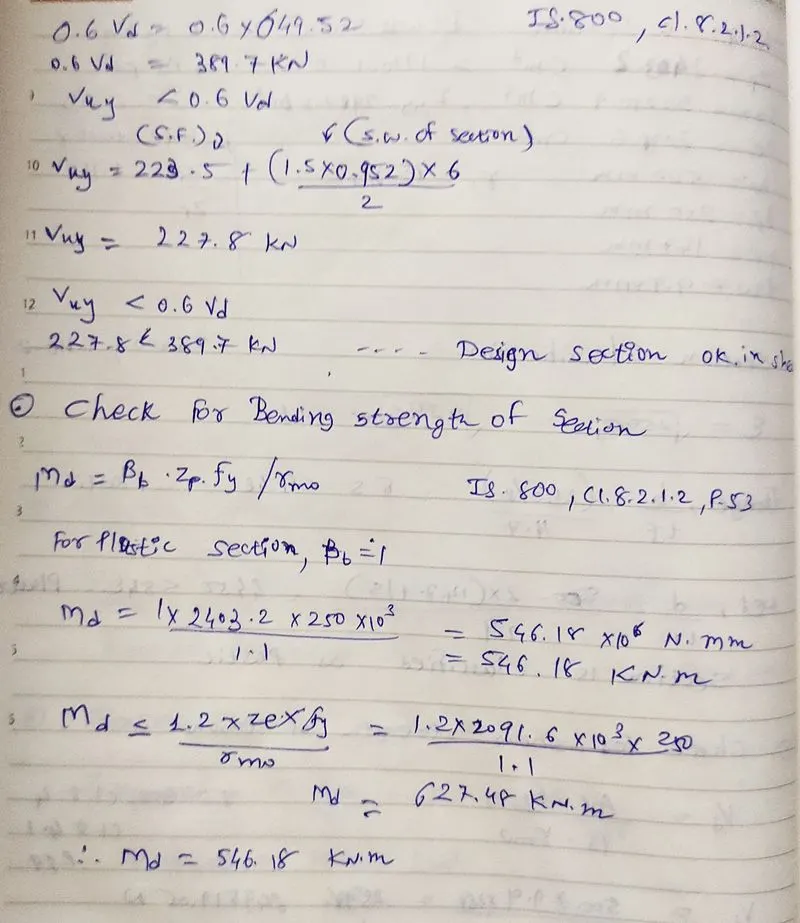

• Check design capacity of the section

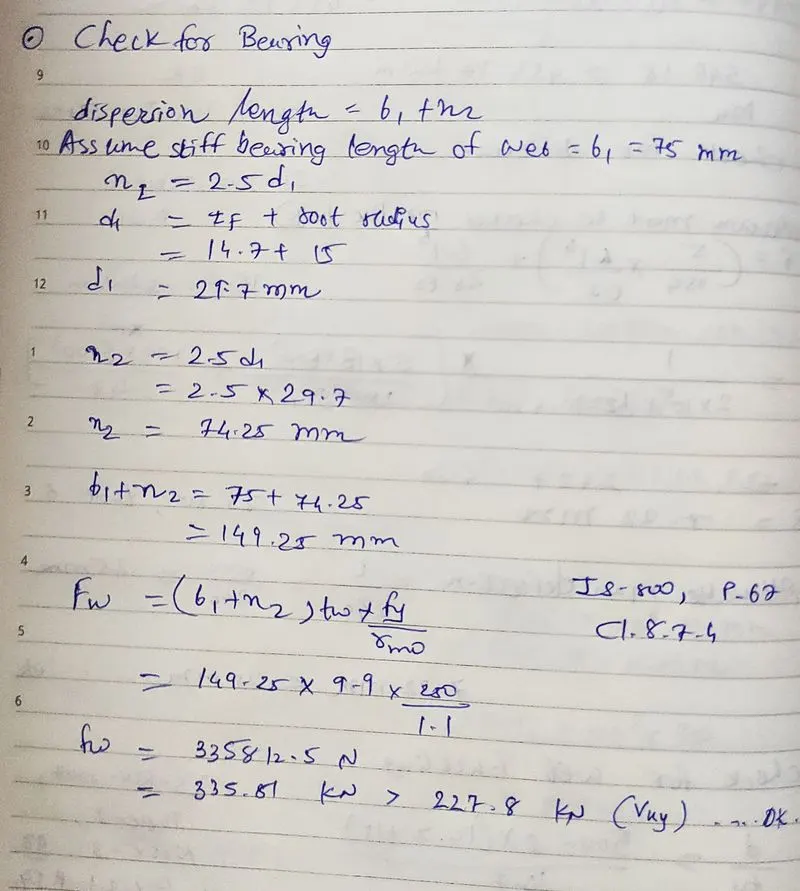

• Check for deflection, web buckling, bearing

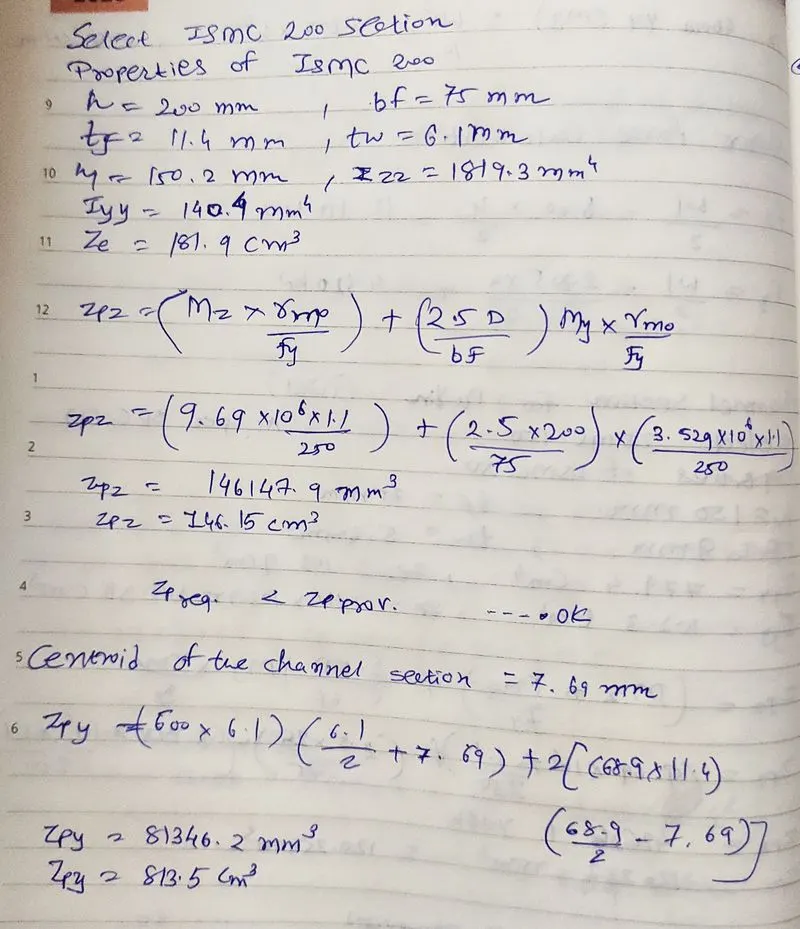

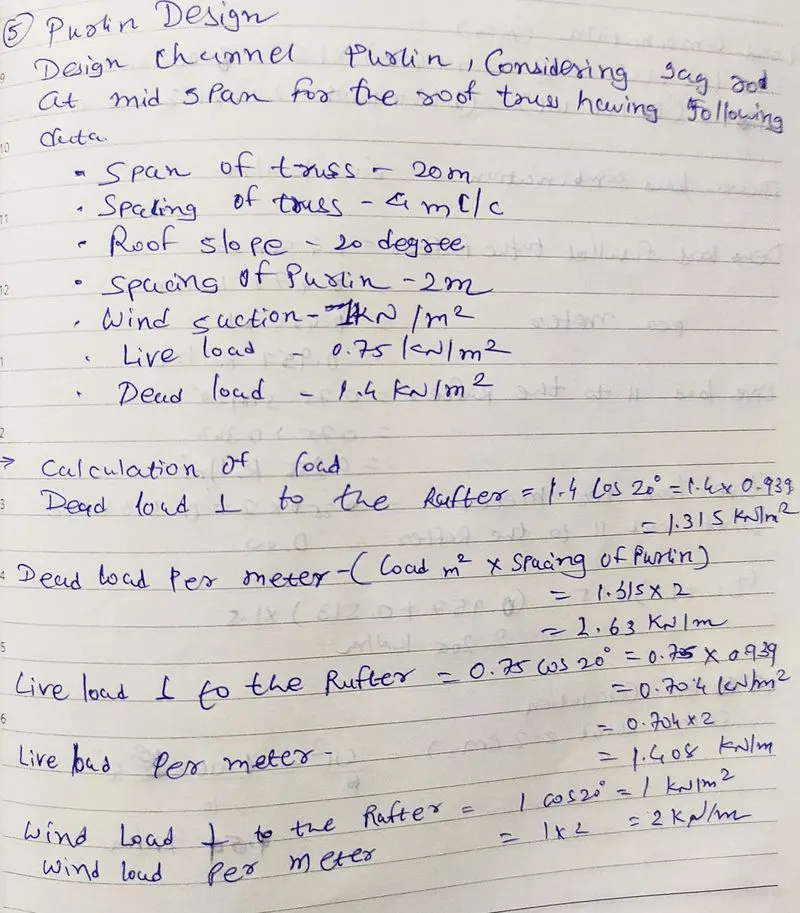

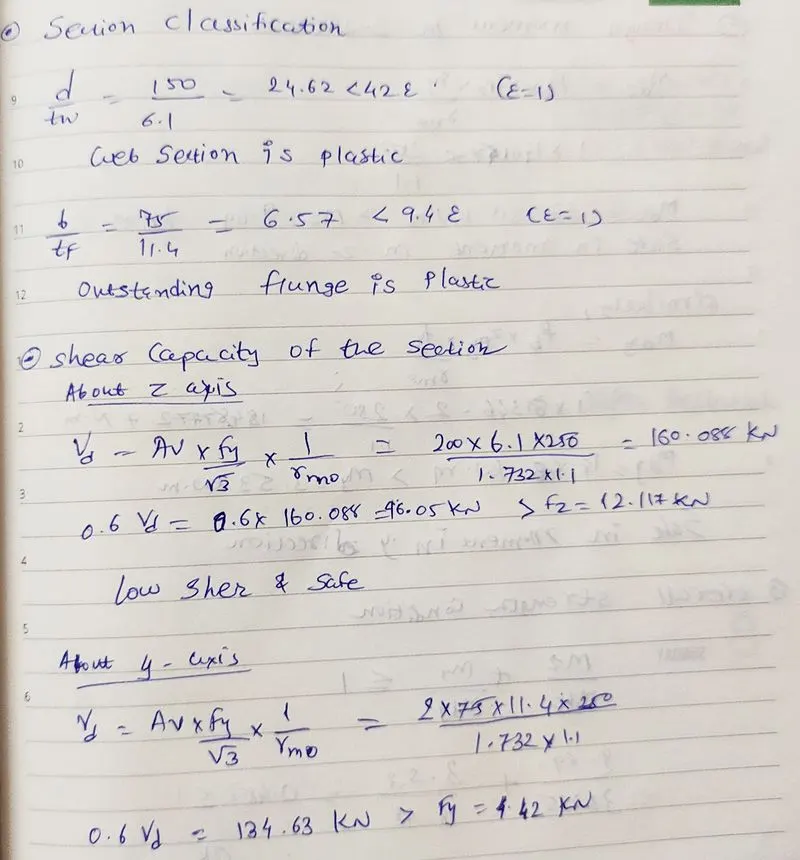

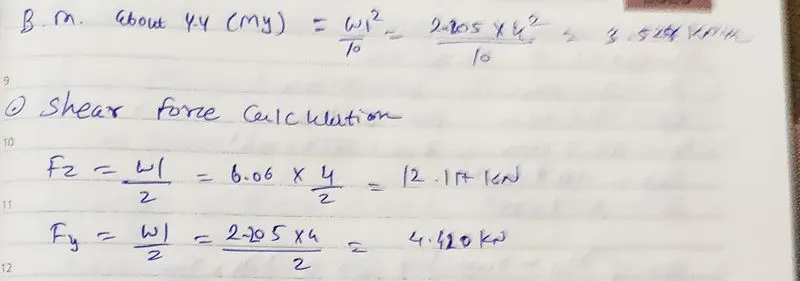

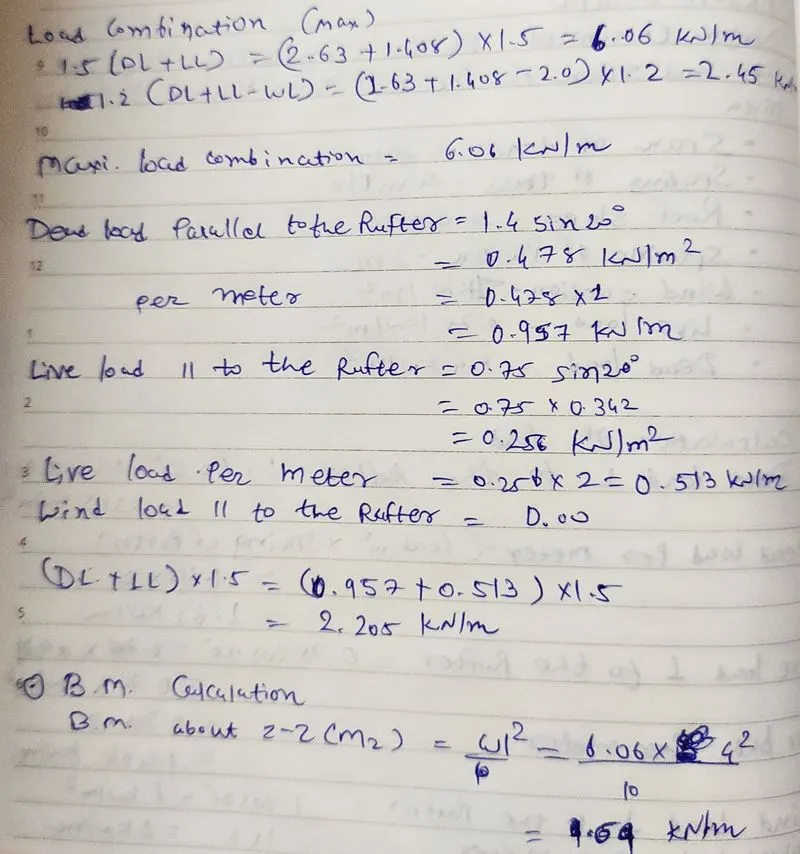

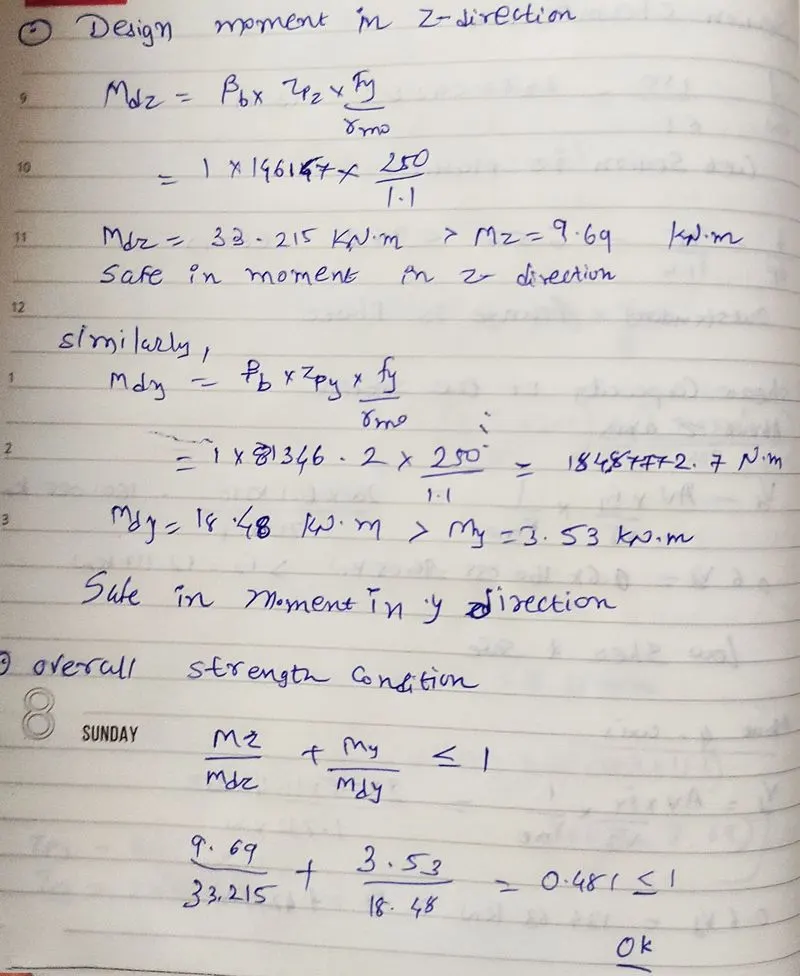

5. Purlin design problem

Design channel purlin, considering sag rod at mid span for the roof truss having following data

• Span of truss : 20 m
• Spacing of Truss : 4 m c/c
• Roof slope : 20 degrees
• Spacing of purlin : 2 m
• Wind suction : 1 kN/m²
• Live Load : 0.75 kN/m² ,Dead Load 1.4 kN/m²
