Week 5 Challenge

Given Data

Bridge Location Mumbai

Brige above to ground Level = 9 Mtr

Bridge is open terrain with well Scattered obstruction of Height ids 10 Mtr.

Pier Size Is 1.5 x 1.5 Mtr.

Sol:-

Mumbai Wind = 44 m/s

As per IS875 Part-3 (Appendix A)

Vz= Vb*K1*K2*K3*K4

K1 = Probability Factor

K2 = Height Factor

K3 = Topography Factor

K4 = Importance Factor

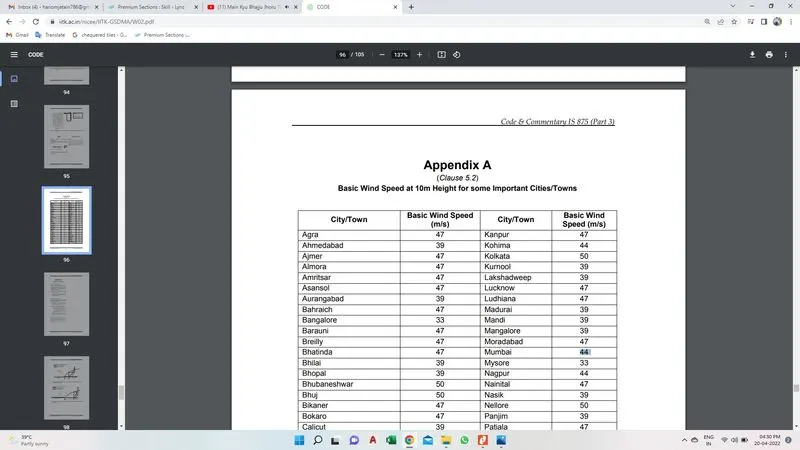

Screen Shot is K1,K2,K3,K4 Table

Vz= 44*1.07*1*1*1.3 = 60.632

Wind Pressure is = 0.6*Vz

= 0.6*60.632= 36.3792

Open Staad Pro .

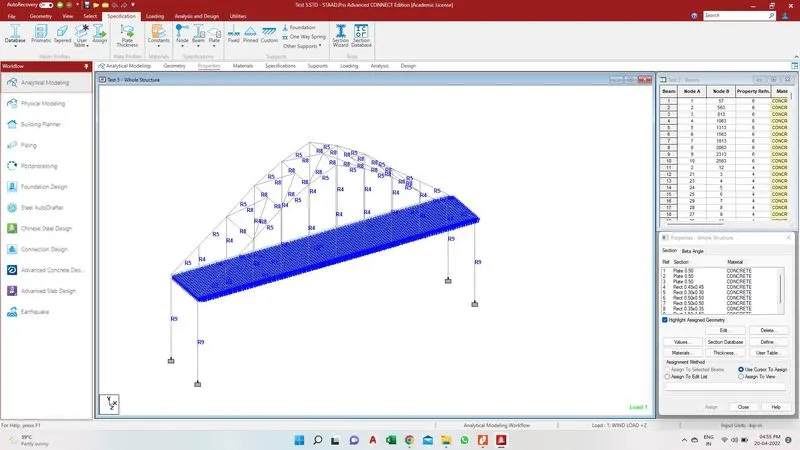

Draw the Bridge

& Going to loading option

& load case details

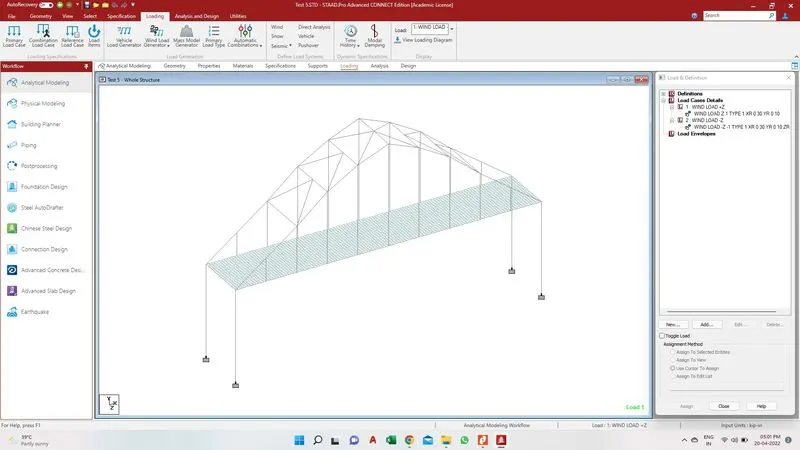

Add the Wind load

+Z

-Z

Side

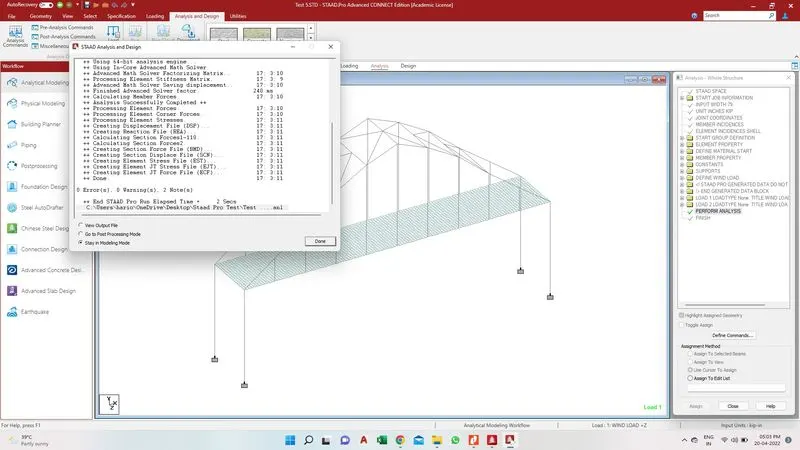

& Run Analysis

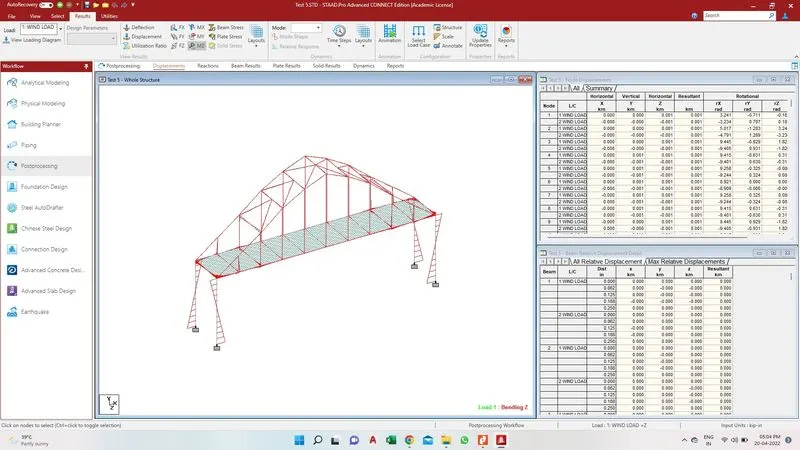

& Show Difflication

Attach the Staad Pro File.

Thank You.
