Week - 5 - 2D meshing for Plastic components

link:https://drive.google.com/file/d/1J_unBCjSdHq3lllDtxYhm2IwDXO0VQw0/view?usp=sharing

Aim: For the given Plastic Bottle Cap model, check for the geometrical errors and take the mid surface by suitable mid surfacing techniques. PID and Thickness assignment has to be done for all the mid surfaces. Mesh the same with the given element Quality criteria. (Refer to the table below for the Quality criteria)

S.No	Quality Criteria	Value
1	Target/Average length	1
2	Minimum Length	0.5
3	Maximum Length	3
4	Aspect	3
5	Warpage	15
6	Skewness	45
7	Jacobian	0.7
8	Minimum Quad Angle	45
9	Maximum Quad Angle	135
10	Minimum Tria Angle	30
11	Maximum Tria Angle	120
10	Tria Percentage	15

Procedure: Opening the cad file in ansa first and then we have to understand the geometry of the Bottle cap model and to anaylaze it.Then performing the topo option to join the different part of bottle cap.After that perform the check geometry there mighty be serval error in the cad file due to format conversion process error should be clear before starting for mid surfaces.after checks geometry we should measure the length of model at different part before performing midsurface.

Topo:

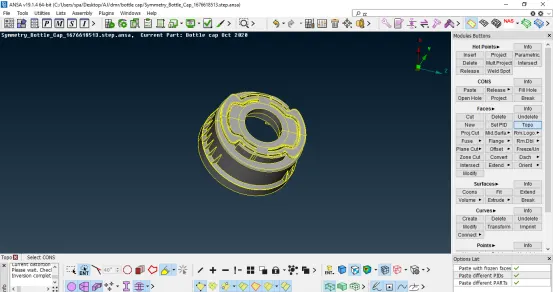

Modules buttons>faces>topo>select model>middle mouse buttons

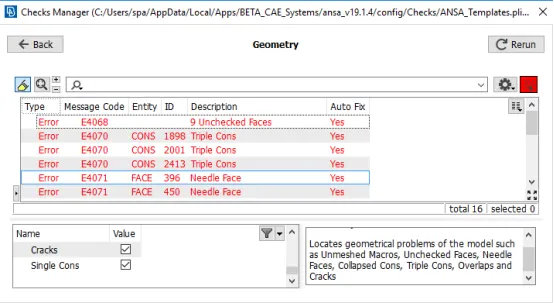

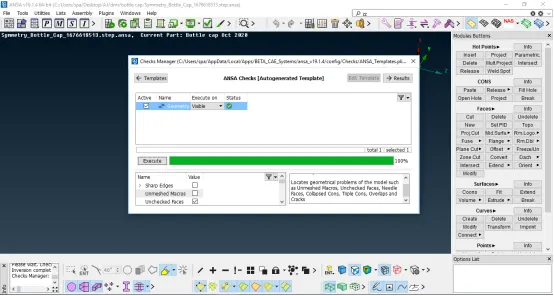

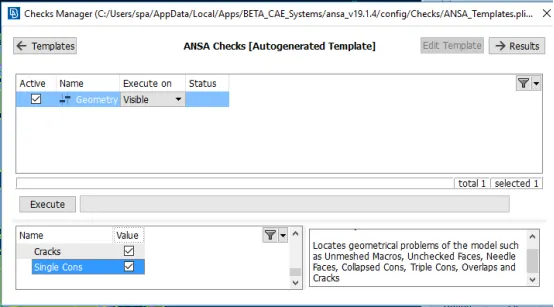

Geometry checks:Tools>checks>geometry>execute button>fix error right click>

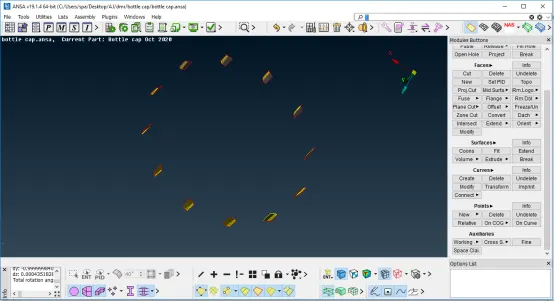

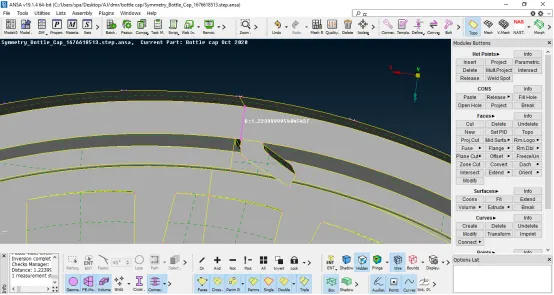

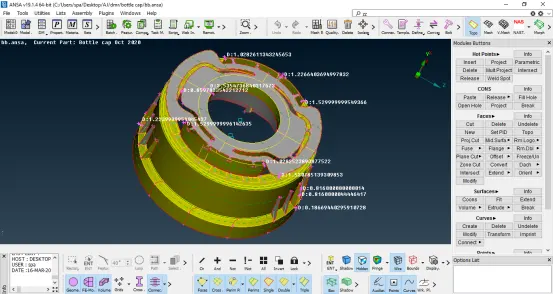

Measure:measure the length at different section of the model

Utilities> measure>nodes

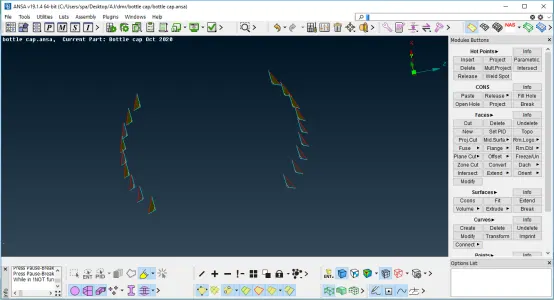

Mid surface:Modules Button>Faces>offset>select the face of model>middle clk>option list> ask always>enter the value

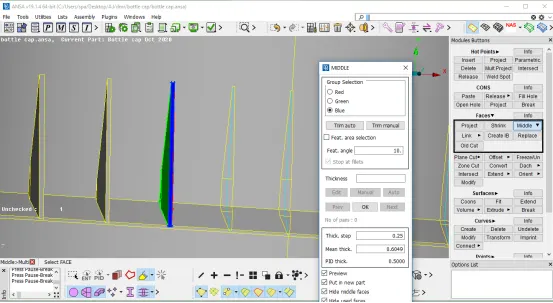

Modules buttons>Faces>Middle>Multi>select the faces by color middle clk ok

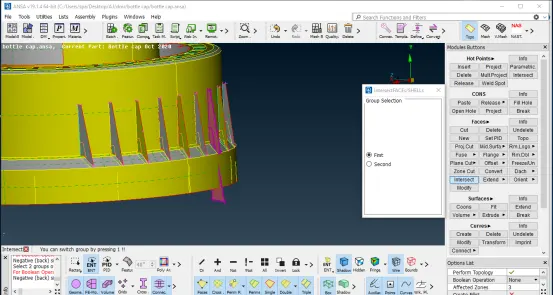

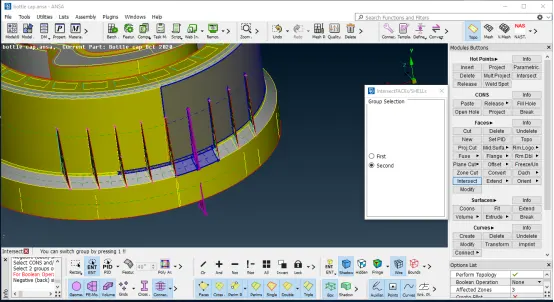

Intersect: modules buttons>Faces>intersect

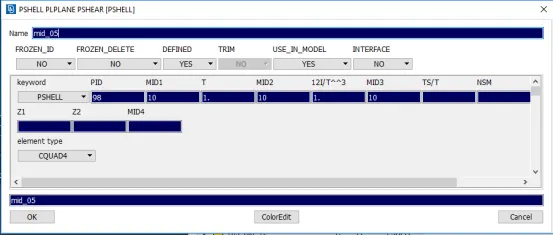

Property Id: ctrl+p>New>pshell>rename it

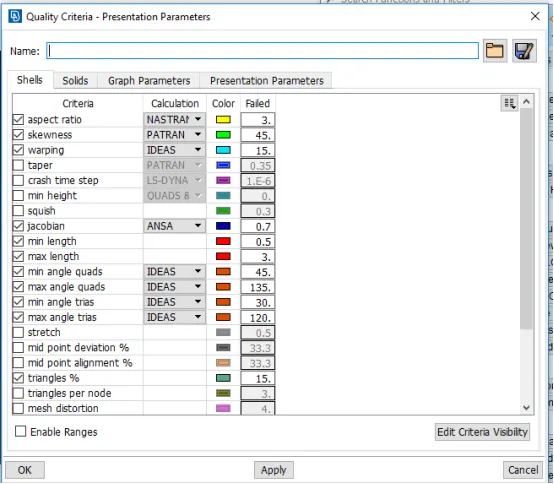

Quality criteria : press f11 and enter the parameter

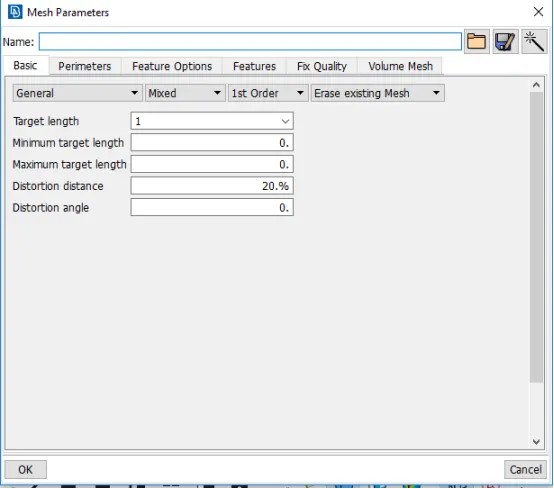

Target length>Mesh parameter

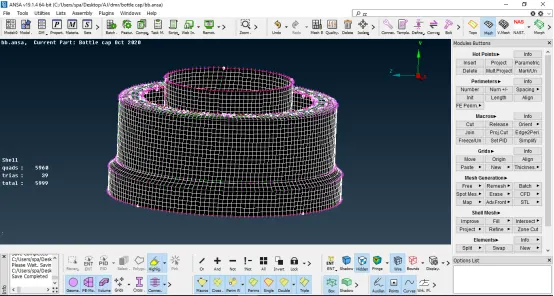

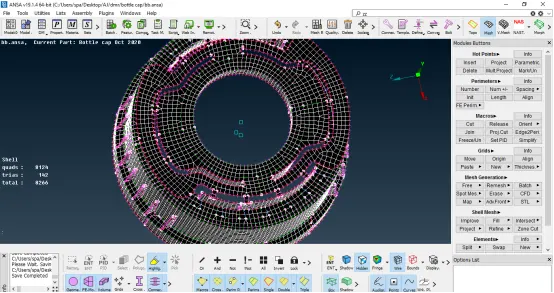

Meshing:

Tools Used:

• Mesh>Modules button>Shell Mesh>Reconstruct>select surfaces>middle mouse button
• Collapse>For oppsite trais>Mesh>Modules button>Shell Mesh>collapse
• Split & Swap

Thank you
