Week 4- Rolling operation

OBJECTIVE:

To simulate the rolling operation on a workpiece and determine the stress, strain and deformation.

METHODOLOGY:

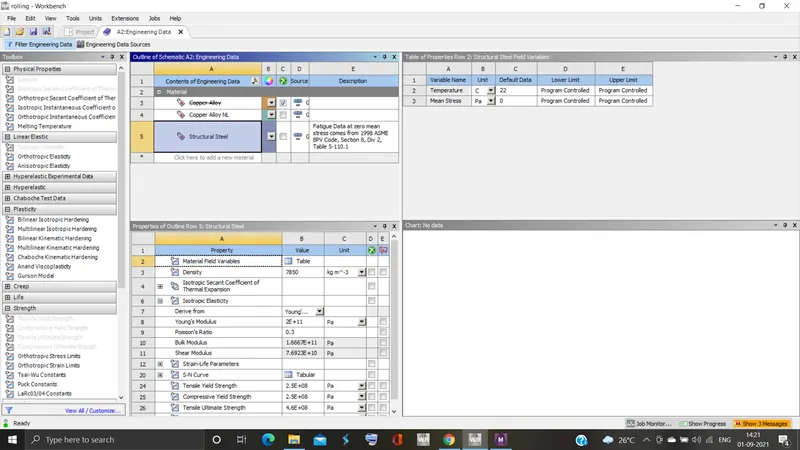

first add the copper alloy NL to the engineering data from the material library.

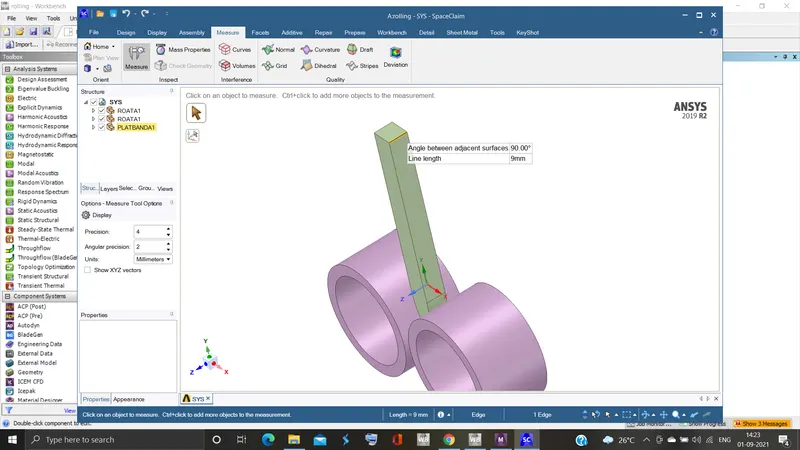

import the geometry to the model and perform the geometry modifications.

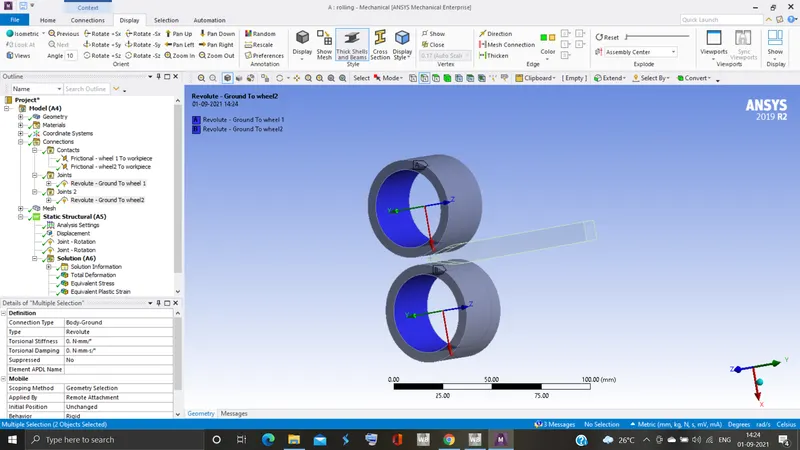

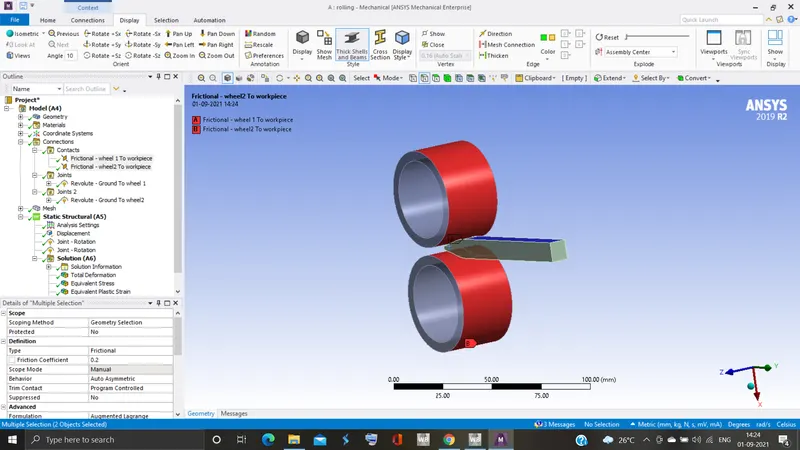

define the frictional contact between the workpiece and the wheels.
give the cylindrical joints to both the wheels.

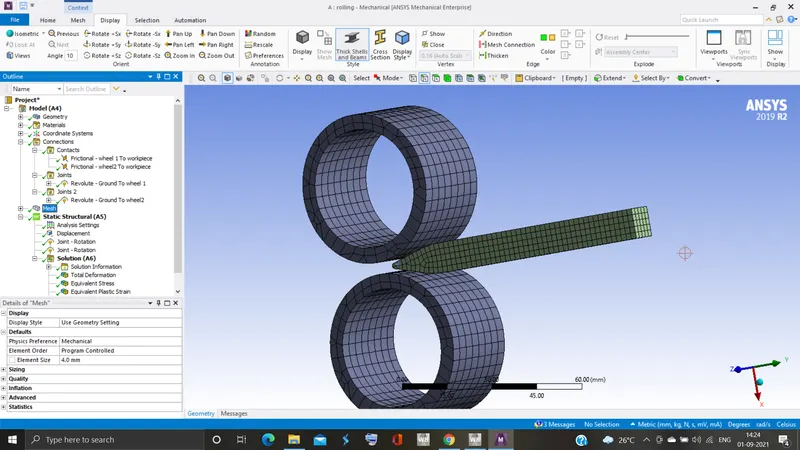

apply the mesh and perform the mesh sizing to the workpiece.

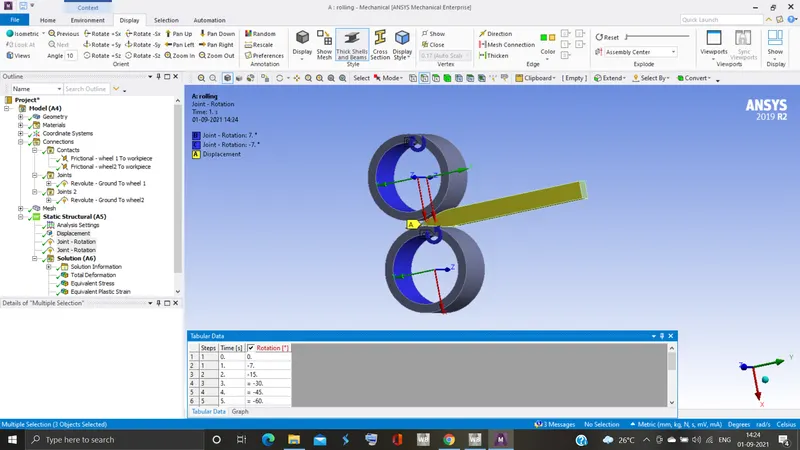

perform the analysis in 14 steps and give the load displacement to the workpiece and joint rotation to the wheels.

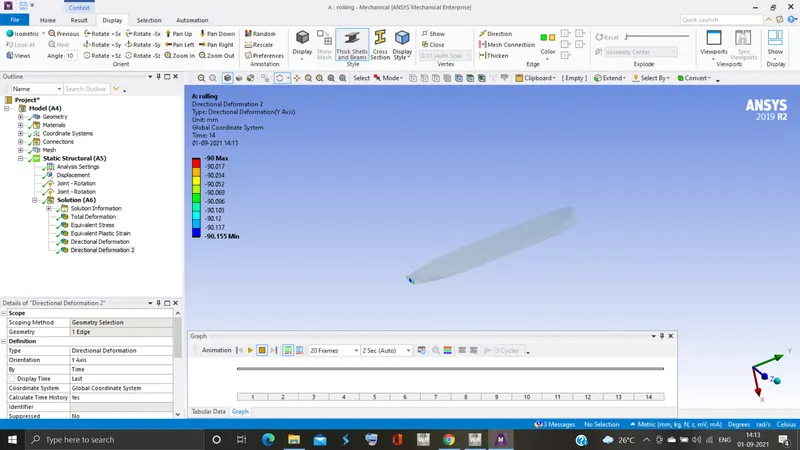

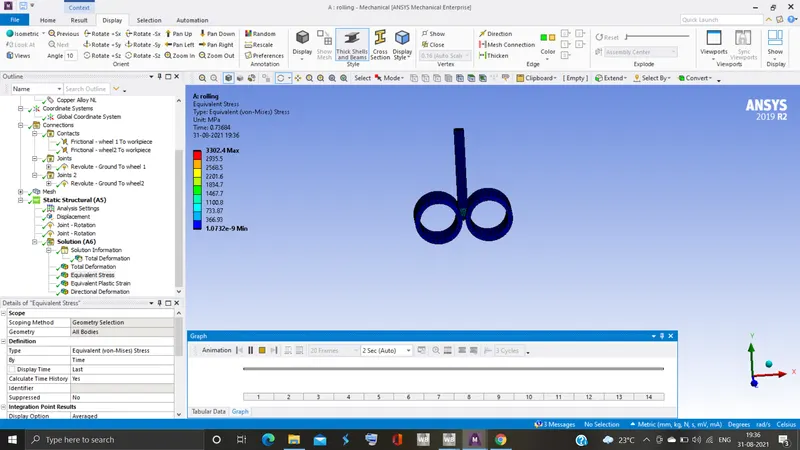

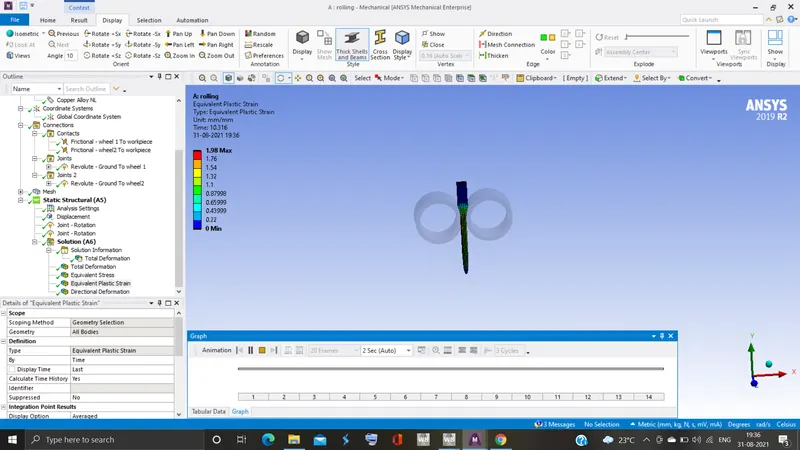

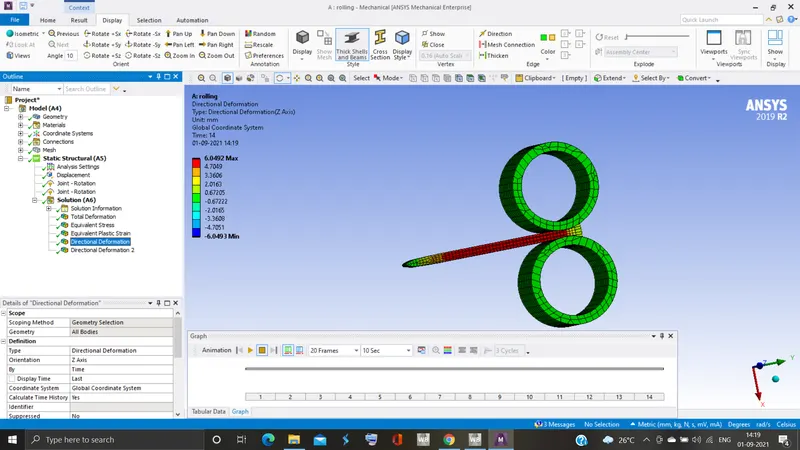

run the simulation and check the results.
