Week 4:- Pin Unit Design Challenge

1) What do you understand by the 3D finish process? - 3D finish is the process where design is being completely finish & to be ready for final simulation & 2D detailing. -                        -…

1)What is the Base Unit? What are the typical parts of the Base Unit? A)Base Unit: A base unit is the unit designed to mount all the other units of the tool,also other parts necessary for a tool like pneumatic valve box,trunking cable path will also be mounted on to a base unit. Below are the some parts of a base unit…

BJECTIVE: To design 3 different types of power clamp unit with different riser, blade and clamp arm & to design 2 Different types of rest Unit for the given Car Panel. ABSTRACT: In this project I have designed a different types of power clamp unit by validating a power clamp cylinder and by considering…

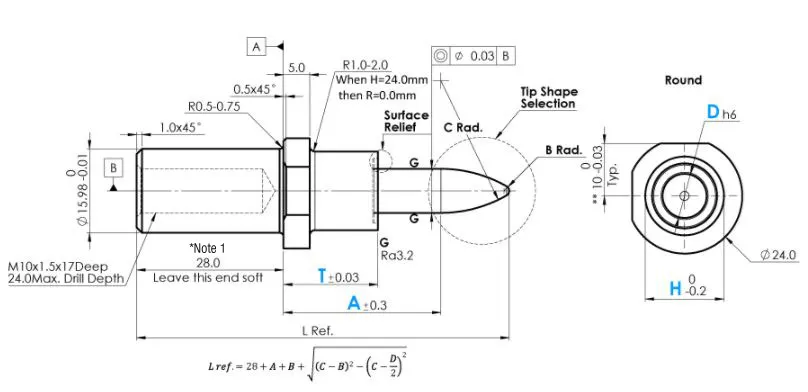

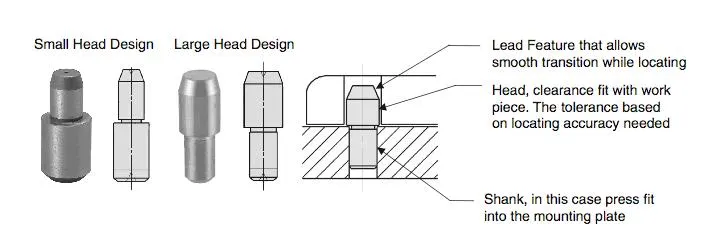

OBJECTIVE: To design 2 different types of fixed pin unit with different pins, riser, blade & block and 2 different types of retractable pin unit with different pins, riser, blade, cylinder & block. SOFTWARE USED: CATIA V5 FORMULA & CALCULATION: Formula to calculate the length of the screw, Length of the screw = [1.5 X…

OBJECTIVE: To design 2 different types of fixed pin unit with different pins, riser, blade & block and 2 different types of retractable pin unit with different pins, riser, blade, cylinder & block. SOFTWARE USED: CATIA V5 FORMULA & CALCULATION: Formula to calculate the length of the screw, Length of the screw = [1.5 X…

  Design methodology is the steps that is needed to be followed during the concept stage of design . Purchase order - It is the first official document that  we will receive from customer side , this document will basically give a confirmation to us that the customer has agreed to our deal and we can start…

Begin work. Manage workflow for all project tasks. Issue management. Risk management. Manage change orders. Manage project communications with all stakeholders. Verify when milestones are reached. Conduct gateway reviews as required. JOINING PROCESSES• Joining includes welding, brazing, soldering, adhesive bonding ofmaterials.•…

Body in white (BIW) is the stage in automobile manufacturing in which a car body's frame has been joined together, that is before painting and before the motor, chassis sub-assemblies, or trim (glass, door locks/handles, seats, upholstery, electronics, etc.) have been integrated into the structure.     BIW…

Objective:      To design of Butterfly Valve in appropriate dimension with the application of GD&T - ASME Y14.5 2009. To assemble all the individual parts of the butterfly valve by assigning suitable constraints. To understand the concept of geometric tolerance and dimensioning.    Softwares Used Siemens NX 2019 Introduction…

                                                                                           …

defining step -1 ;create points &axis system at center on connector connection side in part desgin workbench &ensure y axis normal to faces x axis along he locking direction  step 2    -      ;   create point at center on bundle connection sie  step 3          ;    switch into eletrical part desgin work bench and define…

aim ;  to route two eletrical harnesses as per the given layout &interconect them as single harness assembly and check their bundle continuity & given annotation to final assembly objective ;  to route harness assembly ap per given layout a& b total 8 types connectors given shown in above layout a & b placed at numbers…

1st open connectors (DT06-08SA)into catia v5 and define it as per the mentioned bloe steps . defining step -1 create point &axis system at center on connector connection point in part desgin workbench & ensure y axis axis normal to face &x axis along the the locking direction. defining step -2 create…

 1    we have to download the cad 3d model of p-clamp from the link which is provided above.extract the zipper file and open it in the catia v5 . open the catia v5 and click on file >open>click on the extracted file . the 3d cad model is appered on the screen .click on start >go to part design …

 Back door design      objective      ude the provided styling surface to come up with a back door design,use appropriate design methodligies and provide the necessary reinforcements and embosses   software used     nx cad  backoor introduction   …

aim'   to define connector and cavity clamp eletrically and store in cataloge.       steps for define connector eletrically open iges/step file and save to catpart add points at the location of bundile entry connector connection ponit. add axis systems at connector connection point  open eletrical…

introduction               roof of an automobile sits above the passenger compartment.roof houses the vehicle as a shelding part which safegurds the occupants from sunlight,heat,rain,wind,dust and other external elements.in case of convertibiles.it is called roof.     in the…

section modulus; section modulus is also referred to as the polar modulus or the torsional sectional modulus.it is denoted by Zp.section modulus is the geometric property of the of the given cross-section of any shaft or beam structures.it is the direct measure of the strength or the beam section.higer the section modulus…

introdution. fender is the metal structure that frames whell of the car.its part which comes in contact with the different parts of the vechiles such as A piller,still,drip,area,bumper and body of the vechile.wheel arch compenent aalso fitted to the front fender portion. main funtion is to sand,mud,water or other liquids…

fender wheel Arc desgin in europin standard .               Main function is to prevent the sand,mud,water or other liquids and other small road spray being thrown by air into the engine or pedestrain compartment. Material suggested . aluminium, plastics,magnesium,and fiber materials.…

what is the hood .           The hood is an opening boad panel that covers the engine vechile .the hood is also considered as another type of door in a vechile as it consists of an outer panel and inner panel the inner panel provides the strength while the outer panel functions as the metal…

                 underbody coating.         in Indian road conditions a car underbody is most prone to corrosion.underbody coating provides long term protetion corrosion to cars underbody.it also protects parts like internal body panels from vails and other…

                  what is benchmarking Benchmarking is a process where you measure your company success against compettiors to discover how to improve your performance.                  benifits of benchmarking competitve analysis.…
