Week 4:- Pin Unit Design Challenge

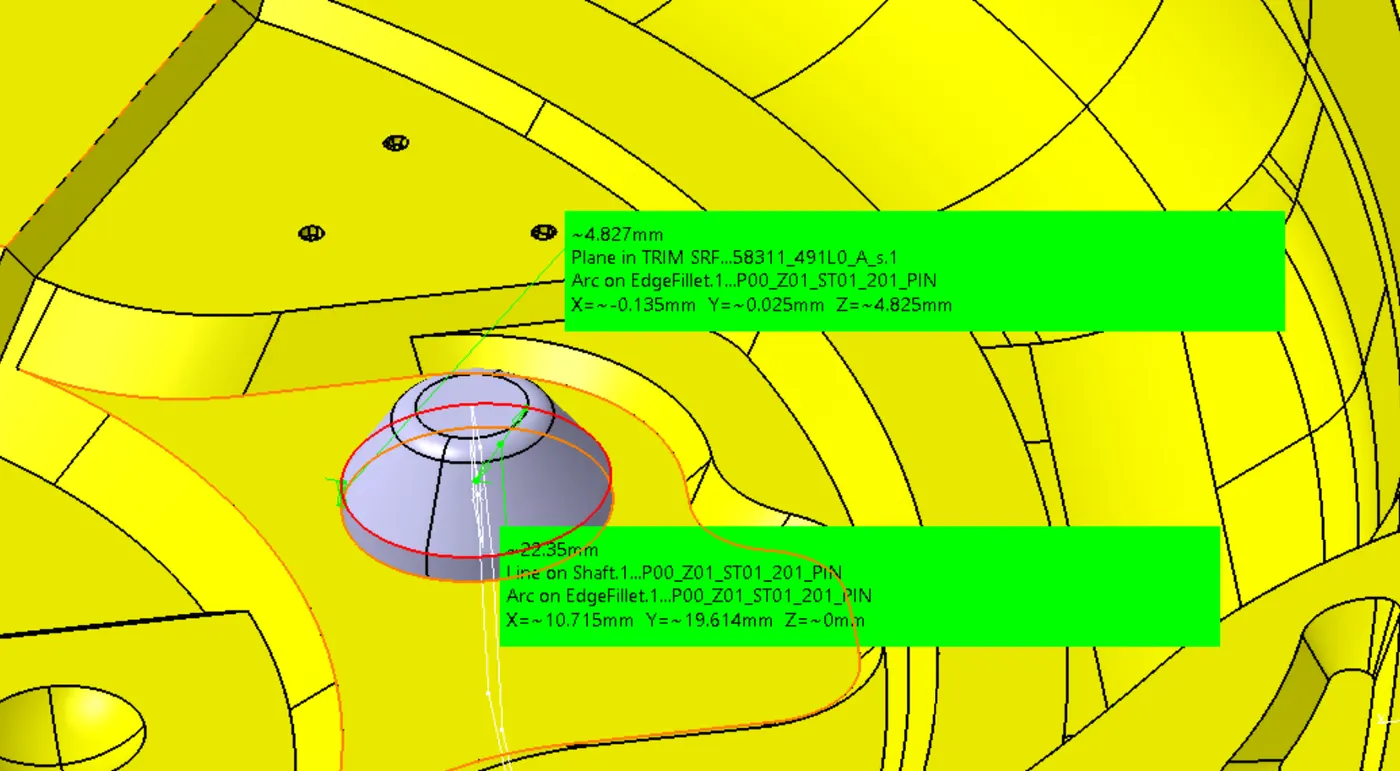

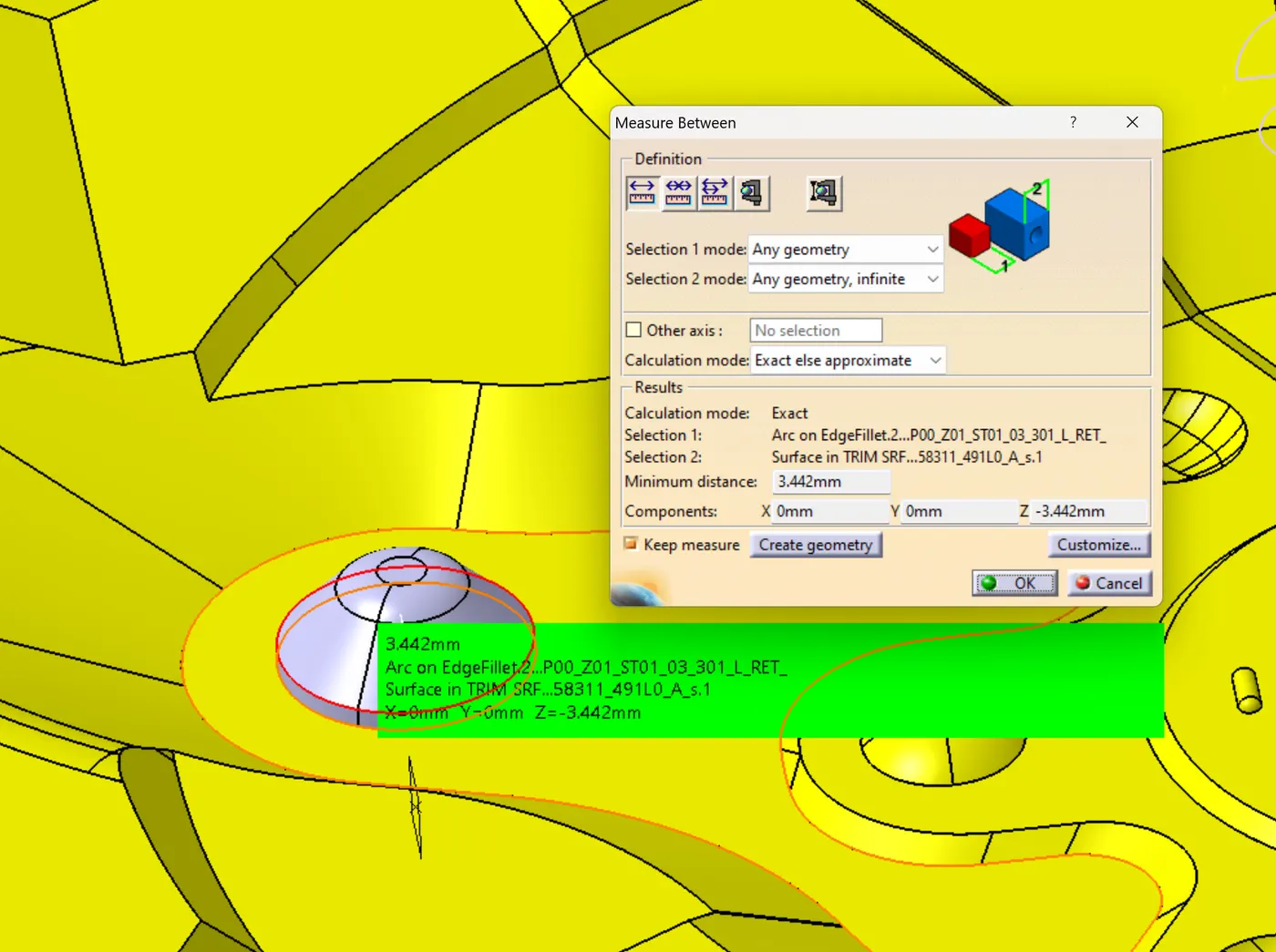

IN THE ABOVE PICS REPRESENTING THAT HOW MUCH PIN ENGAGES INTO A PANEL HOLE: ACCORDIING TO STANDARD THE PIIN SHOULD ENGAGE ATLEAST 3 TO 5MM

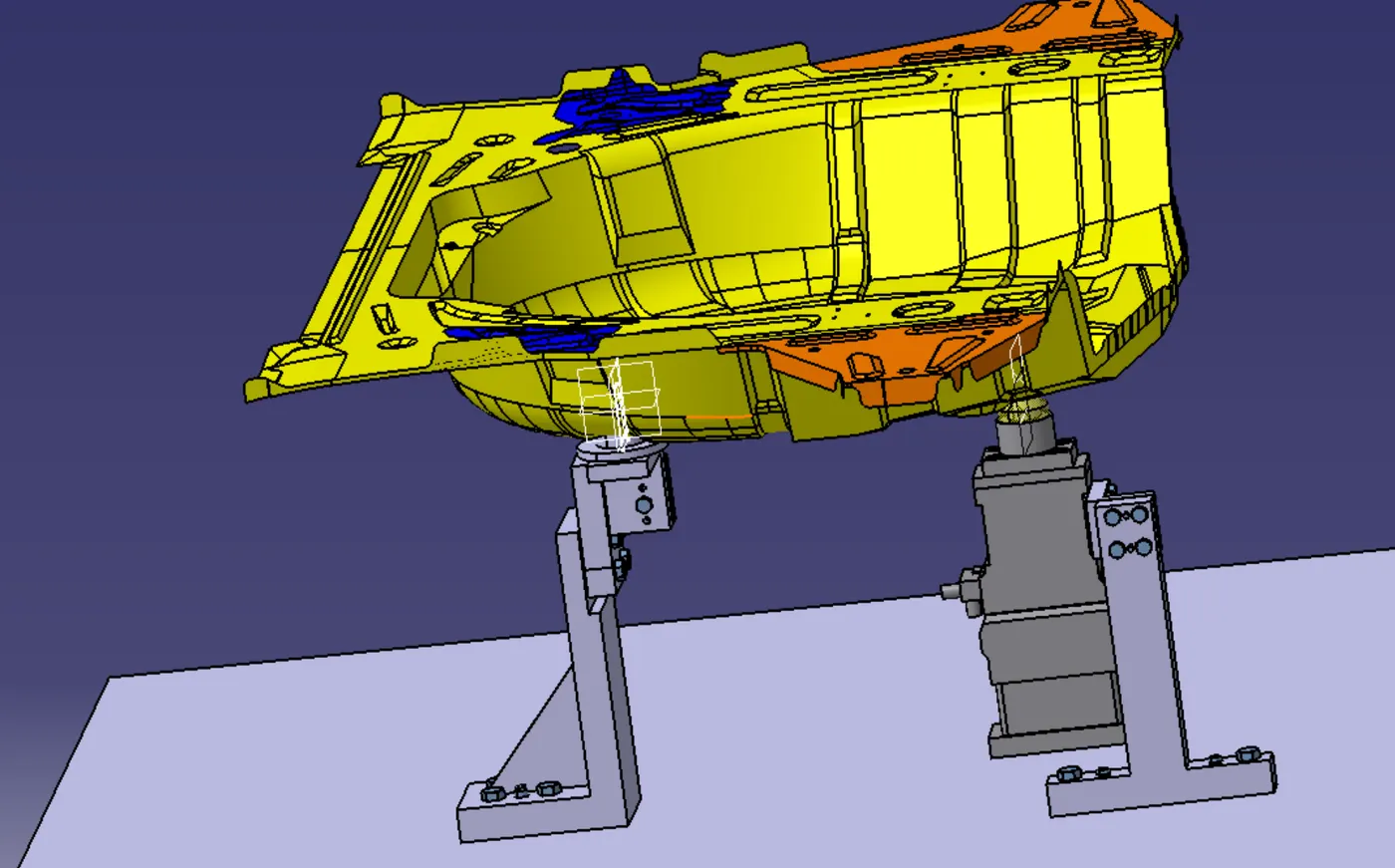

IN THE ABOVE PIC WE CAN SEE TWO DIFFERENT PIIN UUNITS ONE IS FIXED PIN UNIT AND ANOTHER IS RETRACTING PIN UNIT

BOTH FIXED PIN AND RETRACTING PIIN UNITS ARE BASICALLY USED FOR ARRESTING THE DEGREES OF MOTION BUT BOTH ARE USED IN DIFFERENT CONDITIONS ACCORDING TO REQUIREMENT.

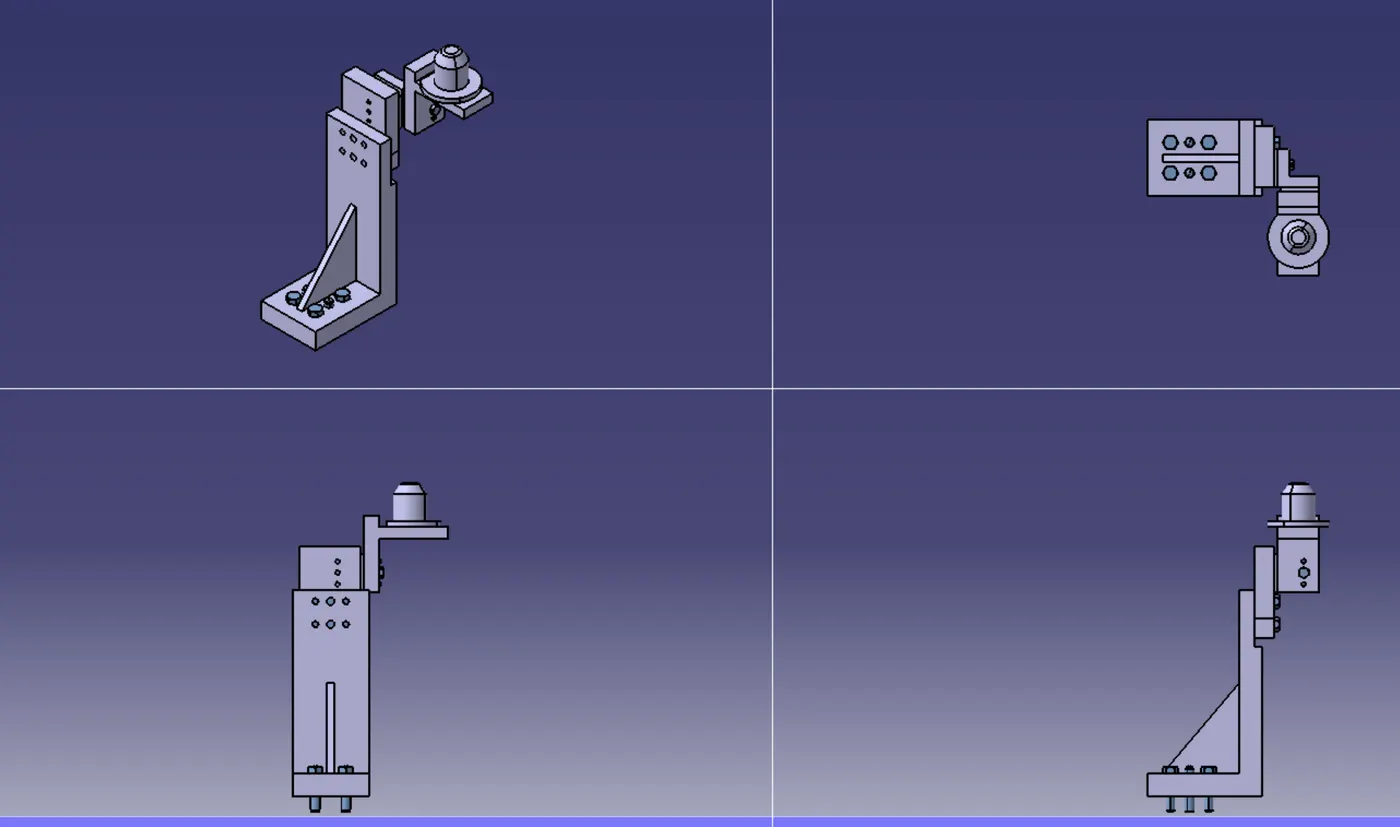

IN THE ABOVE IMAGE WE CAN SEE THE ALL THE VIEWS SUYCH AS TOP, BOTTOM, SOIDE AND ISO OF FIX PIN UNIOT

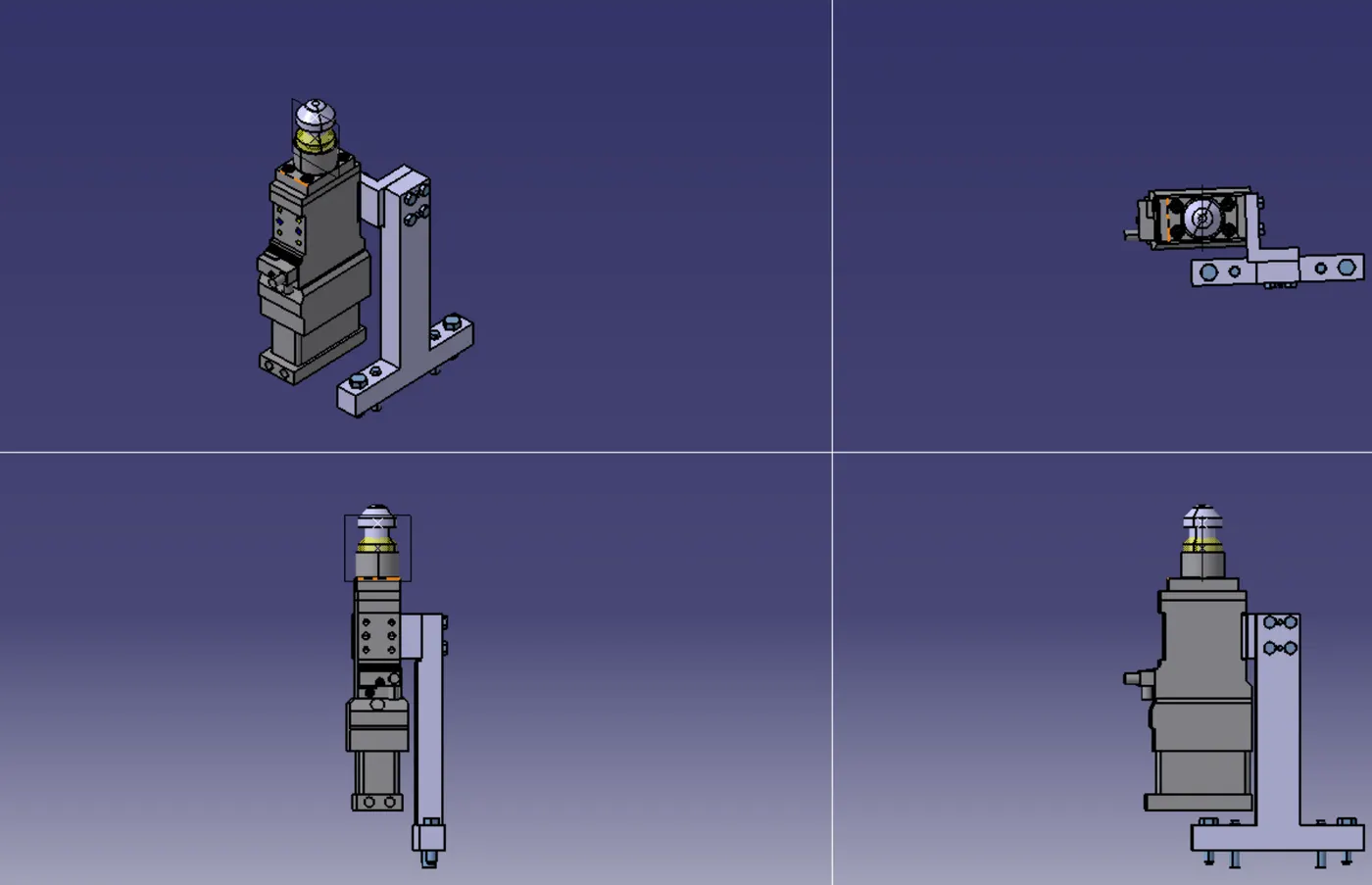

IN THE ABOVE IMAGE ONE VCVAN SEE GTHE HOW A RETRACTING PIN UNIT LOOKS LLIKE AND ACCORDING TO CYLINDER STROKE RETRACTING OF PUIIN DEPENDS AND ACCORDING TO THE SUPPLIER TOO.

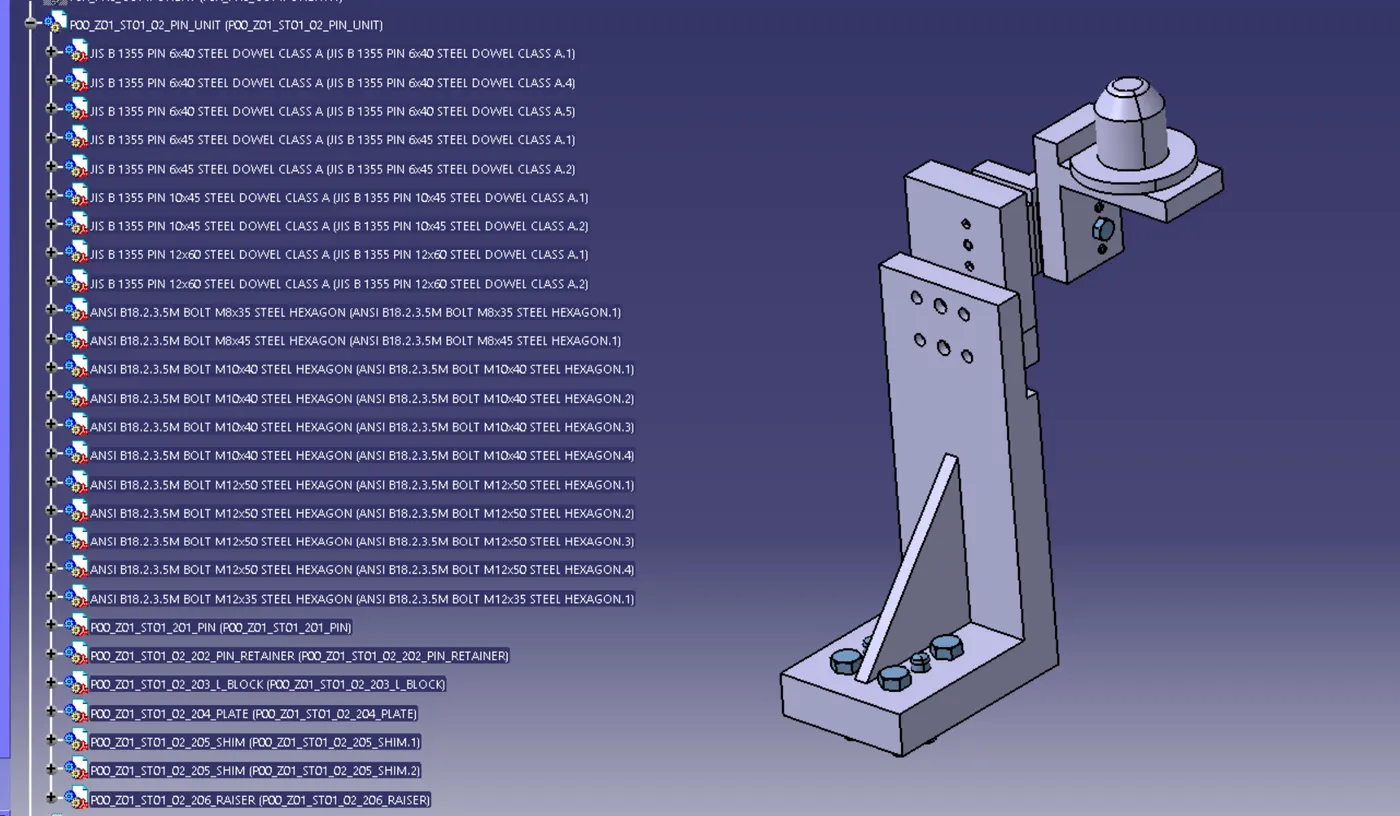

IN THE ABOVE INMAGE ONE CAN SEE HOPW I STRUCTURED THE TREE FOR FIXED PIN UNIT

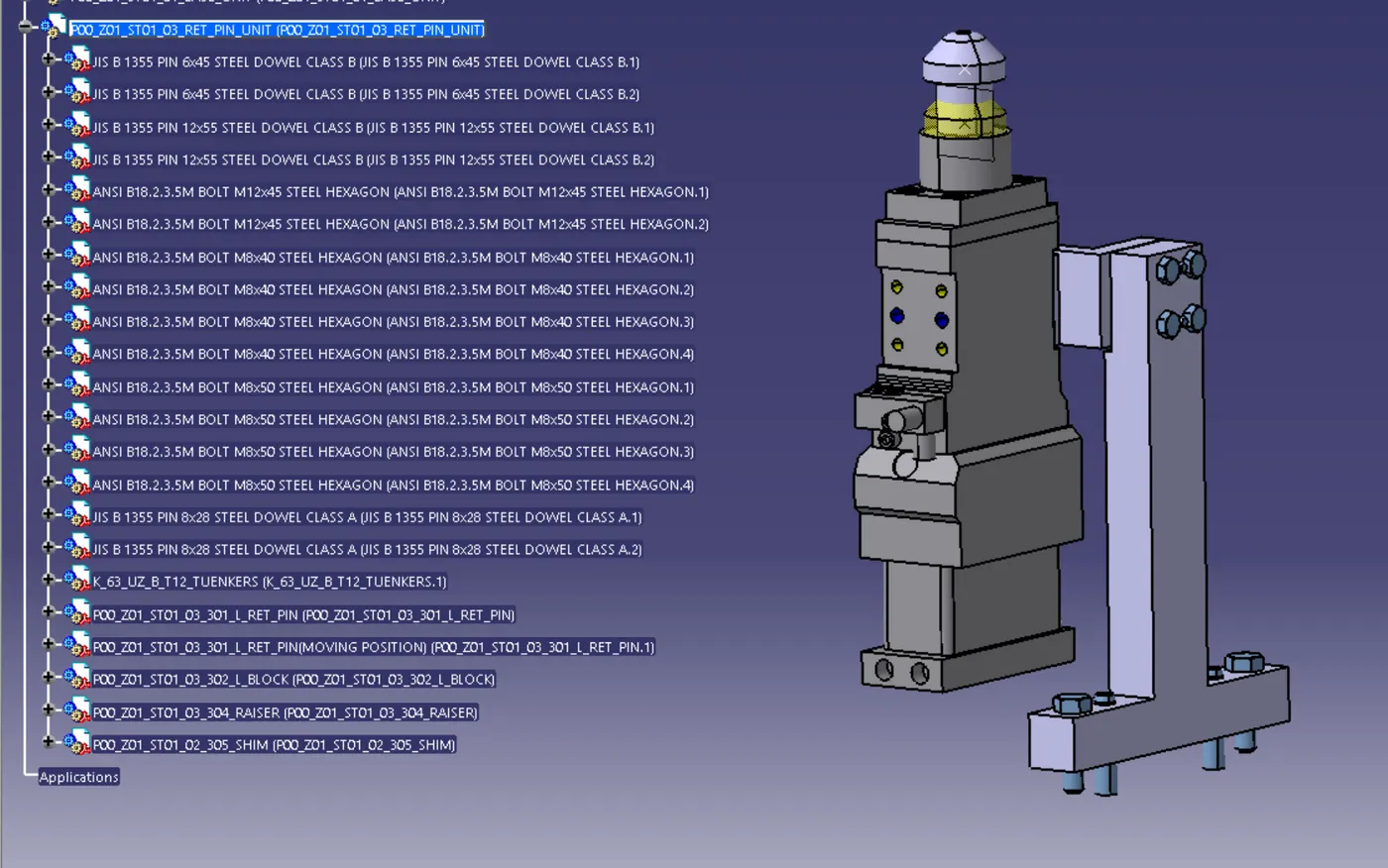

IN THE ABOVE INMAGE ONE CAN SEE HOPW I STRUCTURED THE TREE FOR RETRACTING PIN UNIT
