Week 4- Meshing of Backdoor Challenge

Objective: To generate midsurface and mesh the given backdoor sheetmetal component and assure good flow of mesh as well as quality criteria.

procedures:

topology cleanup

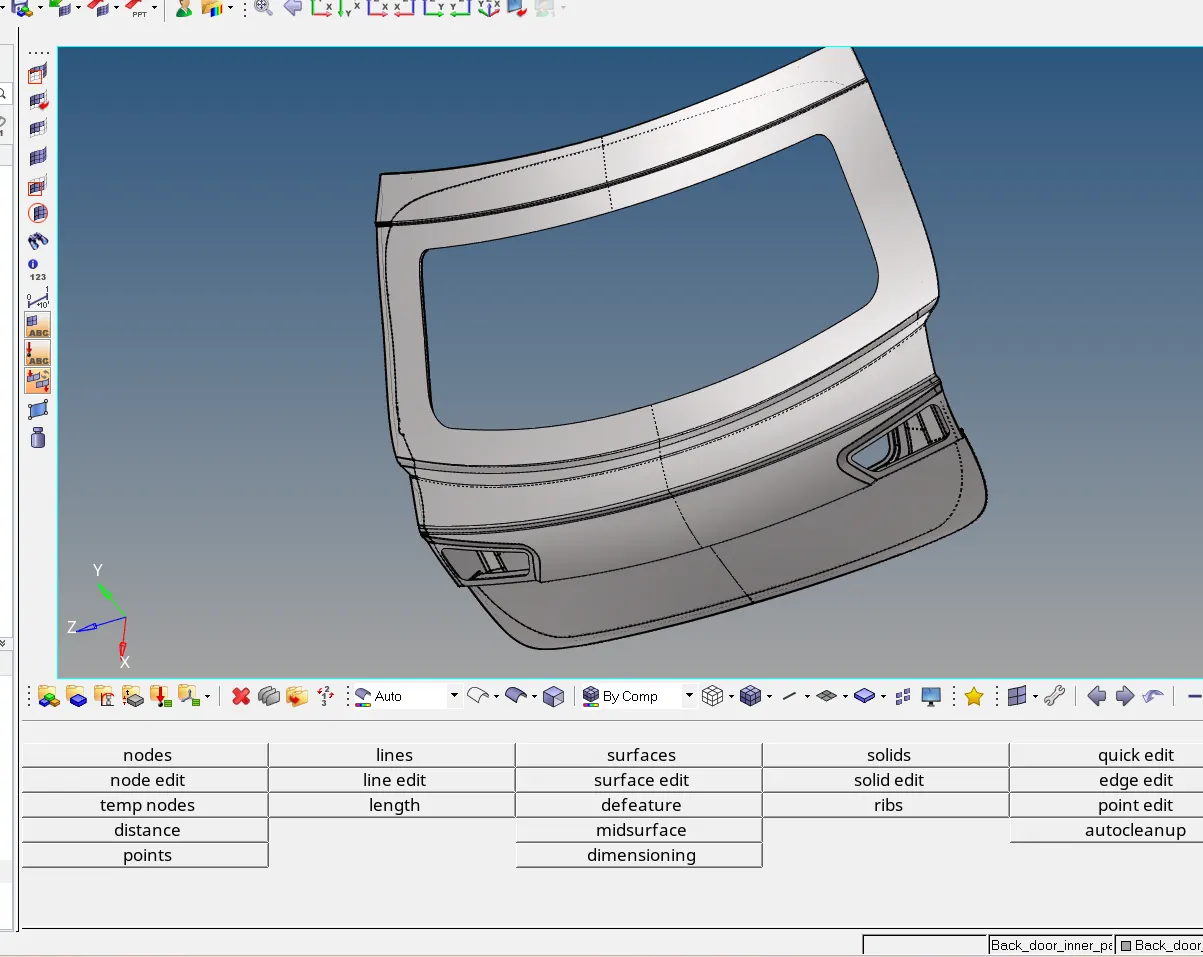

the given cad model while on topology clearance

midsurface extraction

lot of complicated fillets, so we need to extract the fillets seperately.

extracted midsurface below

meshing

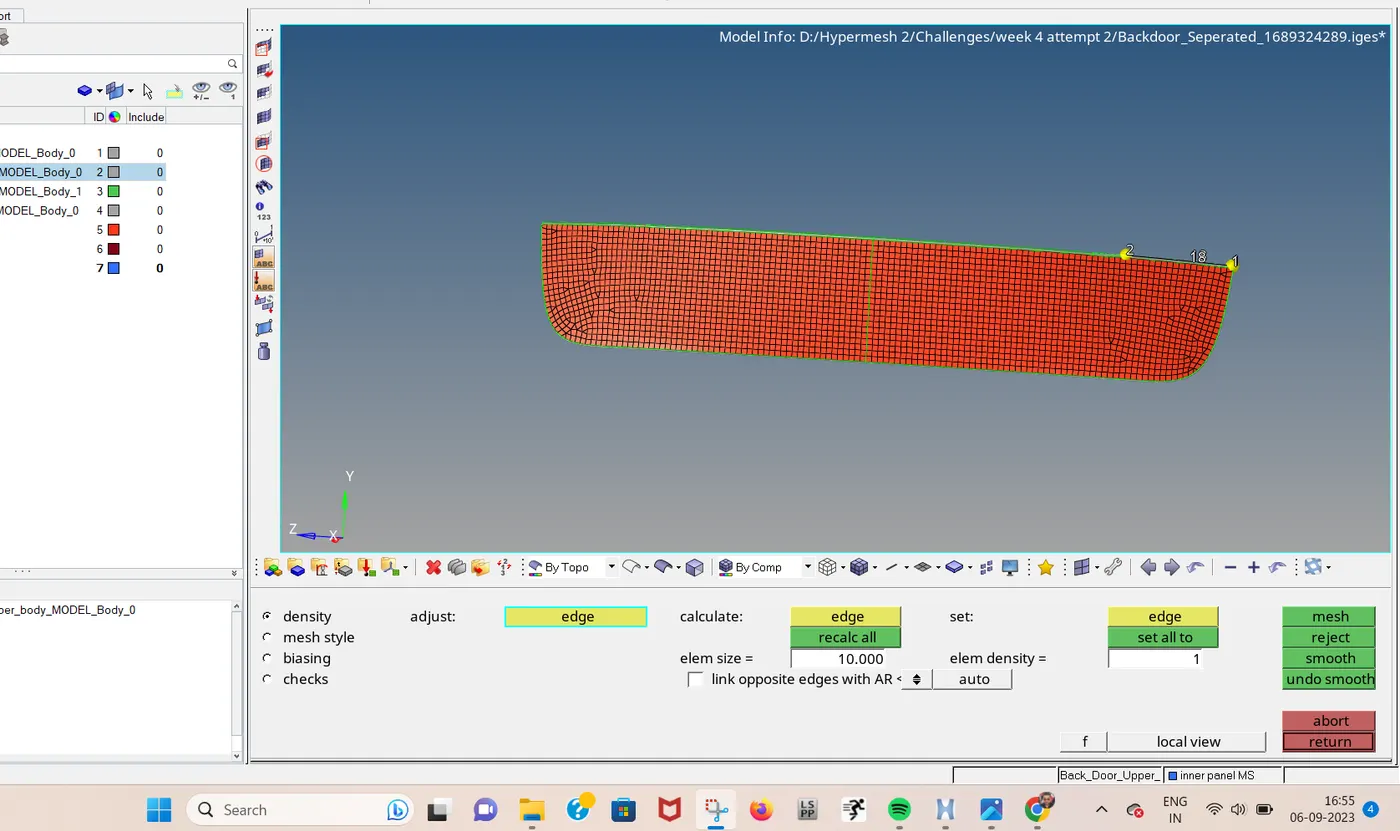

meshing parts one by one

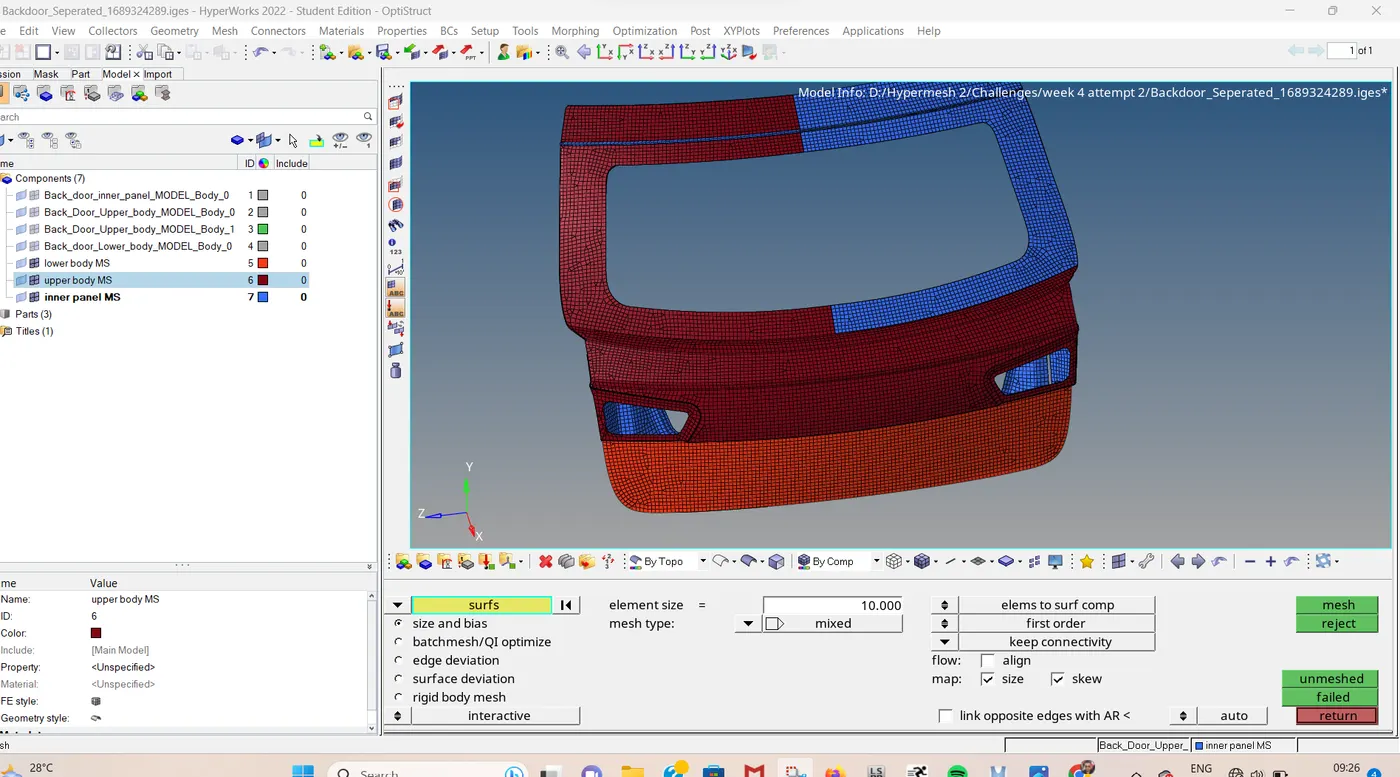

final mesh

i couldnt submit the final model file through site, so i am providing the final model link below

Final model link: https://drive.google.com/file/d/1EToDtOTEe3RV7i3U0uFWnKil5mGQ0I-x/view?usp=drive_link
