Week - 4 - Crash Box Simulation

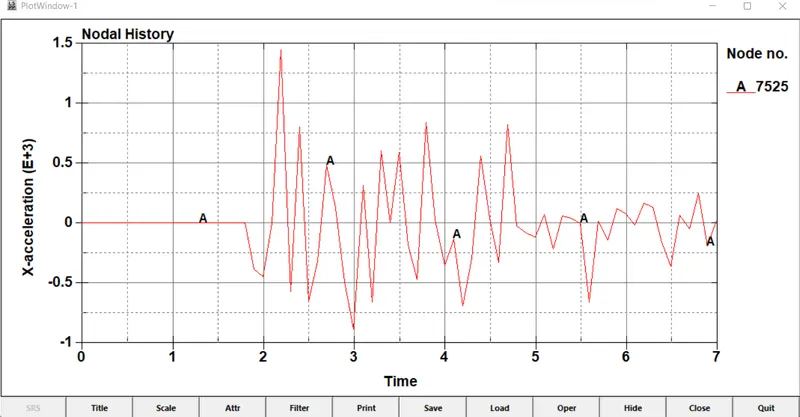

X_Acceleration plot of Node No 7525 for the crash box with thickness 1.2 mm

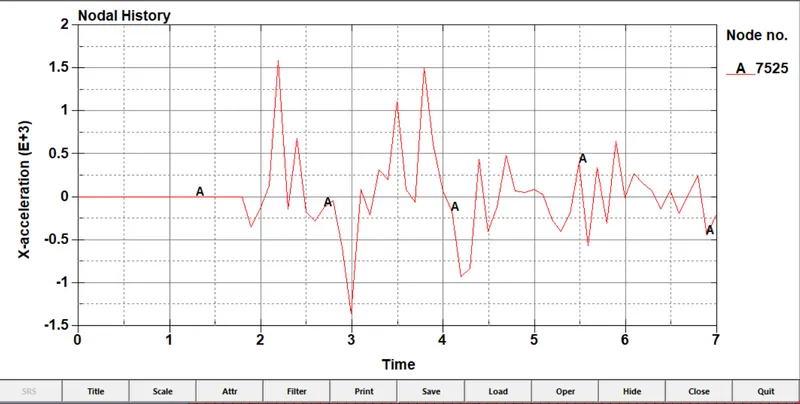

X_Acceleration plot of Node No 7525 for the crash box with thickness 1.5 mm

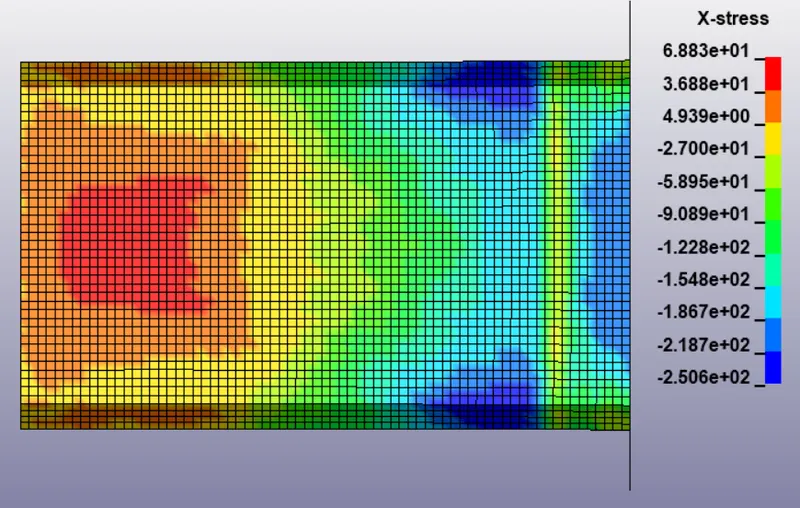

Directional X-Stress upon collision with Rigid Wall of the Crash Box with thickness 1.2 mm

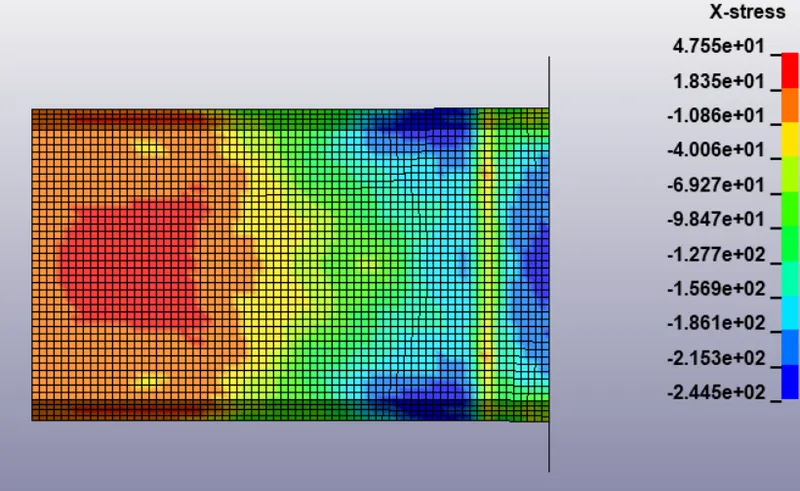

Directional X-Stress upon collision with Rigid Wall of the Crash Box with thickness 1.5 mm

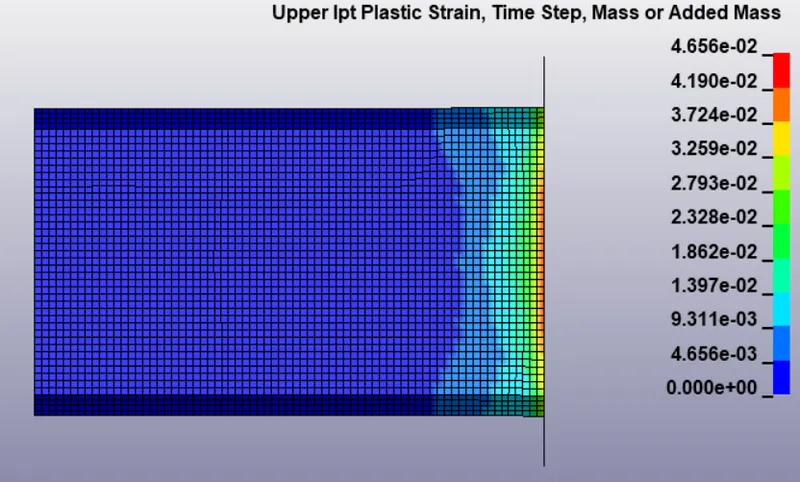

Plastic Strain upon collision of crash box with thickness 1.2 mm

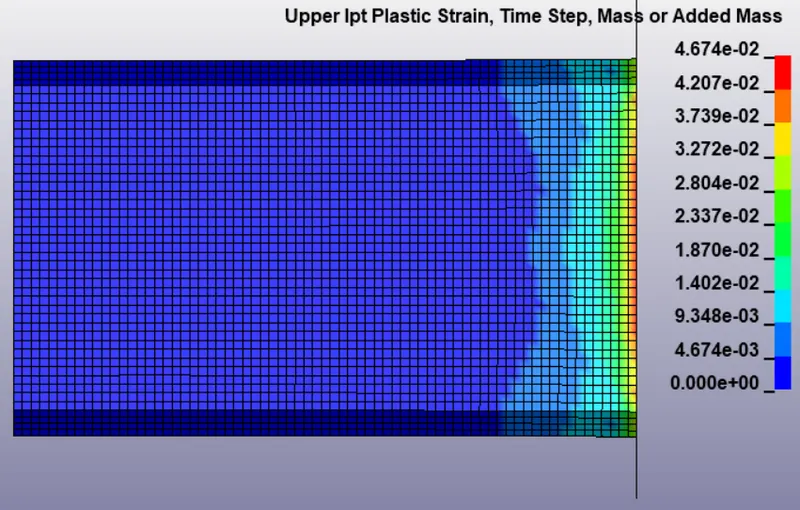

Plastic Strain upon collision of crash box with thickness 1.5 mm

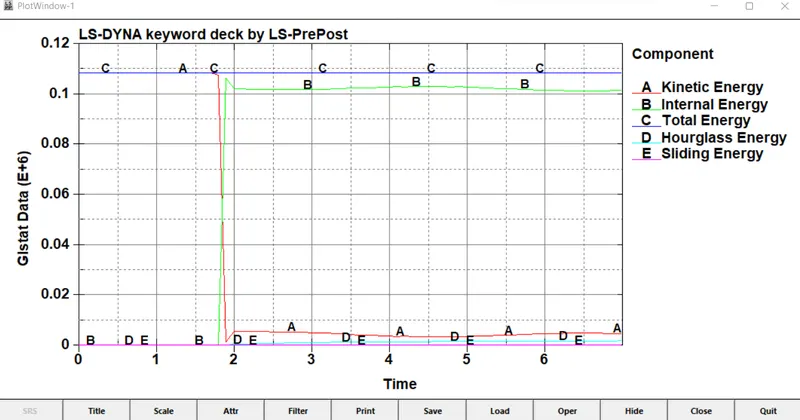

Kinetic, Inernal, Hourglass, Sliding & Total Energy of crash box with thickness 1.2 mm

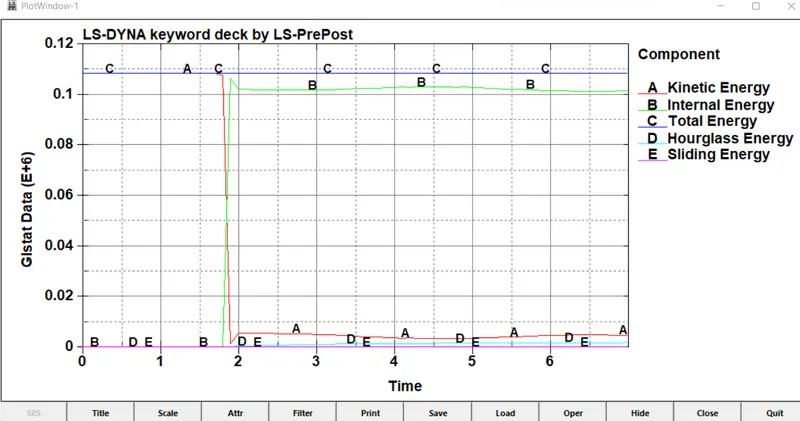

Kinetic, Inernal, Hourglass, Sliding & Total Energy of crash box with thickness 1.5 mm
