Week-4 Challenge WOT Condition Part-2
ANS-1 :-
The only difference between the mapped and dynamic is that,
dynamic model represent the actual components
and mapped model run based on data even in the lookup that
we can change the model type,
for example,
in ev model by following the path we can change the model type
For EV :-
for motor

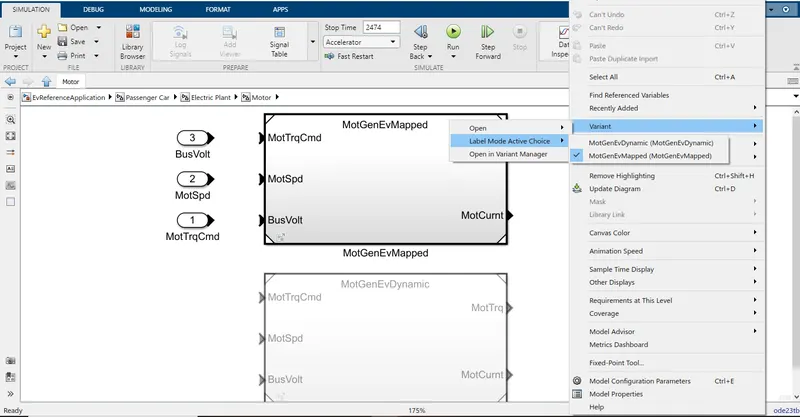

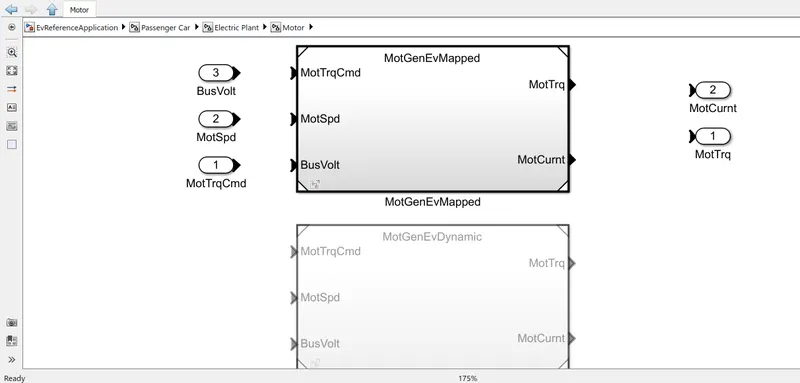

EvReferenceAplication>>Passanger Car>>Electric Plant>>Motor
in this subsystem
right click in model and folow the path as mentioned in screenshot
by following this we can change the model type
For HEV :-
for generator

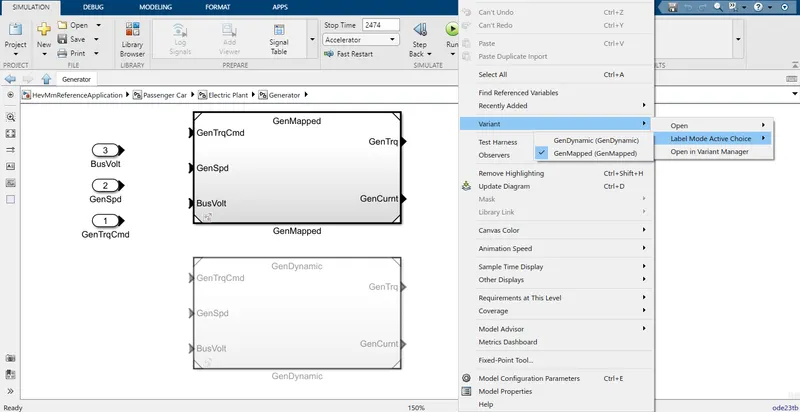

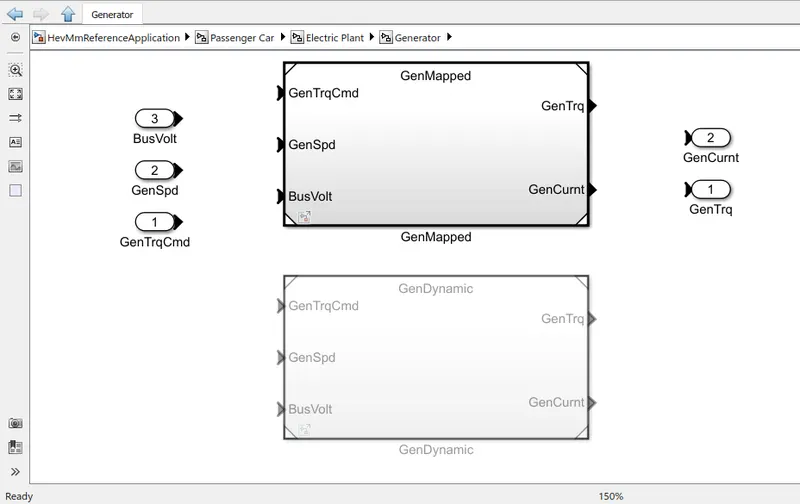

HevReferenceAplication>>Passanger Car>>Electric Plant>>Generator
in this subsystem
right click in model and folow the path as mentioned in screenshot
by following this we can change the model type
for engine

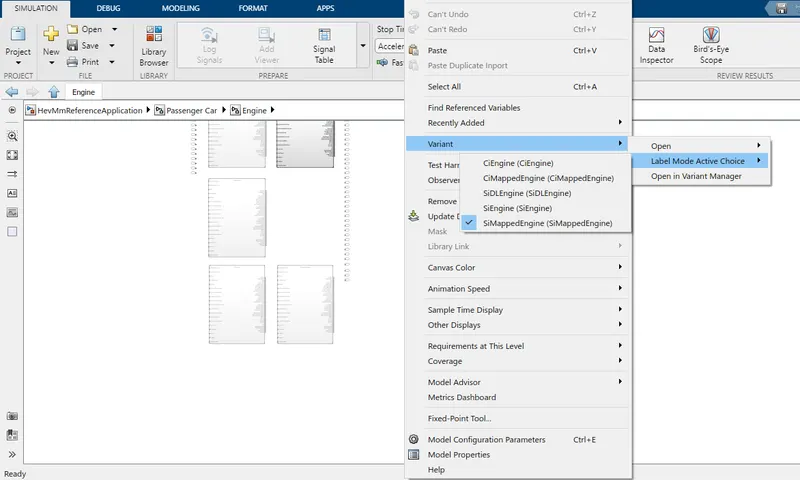

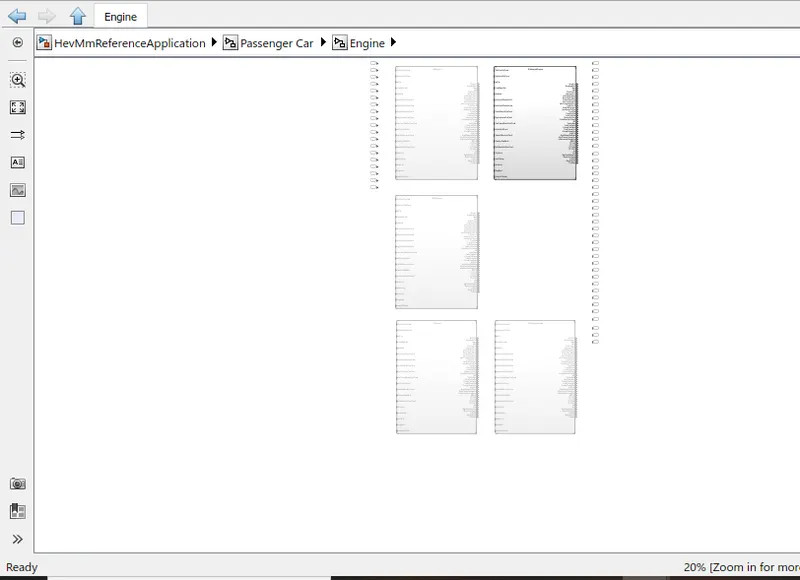

HevReferenceAplication>>Passanger Car>>Engine
in this subsystem
right click in model and folow the path as mentioned in screenshot
by following this we can change the model type
ANS-2 :-

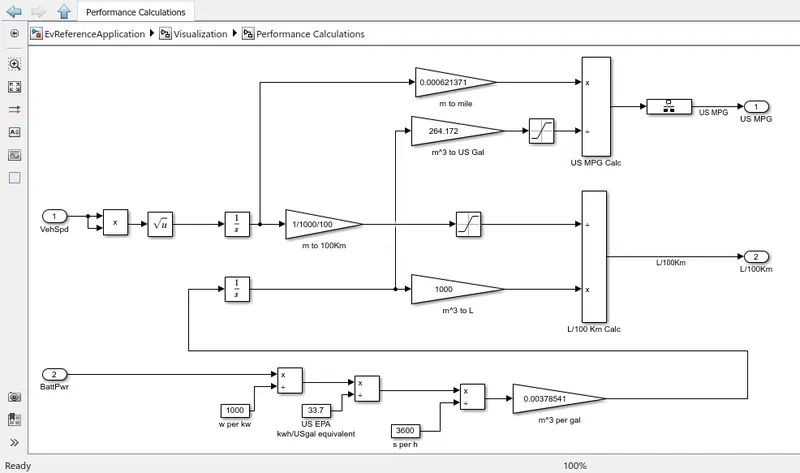

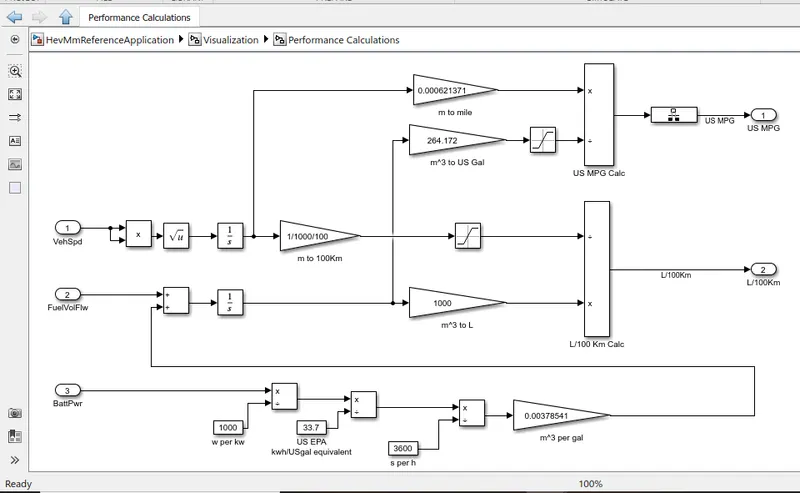

model calculate miles per gallon by Performance Calculations as we shown in screenshot
For EV
For HEV
To model fuel flow we have to consider
Vehicle Speed
Battery Power
ANS-3 :-

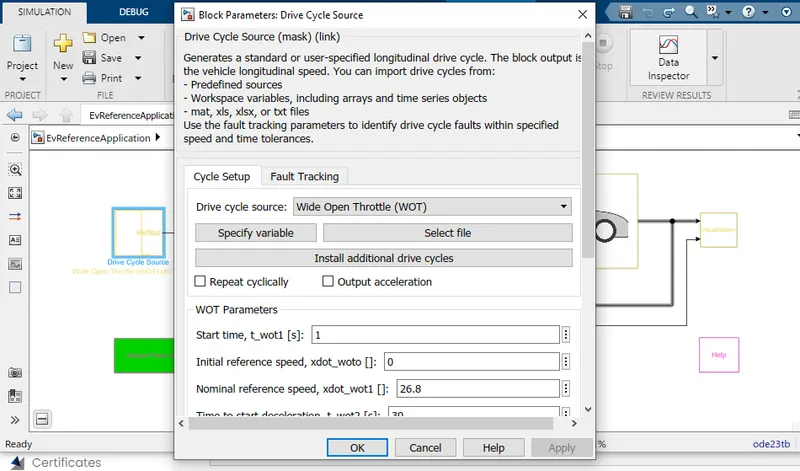

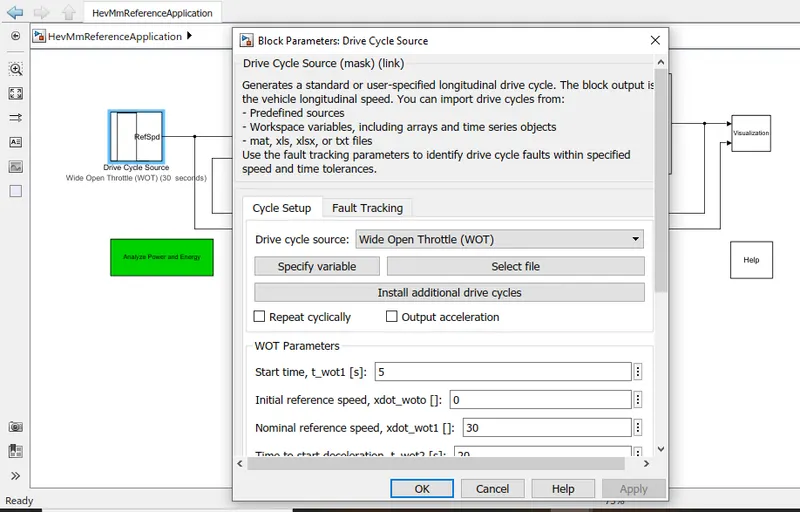

In HEV model we change the drive cycle source to WOT drive cycle

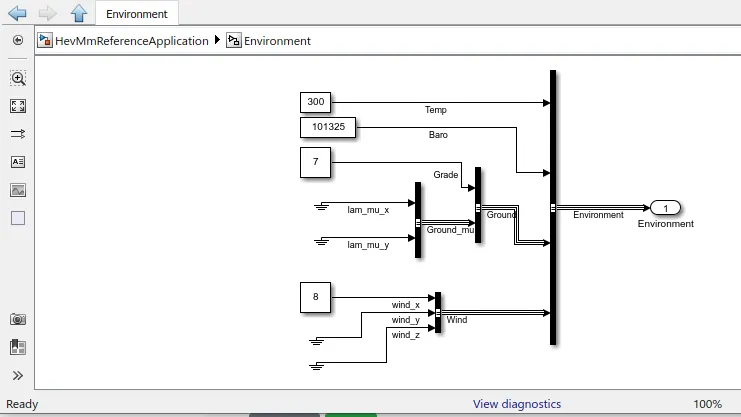

change the grade & wind velocity 0 & 0 to 7 & 8 in envioroment block

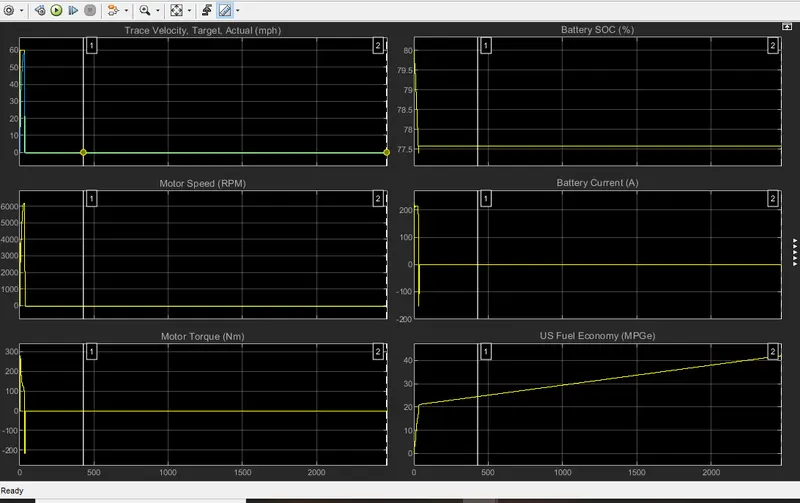

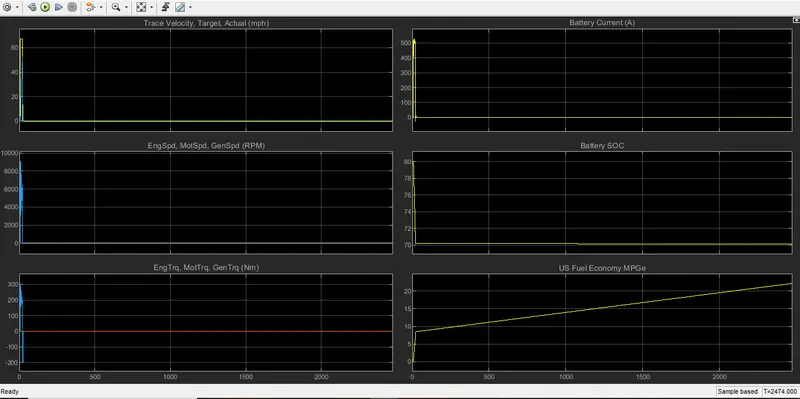

Result :-
ANS-4 :-
In HEV model we change the drive cycle source to WOT drive cycle
change the grade & wind velocity 0 & 0 to 7 & 8 in envioroment block
Result :-
By considering all parameter same in EV system
In EV model we change the drive cycle source to WOT drive cycle

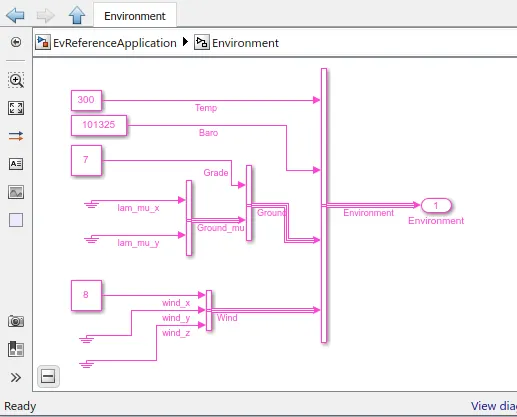

change the grade & wind velocity 0 & 0 to 7 & 8 in envioroment block
Result :-
