Week-4 Challenge WOT Condition Part-2

1.

Mapped Engine:- mapped engine is the default setting in powertrain ,It is used to measure performance parameters of the vehicle,this type of modelling is less accurate.

Dynamic engine:- this type of model uses real time data feb by user at run time of modelling.this model is moreaccurate than mapped engine model. This type of model is used when the data of subsystem of a vehicle is required , We can calculate all other factors like torque,air mass flow, fuel flow,emission

Mapped Motor:-the mapped motor works in torque control mode,this type of mtor is used when the user requires faster simulation.The output torque & refe torq is comparea & changes are made.

Dynamic Motor:-In dynamic motor a 3 phase interior permanent magnet is used,the block uses 3 phase input voltage to regulate the individual phase current,allowing control of the motor torque or speed, this block is used when the user knows what parameters need to be used for particular simulation.

2.

Miles per gallon:-

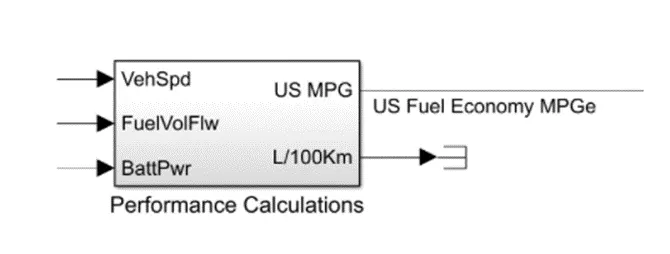

IT is calculated via this block,

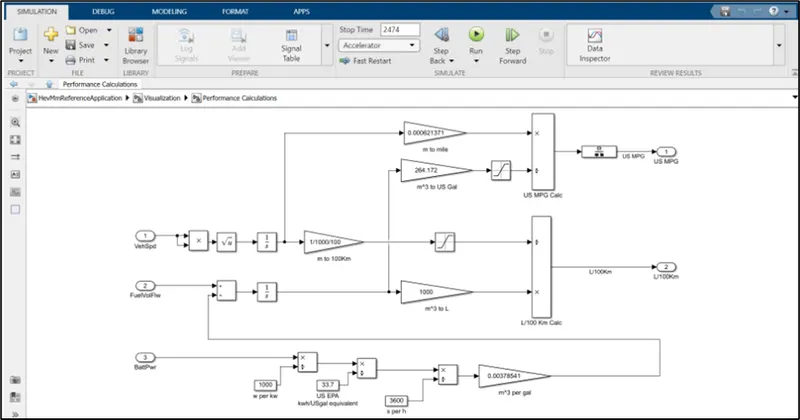

Battery converted into Kw, then it is divided by 33.7KwH, the fuel equivalvent is added to fuel flow

And the distance of travelling of vehicle of can be calculate by formula Speed=Dist/Time

Thus we can get the fuel efficiency.

3.
