Week 4 Challenge : CFD Meshing for BMW car

Aim:

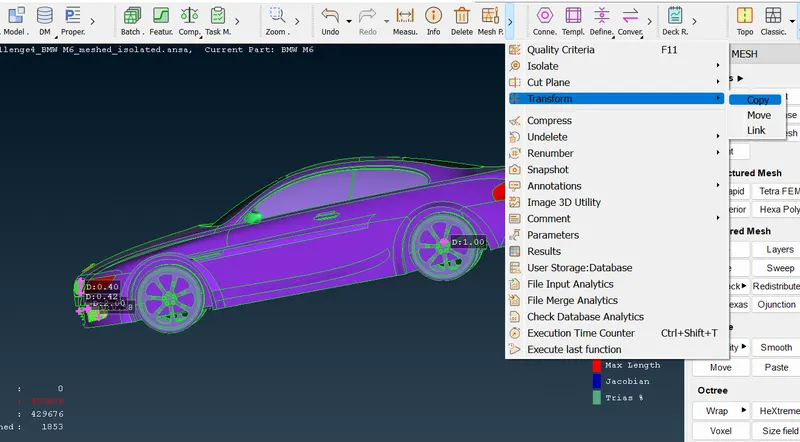

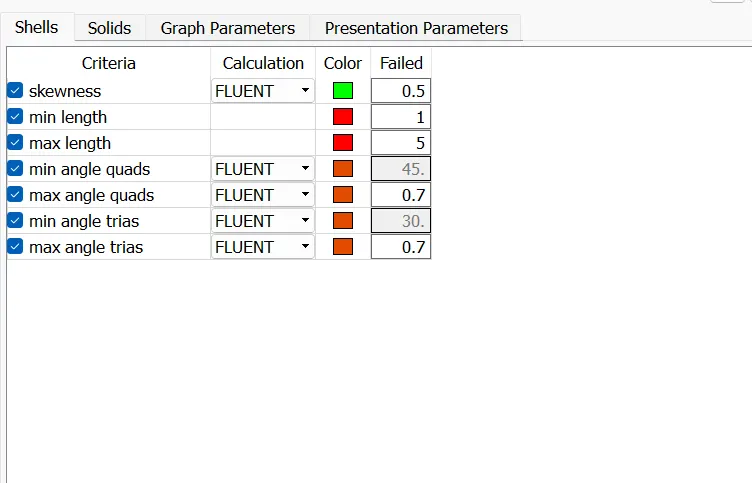

To check and solve all geometrical errors on half portion and Assign appropriate PIDs. Perform meshing with the given Target length and element Quality criteria. After meshing the half model, Do symmetry to the other side.

objective:

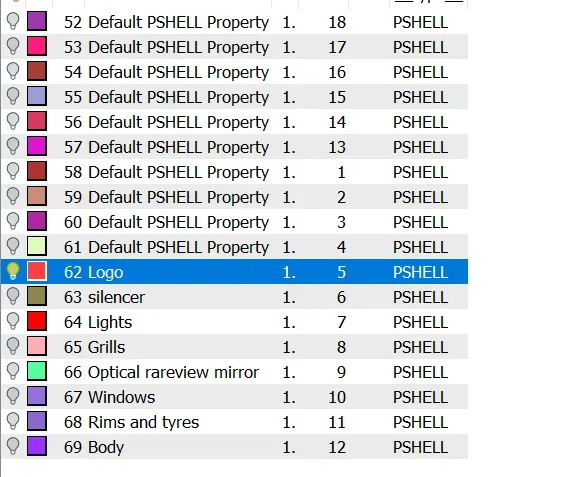

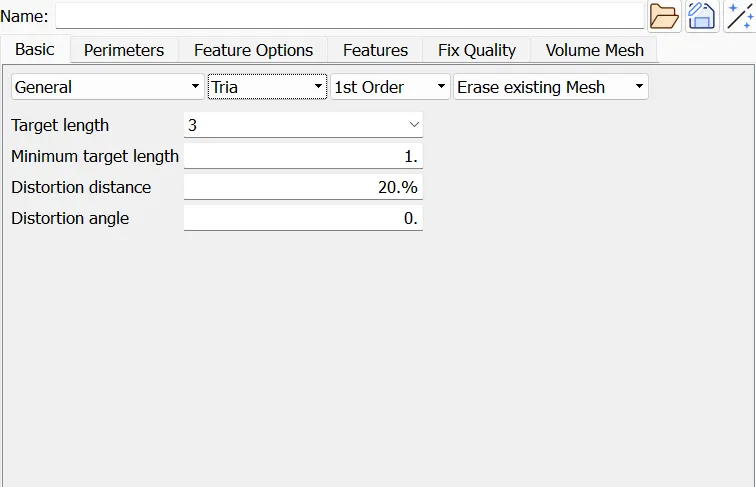

1. Target lengths for the different parts of a model are as follow:

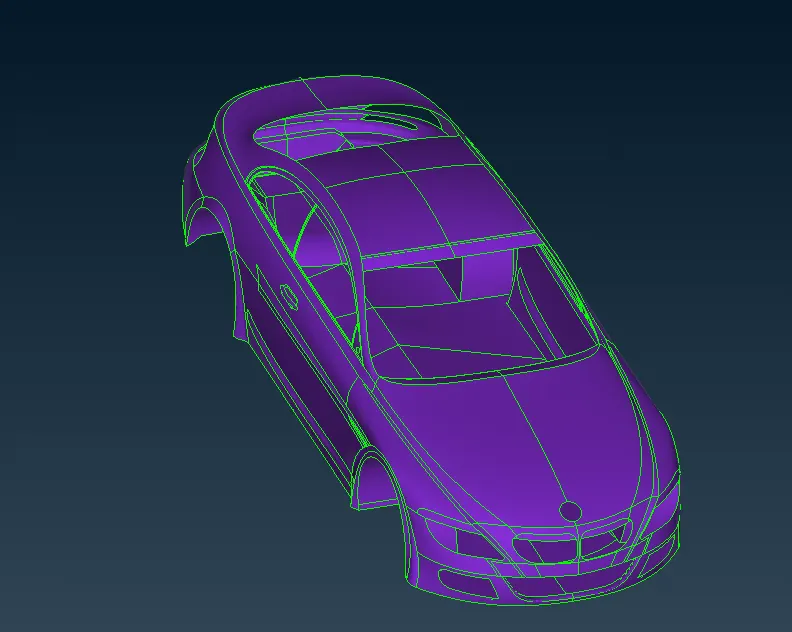

2. Body - 3 mm
3. Lights - 4 mm

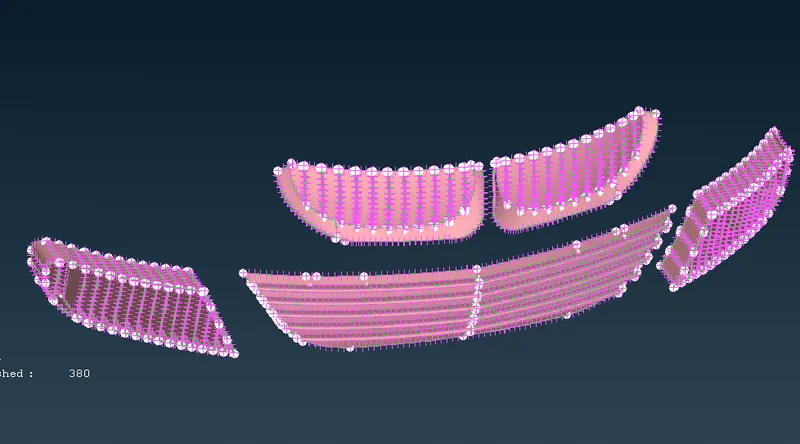

4. Grills - 1 mm

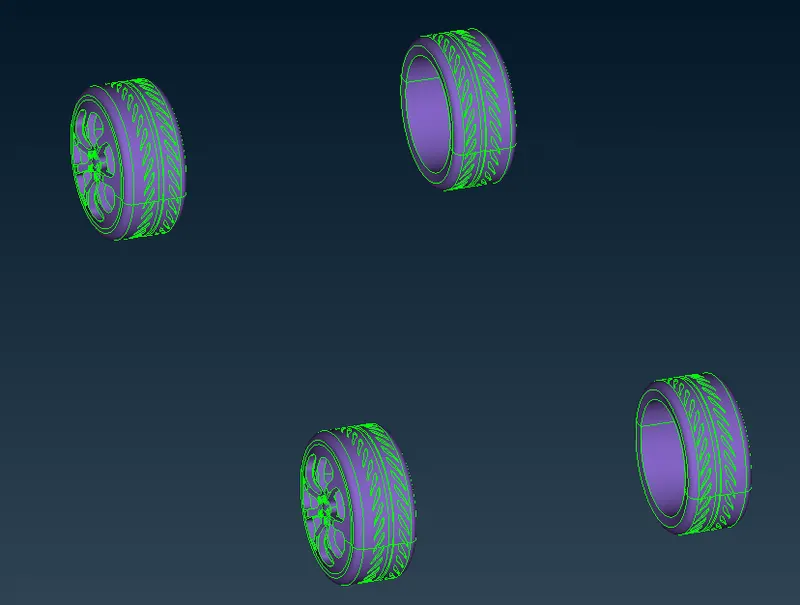

5. Rims and Tyres - 2 mm
6. Optical Rear view mirror - 2 mm

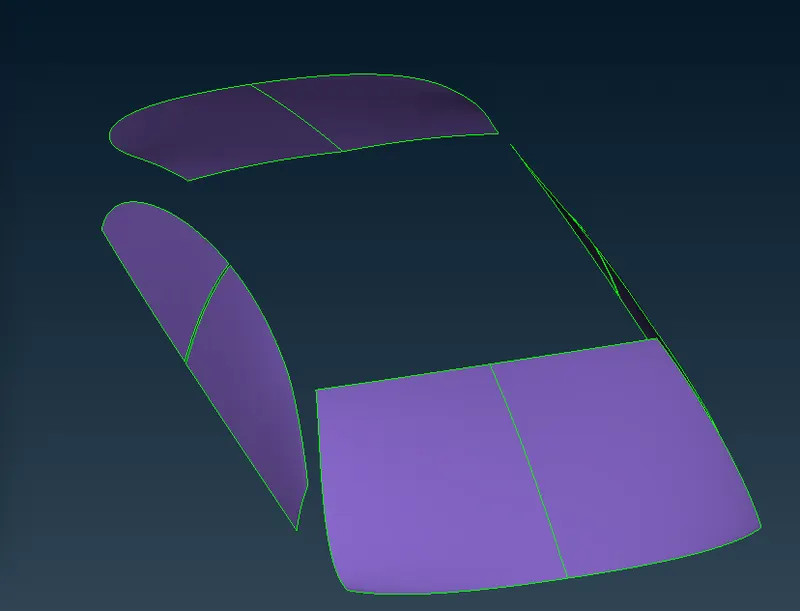

7. Window - 2 mm

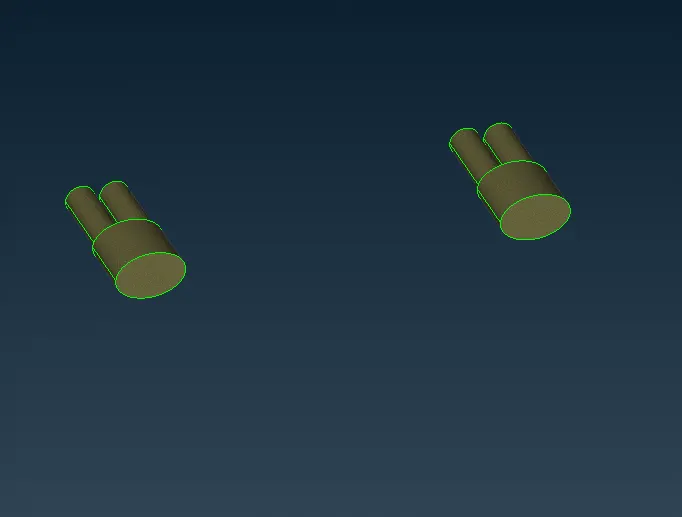

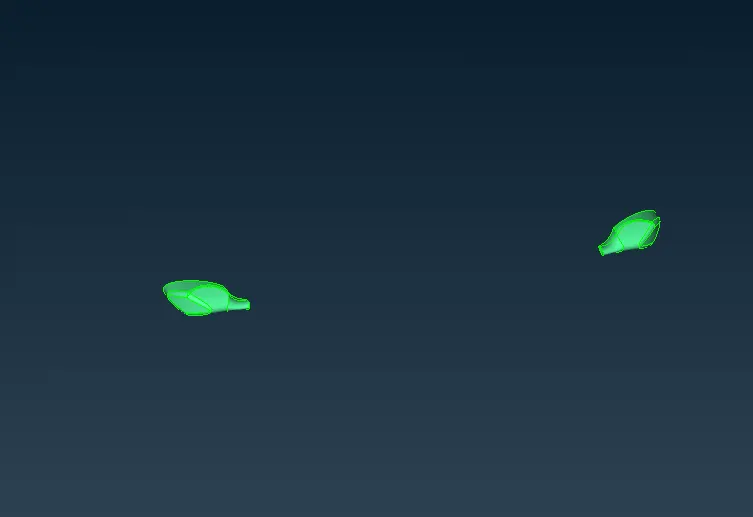

8. Silencer - 3 mm

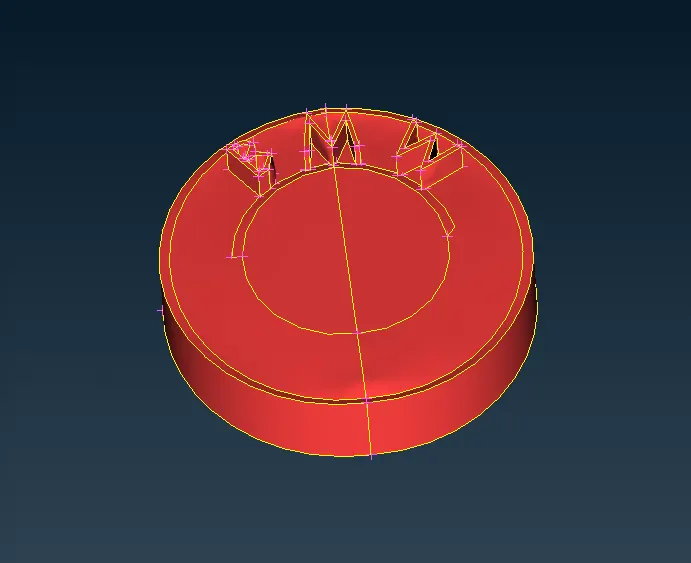

9. Logo - 1 mm

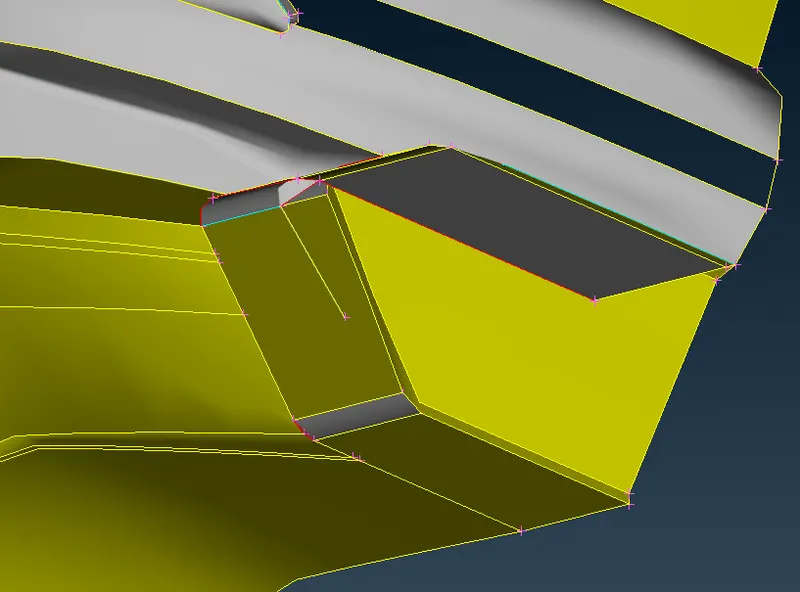

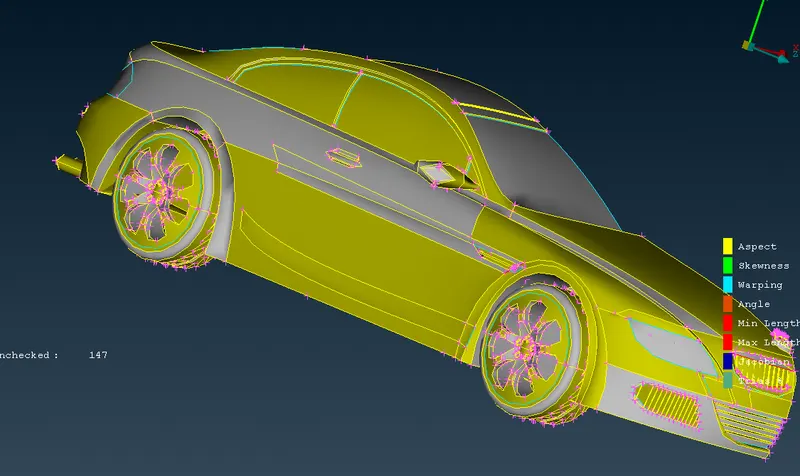

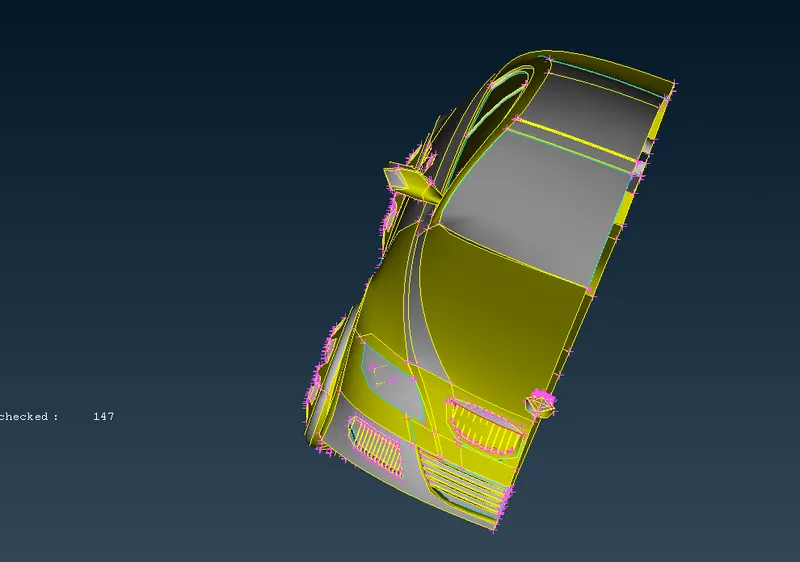

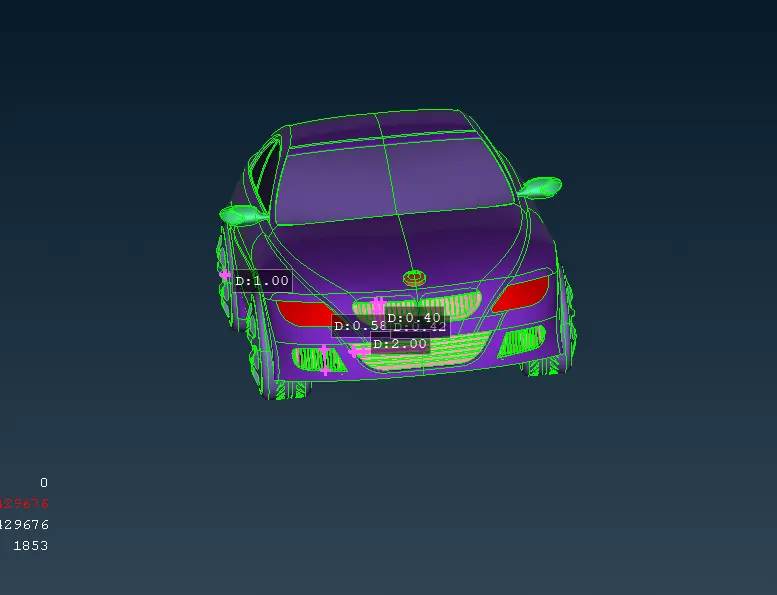

Geometry:

Conclusion:

Hence we have check and solve all geometrical errors on half portion and Assign appropriate PIDs. Perform meshing with the given Target length and element Quality criteria. After meshing the half model, Do symmetry to the other side.
